Globe SP8 Manual de usuario
Instruction Manual for the Globe Mixer
Model SP8
Model SP8
Model #:
Serial #:
This manual contains important safety instructions which
must be strictly followed when using this equipment.
For Service on Your Mixer
1. Visit our website at www.globefoodequip.com
2. Or call the Globe Service Department at 937-299-8625 and ask for contact
information for your local service company.
- IMPORTANT SAFETY NOTICE -
Visit our website for information on additional products available from Globe.
www.globefoodequip.com
Slicers, Mixers, Countertop Cooking Equipment, Meat Choppers & Scales
WARRANTY REGISTRATION
SCAN THE QR CODE WITH YOUR MOBILE DEVICE OR GO TO
WWW.GLOBEFOODEQUIP.COM
TO FILL OUT AND SUBMIT YOUR WARRANTY REGISTRATION.
WWW.GLOBEFOODEQUIP.COM/SUPPORT/WARRANTY-REGISTRATION-FORM
ATTENTION OWNERS AND OPERATORS................................................................................................................4
KEY COMPONENTS OF THE MIXER ........................................................................................................................5
INSTALLATION ...........................................................................................................................................................6
OPERATING INSTRUCTIONS................................................................................................................................ 7-9
CLEANING INSTRUCTIONS ....................................................................................................................................10
IMPORTANT POINTS ...............................................................................................................................................11
CAPACITY CHART....................................................................................................................................................12
TROUBLESHOOTING ........................................................................................................................................ 13-14
LIMITED MIXER WARRANTY...................................................................................................................................16
GLOBE FOOD EQUIPMENT COMPANY
2153 DRYDEN RD.
DAYTON, OH 45439
PHONE: 937-299-5493
TOLL FREE: 800-347-5423
FAX: 937-299-4147
WEBSITE: www.globefoodequip.com
© Globe Food Equipment Company, 2014 07022013
Ver. 1 Rev. 2_2014
Index
2153 DRYDEN RD.
DAYTON, OH 45439
PHONE: 937-299-5493
TOLL FREE: 800-347-5423
FAX: 937-299-4147
Page 4
Globe’s equipment is designed to provide safe and productive processing of food products as long as the equipment is
used in accordance with the instructions in this manual and is properly maintained. Unless the operator is adequately
trained and supervised there is a possibility of serious injury. Owners of this equipment bear the responsibility to make
certain that this equipment is used properly and safely, strictly following all the instructions contained in this manual
and the requirements of local, state or federal law.
Owners should not permit anyone to touch this equipment unless they are over 18 years old, are adequately trained
and supervised, and have read and understood this manual. Owners should also ensure that no customers, visitors
or other unauthorized personnel come in contact with this equipment. Please remember that Globe cannot anticipate
every circumstance or environment in which its equipment will be operated. It is the responsibility of the owner and
the operator to remain alert to any hazards posed by the function of this equipment. If you are ever uncertain about
a particular task or the proper method of operating this equipment, ask your supervisor.
This manual contains a number of precautions to follow to help promote safe use of this equipment. Throughout the
manual you will see additional warnings to help alert you to potential hazards.
Warnings affecting your personal safety are indicated by:
Warnings related to possible damage to the equipment are indicated by:
If any warning labels or this manual are misplaced, damaged, or illegible, or if you require additional copies, please
contact your nearest representative or Globe directly for these items at no charge.
Please remember that this manual or the warning labels do not replace the need to be alert, to properly train and
supervise operators, and to use common sense when using this equipment.
Attention Owners and Operators
or
Page 5
Key Components of the Mixer
FRONT VIEW
SIDE VIEW
Stop Button
Start Button
Splash Cover
Planetary Shaft
Bowl Handle
Speed Control
Ingredient Chute
Bowl
Bowl Slides
Timer Controls
Timer Display
Bowl Lift Lever
Splash cover Clamp
Bowl Clamp
Bowl Cradle
Power Cord
Overload Reset Button
Page 6
Installation
UNPACKING
Unpack the mixer immediately after receipt. If the machine is found to be damaged, save the packaging material
and contact the carrier within fteen (15) days of delivery. Immediately contact your source of the equipment.
You have no recourse of damage after fteen (15) days of receipt.
TO AVOID SERIOUS PERSONAL INJURY:
• ALWAYS install equipment in work area with adequate lighting and space.
• ONLY operate on a solid, level, nonskid surface that is nonammable.
• NEVER bypass, alter, or modify this equipment from its original condition. Doing so can create hazards and will
void warranty.
• NEVER operate mixer without all warning labels attached.
INSTALLATION
1. Read this manual thoroughly before installation and operation. DO NOT proceed with installation
and operation if you have questions or do not understand anything in this manual. Contact your local
representative or Globe rst.
2. Remove mixer from the box.
3. Select a location for mixer that has a level, solid, nonskid surface that is nonammable and is in a well-lighted
work area away from children and visitors.
4. Inspect mixer to make sure all parts have been provided (i.e., bowl, beater, whip, and hook).

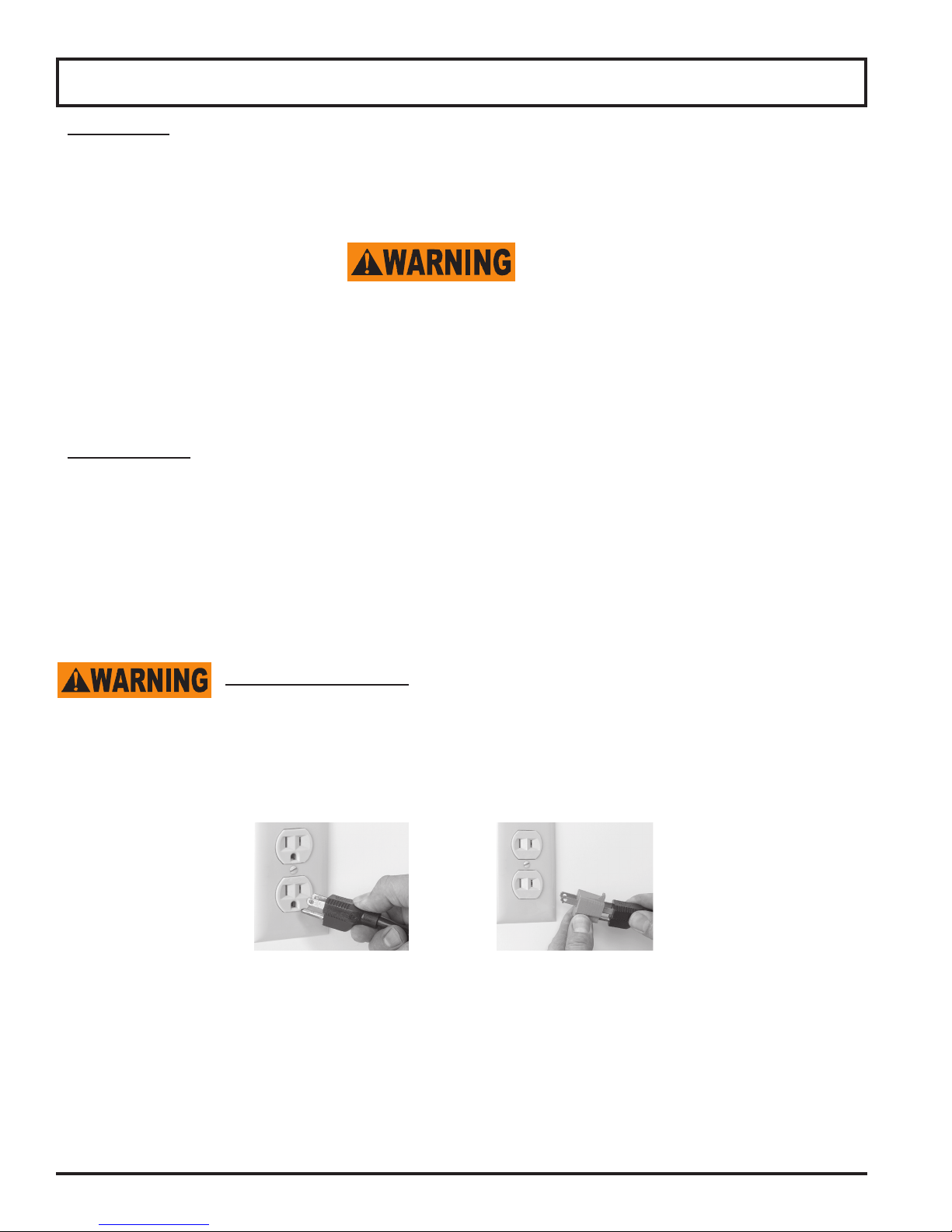

PROPER GROUNDING
THIS MACHINE IS PROVIDED WITH A THREE-PRONG GROUNDING PLUG. THE OUTLET TO WHICH THIS
PLUG IS CONNECTED MUST BE PROPERLY GROUNDED. IF THE RECEPTACLE IS NOT THE PROPER
GROUNDING TYPE, CONTACT AN ELECTRICIAN. DO NOT UNDER ANY CIRCUMSTANCES CUT OR
REMOVE THE THIRD GROUND PRONG FROM THE POWER CORD OR USE ANY ADAPTER PLUG (Fig. 6-1
and Fig. 6-2).
5. Complete the warranty registration online at www.globefoodequip.com/support/warranty-registration-form
6. Clean mixer before use. Refer to Cleaning Instructions on page 10. NOTE: It is normal for the factory to
apply a generous amount of grease in and on the machine before initial use. Excess high pressured grease
(brownish-black) can also be found on planetary shaft and some drippings can be found in bowl.
Fig. 6-1 Correct Fig. 6-2 Incorrect
Page 7
Operating Instructions
TO AVOID SERIOUS PERSONAL INJURY:
• DO NOT operate mixer before reading the instruction manual rst.
• ALWAYS disconnect or unplug electrical power before cleaning, servicing, or adjusting parts or attachments.
• ALWAYS keep hands, hair and clothing away from moving parts.
ATTACHING BOWL TO MIXER
NOTE: Install bowl BEFORE attaching agitators.
1. Lower bowl by pushing bowl lift lever backward and down to its resting position.
2. Lift bowl by bowl handle.
a. Slowly position the locking pin (located on rear of bowl) into hole in the middle rear
of cradle (Fig. 7-1).
b. Lower bowl onto pins located on either side of bowl cradle.
3. Once bowl is positioned on cradle, secure bowl by pulling both bowl clamps forward until bowl is
locked tight (Fig. 7-2).
ATTACHING AGITATOR TO MIXER (i.e., Beater, Hook, Whip)
NOTE: It is easier to install agitator before adding ingredients into bowl.
1. The bowl must be in lowered position and splash cover must be removed (Fig. 7-3).
2. Slide agitator slowly upwards onto planetary shaft, tting shaft pin through the slot in agitator
(Fig. 7-4).
3. Rotate agitator clockwise to secure it onto planetary shaft (Fig. 7-5).
MIXING INGREDIENTS
Follow the capacity chart located on page 12 in this owners manual.
Overloading or not following this chart will damage mixer and void the warranty.
IMPORTANT: Make sure the speed control lever is on the rst (1) speed.
Fig. 7-1
Fig. 7-2
Fig. 7-3
Fig. 7-4 Fig. 7-5
Page 8
Operating Instructions
1. Add appropriate mixing ingredients into bowl.
2. Put splash cover on top of bowl and align the arrow on splash cover with notch on
rim of bowl (Fig. 8-1).
3. Secure splash cover by squeezing both metal clamps while pressing down on
splash cover (Fig. 8-2).
4. Lift completely up on bowl lift lever until bowl locks into position (Fig. 8-3).
NOTE: Mixer will not start if bowl is in lowered position.
NOTE: Time display must be illuminated. If it is not illuminated press stop button.
5. Press up arrow to set timer to appropriate mixing time.
6. Lift for lower speed control to select appropriate speed setting.
Three xed speeds are available for use: rst (1), second (2) and third (3).
Recommended speeds while mixing:
Gear Speed Product Type/Ingredient
1 (low) Heavy: mixing pizza, bread, pasta and donut doughs, wafe/cake
batter, mashing potatoes
2 (medium) Medium: 2nd stage of mixing for donut dough, etc.
3 (high) Light: whipping cream, egg whites, meringue
IMPORTANT: When mixing product always follow the recommended agitator and
speed setting according to the capacity chart located on page 12 of this manual.
7. Press green start button located on middle of control panel.
Always STOP mixer BEFORE changing speeds! Failure to
do so can damage gears or other parts and WILL void the
warranty!
8. To change speed while mixing.
a. Press red stop button twice
b. Change speed by raising or lowering speed control lever
c. Press green start button to restart mixer.
NOTE: If the mixer shuts off during operation, reduce the batch size.
NOTE: Mixer is equipped with motor overload protection. If mixer shuts off during operation press stop button and
reduce the batch size; then press overload reset button located on the back of mixer base.
NOTE: Reduce batch size by 10% if using chilled our, water below 70°F, or ice in the mix.
Fig. 8-1
Fig. 8-2
Fig. 8-3
Page 9
Operating Instructions
IMPORTANT: For heavier loads, mixer must not run longer than fteen minutes without pausing for a cool down
period of at least fteen minutes or more before resuming mixing. For lighter loads, mixer must not run longer than
thirty minutes without pausing for a cool down period of at least thirty minutes or more before resuming mixing.
9. When the ingredients have been thoroughly mixed, press red stop button to stop mixer.
NOTE: The mixer will automatically stop when the time on the timer has expired.
10. Lower bowl by pushing bowl lift lever backwards and down to its resting position.
11. Remove splash cover by pressing splash cover clips and raising it off of bowl.
12. Remove agitator from planetary shaft by lifting it upwards, then rotate it counterclockwise until it is
unlocked. Lower the agitator and remove from the planetary shaft.
13. Push each bowl clamp backwards to unlock bowl from bowl cradle.
14. Lift up slightly on bowl so it clears pins on bowl cradle.
Page 10
• Dilute detergent per supplier’s instruction.
• DO NOT hose down or pressure wash any part of mixer.
• NEVER use a scrubber pad, steel wool, or abrasive material to clean mixer.
• NEVER use bleach (sodium hypochlorite) or bleach-based cleaner.
• ALWAYS remove agitator after each batch. If not, agitator can become stuck on shaft and can be
difcult to remove.
The entire mixer, including removable parts, must be thoroughly cleaned and sanitized using the
procedures identied by your local health department and the ServSafe Essentials published by the
National Restaurant Association Educational Foundation (NRAEF). Visit www.servsafe.com for
more details.
It is extremely important to sanitize the mixer and to follow the instructions on the quaternary
sanitizer container to ensure proper sanitation is achieved.
ALWAYS DISCONNECT OR UNPLUG THE ELECTRICAL POWER FROM THE MIXER BEFORE
CLEANING.
RECOMMENDED CLEANING
PART REQUIRED ACTION FREQUENCY
Agitators Hand wash using mild soap and water; rinse, dry, and sanitize. Clean after each use.
Bowl Use a scrubber pad, mild soap and apply water pressure Clean after each use.
to make sure bowl is clean; rinse, dry, and sanitize. Bowl
can also be placed in a dishwaser for cleaning.
Splash cover Hand wash using mild soap and water; rinse, dry, and sanitize. Clean after each use.
Bowl Cradle Hand wash using mild soap and water; rinse, dry, and sanitize. Daily
Planetary Shaft Wipe with clean, damp cloth, dry, and sanitize. Clean after each use.
Exterior Hand wash using mild soap and water; rinse, dry, and sanitize. Daily
DO NOT use a water hose!
Cleaning Instructions
