Global Sat LT-10 Series Manual de usuario

GlobalSat LT-10 Series

User Manual

Version: 0.9

GlobalSat WorldCom Corporation

16F., No. 186, Jian 1st Rd., Zhonghe Dist.,

New Taipei City 23553, Taiwan

Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899

lora@globalsat.com.tw

www.globalsat.com.tw

USGlobalSat Incorporated

14740 Yorba Court, Chino, CA 91710

Tel: 888.323.8720 / Fax: 909.597.8532

sales@usglobalsat.com

TABLE OF CONTENTS

1. Warning........................................................................................................................................... 3

2. Welcome.......................................................................................................................................... 4

3. Introduction..................................................................................................................................... 5

3.1 Introduction.................................................................................................................5

3.2 LED Indicators............................................................................................................6

4. Device Operation ............................................................................................................................ 6

4.1 Device Charging..........................................................................................................6

4.2 Switch On/Off.............................................................................................................7

4.3 Parameter Settings via Android App ............................................................................8

4.4 Firmware Upgrade via Android App..........................................................................13

5. Safety Information .........................................................................................................................17

6. Limited Warranty............................................................................................................................17

1. Warning

USE RESPONSIBLY. READ ALL INSTRUCTIONS AND

SAFETY INFORMATION BEFORE USE.

GlobalSat WorldCom Corporation / USGlobalSat, Inc., will not accept any responsibility

whatsoever for accidents or violations of local Laws resulting from failure to observe

common sense precautions and local laws. Your personal judgment, traffic regulations,

and common sense must always take precedence over any directions produced by GPS

receiver or the mapping software.

Indemnification:

User agrees to defend, indemnify and hold harmless GlobalSat WorldCom Corp. and USGlobalSat,

Inc., its officers, directors, employees and agents against and from any third party claims, actions,

damages or demands, including but not limited to, reasonable legal and accounting fees, resulting

from user's use or misuse of this product, violation of these Terms, or any activities related to this

product, or from user's violations of the rights of any other user of this product. Use of this Product is

at user's own risk.

2. Welcome

Thank you for purchasing the GlobalSat LT-10. The LT-10 is a light animal ear tag tracking

device. We appreciate your purchase of a GlobalSat WorldCom Product!

3. Introduction

3.1 Introduction

The LT-10 is a solar LoRaWANTM tracker designed for range animal use. The high

performance solar cell can provide sufficient power for continuous LoRa® transmission.

They are the size of a standard management tag reusable GPS ear tag is powered using

a battery and integrated solar cell.

1 Ear Tag Hole

2 LED Indicator

3 Solar Panel

3. Introduction (Continued)

3.2 LED Indicators

LoRa LED

LED

Blink Red 2 times

State

Data transmitting

BLE LED

LED

Blink Red 2 times

(100ms on,100ms off)

Blink Red 1 time

per seconds

Blink Red 1 time

per 5 seconds

State

LT-10 is able to do BLE

advertising.

LT-10 is searching for

App.

LT-10 is connected by

App.

4. Device Operation

4.1 Device Charging

Please put our device which solar panel face to proper sunshine to charge. It will take

several days to be charged to at least 90% for the real cattle tracking.

Notice:

1. Please note the device will be charging by solar panel only when it’s on.

2. When it is in low battery mode, it could not join to network server and send

any report.

4.2 Switch On/Off

1. To turn the device “ON”, please take a proper magnet under device’s LED for 4

seconds as picture above. Then it would blink Red 3 times (100ms on, 100ms off).

There are two kinds of behavior as following table when the device is on.

Operation mode

Low battery mode

Take magnet under device’s LED for 1

second and it will blink Red 1 time

(100ms).

Take magnet under device’s LED for 1

second and it will blink Red 1 time

(1 second). It will not send any report.

2. To turn the device “OFF”, please take a proper magnet under device’s LED for 4

seconds. Then it would blink Red 3 times (100ms on, 100ms off).

Noted: Take magnet under device LED for 1 second and it has no LED blink.

3. To do hardware reset, Take magnet under device’s LED for 11 seconds and it would

blink Red for 3 seconds (50ms on, 50ms off).

4.3 Parameter Settings via Android/iOS App

1. Install LT-10 App as the following link and QR code.

iOS version: http://d.3appstore.com/b9lj?utm_source=fir&utm_medium=qr

Android version: https://play.google.com/store/apps/details?id=tw.com.globalsat.lt10

It would have icon as following.

We use Android App’s operation as an example for chapter 4.3 and 4.4.

2. Make sure you turn on BLE for mobile device and open LT-10 App.

3. Turn on device by putting magnetic under device’s LED for 4 seconds, it would blink

Red 3 times.

4. Putting magnetic under device’s LED for 2 seconds till you see Red LED blink twice.

Then move magnetic to be far from device.

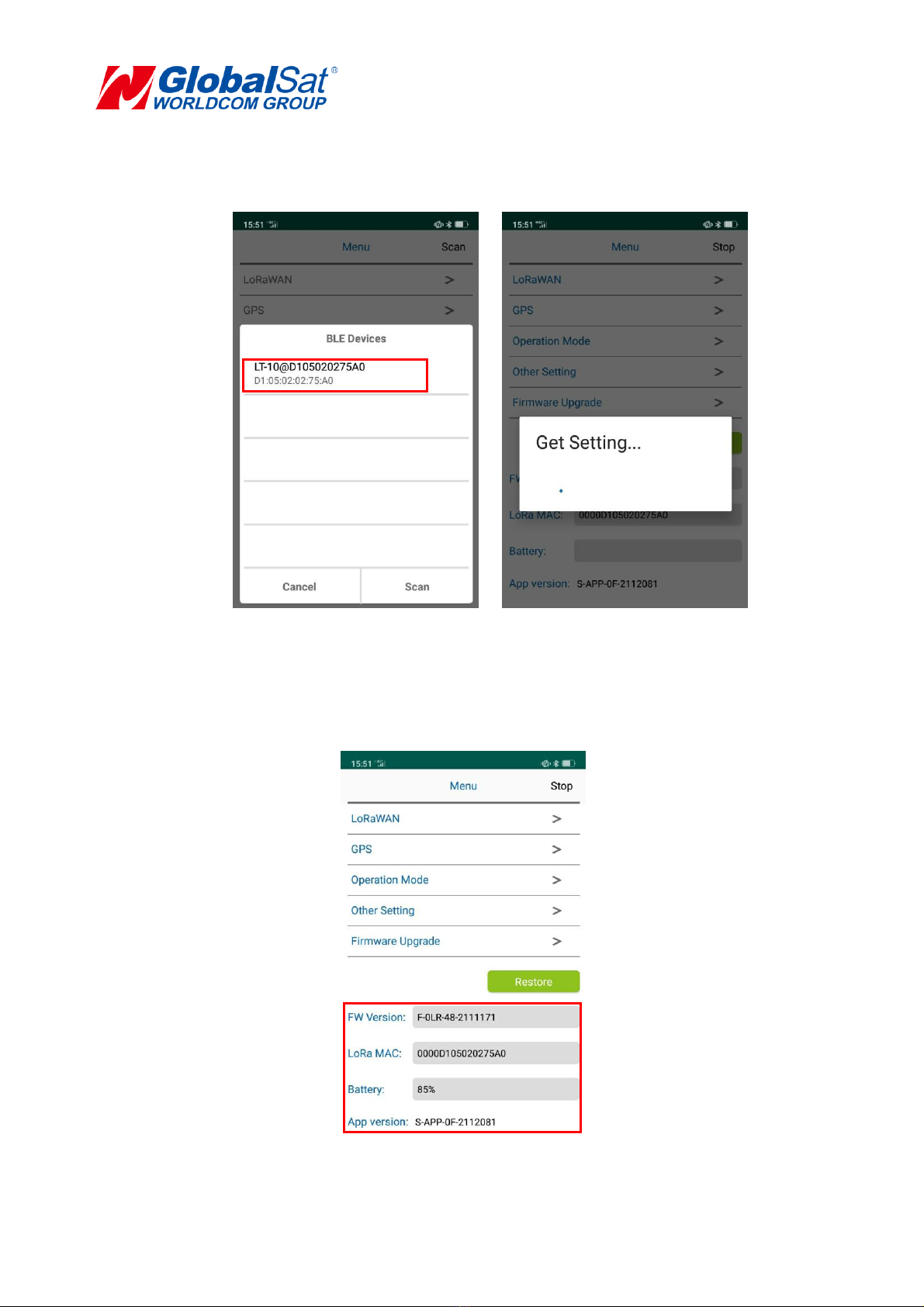

5. Click Scan button, it will search for LT-10 device and click it which you would like to

do settings as the following left picture. After pairing with the device, it would get

settings.

6. Then FW version, LoRa MAC, device battery level, App Version would be shown at

the bottom of menu. You could modify parameters by entering into each item of

menu, for example, LoRaWAN, GPS, and Operation Mode etc.

7. When entering into LoRaWAN settings, you could modify Join Mode, DevAddr,

AppSKey, NwkSKey, Tx_Band etc. Please adjust these settings according to

network server’s settings carefully. Otherwise, it will cause network server

connection issue. After modifying all the settings, click Apply button to write all these

settings to the device.

If you are sure to apply the settings, click Confirm button, it will reboot automatically and

interrupt BLE connection once saving all the settings successfully.
