Gigabyte GA-H110TN Manual de usuario

GA-H110TN

GA-H110TN-GSM PLUS

User's Manual

Rev. 1001

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

GA-H110TN GA-H110TN-GSM PLUS

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

GA-H110TN

GA-H110TN-GSM PLUS

May 20, 2016

Motherboard

GA-H110TN

GA-H110TN-GSM PLUS

- 3 -

Table of Contents

GA-H110TN/GA-H110TN-GSM PLUS Motherboard Layout............................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................23

2-1 Startup Screen ............................................................................................... 23

2-2 M.I.T. .............................................................................................................. 24

2-3 System Information ........................................................................................ 29

2-4 BIOS Features ............................................................................................... 30

2-5 Peripherals..................................................................................................... 33

2-6 Chipset........................................................................................................... 35

2-7 Power Management....................................................................................... 36

2-8 Save & Exit..................................................................................................... 38

Chapter 3 Appendix ......................................................................................................39

Drivers Installation..................................................................................................... 39

Regulatory Statements.............................................................................................. 40

Contact Us ................................................................................................................ 42

- 4 -

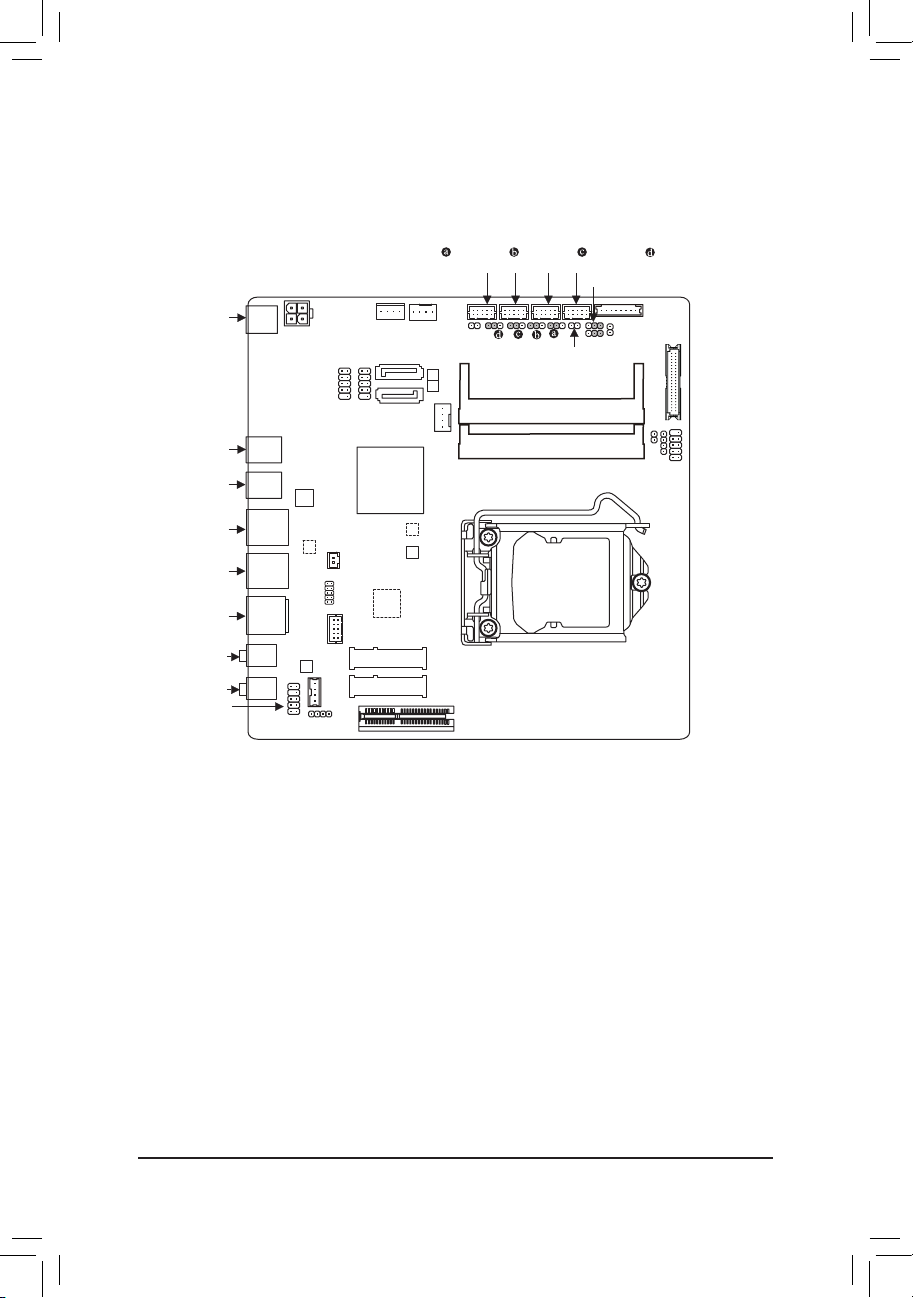

GA-H110TN/GA-H110TN-GSM PLUS Motherboard Layout

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5GA-H110TN or GA-H110TN-GSM PLUS motherboard

5Motherboard driver disk 5Two I/O Shields

5User's Manual 5One COM port cable

5Two SATA cables 5One VGA port cable

5One SATA power cable

DC_PWR

ATX_12V

CPU_FAN

LGA1151

LVDS

BAT

SATA PWR

Intel®H110

SYS_FAN

GA-H110TN

GA-H110TN-GSM PLUS

PCIEX4

MIC_IN

FPD_PWR

COMACOMC

MSATA_MPCIE2

SATA3

FPD

F_PANEL

MPCIE1

DMIC_CON

LINE_OUT

F_AUDIO

CODEC

SPKR

VGA

GPIO

BAT_CON

Intel®GbE LAN (Note)

iTE®

Super I/O (Note)

F_USB1

F_USB2

SPEAKER

CLR_CMOS

BL_SW

CI LCD_VCC

COMD COMB

MON_SW

DP_HDMI

LAN2

LAN1

Intel®GbE LAN

R_USB30_2

R_USB30_1

COMA_PW COMB_PW COMC_PW COMD_PW

DDR4_1

DDR4_2

(Note) This chip is on the back of the motherboard.

M_BIOS

B_BIOS(Note)

- 5 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/

Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H110 Express Chipset

Memoryj2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

Dual channel memory architecture

Support for DDR4 2133 MHz memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

Maximum shared memory of 512 MB

Audio

Realtek®ALC887 codec

High Denition Audio

2/4/5.1/7.1-channel

LAN 2 x Intel®GbE LAN chips (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x4 slot

(The PCI Express x4 slot conforms to PCI Express 3.0 standard.)

1 x full size Mini PCIe slot (MSATA_MPCIE2)

* The MSATA_MPCIE2 slot can also be used as an MSATA connector.

1 x half size Mini PCIe slot (MPCIE1)

(The Mini PCIe slot conforms to PCI Express 2.0 standard.)

Storage Interface Chipset:

- 2 x SATA 6Gb/s connectors

- 1 x MSATA connector (MSATA_MPCIE2)

USB Chipset:

- 4 x USB 3.0/2.0 ports on the back panel

- 4 x USB 2.0/1.1 ports available through the internal USB headers

- 7 -

Internal

Connectors

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

2 x SATA 6Gb/s connectors

1 x MSATA connector (MSATA_MPCIE2)

1 x SATA power connector

1 x front panel header

1 x front panel audio header

1 x battery cable header

2 x USB 2.0/1.1 headers

4 x serial port headers

4 x serial port power select jumpers

1 x D-Sub header

1 x digital microphone header

1 x GPIO header

1 x LVDS header

1 x LVDS drive voltage jumper

1 x at panel display header

1 x at panel display power jumper

1 x at panel display switch header

1 x backlight switch header

1 x speaker header

1 x buzzer header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel

Connectors

1 x DC In power connector

1 x HDMI port

1 x DisplayPort

4 x USB 3.0/2.0 ports

2 x RJ-45 ports

2 x audio jacks (Line Out, Mic In)

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

System voltage detection

CPU/System temperature detection

CPU/System fan fail warning

CPU/System fan speed detection

CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 2 x 64 Mbit ash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- 8 -

Please visit GIGABYTE's website for support lists of CPU, memory modules,

and SSDs.

GA-H110TN GA-H110TN-GSM PLUS

Please visit the Support\Utility List page on GIGABYTE's website to download the latest

version of apps.

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard speciﬁcations.

- @BIOS

Support for Q-Flash

Bundled

Software

Norton®Internet Security (OEM version)

Operating

System

Support for Windows 10/8.1 64-bit

Support for Windows 7 32-bit/64-bit

* Please download the "Windows USB Installation Tool" from GIGABYTE's website

and install it before installing Windows 7.

Form Factor Thin Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

- 9 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Please visit GIGABYTE's website for details on hardware installation.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Alignment KeyAlignment Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

LGA1151 CPU

Triangle Pin One Marking on the CPU

Notch

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

- 10 -

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR4_1

Channel B: DDR4_2

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

DC Power Jack

Connect the DC power to this port. This port supports 12V/19V/24V power adapter of up to 150w. Note:

The DC power jack cannot be used with the 4-pin ATX 12V power connector simultaneously as a source

of power input.

USB 3.0/2.0 Port

TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.

Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Activity LED Connection/

Speed LED

LAN Port Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

Activity LED:

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte 8VM800M-RZ Manual de usuario

Gigabyte

Gigabyte H610M H DDR4 Manual de usuario

Gigabyte

Gigabyte GA-B75M-HD3 Manual de usuario

Gigabyte

Gigabyte GA-MA69GM-S2H Manual de usuario

Gigabyte

Gigabyte GA-H67MA-UD2H-B3 Manual de usuario

Gigabyte

Gigabyte GA-8I865GME-775 Manual de usuario

Gigabyte

Gigabyte GA-4MXSV Manual de usuario

Gigabyte

Gigabyte GA-H170-D3H Manual de usuario

Gigabyte

Gigabyte GA-8IG1000 Pro-G Manual de usuario

Gigabyte

Gigabyte GA-H61-S3 Manual de usuario

Gigabyte

Gigabyte GA-H81M-S2V Manual de usuario

Gigabyte

Gigabyte Network Device GA-7N400 Manual de usuario

Gigabyte

Gigabyte GA-B85M-HD3 Manual de usuario

Gigabyte

Gigabyte 6BXA Manual de usuario

Gigabyte

Gigabyte GA-G33-DS3R Manual de usuario

Gigabyte

Gigabyte GA-EP45-UD3 Manual de usuario

Gigabyte

Gigabyte H410M HD3P Manual de usuario

Gigabyte

Gigabyte GA-7VT600-P Manual de usuario

Gigabyte

Gigabyte GA-MA790GPT-UD3H Manual de usuario

Gigabyte

Gigabyte 6VX7-4X Manual de usuario

Gigabyte

Gigabyte GA-945GCM-S2 Manual de usuario

Gigabyte

Gigabyte B650 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-7DXE Manual de usuario

Gigabyte

Gigabyte Z490 VISION D Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
