Gigabyte GA-EP45-UD3 Manual de usuario

GA-EP45-UD3

LGA775 socket motherboard for Intel®Core™ processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1101

12ME-EP45U3-1101R

Motherboard

GA-EP45-UD3

Sept. 30, 2008

Motherboard

GA-EP45-UD3

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the information

on/from the Support&Downloads\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-EP45-UD3 Motherboard Layout................................................................................7

Block Diagram .................................................................................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions.................................................................................... 9

1-2 Product Specications.................................................................................... 10

1-3 Installing the CPU and CPU Cooler ............................................................... 13

1-3-1 Installing the CPU...................................................................................................13

1-3-2 Installing the CPU Cooler .......................................................................................15

1-4 Installing the Memory..................................................................................... 16

1-4-1 Dual Channel Memory Conguration .....................................................................16

1-4-2 Installing a Memory ...............................................................................................17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Back Panel Connectors.................................................................................. 19

1-7 Internal Connectors........................................................................................ 21

Chapter 2 BIOS Setup ..................................................................................................33

2-1 Startup Screen ............................................................................................... 34

2-2 The Main Menu .............................................................................................. 35

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 37

2-4 Standard CMOS Features.............................................................................. 45

2-5 Advanced BIOS Features .............................................................................. 47

2-6 Integrated Peripherals.................................................................................... 50

2-7 Power Management Setup............................................................................. 53

2-8 PnP/PCI Congurations ................................................................................. 55

2-9 PC Health Status............................................................................................ 56

2-10 Load Fail-Safe Defaults.................................................................................. 58

2-11 Load Optimized Defaults................................................................................ 58

2-12 Set Supervisor/User Password ...................................................................... 59

2-13 Save & Exit Setup .......................................................................................... 60

2-14 Exit Without Saving........................................................................................ 60

- 5 -

Chapter 3 Drivers Installation........................................................................................61

3-1 Installing Chipset Drivers ............................................................................... 61

3-2 Application Software ...................................................................................... 62

3-3 Technical Manuals.......................................................................................... 62

3-4 Contact........................................................................................................... 63

3-5 System ........................................................................................................... 63

3-6 Download Center ........................................................................................... 64

Chapter 4 Unique Features...........................................................................................65

4-1 Xpress Recovery2.......................................................................................... 65

4-2 BIOS Update Utilities ..................................................................................... 68

4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................68

4-2-2 Updating the BIOS with the @BIOS Utility .............................................................71

4-3 EasyTune 6 .................................................................................................... 72

4-4 Dynamic Energy Saver Advanced.................................................................. 73

4-5 Q-Share.......................................................................................................... 75

4-6 Time Repair.................................................................................................... 76

Chapter 5 Appendix ......................................................................................................77

5-1 Conguring SATA Hard Drive(s)..................................................................... 77

5-1-1 Conguring GIGABYTE SATA2 SATA Controller....................................................77

5-1-2 Making a SATA RAID/AHCI Driver Diskette............................................................84

5-1-3 Installing the SATA RAID/AHCI Driver and Operating System...............................85

5-2 Conguring Audio Input and Output............................................................... 90

5-2-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................90

5-2-2 Conguring S/PDIF In/Out......................................................................................92

5-2-3 Conguring Microphone Recording........................................................................94

5-2-4 Using the Sound Recorder .....................................................................................96

5-3 Troubleshooting.............................................................................................. 97

5-3-1 Frequently Asked Questions ..................................................................................97

5-3-2 Troubleshooting Procedure ....................................................................................98

5-4 Regulatory Statements................................................................................. 100

- 6 -

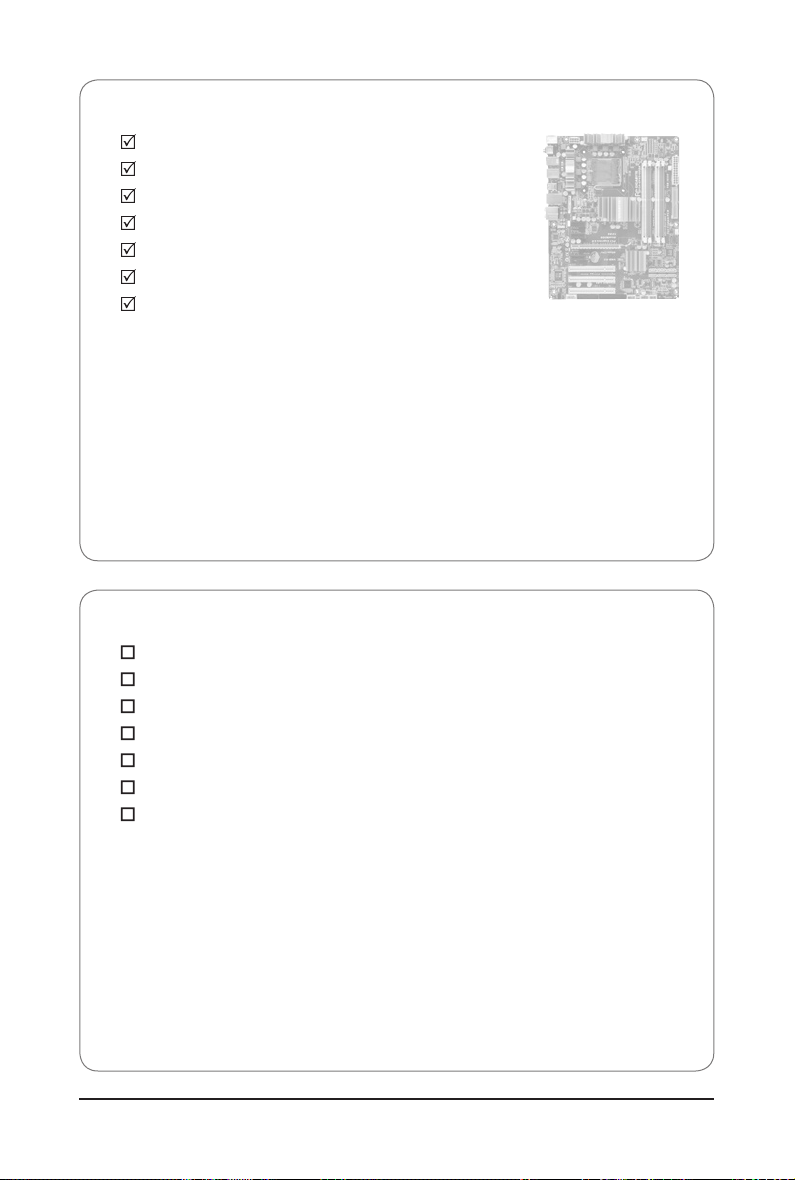

Box Contents

GA-EP45-UD3 motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

One IDE cable

Two SATA 3Gb/s cables

I/O Shield

Optional Items

Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)

2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)

2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)

S/PDIF In cable (Part No. 12CR1-1SPDIN-0*R)

COM port cable (Part No. 12CF1-1CM001-3*R)

LPT port cable (Part No. 12CF1-1LP001-0*R)

•The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

GA-EP45-UD3 Motherboard Layout

KB_MS

R_SPDIF

CPU_FAN

PWR_FAN

PHASE_LED

LGA775

ATX

GA-EP45-UD3

CD_IN

F_AUDIO

AUDIO

B_BIOSM_BIOS

PCIEX16

PCIEX1_1

IDE

SPDIF_O

SPDIF_I

DDR2_3

DDR2_1

DDR2_4

DDR2_2

BAT

TSB43AB23

IT8718

ATX_12V_2X4

Intel®P45

Intel®ICH10

GIGABYTE

SATA2

PWR_LED

FDD

PCI1

PCI2

PCI3

USB_1394_2

USB_1394_1

R_USB

USB_LAN

CLR_CMOS

CODEC

SYS_FAN1

LPTCOMA F_USB1F_USB2F1_1394 F_PANEL

SYS_FAN2

SATA2_0

GSATA2_0

GSATA2_1

SATA2_1

SATA2_2

SATA2_3

SATA2_4

SATA2_5

PCIEX1_2

PCIEX1_3

RTL8111C

- 8 -

Block Diagram

PS/2 KB/Mouse

12 USB Ports

LGA775

CPU

Host

Interface

Intel®P45

MCH CLK

(400/333/266/200 MHz)

DDR2 1366/1066/800/667 MHz

Intel®ICH10

PCI Bus

Dual Channel Memory

PCIe CLK

(100 MHz)

PCI Express x16

IT8718

Floppy

LPT Port

CPU CLK+/-

(400/333/266/200 MHz)

PCI Express Bus

PCIe CLK

(100 MHz)

x1x1x1

6 SATA 3Gb/s

1 PCI Express x16

Dual BIOS

COM Port

LAN

RJ45

RTL8111C

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

S/PDIF In

S/ PDIF Out

Side Speaker Out

Surround Speaker Out

CODEC

3 PCI Express x1

3 PCI

PCI CLK

(33 MHz)

TSB43AB23

3 IEEE 1394a

ATA-133/100/66/33 IDE Channel

GIGABYTE

SATA2

2 SATA 3Gb/s

- 9 - Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

GA-EP45-UD3 Motherboard - 10 -

1-2 Product Specications

CPU wSupport for an Intel®Core™ 2 Extreme processor/

Intel®Core™ 2 Quad processor/Intel®Core™ 2 Duo processor/

Intel®Pentium®processor/Intel®Celeron®processor in the LGA775 package

(Go to GIGABYTE's website for the latest CPU support list.)

wL2 cache varies with CPU

Front Side Bus w1600/1333/1066/800 MHz FSB

Chipset w

North Bridge: Intel®P45 Express Chipset

w

South Bridge: Intel®ICH10

Memory w4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

w

Dual channel memory architecture

wSupport for DDR2 1366/1066/800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Audio wRealtek ALC889A codec

w High Denition Audio

w 2/4/5.1/7.1-channel

wSupport for S/PDIF In/Out

w

Support for CD In

LAN   w RTL8111C chip (10/100/1000 Mbit)

Expansion Slots w1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)

w3 x PCI Express x1 slots

w

3 x PCI slots

Storage Interface wSouth Bridge:

- 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3,

SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices

wGIGABYTE SATA2 chip:

- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

- 2 x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to

2 SATA 3Gb/s devices

- Support for SATA RAID 0, RAID 1 and JBOD

wiTE IT8718 chip:

- 1 x oppy disk drive connector supporting up to 1 oppy disk drive

USB wIntegrated in the South Bridge

wUp to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

IEEE 1394 wT.I. TSB43AB23 chip

wUp to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket

connected to the internal IEEE 1394a header)

Otros manuales para GA-EP45-UD3

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte B660M AORUS PRO AX Manual de usuario

Gigabyte

Gigabyte GA-8IPXDR-E Series Manual de usuario

Gigabyte

Gigabyte H410M S2H V2 Manual de usuario

Gigabyte

Gigabyte MZ31-AR0 Manual de usuario

Gigabyte

Gigabyte GA-K8NF9-SI Manual de usuario

Gigabyte

Gigabyte GA-6CXC Manual de usuario

Gigabyte

Gigabyte GA-J3455N-D3H Manual de usuario

Gigabyte

Gigabyte MS03-CE0 Manual de usuario

Gigabyte

Gigabyte GA-K8N51GMF Manual de usuario

Gigabyte

Gigabyte GA-P41T-D3P (rev. 1.3) Manual de usuario

Gigabyte

Gigabyte GA-K8N51GMF-9-RH Manual de usuario

Gigabyte

Gigabyte GA-MA790X-UD3P Manual de usuario

Gigabyte

Gigabyte GA-8ILML4 Manual de usuario

Gigabyte

Gigabyte GA-2AIEV-RH Manual de usuario

Gigabyte

Gigabyte GA-Z68XP-UD3-iSSD Manual de usuario

Gigabyte

Gigabyte R282-Z96 Manual de usuario

Gigabyte

Gigabyte GA-945PLM-(D)S2 Manual de usuario

Gigabyte

Gigabyte MP30-AR0 Manual de usuario

Gigabyte

Gigabyte GA-X99-UD4 Manual de usuario

Gigabyte

Gigabyte GA-G31-S3G Manual de usuario

Gigabyte

Gigabyte GA-8I915P-D Manual de usuario

Gigabyte

Gigabyte GA-P55-UD3L Manual de usuario

Gigabyte

Gigabyte MNIC8PI Manual de usuario

Gigabyte

Gigabyte B460M DS3H V2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
