Gigabyte B650 AORUS ELITE AX Manual de usuario

B650 AORUS ELITE AX

B650 AORUS ELITE

User's Manual

Rev. 1101

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

1-3 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 11

2-4 Installing the Memory..................................................................................... 14

2-5 Installing an Expansion Card ......................................................................... 15

2-6 Back Panel Connectors.................................................................................. 16

2-7 Onboard Buttons and LEDs ........................................................................... 18

2-8 Internal Connectors........................................................................................ 19

Chapter 3 BIOS Setup ..................................................................................................31

Chapter 4 Installing the Operating System and Drivers................................................33

4-1 Operating System Installation ........................................................................ 33

4-2 Drivers Installation.......................................................................................... 34

Chapter 5 Appendix ......................................................................................................35

5-1 Conguring a RAID Set.................................................................................. 35

Regulatory Notices.................................................................................................... 36

Contact Us ................................................................................................................ 39

- 4 -

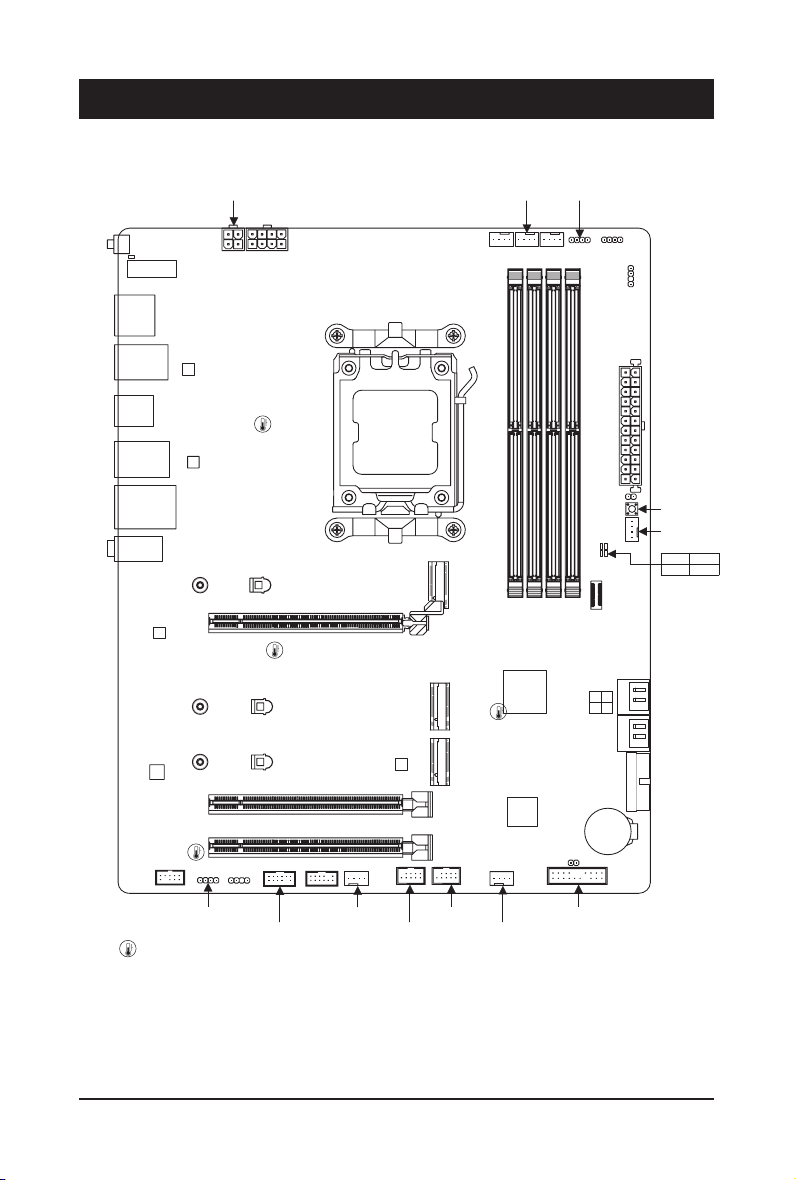

1-1 Motherboard Layout

Chapter 1 Product Introduction

QFLASH_PLUS

DP_HDMI20

USB20

U32G2_LAN

ATX

AUDIO

ATX_12V

CLR_CMOS

M_BIOS

PCIEX1_1

PCIEX16

M2A_CPU

CODEC

B650 AORUS ELITE AX

B650 AORUS ELITE

F_PANEL

SYS_FAN2

SPI_TPM

F_AUDIO D_LED1

CPU_FAN

SATA3

0 1

2 3

BAT

Realtek®

2.5GbE LAN

CPU DRAM

VGA BOOT

U32_2

M2C_SB

ATX_12V1

DDR5_B1

DDR5_B2

DDR5_A1

DDR5_A2

D_LED2

LED_C2

M2B_CPU

ESPI_DB

LED_C1

QFLED

F_U320G

F_USB2

Temperature sensor

USB 2.0 Hub

M2_WIFIj

RST_SW

RST

CPU_OPT

PCIEX1_2

Socket AM5

U32_1

U32G2C

SYS_FAN3

F_USB1

SYS_FAN1

CPU_LED

SYS_FAN4

_PUMP

AMD

Chipset

F_U32

iTE®

Super I/O

jOnly for B650 AORUS ELITE AX.

110

USB 3.2

Gen1 Hub

- 5 -

1-2 Motherboard Block Diagram

(Note) Actual support may vary by CPU.

jOnly for B650 AORUS ELITE AX.

4 USB 3.2 Gen 1

USB 3.2

Gen 1 Hub

LAN

RJ45

Realtek®

2.5GbE LAN

CPU CLK+/- (100 MHz)

DDR5 5200/4800/4400 MHz

4 SATA 6Gb/s

(SATA3 0~3)

eSPI

Bus

SPI

Bus

iTE®

Super I/O

4 USB 2.0/1.1

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

BIOS

TPM

PCI Express 5.0 (Note) Bus

USB 2.0

Hub

PCI Express 3.0 Bus

1 USB Type-C®,

with USB 3.2 Gen 2 support

1 M.2 Socket 3

(M2A_CPU)

1 HDMI 2.0

2 USB 3.2 Gen 2 Type-A

4 USB 2.0/1.1

PCIe x4

AMD Chipset

M.2 WIFIj

3 USB 3.2 Gen 1

x16

1 PCI Express x16

AM5 CPU

CODEC

1 DisplayPort 1.4

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2B_CPU)

Line Out (Front Speaker Out)

MIC (Center/

Subwoofer Speaker Out)

Line In (Rear Speaker Out)

2 PCI Express x1

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2C_SB)

- 6 -

1-3 Box Contents

5B650 AORUS ELITE AX or B650 AORUS ELITE motherboard

5User's Manual

5Antennaj

5Two SATA cables

5M.2 screw/standoff

5One G Connector

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

jOnly for B650 AORUS ELITE AX.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU AMD Socket AM5, support for:

AMD Ryzen™7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B650

Memory Support for DDR5 5200/4800/4400 MHz memory modules

4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

 Support for AMD EXtended Proles for Overclocking (AMD EXPO™) and Extreme

Memory Prole (XMP) memory module

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor:

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To

congure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Modulej

AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel®Wi-Fi 6E AX210 (For PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

Chipset:

2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

jOnly for B650 AORUS ELITE AX.

- 9 -

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2

SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD

support) (M2B_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD

support) (M2C_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2 support

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C®port with USB 3.2 Gen 2x2 support, available through the

internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through

the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

(Note) Actual support may vary by CPU.

- 10 -

Back Panel

Connectors

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)j

1 x DisplayPort

1 x HDMI 2.0 port

1 x USB Type-C®port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan

(pump) you install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of each application may also vary depending on motherboard specications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-AX-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B650-AORUS-ELITE-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest

version of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

jOnly for B650 AORUS ELITE AX.

Otros manuales para B650 AORUS ELITE AX

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-C1037UN-L Manual de usuario

Gigabyte

Gigabyte GA-Z87M-D3H Manual de usuario

Gigabyte

Gigabyte GA-B150M-D3V DDR3 Manual de usuario

Gigabyte

Gigabyte GA-8IDMR Manual de usuario

Gigabyte

Gigabyte GA-P75-D3 Manual de usuario

Gigabyte

Gigabyte GA-Z68XP-UD3 Manual de usuario

Gigabyte

Gigabyte GA-Q67M-D2H-B3 Manual de usuario

Gigabyte

Gigabyte MNIC8CI Manual de usuario

Gigabyte

Gigabyte GA-AB350M-D3H Manual de usuario

Gigabyte

Gigabyte GA-K8N51GMF Manual de usuario

Gigabyte

Gigabyte GA-8S648FXM Manual de usuario

Gigabyte

Gigabyte Z790 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte X299 AORUS Ultra Gaming Manual de usuario

Gigabyte

Gigabyte GA-8I915P-D Manual de usuario

Gigabyte

Gigabyte GA-7DXC Manual de usuario

Gigabyte

Gigabyte GA-EX38-DQ6 Guía de inicio rápido

Gigabyte

Gigabyte 6CX7 Series Manual de usuario

Gigabyte

Gigabyte GA-H67A-D3H-B3 Manual de usuario

Gigabyte

Gigabyte GA-8ST667 Manual de usuario

Gigabyte

Gigabyte GA-EP45T-EXTREME Manual de usuario

Gigabyte

Gigabyte GA-990FXA-UD5 Manual de usuario

Gigabyte

Gigabyte GA-8IEML-T Manual de usuario

Gigabyte

Gigabyte GA-X79-UD5 Manual de usuario

Gigabyte

Gigabyte GA-946GMX-S2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
