H410M S2H V2

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

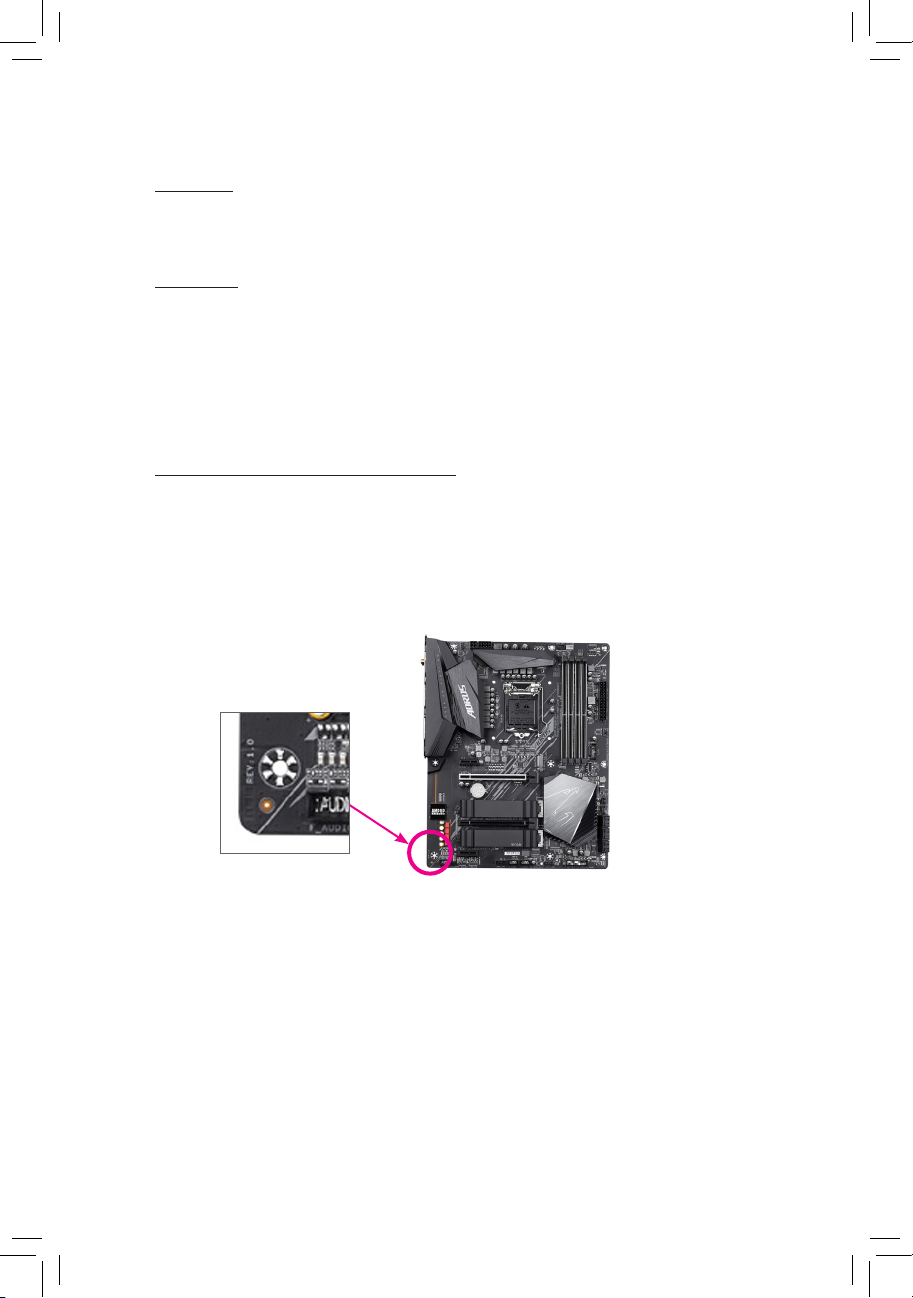

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

H410M S2H V2 Motherboard Layout ..............................................................................4

Chapter 1 Hardware Installation .....................................................................................5

1-1 Installation Precautions.................................................................................... 5

1-2 ProductSpecications...................................................................................... 6

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory....................................................................................... 9

1-5 Installing an Expansion Card ......................................................................... 10

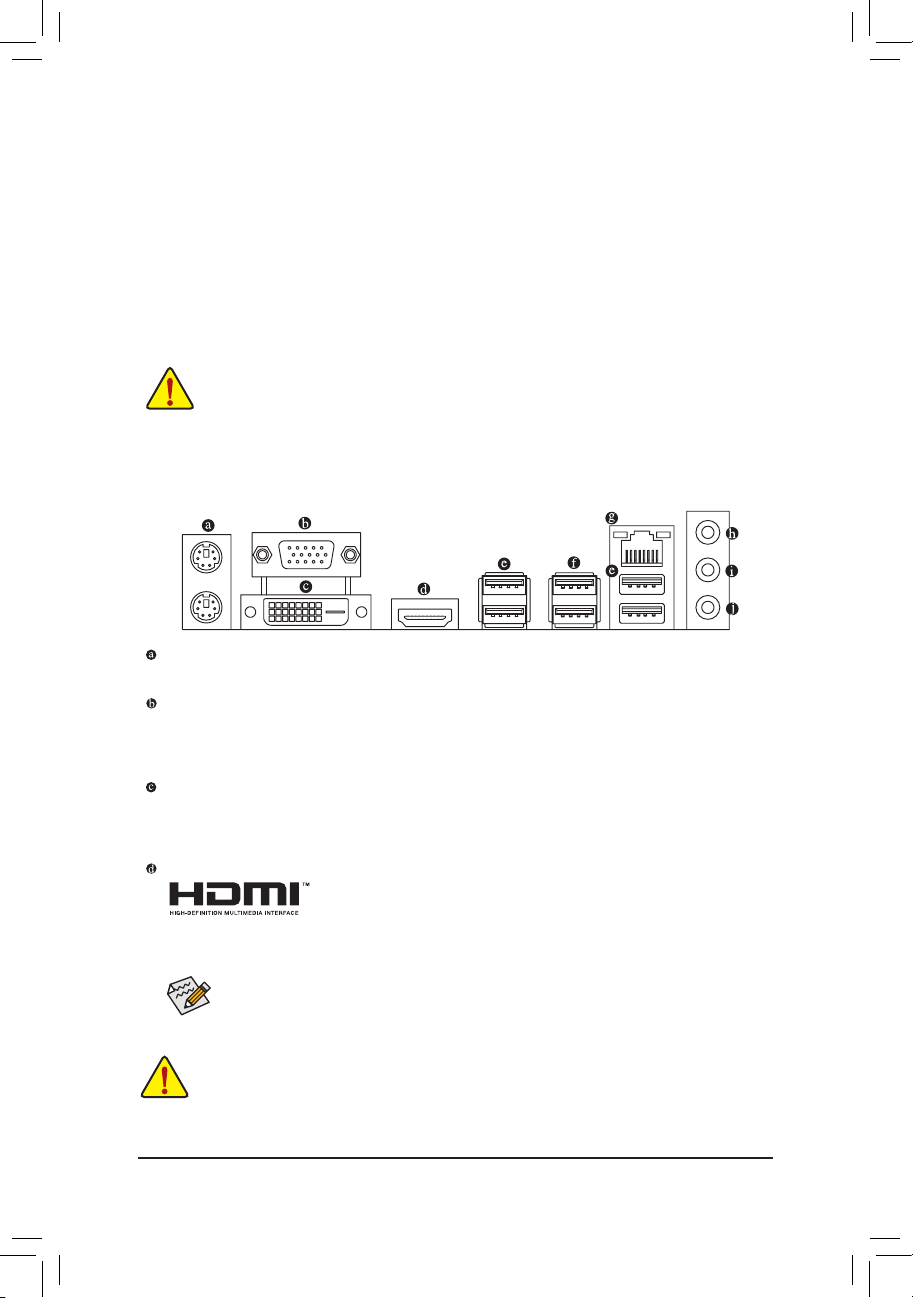

1-6 Back Panel Connectors.................................................................................. 10

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 The Main Menu .............................................................................................. 20

2-3 Favorites (F11) ............................................................................................... 21

2-4 Tweaker.......................................................................................................... 22

2-5 Settings .......................................................................................................... 27

2-6 System Info. ................................................................................................... 32

2-7 Boot................................................................................................................ 33

2-8 Save & Exit..................................................................................................... 36

Chapter 3 Appendix ......................................................................................................37

3-1 ConguringaRAIDSet.................................................................................. 37

3-2 Installing an Intel®Optane™Memory.............................................................. 39

3-3 DriversInstallation.......................................................................................... 41

RegulatoryNotices.................................................................................................... 42

Contact Us ................................................................................................................ 43

- 4 -

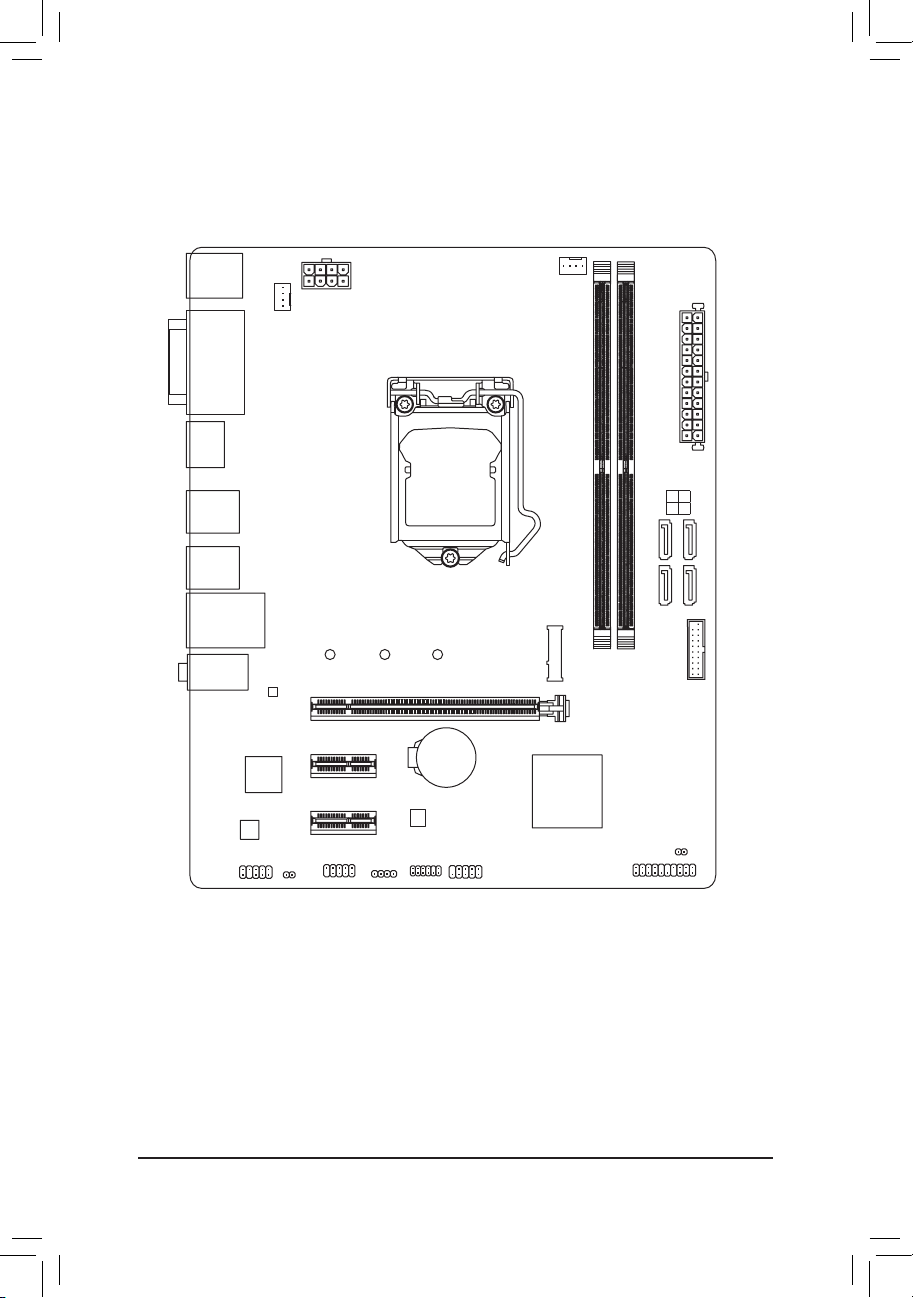

H410M S2H V2 Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5H410M S2H V2 motherboard

5Motherboard driver disc 5Two SATA cables

5User's Manual 5I/O Shield

KB_MS

CPU_FAN

SYS_FAN

LGA1200

ATX

H410M S2H V2

F_AUDIO COMA LED_C

AUDIO

BAT

ATX_12V_2X4

Intel®H470

U32

CODEC

CLR_CMOS

M_BIOS

DVI

VGA

HDMI

USB_LAN

PCIEX16

80 60 42

PCIEX1_1

PCIEX1_2

iTE®

Super I/O

Intel®

GbELAN

F_USB F_PANEL

SPI_TPM

F_U32

DDR4_B1

DDR4_A1

M2A_SB

3 2

5 4

SATA3

USB20

SPKR

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damagedasaresultofelectrostaticdischarge(ESD).Priortoinstallation,carefullyreadtheuser's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Priorto installation, donot remove orbreakmotherboard S/N (SerialNumber)sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

componentssuchasamotherboard,CPUormemory.IfyoudonothaveanESDwriststrap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Donotplacethecomputersystemonanunevensurface.

•Donotplacethecomputersysteminahigh-temperatureorwetenvironment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®processors/

Intel®Celeron®processors in the LGA1200 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®H470 Express Chipset

Memory Intel®Core™i9/i7 processors:

- SupportforDDR42933/2666/2400/2133MHzmemorymodules

Intel®Core™i5/i3/Pentium®/Celeron®processors:

- SupportforDDR42666/2400/2133MHzmemorymodules

2xDDR4DIMMsocketssupportingupto64GB(32GBsingleDIMMcapacity)

of system memory

Dualchannelmemoryarchitecture

Supportfor ECCUn-bufferedDIMM1Rx8/2Rx8memory modules (operatein

non-ECC mode)

Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodules

SupportforExtremeMemoryProle(XMP)memorymodules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HDGraphicssupport:

- 1xD-Subport,supportingamaximumresolutionof1920x1200@60Hz

- 1xDVI-Dport,supportingamaximumresolutionof1920x1200@60Hz

* TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

- 1xHDMIport,supportingamaximumresolutionof4096x2160@30Hz

* SupportforHDMI1.4versionandHDCP2.3.

Maximum shared memory of 512 MB

Audio Realtek®AudioCODEC

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselect

Deviceadvanced settings> PlaybackDevice tochange thedefault settingrst.

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

LAN Intel®GbELANchip(1000/100Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(The PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/

x2SSDsupport)

4 x SATA 6Gb/s connectors

SupportforRAID0,RAID1,RAID5,andRAID10

Intel® Optane™MemoryReady

- 6 -

USB Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1xRGBLEDstripheader

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1xD-Subport

1xDVI-Dport

1xHDMIport

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1xRJ-45port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1x256Mbitash

Use of licensed AMI UEFI BIOS

PnP1.0a,DMI2.7,WfM2.0,SMBIOS2.7,ACPI5.0

- 7 -

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- @BIOS

- AmbientLED

- EasyTune

- Fast Boot

- Game Boost

- ON/OFFCharge

- Smart Backup

- System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

- 8 -

Please visit GIGABYTE's website

for support lists of CPU, memory

modules,SSDs,andM.2devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

1-3 Installing the CPU

Please visit GIGABYTE's website for details on hardware installation.

Installing the CPU

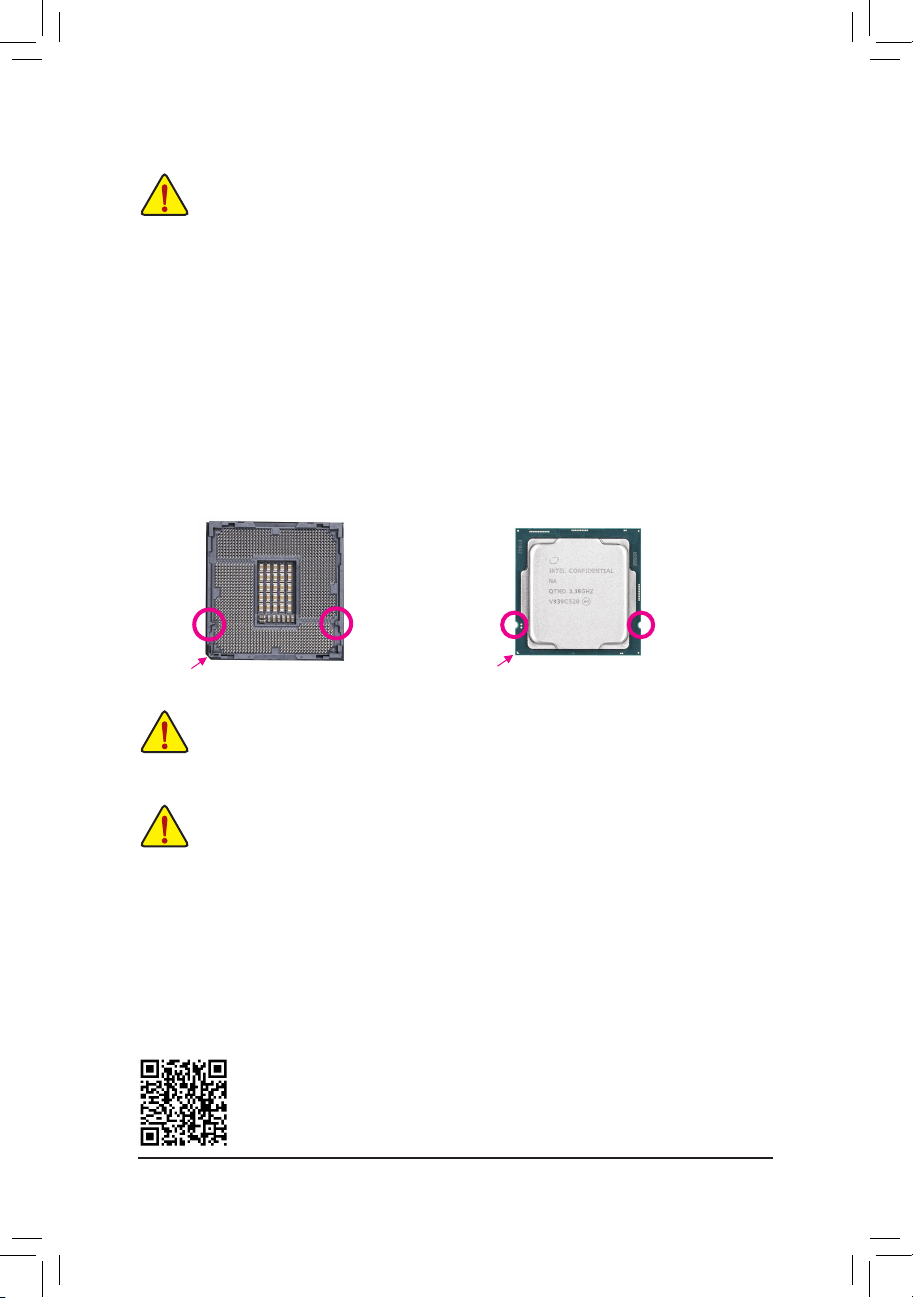

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Triangle Pin One Marking on the CPU

NotchNotch

LGA1200 CPU

Alignment

Key

Alignment

Key

LGA1200 CPU Socket

Pin One Corner of the CPU Socket

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•DonotturnonthecomputeriftheCPUcoolerisnotinstalled,otherwiseoverheatinganddamage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

ThismotherboardprovidestwomemorysocketsandsupportsDualChannelTechnology.Afterthememory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

- 9 -

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 keyboard.

D-Sub Port

TheD-Subportsupportsa15-pinD-Subconnectorandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

D-Subconnectiontothisport.

DVI-D Port (Note)

TheDVI-DportconformstotheDVI-Dspecicationandsupportsamaximumresolutionof1920x1200@60Hz

(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports

DVI-Dconnectiontothisport.

HDMI Port

TheHDMIportsupportsHDCP2.3andDolbyTrueHDandDTSHDMasterAudio

formats.Italsosupportsupto192KHz/16bit7.1-channelLPCMaudiooutput.

YoucanusethisporttoconnectyourHDMI-supportedmonitor.Themaximumsupportedresolutionis

4096x2160@30Hz,buttheactualresolutionssupportedaredependentonthemonitorbeingused.

(Note) TheDVI-DportdoesnotsupportD-Subconnectionbyadapter.

AfterinstallingtheHDMIdevice,makesuretosetthedefaultsoundplaybackdevicetoHDMI.

(The item name may differ depending on your operating system.)

1-5 Installing an Expansion Card

Readthefollowingguidelinesbeforeyoubegintoinstallanexpansioncard:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

DuetoCPUlimitations,readthefollowingguidelinesbeforeinstallingthememoryinDualChannelmode.

1. DualChannelmodecannotbeenabledifonlyonememorymoduleisinstalled.

2. WhenenablingDualChannelmodewithtwomemorymodules,itisrecommendedthatmemoryof

the same capacity, brand, speed, and chips be used.

ThetwoDDR4memorysocketsaredividedintotwochannelsandeachchannelhasonememorysocketas

following:

ChannelA:DDR4_A1

ChannelB:DDR4_B1

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•Whenremovingthecable,pullitstraightoutfromtheconnector.Donotrockitsidetosideto

prevent an electrical short inside the cable connector.

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-8I945GMBX Manual de usuario

Gigabyte

Gigabyte GA-K8NF9-SI Manual de usuario

Gigabyte

Gigabyte GA-E240N Manual de usuario

Gigabyte

Gigabyte GA-K8NNXP Manual de usuario

Gigabyte

Gigabyte G1.Assassin Manual de usuario

Gigabyte

Gigabyte GA-Z68A-D3H-B3 Manual de usuario

Gigabyte

Gigabyte GA-J1800N-D2H Manual de usuario

Gigabyte

Gigabyte GA-P55A-UD4 Manual de usuario

Gigabyte

Gigabyte GA-F2A85X-UP4 Manual de usuario

Gigabyte

Gigabyte B560 HD3 Manual de usuario

Gigabyte

Gigabyte GA-G41M-ES2L Manual de usuario

Gigabyte

Gigabyte GA-8IDML Series Manual de usuario

Gigabyte

Gigabyte X299 AORUS Ultra Gaming Manual de usuario

Gigabyte

Gigabyte GA-AB350M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte MW51-HP0 Manual de usuario

Gigabyte

Gigabyte GA-MA790GPT-UD3H Manual de usuario

Gigabyte

Gigabyte GA-8SDX Manual de usuario

Gigabyte

Gigabyte PC64 Manual de usuario

Gigabyte

Gigabyte X570 AORUS PRO WIFI Manual de usuario

Gigabyte

Gigabyte GA-H67A-UD3H Manual de usuario

Gigabyte

Gigabyte GA-E7AUM-DS2H Manual de usuario

Gigabyte

Gigabyte GA-7PPSH2 Manual de usuario

Gigabyte

Gigabyte GA-8I915G-MFD Manual de usuario

Gigabyte

Gigabyte GA-8I915PC Duo Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
