Gigabyte MNIC8PI Manual de usuario

MNIC8PI/MNIC8QI

Intel®N455/D525 Processor Motherboards

User's Manual

Rev. 1001

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE

without prior notice. No part of this manual may be reproduced, copied, translated, transmitted,

or published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at:

http://www.gigabyte.com

- 3 -

Table of Contents

MNIC8PI/MNIC8QI Motherboard Layout.........................................................................4

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 ProductSpecications...................................................................................... 7

1-3 Installing the Memory....................................................................................... 9

1-3-1 Installing a Memory .................................................................................................9

1-4 Back Panel Connectors.................................................................................. 10

1-5 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................27

2-1 The Main Menu .............................................................................................. 29

2-2 Advanced Menu ............................................................................................. 31

2-2-1 CPUConguration..................................................................................................32

2-2-2 IDEConguration ...................................................................................................33

2-2-3 SerialandParallelPortConguration ....................................................................35

2-2-4 HardwareHealthConguration ..............................................................................36

2-2-5 ACPIConguration.................................................................................................38

2-2-6 USBConguration..................................................................................................39

2-3 Boot Menu...................................................................................................... 40

2-4 Security Menu ................................................................................................ 43

2-5 Chipset Menu................................................................................................. 44

2-5-1 NorthBridgeConguration.....................................................................................45

2-5-2 SouthBridgeConguration ....................................................................................46

2-5-3 OnboardPeripherialsConguration .......................................................................47

2-6 Exit Menu ....................................................................................................... 49

- 4 -

MNIC8PI/MNIC8QI Motherboard Layout

- 5 -

Item Code Description

1 AUDIO_JACK Audio jack

2 LPT Parallel port

3 RJ11 Cash drawer port

4 KB_MS1 PS/2 connector

5 USB_LAN1 USB ports and LAN port

6 VGA1/COM2 VGA port and Serial port

7 COM4_USB1 Serial and USB Port

8 +12V_OUT DC jack

9 DC_IN DC jack

10 DC_OUT 4 pin power connector

11 VFD_JR1 VFD & RS232 Mode select jumper

12 JCOM4 Serail port 5V,12V, RI select jumper

13 VGA2 VGA cable connector

14 JRS1 RS232,RS422,RS485 Select

connector

15 SYS_FAN System fan cable connector

16 LCDPWR_CON LCD power connector

17 BKLTEN_CON Back light inverter jumper

18 LVDS LVDS connectors

19 CPU_FAN CPU fan cable connector

20 CPU Processor

21 INV_BRIG1 Inverter with box header

22 SO-DIMM DDR3 SO-DIMM slot

23 SATAPW2 SATA power connector

24 SATAPW1 SATA power connector

25 SATA1/2 SATA cable connectors

26 SATA3 SATA 7+15 pins cable connector

27 JFRONT Front panel connecotor

28 F_USB3 Front USB cable connector

29 F_USB2 Front USB cable connector

30 BAT1 Battery socket

31 F_USB1 Front USB cable connector

32 MINI_CARD Mini PCI Express slot

33 COM6 Serial cable connector

34 JCOM6 Power COM select jumper

35 COM3 Serial cable connector

36 JCOM3 Power COM select jumper

37 COM5 Serial cable connector

38 JCOM5 Power COM select jumper

39 COM1 Serial cable connector

40 JCOM1 Power COM select jumper

41 F_AUDIO Front audio cable connector

42 KB_MS2 PS/2 cable connector

- 6 - Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

Hardware Installation - 7 -

1-2 ProductSpecications

CPU Supports single Intel® N455 processor (MNIC8PI)

Supports single Intel® D525 processor (MNIC8QI)

Supports 1.66GHz (MNIC8PI)

Supports 1.8GHz (MNIC8QI)

Chipset Intel®ICH8M

Memory 1 x SO-DIMM slot support DDR3 800/1066

Support up 2GB (MNIC8PI)

Support up 4GB (MNIC8QI)

Audio Realtek®ALC269 codec

High Denition Audio

2 channel

LAN 1 x Realtek®RTL 8111E supports 10/100/1000 Mbps

Expansion Slots 1 x mini PCI Express x1 slot

Onboard

Graphics

Build in Intel®ICH8M chipset

Storage Interface 2 x SATA 3Gb/s connectors

1 x 7 pin & 15 pin SATA connector

USB Up to 10 USB 2.0/1.1 ports (4 on the back panel, 6 via the USB brackets

connected to the internal USB headers)

Internal

Connectors

1 x 4 pin ATX 12V power connector

2 x SATA 3Gb/s connectors

2 x SATA power connectors

1 x 7 pin & 15 pin SATA connector

1 x CPU fan header

1 x System fan header

4 x COM power select connector

1 x front panel header

1 x audio header*

3 x USB 2.0 headers

1 x VGA header

1 x LVDS connector

Back Panel

Connectors

1 x DC-in (12V) connector

1 x DC-out (12V) connector

4 x USB 2.0 ports

1 x RJ-45 port

1 x VGA port

2 x COM ports

1 x Parallel port

1 x RJ-11 port

1 x Audio jack

1 x PS/2 connector

- 8 - Hardware Installation

Form Factor Mini ITX Form Factor; 6.75 inch x 6.75 inch

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

Hardware Installation - 9 -

1-3 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direc-

tion. If you are unable to insert the memory, switch the direction.

1-3-1 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the memory module.

Be sure to install DDR3 DIMMs on this motherboard.

Installation Step:

Step 1. Align the memory with the DIMM module and insert the DIMM memory module into the DIMM slot.

Please note that memory module has a foolproof insertion design. A memory module can be

installed In only one direction.

Step 2. Push down the memory and seat it rmly.

Step 3. Reverse the installation steps when you wish to remove the DIMM module.

- 10 - Hardware Installation

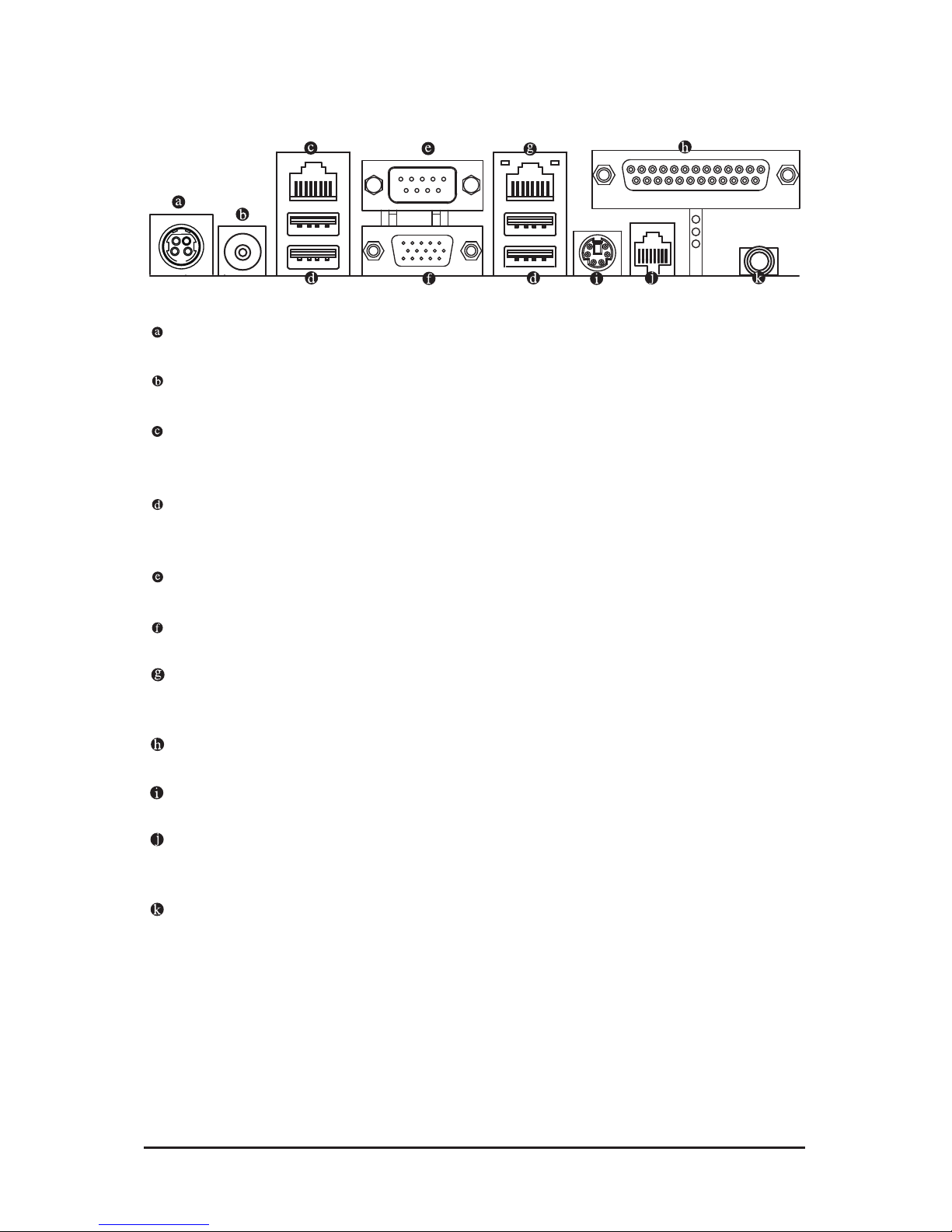

1-4 Back Panel Connectors

DC In Port

Connect the DC power to this port.

12V DC Out Port

Connect the 12V DC power to this port.

RS-232 Port

Connects this port to the serial-based modems, printers, mice, data storage, un-interruptible power sup-

plies, and other peripheral devices

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB key-

board/mouse, USB printer, USB ash drive and etc.

Serial Port

Connects to serial-based mouse or data processing devices.

Video Port

The video in port allows connect to video in, which can also apply to video loop thru function.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

PS/2 Port

Use this port to connect a PS/2 mouse or a PS/2 keyboard.

RJ-11 Port

The RJ-11 (Cash Drawer) port is a physical connector interface most often used for telephone wire ter-

minals.

Line Out Jack ((Front Speaker Out/Blue)

The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surroundspeakers

can be connected to Line Out (Front Speaker Out) jack.
