Gigabyte GA-6WMMC7 Manual de usuario

R-21-01-091213

6WMMC7 Series

USER'S MANUAL

1. Support Suspend To RAM Function.

2. Support Hardware Monitor.

3. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.

4. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current (depends

on the specification of keyboards), you can power on your

system by entering password from the Keyboard after setting

the “Keyboard power on” jumper and password in CMOS

Setup.

5. Support 3 steps ACPI LED selectable.

6. Support Modem Ring-On (Include internal Modem and

external modem on COM A).

7. Support Wake-up On LAN (Your ATX power supply must

support larger than 720 mA 5V Stand-By current).

8. Built-in AC97-Link software audio.

9. Support Audio / Modem Riser (AMR) interface.

10. Support TV/DFP(Digital Flat Panel) function by TV/DFP

daughter card (Optional).

11. Aureal AU8810 Hardware Audio (Optional).

Socket 370 Processor MAIN BOARD

REV. 2.1 First Edition

6WMMC7 Series

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

Dec. 13, 1999 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system bus frequency can be switched at 66MHz / 100MHz / 133MHz

and Auto by adjusting JP5,JP23. The CPU ratio is control by BIOS.

0The CPU speed must match with the frequency ratio. It will cause

system hanging up if the frequency ratio is higher than that of CPU.

0Note: Please set the CPU host frequency in accordance with your

processor’s specifications. We don’t recommend you to set the

system bus frequency over the CPU’s specification because these

specific bus frequencies are not the standard specifications for

CPU, chipset and most of the peripherals. Whether your system can

run under these specific bus frequencies properlywill depend on

your hardware configurations, including CPU, Chipsets, SDRAM,

Cards….etc.

JP5 / JP23 : Set System Bus Speed (See Figure-1)

6WMMC7

ICH/

82801

GMCH/

82810/

810E

CPU

AC97

8810

FWH32

100/133

JP5 1-2 Auto 1 2-3 66 1

133

JP23 1-2 Auto 1 2-3 66/100

1 INTEL CPU CLK SET

JP5 JP23

Auto 1-2 1-2

66 2-3 2-3

100 NC 2-3

133 NC NC

Figure-1

Note: JP23 is only available when the motherboard use 82810E

chipset.

6WMMC7 Series

II. Jumper Setting :

GN : Green Function Switch

6WMMC7

ICH/

82801

GMCH/

82810 /

810E

CPU

AC97

8810

FWH32

PIN No. Function

Open Normal Operation

Short Entering Green

Mode

GD : Green Function LED

6WMMC7

ICH/

82801

GMCH/

82810

810E

CPU

AC97

8810

FWH32

PIN No. Function

1 LED +

2 LED −

−

−−

−

Quick Installation Guide

HD : IDE Hard Disk Active LED

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

PIN No. Function

1 LED +

2 LED −

−

−−

−

SPKR: External Speaker Connector

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

External Speaker

+ 1

PIN No. Function

1 VCC

2 NC

3 NC

4 Data

6WMMC7 Series

J9: Buzzer Enable (Optional)

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

PIN No. Function

Open Internal Buzzer Disable

Close Internal Buzzer Enable

RES : Reset Switch

6WMMC7

ICH/

82801

GMCH/

82810

/810E

CPU

AC97

8810

FWH32

PIN No. Function

Open Normal

Operation

Short Reset Hardware

System

Quick Installation Guide

PWR : Power LED Connector (as 3 steps ACPI LED)

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

PIN No. Function

1 LED +

2 LED −

3 LED −

+ −

−−

−

PW: Soft Power Connector

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

PIN No. Function

Open Normal operation

Short Soft On/Off

6WMMC7 Series

IR : Infrared Connector (IR / CIR)

6WMMC7

ICH/

82801

GMCH/

82810/

810E

CPU

AC97

8810

FWH32

No. Function

1 VCC

2 NC

3 IRRX

4 GND

5 IRTX

6 NC

7 CIRRX

8 VCC

9 NC

10 NC 10

PS/2 Mouse / Keyboard Connector

6WMMC7

ICH/

82801

GMCH/

82810

CPU

AC97

8810

FWH32

PS/2 Mouse/ Keyboard

Pin No. Function

1 Data

2 NC

3 GND

4 VCC(+5V)

5 Clock

6 NC

PS/2 Keyboard

PS/2 Mouse

Quick Installation Guide

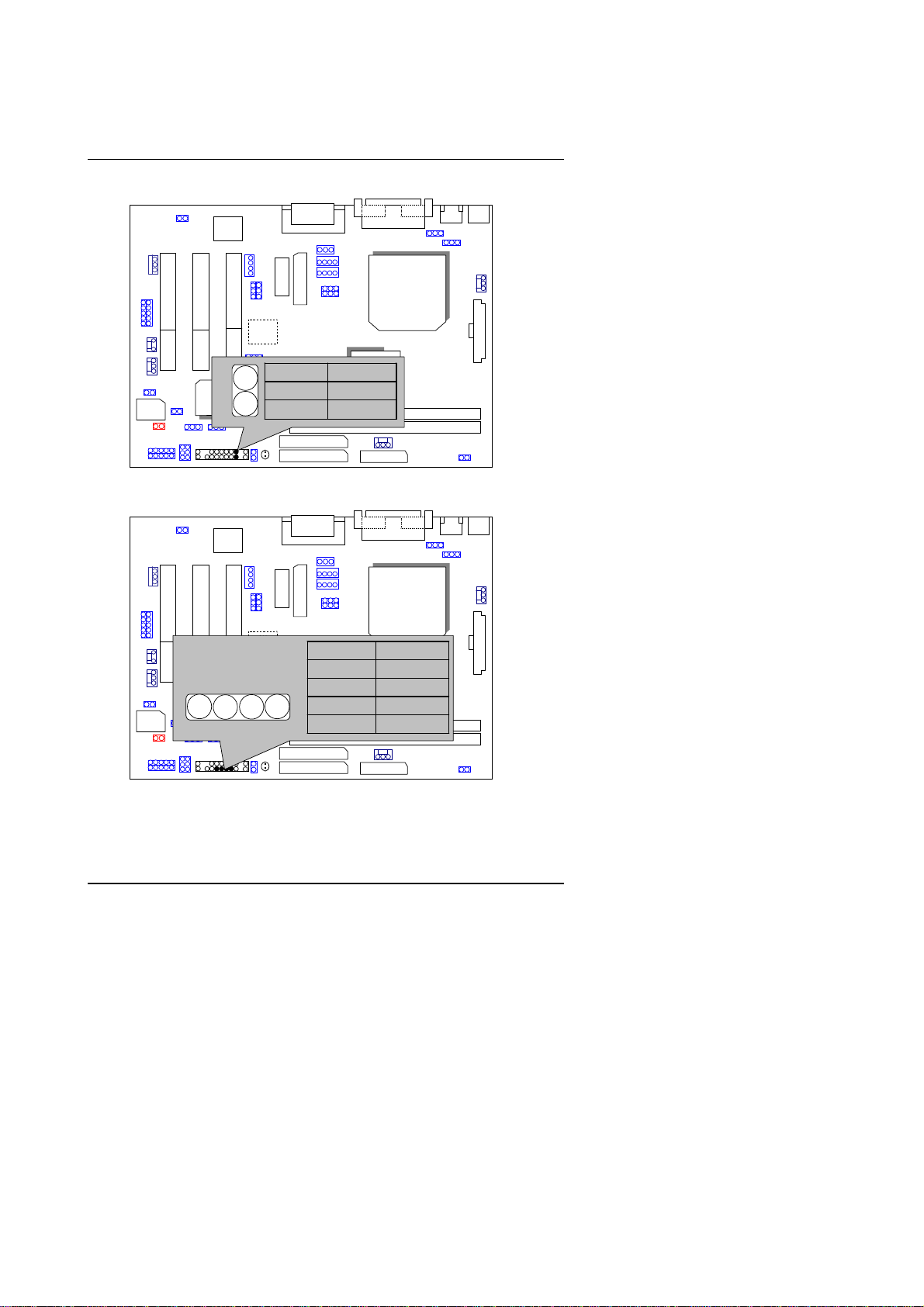

USB : USB Port

6WMMC7

ICH/

82801

GMCH/

82810/

810E

CPU

AC97

8810

FWH32

PIN No. Function

1 USB V0

2 USB D0-

3 USB D0+

4 GND

5 USB V1

6 USB D1-

7 USB D1+

8 GND

1 2 3 4

CPU FAN : CPU Cooling Fan Power Connector

6WMMC7

ICH/

82801

GMCH/

82810/

810E

CPU

AC97

8810

FWH32

PIN No. Function

1 GND

2 +12V

3 SENSE
