GA-A75-UD4H

User's Manual

Rev. 1002

12ME-A75UD4H-1002R

Motherboard

GA-A75-UD4H

Jun. 10, 2011

Motherboard

GA-A75-UD4H

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at:

http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-A75-UD4H Motherboard Layout................................................................................7

GA-A75-UD4H Motherboard Block Diagram...................................................................8

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions.................................................................................... 9

1-2 Product Specications.................................................................................... 10

1-3 Installing the APU and APU Cooler................................................................ 13

1-3-1 Installing the APU ...................................................................................................13

1-3-2 Installing the APU Cooler........................................................................................15

1-4 Installing the Memory..................................................................................... 16

1-4-1 Dual Channel Memory Conguration .....................................................................16

1-4-2 Installing a Memory ...............................................................................................17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Setup of the AMD Dual Graphics Conguration............................................. 19

1-7 Back Panel Connectors.................................................................................. 20

1-8 Internal Connectors........................................................................................ 23

Chapter 2 BIOS Setup ..................................................................................................33

2-1 Startup Screen ............................................................................................... 34

2-2 The Main Menu .............................................................................................. 35

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 37

2-4 Standard CMOS Features.............................................................................. 42

2-5 Advanced BIOS Features .............................................................................. 44

2-6 Integrated Peripherals.................................................................................... 46

2-7 Power Management Setup............................................................................. 49

2-8 PC Health Status............................................................................................ 51

2-9 Load Fail-Safe Defaults.................................................................................. 53

2-10 Load Optimized Defaults................................................................................ 53

2-11 Set Supervisor/User Password ...................................................................... 54

2-12 Save & Exit Setup .......................................................................................... 55

2-13 Exit Without Saving........................................................................................ 55

- 5 -

Chapter 3 Drivers Installation........................................................................................57

3-1 Installing Chipset Drivers ............................................................................... 57

3-2 Application Software ...................................................................................... 58

3-3 Technical Manuals.......................................................................................... 58

3-4 Contact........................................................................................................... 59

3-5 System ........................................................................................................... 59

3-6 Download Center ........................................................................................... 60

3-7 New Utilities ................................................................................................... 60

Chapter 4 Unique Features...........................................................................................61

4-1 Xpress Recovery2.......................................................................................... 61

4-2 BIOS Update Utilities ..................................................................................... 64

4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................64

4-2-2 Updating the BIOS with the @BIOS Utility .............................................................67

4-3 EasyTune 6 .................................................................................................... 68

4-4 Q-Share.......................................................................................................... 69

4-5 SMART Recovery........................................................................................... 70

4-6 Auto Green..................................................................................................... 71

Chapter 5 Appendix ......................................................................................................73

5-1 Conguring SATA Hard Drive(s) .................................................................... 73

5-1-1 Conguring SATA Controllers ................................................................................73

5-1-2 Installing the SATA RAID/AHCI Driver and Operating System ...............................79

5-2 Conguring Audio Input and Output............................................................... 83

5-2-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................83

5-2-2 Conguring S/PDIF Out..........................................................................................85

5-2-3 Enabling the Dolby Home Theater Function...........................................................86

5-2-4 Conguring Microphone Recording........................................................................87

5-2-5 Using the Sound Recorder .....................................................................................89

5-3 Troubleshooting.............................................................................................. 90

5-3-1 Frequently Asked Questions ..................................................................................90

5-3-2 Troubleshooting Procedure ....................................................................................91

- 6 -

Box Contents

GA-A75-UD4H motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

Four SATA cables

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)

2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)

2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)

COM port cable (Part No. 12CF1-1CM001-3*R)

3.5" Front Panel with 2 USB 3.0/2.0 ports (Part No. 12CR1-FPX582-0*R)

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

GA-A75-UD4H Motherboard Layout

KB_MS_USB3 CPU_FAN

Socket FM1

ATX

GA-A75-UD4H

AUDIO

PCIEX16

DDR3_4

DDR3_2

BAT

F_PANEL

COM

ATX_12V

AMD A75

PCIEX8

ESATA_1394_USB

CODEC

PCI1

Realtek

RTL8111E

VGA_DVI

DP_HDMI_SPDIF

USB30_LAN

PCIEX1_1

M_BIOSB_BIOS

CLR_CMOS

SATA3_4

SATA3_0

SATA3_3

DDR3_3

DDR3_1

SPDIF_O F_USB4

F_1394 F_USB1

iTE

IT8720

SATA3_2

SYS_FAN2

VIA

VT6308

F_AUDIO

SATA3_1

F_USB30_2

TPM

Etron

EJ168

Etron

EJ168

PCI2

PCIEX1_2

PCIEX1_3

F_USB3

F_USB2

F_USB30_1

SYS_FAN

PWR_FAN

- 8 -

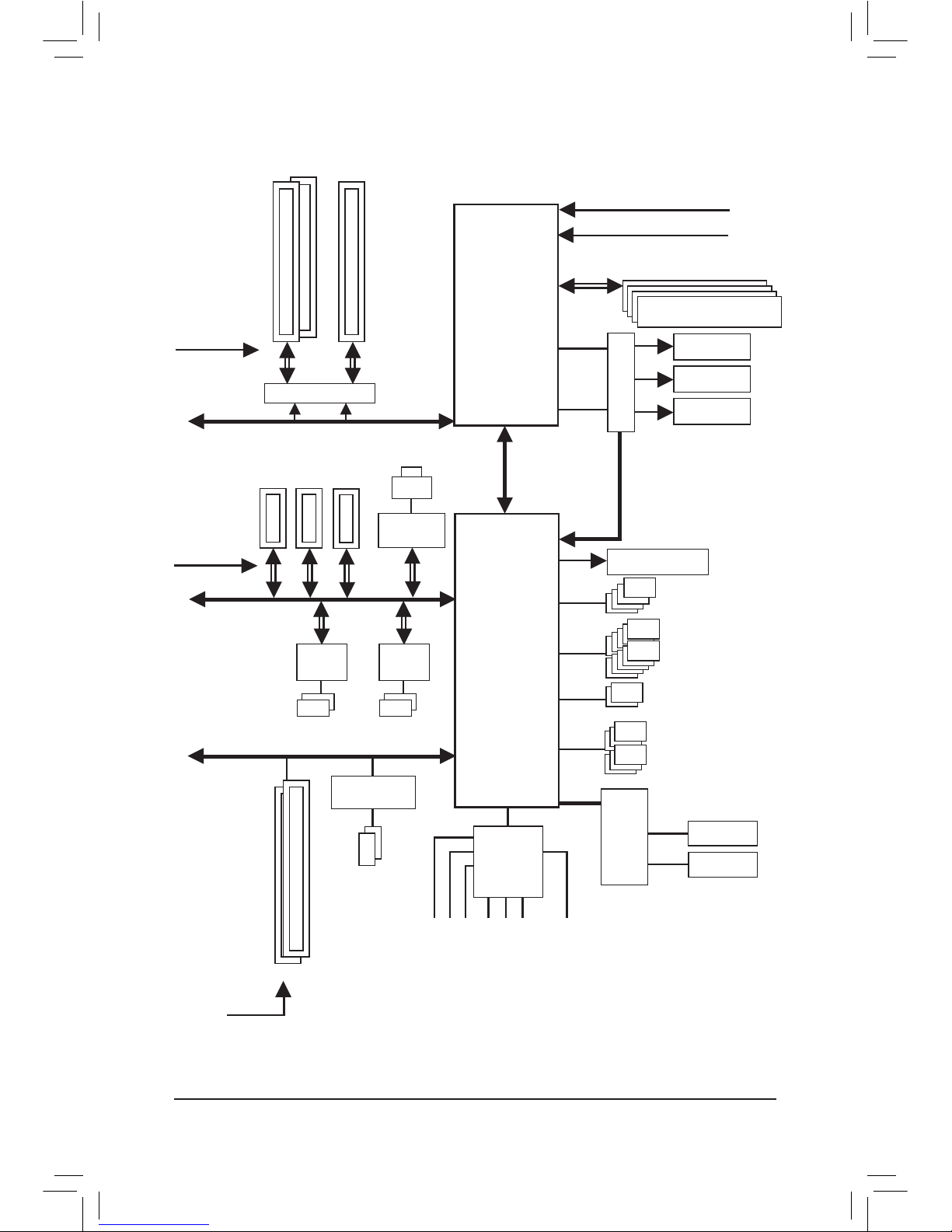

GA-A75-UD4H Motherboard Block Diagram

AMD APU

UMI

PCI Express Bus

iTE

IT8720 COM Port

LPC

Bus

6 SATA 6Gb/s

Center/Subwoofer Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Side Speaker Out

Surround Speaker Out

CODEC

2 PCI

PCI Bus

PCI CLK

(33 MHz)

VIA

VT6308

2 IEEE 1394a

Dual BIOS

PCIe CLK

(100 MHz)

PCI Express Bus

PS/2 KB/Mouse

10 USB 2.0/1.1

4 USB 3.0/2.0

D-Sub

LAN

RJ45

Realtek

RTL8111E

3 PCI Express x1

PCIe CLK

(100 MHz)

1 PCI Express x16

2 PCI Express x8

Switch

x8 x16

x1x1

2 USB 3.0/2.0

Etron

EJ168

2 USB 3.0/2.0

Etron

EJ168

AMD A75

APU CLK+/- (100 MHz)

Dual Channel Memory

DVI-D

HDMI

DisplayPort

Switch

DISP CLK+/- (100 MHz)

DDR3 2400 (O.C.)/1866/

1600/1333/1066 MHz

- 9 - Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, APU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

Hardware Installation - 10 -

1-2 Product Specications

APU FM1 Socket:

- AMD A series processors/AMD E2 series processors

(Go to GIGABYTE's website for the latest APU support list.)

Chipset AMD A75

Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture

Support for DDR3 2400 (O.C.)/1866/1600/1333/1066 MHz memory modules

* The 1866 MHz (or above) memory speed is supported only when one or two DDR3

1866 MHz (or above) DIMMs are installed. It is not supported when four DIMMs

are installed. (Dual channel memory mode must be enabled when installing two

DIMMs.)

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

APU:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 2560x1600

* The DVI-D port does not support D-Sub connection by adapter.

The resolution of 2560x1600 is supported only when Dual Link DVI mode is enabled.

- 1 x HDMI port, supporting a maximum resolution of 1920x1200

- 1 x DisplayPort, supporting a maximum resolution of 2560x1600

(All integrated graphics ports do not support Hot plug. If you want to change to

another graphics port when the computer is on, be sure to turn off the computer

rst.)

Audio Realtek ALC889 codec

High Denition Audio

2/4/5.1/7.1-channel

Support for Dolby®Home Theater

Support for S/PDIF Out

LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x8 (PCIEX8)

3 x PCI Express x1 slots

(All PCI Express slots conform to the PCI Express 2.0 standard.)

2 x PCI slots

Multi-Graphics

Technology

Support for AMD CrossFireX™ technology

* The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX™is enabled.

Support for AMD Dual Graphics technology

* Only A series APUs support AMD Dual Graphics.

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-990FXA-UD3 Manual de usuario

Gigabyte

Gigabyte GA-D510UD Manual de usuario

Gigabyte

Gigabyte GA-H61M-S2P-R3 Manual de usuario

Gigabyte

Gigabyte GA-Z87X-UD5H Manual de usuario

Gigabyte

Gigabyte H410M K Manual de usuario

Gigabyte

Gigabyte GA-MA69G-S3H Manual de usuario

Gigabyte

Gigabyte GA-D425TU Manual de usuario

Gigabyte

Gigabyte GA-870-UD3P Manual de usuario

Gigabyte

Gigabyte X670 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-7VM400AM Manual de usuario

Gigabyte

Gigabyte G1.Sniper Manual de usuario

Gigabyte

Gigabyte GA-M68M-S2P Manual de usuario

Gigabyte

Gigabyte GA-Z97X-UD5H-BK Manual de usuario

Gigabyte

Gigabyte GA-Z77-HD4 Manual de usuario

Gigabyte

Gigabyte GA-A55M-S2HP Manual de usuario

Gigabyte

Gigabyte GA-890FXA-UD5 Manual de usuario

Gigabyte

Gigabyte B365M H Manual de usuario

Gigabyte

Gigabyte 6EMMP Manual de usuario

Gigabyte

Gigabyte 7VM333M-RZ Manual de usuario

Gigabyte

Gigabyte GA-F2A85XM-HD3 Manual de usuario

Gigabyte

Gigabyte Z590 AORUS XTREME Manual de usuario

Gigabyte

Gigabyte GA-7ZX-H Manual de usuario

Gigabyte

Gigabyte B660M GAMING AC DDR4 Manual de usuario

Gigabyte

Gigabyte GA-7BESH Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
