GeoVision GV-IRCAM 10M EIA DC12V Manual de usuario

GV-IRCAM V1.5

Installation Guide

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

(10-Meter / 20-Meter Models)

GV-IRCAM offers a selection of models that support different optimal distances and video

formats to meet various needs. This installation guide will take you through the functionality

and use of GV-IRCAM.

List of Models

AC Power Cable (110-125V, 10A) x 1

Power Adapter (100-240V, 12V/3A) x 1

Outdoor Mounting Bracket x 1

Models

Packing List

Specifications

Model

GV-IRCAM 10M EIA DC12V

GV-IRCAM 20M EIA DC12V

GV-IRCAM 10M CCIR DC12V

GV-IRCAM 20M CCIR DC12V

Optimal Distance

10 m / 32.80 ft

20 m / 65.61 ft

10 m / 32.80 ft

20 m / 65.61 ft

Video Format

NTSC

PAL

Model

Distance (optimal)

Sensor

Resolution

Lens Focal Length

Construction

Protection classification

Environmental

Power Supply

Power Consumption

LED Quantity

Illumination Range

Illumination View Angle

Illuminator Life

1/3" B/W EXview CCD

570 TVL

Robust aluminum with weatherproof sun-shield

IP 66

Operation: -10˚C ~ 55˚C / 14˚F ~ 131˚F Storage: -20˚C ~ 70˚C / -4˚F ~ 158˚F

DC 12V

30˚

25,000 hrs

GV-IRCAM 10M

EIA DC 12V

7~15 m /

22.96 ~ 49.21 ft

5 ~ 50 mm, 10X

15W

12 high-efficiency

reflex LED

20M (object of view

reflecting IR light)

GV-IRCAM 20M

EIA DC 12V

15 ~ 25 m /

49.21 ~ 82.02 ft

10 ~ 120 mm, 12X

20W

24 high-efficiency

reflex LED

30M (object of view

reflecting IR light)

GV-IRCAM 10M

CCIR DC 12V

7 ~ 15 m /

22.96 ~ 49.21 ft

5 ~ 50 mm, 10X

15W

12 high-efficiency

reflex LED

20M (object of view

reflecting IR light)

GV-IRCAM 20M

CCIR DC 12V

15 ~ 25 m /

22.96 ~ 49.21 ft

10 ~ 120 mm, 12X

20W

24 high-efficiency

reflex LED

30M (object of view

reflecting IR light)

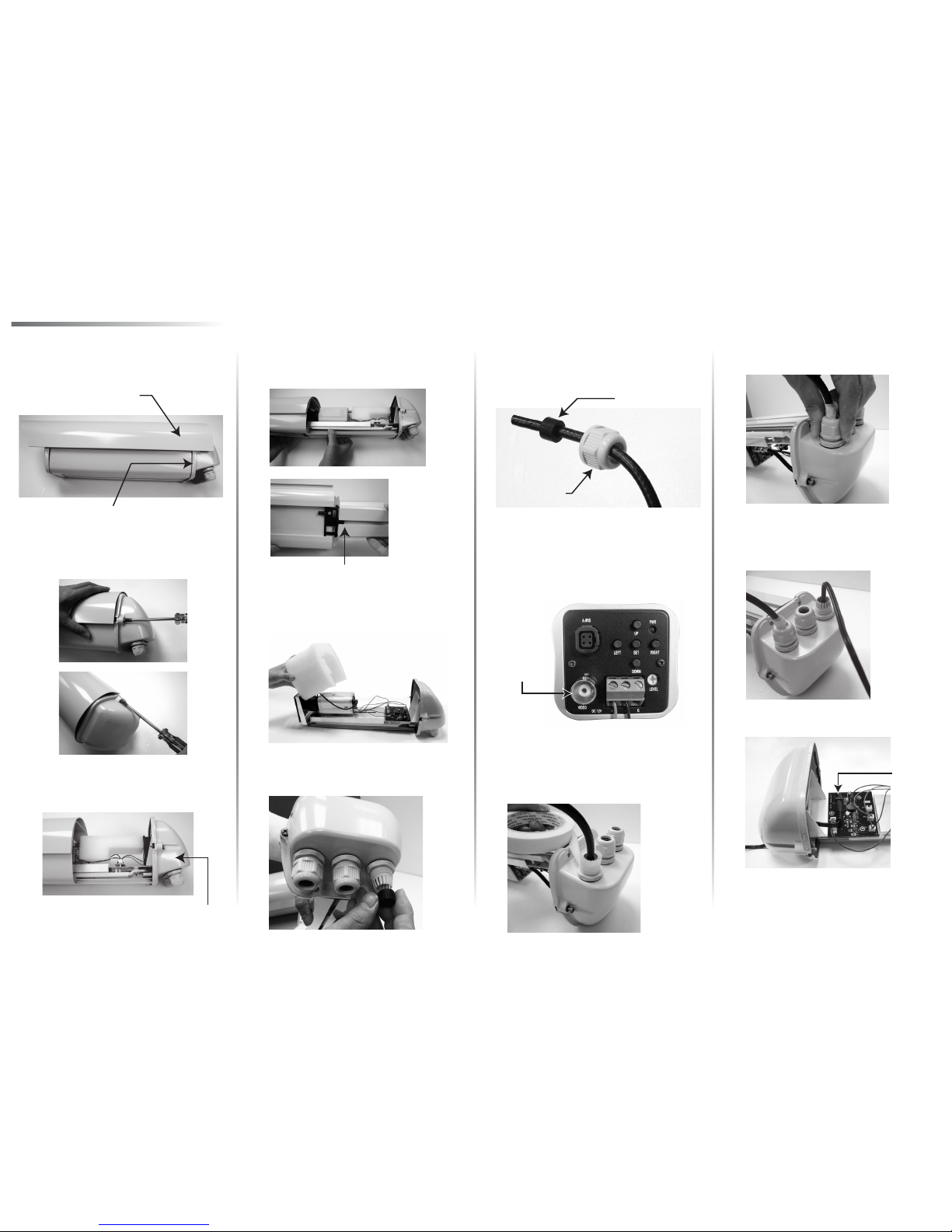

Installing Camera Module

Push the sun shield forward to align with

the back of camera enclosure.

1. Slightly lift the camera module and slide it

out completely.

Remove the foam.5.

Pull out the camera module.

Sun Shield

Camera Enclosure Back

Camera Module

Completely slide the camera

module out

Loosen the set screws on the back of the

camera enclosure.

Loosen the screw cap on the right.6.

Insert the video cable through the screw

cap and the inside rubber of the cap.

Rubber

Screw Cap

Attach the video cable to the BNC

connector and plug it into the “VIDEO OUT”

jack.

Adjust the length of the video cable and

seal it with the waterproof tape.

Tightly screw the cap.10.

Loosen the screw cap on the left, insert the

power cable through the screw cap and the

inside rubber.

11.

Plug the power cable into the DC jack.12.

Adjust the length of the cable, seal it with

the waterproof tape, and then tightly screw

the cap (see Steps 9 and 10 for the

pictures).

13.

DC Jack

VIDEO OUT

Jack

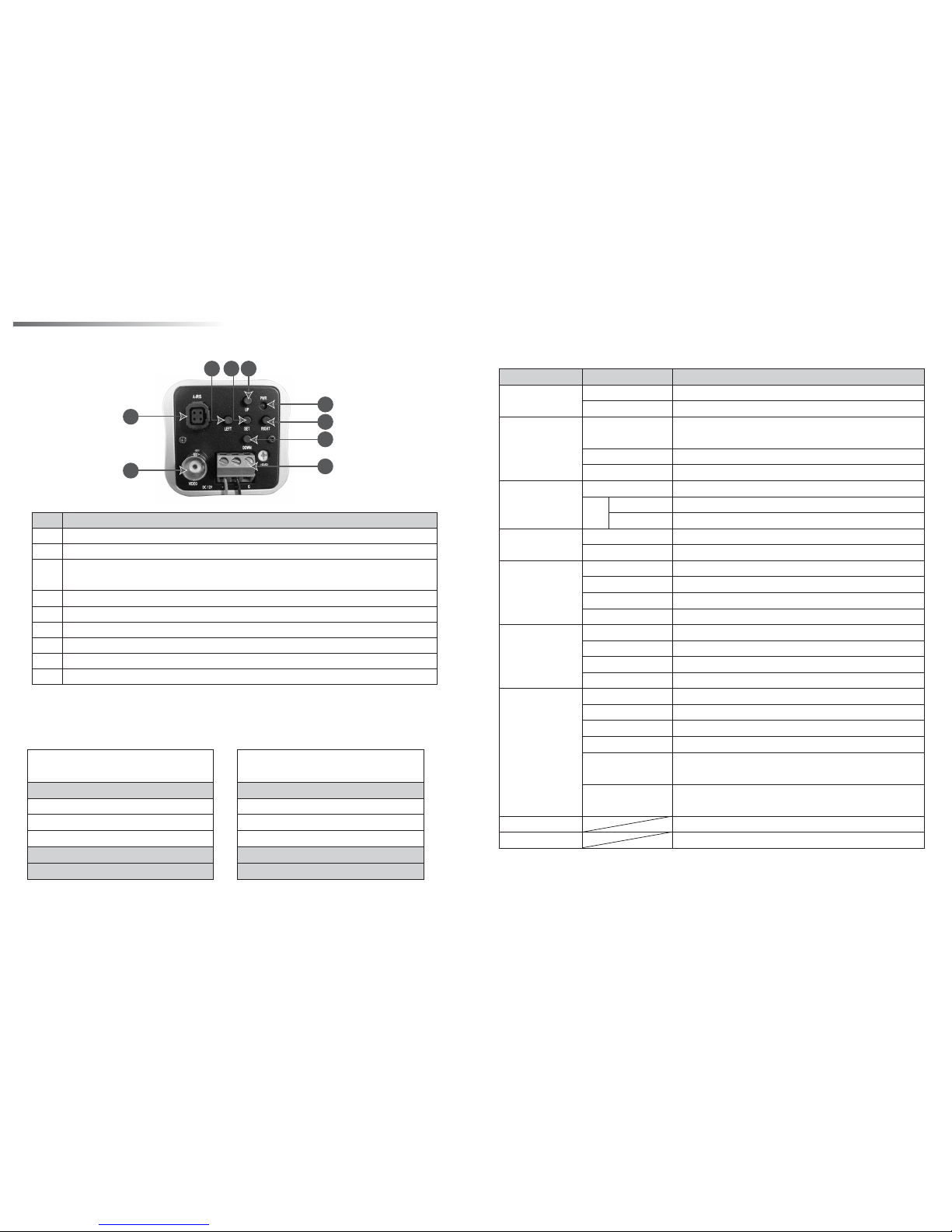

Adjusting Camera Settings

Overview

Shutter Speed

Function

Auto Iris lens connector

Video out

Power Terminal (It is already connected. Follow Steps 11 to 12 in Installing Camera

Module to insert the Power Cable.)

Moves down the OSD menu.

Moves the focus rightward to select menu options.

Power LED

Moves up the OSD menu.

Enters the OSD menu option and confirms the selection

Moves the focus leftward to select menu options.

See the lists below for shutter speed settings.

OSD Menu Options and Functions

165 SEC

182 SEC

183 (*) SEC

184 SEC

185 SEC

225 SEC

Distance between the object and the

camera is 550 cm.

Notes:

1. The default settings are marked with (*).

2. The gray areas in the charts are not recommended for use.

145 SEC

150 SEC

155 SEC

170 SEC

180 SEC

200 SEC

Function

Manually adjust the camera lens.

Press SET to adjust the lens brightness.

Includes these options: 1/60, 1/100, 1/250, 1/500,

1/2000, 1/5000, 1/10000, 1/100000.

Press SET to manually adjust the shutter speed.

Not available when the LENS is set at DC.

Turn off BLC function.

Press SET to configure the areas.

Press SET to adjust the sensitivity values.

Turn off AGC function.

Press SET to adjust the AGC ratio values.

Auto Tracking White Balance

Automatic White Balance

Press SET to select the mode from 1 to 4.

Press SET to adjust Red and Blue gain.

Adjust the Contrast from values 0 to 255.

Adjust the Sharpness from values 0 to 255.

Adjust CB_GAIN from values 0 to 255.

Adjust CR_GAIN from values 0 to 255.

Press SET to name the camera.

Select ON to reverse the image.

Select ON and press SET to configure MOTION areas.

Select ON and press SET to configure PRIVACY areas.

Adjust the gamma values to control brightness. Higher

gamma value shows darker images.

Press SET to change the language setting of OSD menu

options.

Press SET to restore to the factory defaults.

Close the OSD menu.

Main Menu

LENS

SHUTTER

BLC

(Backlight

Compensation)

AGC (Automatic

Gain Control)

WHITE BAL.

(White Balance)

ADJUST

FUNCTION

RESET

EXIT

Sub Menu

MANUAL

FIXED

MANUAL

AUTO

OFF

ON BLC AREA

BLC RATIO

OFF

ATW

AWB

FIXED

MANUAL

CONTRAST

SHARPNESS

CB_GAIN

CR_GAIN

CMAERA ID

MIRROR

MOTION

PRIVACY

GAMMA

LANGUAGE

Distance between the object and the

camera is 1100 cm.

Installing Camera Enclosure

After the installation of camera module and settings adjustment, you are now ready to install the

camera enclosure back.

1. Adjust the lens focus. 2. Lift the camera module.

Align the camera module to the camera

enclosure and slide it back.

3. Secure the camera enclosure with the

screws on both sides.

Push the sun shield back.5.

9F, No. 246, Sec. 1, Neihu Rd.,

Neihu District, Taipei, Taiwan

Tel: +886-2-8797-8377

Fax: +886-2-8797-8335

[email protected]

http://www.geovision.com.tw
