Genius LOOK 316 Manual de usuario

English

-1-

Symbol for Separate Collection in European Countries

This symbol indicates that this product is to be

collected separately.

The following apply only to users in European

countries:

zThis product is designated for separate collection

at an appropriate collection point. Do not dispose

of as household waste.

zFor more information, contact the retailer or the local authorities in

charge of waste management.

1. SnapShot Button

You can press the snapshot button to

take the images.

2. LED Indicator

When the Look 316 connects to the PC

successfull

, the LED will li

ht u

3. Lens

Adjust the focus by twisting the lens.

4. Swivel and Clipping Base

The flexible base design allows the

Look 316 to stand easily. The adjustable

clipping base can be up to 14 mm.

Look 316 Features

English

-2-

1. Please install the driver first and then connect Look 316 to

the USB port.

2. Installing the Look 316 driver

a. Insert the Look 316 Installation CD into the CD-ROM drive.

b. The Autorun screen will bring up the installation screen. Click on

“Driver” then simply follow the on-screen instructions.

c. Install “DirectX”from the CD.

Notice: If the Autorun screen doesn’t start, please follow these

steps:

zClick on “Start Menu”.

zType D：\SETUP.EXE , then click “Enter” key.

(Assume your CD-ROM is in Drive D)

3. Insert the Look 316’s USB cable to your desktop’s or

laptop’s USB port.

4. Complete software and hardware installation. You can

install the software you would like for video

conferencing or chat with your friends.

Installing the Look 316

English

-3-

NOTE

To remove the driver installation:

Please go to the taskbar and follow “Start” Æ“Program” Æ“Look 316”Æ

Click “Uninstall”, then follow the on-screen instructions to remove the

driver.

You can use our software to capture the real-time image, record or

execute the simply security function.

To run the software, please go to the task bar and follow “Start”Æ

Click “Program”ÆChoose “Look 316”ÆClick “Look 316”. Or you

may execute the software by simply clicking the shortcut of “Look 316”.

NOTE

After installing the driver of Look 316, the system will automatically create a

file (C:\WINDOWS\Album or C:\WINNT\Album)to save the images you take

using the Genius Application.

1. Description for the major icon

Preview mode

Snapshot mode

Video Clip Mode

Genius Application (Windows Only)

English

-4-

Security monitoring system

Exit the Genius UI

Camera Control

NOTE

In the “camera control section”, you can personalize your camera

settings for different circumstances.

English

-5-

1You can adjust different values for different circumstances and environment

2You may adjust values toward image appearance. Before adjusting values, you

have to unclick “Auto” to unlock.

3-Press “Reset” to return to the manufacturer’s settings.

-Press “Restore” to return to the previous settings.

-Press “Save” to save the values you set up.

4-You can flip the image horizontally or vertically by choosing “Mirror Flip” or

“Vertical Flip”.

--If your web camera is located in backlight position, you may click

“Backlight Comp” to get a sharper image.

5Select the correct frequency according to the country where you are using the

web camera.

English

-6-

2. Preview Mode

You can use the function buttons on the control panel to zoom in/out and

move upward/downward/left/right.

Zoom in the image

Zoom out the image

Move the image upward

Move the image downward

Move the image to the left

English

-7-

Move the image to the right

Resolution Selection

There are 2 categories of resolution: RGB24 and

I420. You can select 5 different image resolutions for

each of them. The file size of I420 will be smaller than

RGB24. So, I420 may be the better choice for

transmission.

3. SnapShot Mode

You can press the Snapshot button in the right of the circle to take a

picture right away and share with your friends.

Send photo by e-mail

Shoot continuously

English

-8-

Resolution selection

This section shows the resolution you selected in the

“Preview Mode”. If you want to change the resolution,

please click “ ”to go back to the “Preview Mode” to

make the changes.

4. Video Clip Mode

You can record real-time image in this section.

Send photo by e-mail

Convert AVI files into MEPG-1 format

Start recording

Stop recording

Exit the Video Clip Mode

English

-9-

To Create animation

Press to start; Press to stop

Press to return to the video recording mode

This function has to be under the resolution of RGB24 320 x 240

or I420 320 x 240. Please make sure the resolution is correct

before executing this function.

Resolution selection

This section shows the resolution you selected in the “Preview

Mode”. If you want to change the resolution, please click “ ”to

go back to the “Preview Mode” to make the changes.

5. Security Monitoring System

This function records any movements that appear in front of your

monitor automatically. It can also record anytime until the HD is full. If

there’s no movement, it will shut down automatically after four

seconds or otherwise it will be active when detecting new movement.

It’s a great security monitoring system at times when you’re not

around.

English

-10-

Start recording

Stop recording

Setup time of the security monitoring system

Set up the degree of the variance for every

second of recording image. When the differences

are over the setup degree, the system will alert

you.

Set up the different alerting sound effects

NOTE

In “Security Monitoring System” section, you can record in any size of

image resolution. If you want to change the resolution, please click

“”to go back to the “Preview Mode” and make the changes.

MSN Messenger

a. For live video function, you’ll need MSN Messenger version 6 or later. If

you don’t have it, please refer to the website:

http://www.msnmessenger-download.com to download.

b. Now, get to sign onto MSN Messenger service.

c. Choose a friend on the contact list and Click “OK” to confirm.

MSN Messenger, Yahoo Messenger, AOL

Tabla de contenidos

Otros manuales de Cámara web de Genius

Genius

Genius LOOK 1320 - V2 Manual de usuario

Genius

Genius TREK 310 Manual de usuario

Genius

Genius EYE 110 Manual de usuario

Genius

Genius VideoCAM WEB V2 Manual de usuario

Genius

Genius LOOK 310S Manual de usuario

Genius

Genius SLIM 1320 Manual de usuario

Genius

Genius FaceCam 1000X Manual de usuario

Genius

Genius ISLIM 1300 Manual de usuario

Genius

Genius FACECAM 3000 Manual de usuario

Genius

Genius EFACE 1325R Manual de usuario

Genius

Genius VideoCAM GF112 Manual de usuario

Genius

Genius LOOK 317 Manual de usuario

Genius

Genius SLIM 2020AF Manual de usuario

Genius

Genius SLIM 322 Manual de usuario

Genius

Genius ISLIM 330 Manual de usuario

Genius

Genius WideCam F100 V2 Manual de usuario

Genius

Genius ILOOK 300 Manual de usuario

Genius

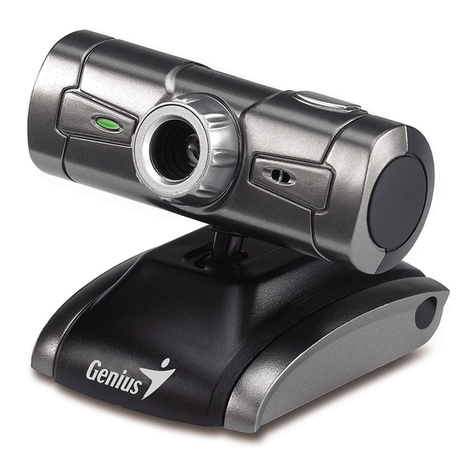

Genius EYE 320 Manual de usuario
