Genius E5000 Manual

Hardware Installation

1. You can connect the receiver to a USB port of a PC

2. Install two AA batteries in the mouse.

3. Turn on your computer.

4. After you open Windows, please press

the button on the receiver first and

then press the button under the mouse

for channel setting.

Important: You can use the battery charger

receiver to recharge two AA each time

when you use the PC. Plug the battery

charger receiver USB connector into the

PC directly and remember do not put the batteries in the wrong direction, use the

same types of batteries, and do not recharge via the USB hub, that will make your

receiver, main-board and hub burn or become non-usable easily. Also, keep all

drinks away! If any spill occurs on the receiver, unplug the USB connector first and

clean the receiver immediately. Please remove the batteries if you do not use this de-

vice for at least two weeks.

Warning: (Troubleshooting)

1. Please do not use Wireless optical mouse on a desk which is made of glass, mir-

ror, iron, or black velvet. Also, a flat surface is necessary or the Optical Sensor

will error easily. When you use Wireless optical mouse on a desk that is made of

metal, try using a pad and reduce the receiving distance.

2. Before the first installation is completed (channel setting ready), the mouse will

not work.

3. The Wireless optical mouse channel provides 256 ID-codes, and it automatically

selects the ID # for your mouse. You can only set up one Wireless optical mouse

at a time. But if you have additional Wireless optical mouse sets in an area of 10

square meters, more interference will occur between the receiver and your

mouse.

ENGLISH

4. If you feel the mouse does not move smooth as usual, then the batteries have lost

their charge, so please replace them. Also, the wireless icon will be blinking

“red” when there is a battery-low situation. The LED on the receiver shows the

battery-recharging status (from shining to LED completely “on” for battery full).

You should set up the channel every time you replace the batteries.

5. If you need to buy new batteries, please choose Ni-MH (Nickel-Metal-Hydride)

AA batteries, 1.2V, 1300 to 1600 mAH. Please do not mix or use other types

of batteries (Li-ion, Ni-Cd, Alkaline, etc.)

6. The Wireless optical mouse with radio frequency gives you free movement and

an enjoyable experience. For optimal performance, place the receiver at least 8

inches (about 20 cm) away from the mouse and other electrical devices, such as

the computer, monitor, and etc.

Software Installation

1. Make sure the mouse is connected to the computer.

2. Put the Setup disk (or CD) into the disk drive.

3. Follow the instructions on the screen to finish the software installation.

Factory Setting

10 “One Touch” keys for fast access to multimedia, the Internet, and the application

switch.

Button Assignments

The Button Assignment feature lets you work in a more

efficient way because you can assign the most frequently

used commands in Windows to the mouse buttons.

1. Left Button: Provides traditional mouse functions

like click, double click and drag.

2. Right Button: You can assign this button to fre-

quently used keyboard and mouse functions in addi-

tion to features like Easy Jump, Auto-Panning,

Zoom, etc.

3. Magic-Roller: Press the “Magic-Roller” to surf the

Internet and Windows documents

4. Back: See previous page when viewing the Internet

5. Forward: Go to next page when viewing the Internet

6. WWW: Open browser (Netscape or IE)

7. Play & Pause: Play and pause of audio or video CD’s

8. Vol. +: Increase volume

9. Vol. -: Decrease volume

10. Application Switch: You can switch between active programs and documents

Tabla de contenidos

Otros manuales de Ratón de Genius

Genius

Genius SCROLLTOO 200 Manual de usuario

Genius

Genius ERGO 555 LASER Manual de usuario

Genius

Genius NAVIGATOR R820BT Manual de usuario

Genius

Genius NS O Instrucciones de montaje

Genius

Genius TRAVELER 600 LASER Manual de usuario

Genius

Genius NETSCROLL 220 LASER Manual de usuario

Genius

Genius ERGO 525X LASER Manual de usuario

Genius

Genius NAVIGATOR 905BT Manual de usuario

Genius

Genius ERGO 720 Manual de usuario

Genius

Genius ERGO 300 Manual de usuario

Genius

Genius TRAVELER 915BT LASER - Manual de usuario

Genius

Genius ERGO 720 LASER Manual de usuario

Genius

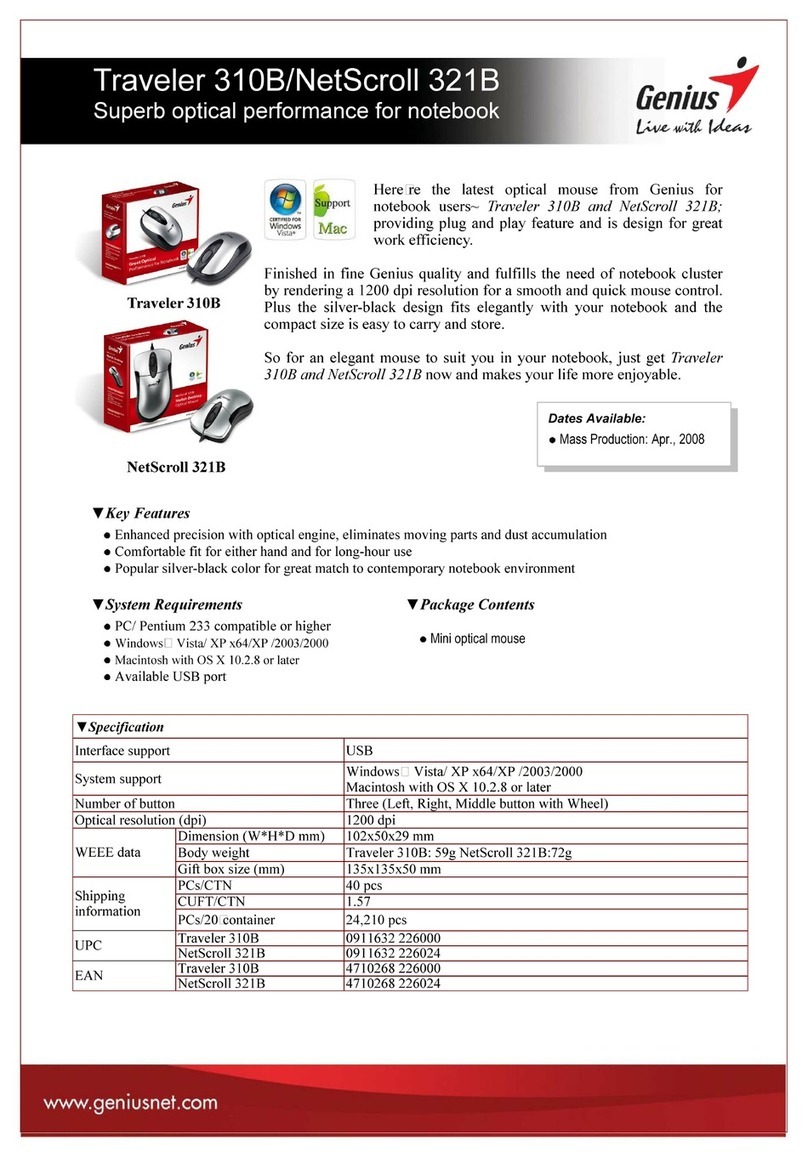

Genius NETSCROLL 321B Manual de usuario
