Gefen CAT5-2000 Manual de usuario

CAT5•2000

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

CAT5•2000 is a trademark of Gefen Inc.

Macintosh is a trademark of Apple Computer Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Box Content

Operation Notes

How it Works

CAT5•2000S Front Panel Descriptions

CAT5•2000S Back Panel Layout

CAT5•2000S Back Panel Descriptions

CAT5•2000R Front Panel Descriptions

CAT5•2000R Back Panel Layout

CAT5•2000R Back Panel Descriptions

CAT5•2000I S Front Panel Descriptions

CAT5•2000I S Back Panel Layout

CAT5•2000I S Back Panel Descriptions

CAT5•2000I R Front Panel Descriptions

CAT5•2000I R Back Panel Layout

CAT5•2000I R Back Panel Descriptions

CAT5 Cable Wiring Diagram

CAT5•2000 Wiring Diagram

CAT5•2000I Wiring Diagram

Speciﬁcations

Warranty

Thank you for purchasing the new ex•tend•it CAT5•2000 series by Gefen, Inc.

The ex•tend•it CAT5•2000 allows users the beneﬁts of extending PS/2, ADB, audio

and USB signals beyond the desktop. In a growing number of applications, broadcast

stations and production facilities need to locate a computer remotely from the keyboard,

mouse, and video monitor. A CPU may need to be shared between several users, for

example, or moved to another room because of annoying fan noise. For these and other

applications, Gefen offers several versions of the CAT5•2000 series to provide great

extension, saving space and enabling a quiet and clutter-free environment.

The CAT5•2000 series can be used to extend computers with noisy fans, printers, hard

drives, scanners, cameras, keyboards, mouse, and any other USB-type device. With

the potential to cover the distance of 330 feet, industry standard Category 5 (CAT-

5) cables are used for the extension of all the devices. One can connect additional

CAT5•2000 series to the same computer, allowing access to the same computer from

other locations up to 330 feet apart.

INTRODUCTION

The CAT5•2000 system consists of:

(1) CAT5•2000S sender unit

(1) CAT5•2000R receiver unit

(2) 17 VAC power supply

(1) Video cable (6 FT)

(2) PS/2 Cables (6 FT)

(1) ADB cable (6 FT)

(1) USB cable (6 FT) - (CAT5•2000I USB models ONLY)

(1) Audio cable (6 FT) - (CAT5•2000I USB models ONLY)

BOX CONTENTS

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE CAT5•2000 SYSTEM

* Industry standard Category-5 (CAT-5) cables are used to operate CAT5•2000 systems.

Linking the sender and receiver boxes together, the CAT5•2000 (non-USB) model re-

quires two CAT-5 cable to extend keyboard, video, and mouse (KVM).

* The CAT5•2000 USB models require four CAT-5 cables to link the sender and receiver

boxes. Two cables extends KVM signals as above. The third cable extends the USB,

and audio signal. The fourth cable extends RS232.

* When two monitors are used in the local and remote locations, the video monitors

must be a multi-resolution type. This pertains to monitors placed remotely, and those di-

vided between local and remote locations. The video monitors will not initialize correctly

at start-up if they are different types.

* The CAT5•2000 units are housed in a metal box for better RF shielding.

OPERATION NOTES

In its most basic application, the CAT5•2000S sender unit resides next to the computer.

Supplied with the system, straight monitor, keyboard, mouse, and USB cables connect

the computer to the CAT5•2000S sender unit.

The CAT5•2000R receiver units are placed next to the monitor and keyboard, or

USB device, at the remote location. The monitor and keyboard are connected to the

CAT5•2000R similar to the way they are connected to the back of the computer (PC or

Macintosh).

HOW IT WORKS

Front Panel Function Descriptions

Reset

Resets the ﬁrmware chip inside the unit. Use to change DIP switch settings

instead of powering off.

PC or MAC DIP switch Settings

ADB keyboard / mouse for Macintosh types -

Switches 1 and 2 set to OFF

PS/2 keyboard / mouse for PC types - Switches

1 and 2 set to ON

Monitor Settings

NOT USED

Power On Indicator

Indicates that the unit is on and plugged in.

CAT5•2000S FRONT PANEL DESCRIPTIONS

23 4

124567

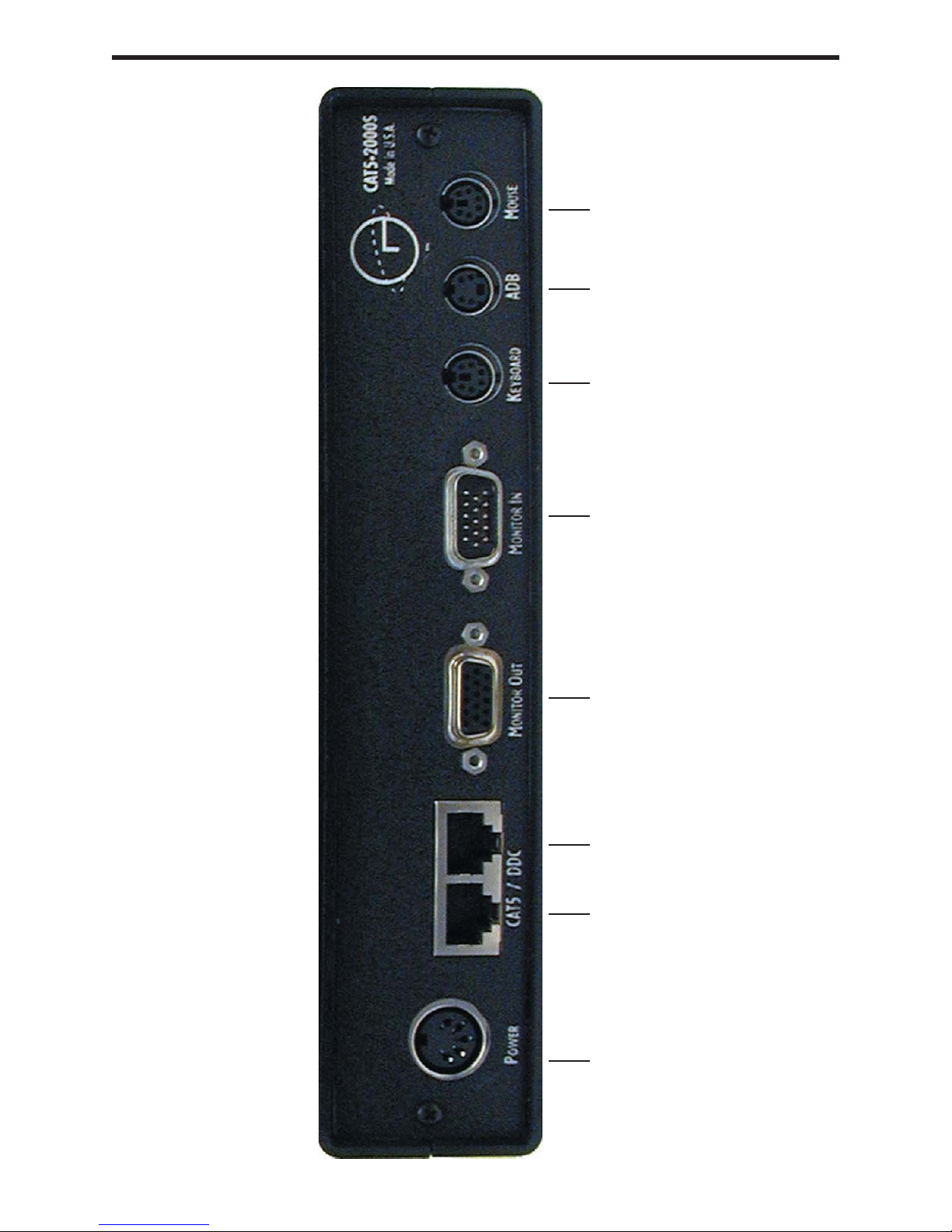

CAT5•2000S SEND UNIT BACK PANEL LAYOUT

POWER - 17 VAC external power supply

CAT5 - RJ-45 input extends video, PS/2 keyboard, and ADB signals to the

receive unit with CAT-5 cable

DDC - RJ-45 input extends DDC and PS/2 mouse signals to the receive unit with

CAT-5 cable

MONITOR OUT - HD-15 output connects to the monitor for local video

MONITOR IN - HD-15 input from computer

KEYBOARD - Mini Din PS/2 input connects to computer keyboard PS/2 output

ADB -Mini Din ADB input connects to computer ADB port

MOUSE -Mini Din PS/2 input connects to computer mouse PS/2 output

CAT5•2000S BACK PANEL DESCRIPTIONS
