GE 45411 Manual de usuario

45411

Personal Security

Water Leak

Alarm

User’s Manual

Important Safeguards 4

Introduction 4

Installing Batteries 5

Low Battery Indication 5

Installation 6

Warnings 9-10

Speciﬁcations 8

Warning 9

Table of Contents

Before connecting or operating the Water Leak

Alarm, please read these instructions carefully and

save this manual for future reference.

This user manual explains in simple steps how to

install, use and care for your new Personal Security

Water Leak Alarm.

If you have any questions or would like additional

information please visit our web site

www.jascoproducts.com or contact our Technical

Support Group at 1-800-654-8483, option 4.

Important safeguards

Pre cautions

1. Do not attempt to disassemble the Water Leak Alarm,

unless described in the user’s manual. There are no user

serviceable parts.

2. Handle with Care – Avoid striking or shaking. Improper

use or storage could damage the Water Leak Alarm.

Modifying the device or its internal components can cause a

malfunction and void the Alarm’s warranty.

3. If you feel the Water Leak Alarm is not operating correctly

or as described, please contact Technical Support for

assistance (1-800-654-8483), option 4.

Introduction

The Water Leak Alarm is designed to be used in areas where

there is a potential for damaging water leaks – dishwashers,

washing machines, hot water tanks, bathrooms, air

conditioner condensation drip pans, etc. When mounted

properly it will sound an alarm indicating potential damage

from water leaks.

SENSOR

Indicator Light

Alarm

Siren

Battery Test

Button

Power ON/OFF

Installing Batteries

The alarm requires (4) LR44 (or 357) button batteries

(included). Average battery life for typical usage is up to

one year.

1. Make sure alarm ON/OFF switch is set to “OFF” position.

2. Remove the screw securing the battery

compartment cover.

3. Slide cover off the battery compartment door in

direction of arrow.

4. Insert (4) LR44 button batteries noting polarity.

5. Replace battery compartment cover.

6. Secure the battery cover screw.

Low Battery Indicator

GE Personal Security Water

Leak Alarm has a battery test

button. Battery levels can be

checked in either ON or OFF

mode. Once pressed, the light

on front of the alarm will turn

red indicating that the battery

is good. If the battery test

light fails to turn red, replace

all batteries.

Battery Test

Button

Power

ON/OFF

Installation

The sensor should be

mounted ﬁrst. Positioned

the sensor with the

contacts pointing down.

Find a suitable location

where water could

accumulate if a leak were

to occur (e.g. along the

baseboard of wall).

For best results mount both

alarm and sensor to a ﬂat

Surface. The surface must

be smooth and nonporous.

Before mounting, make

sure the mounting surface

is clean and dry. Clean the

mounting surface with a

mixture of 50% Isopropyl

alcohol and 50% water.

Remove protective paper

from double-sided tape.

Once the mounting surface

is ready, position sensor so

that the metal contacts are pointing down, touching the ﬂoor

or the area where it can detect water accumulation.

Note: If mounting the sensor to a metal surface, ensure the

sensor’s contacts do not touch the metal surface.

LIQUID

Next, stretch the cable vertically and locate a suitable

position with a smooth surface to mount the alarm. Make

sure you can easily access all the controls and the battery

door once the position has been selected. Follow the same

mounting instructions above for mounting the alarm. Position

the back of the alarm unit (after removing protective paper

from the double side tape) up against the smooth nonporous

surface. Apply pressure to secure the alarm unit to the

surface.

Speciﬁcation:

Power Supply: 4 LR44 Batteries

Operating Voltage: 4~6V DC

Operating Current: <40mA (6V DC)

Standby Current: <10uA (6V DC)

Alarm Sound Period: Continuous

Alarm Sound-Level:

Hi>110 dB (6.0V DC)

Low>95 dB (6.0V DC)

(Measured at 30cm)

Low Battery Voltage-Level Indicator: 4~4.7V DC

(Testing Button)

Battery Good: Red LED lights up

Battery Voltage-Level Low: Red LED does not light up

Operating Temperature: 0˚F~40˚F

WARNING

Limitations of Alarm Products

This product should be tested periodically to make sure

it is working properly. The product, if used properly, may

reduce the risk of burglary, robbery, or other adverse events.

However, JASCO is not an insurer, this product is neither

insurance nor a guarantee that such an event will be

prevented, and users should protect themselves with proper

insurance. JASCO makes no representation that this product

cannot be compromised or circumvented, that it will provide

an adequate warning, or that it will prevent any personal

injuries, property damage, or other losses. Like any alarm

product, including expensive commercial systems, it may be

bypassed, it is subject to compromise, and it may fail to warn

for a variety of reasons, including, but not limited to: improper

installation or positioning; improper maintenance; tampering;

dead or improperly installed batteries; sensing limitations;

component failures; receivers; intrusions may be outside

of a product’s designed range and certain environmental

conditions may impact performance and audible alarm

signals may be outside of hearing range, muted by doors,

walls, and ﬂoors, unheard by deep sleepers or the hearing-

impaired, or overwhelmed by other sounds.

GE is a trademark of the General Electric Company

and is used under license to Jasco Products Company

LLC, 10 E. Memorial Road,

Oklahoma City, OK 73114.

45411-1

01/17/11

WARNING

Risk of personal injury

• Prolonged exposure to alarm siren may cause permanent

hearing loss

Battery Warning

• Remove batteries if the Alarm will not be used for

extended periods

• Batteries may leak harmful liquids or ignitable materials or

explode causing injury and product damage

• Do not mix old and new or other battery types

• Replace all batteries at the same time

• Replace fully discharged batteries immediately.

For indoor use only; do not use in wet locations.

This Jasco product comes with a 90 day limited warranty.

Please contact Technical Support at 800-654-8483 option 4

between 7:30 AM—5:00 PM CST or via our website

(www.jascoproducts.com) if the unit should prove defective

within the warranty period.

Tabla de contenidos

Otros manuales de Sistema de seguridad de GE

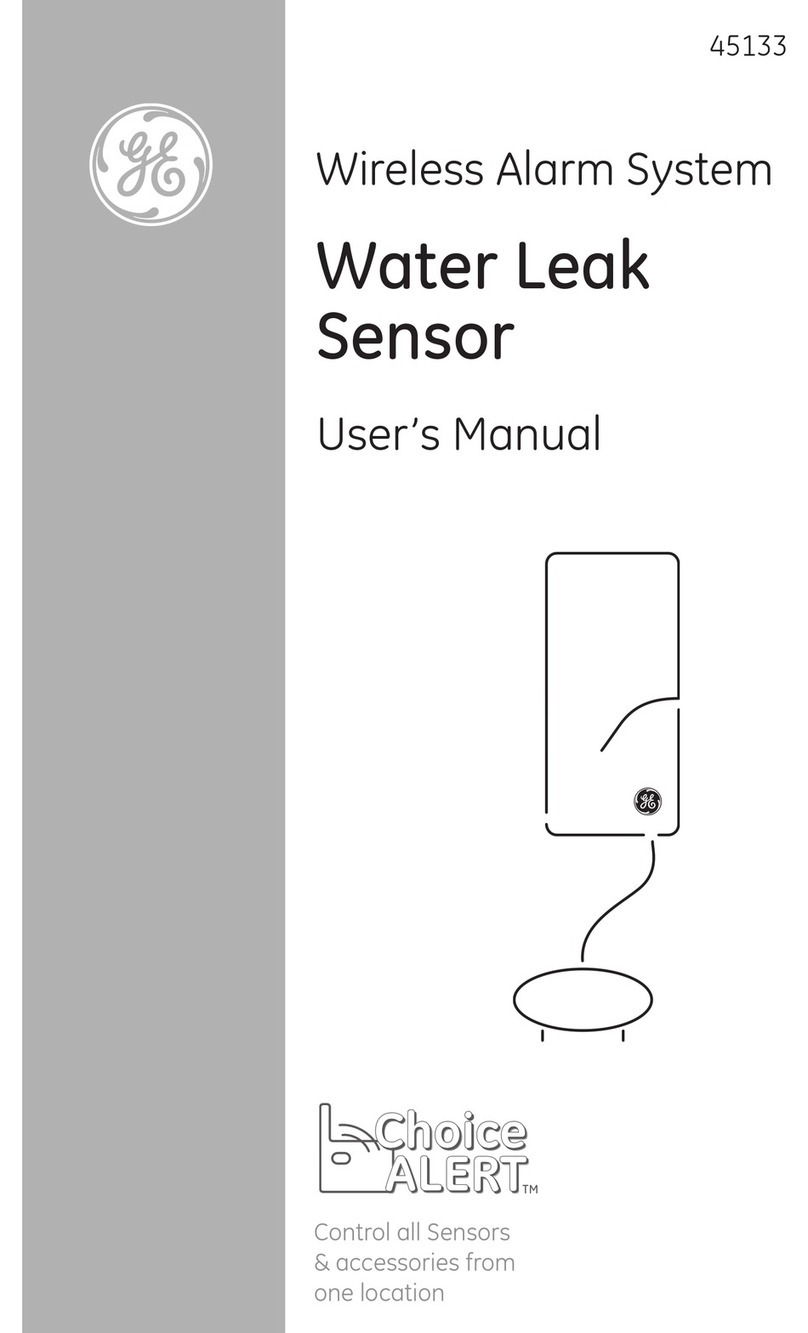

GE 45133 Manual de usuario
