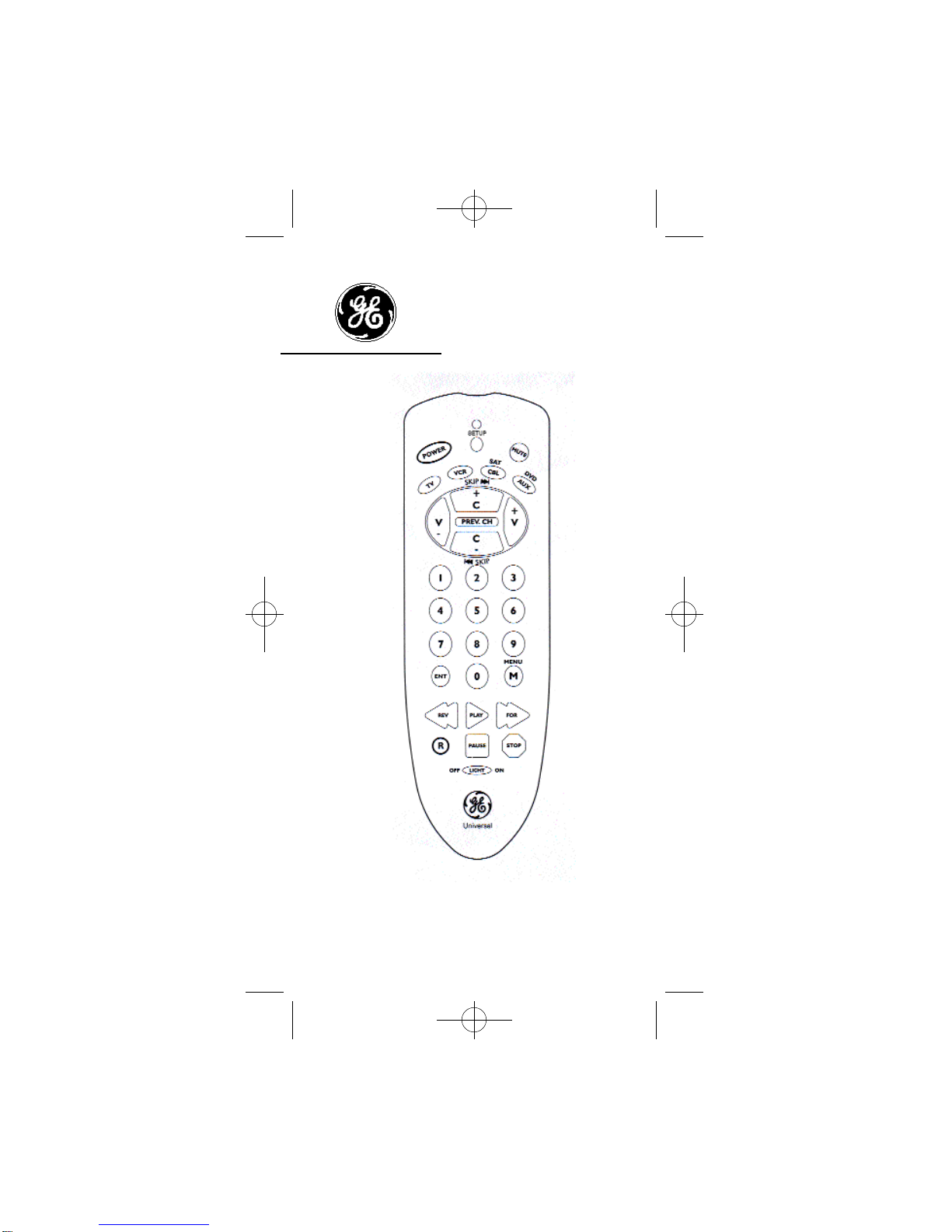

GE RM94901 Manual de usuario

Universal

Remote Control

RM94901

INSTRUCTION

MANUAL

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 1

Table Of Contents

Button Description . . . . . . . . . . . . . . . . . . .1-3

Battery Installation . . . . . . . . . . . . . . . . . . . . .2

ProgrammingYour Universal Remote

TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Cable Box . . . . . . . . . . . . . . . . . . . . . . . .6

AUX/DVD or Other Device . . . . . . . . . . .7

Code Search . . . . . . . . . . . . . . . . . . . . . . . . . .8

Code Retrieval . . . . . . . . . . . . . . . . . . . . . . . .9

Menu Functions . . . . . . . . . . . . . . . . . . . . . .10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . .12

LostYour Codes? . . . . . . . . . . . . . . . . . . . . .13

Button Description

INDICATOR LIGHT

The Indicator Light flashes to show that the

remote is working.

POWER

The POWER button operates the same as your

original remote (note: some RCA, GE and

Proscan models require you to press the

device key to turn the device on and the power

key to turn the device off).

SETUP

Used to program the remote or to search

through codes.

TV,VCR, CABLE, DVD/AUX

TheTV,VCR, CABLE and DVD/AUX buttons are

used to select the device you want to control.

VOL & CHANNEL

The VOL (Volume) and CHANNEL buttons

operate the same as on your original

remote.The CHANNEL buttons are also used

to control the SKIP function for DVD and CD

Players.

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 2

MUTE

The Mute button operates the same as on

your original remote.

PREV CH

The PREV CH (Previous Channel) button oper-

ates the same as on your original remote.

0-9

The number buttons operate the same as on

your original remote, and are used for enter-

ing device codes.

TV•VCR

The TV•VCR button operates the TV•VCR func-

tion of your VCR.

ENTER

The ENTER button operates the same as on

your

original remote.

REV, PLAY, FOR, REC, STOP, PAUSE

The REV (Rewind or Reverse), PLAY, FOR

(Forward), REC (Record), STOP, and PAUSE

buttons operate the same as on your original

VCR or remote.You must press the REC button

twice to begin recording. TheVCR buttons can

also be used to control the functions for DVD

or CD Players.

The MENU button call ups the TV, DVD, and

Satellite set-up menus.

Battery Installation

Your RM94902 Remote requires two (2) new

AAA alkaline batteries.To install the batteries:

1. On the back of the remote, push down on

the tab and lift the cover off.

2.Match the batteries to the + and - marks

inside the battery case, then insert the

batteries.

3.Press the battery cover back into place.

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 3

Special Programming Feature

This remote can be programmed to control

any of these devices:

TV Satellite Receiver MiniShelf System

VCR DVD Player Audio Receiver

Cable Box CD Player

The TV device button is dedicated for a TV

only.The remaining buttons can be assigned

to any of the above devices (even though the

remote device buttons are screen-printed for

specific devices. Satellite and audio receiver

functions would be limited with this remote.

Button Description

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 4

Programming ForTV

1. Manually turn

on the TV.

2. Press and hold

the SETUP

button until the

INDICATOR LIGHT

lights, then release

the SETUP

button.

3. Press and release the

TV button (the

INDICATOR LIGHT will

blink then remain lit).

4. Find the three digit

code for your TV in

the code list in the

back of this book

and enter it using the

Number Buttons.

After your code

is entered, the

INDICATOR LIGHT

will turn off.

5. Aim the remote at

your TV and press

the POWER button.Your TV should turn off.

Note: If your TV does not respond, try all the codes for your

brand. If the codes do not work, or your brand is not listed,

try the Code Search method on page 8. NOTE: Sometimes

a code listed will only include limited functions. Try other

codes which may include more functionality.

6. With your TV on, press

CHANNEL UP. If the TV

responds, no further

programming is

required.

7. Enter your code here

for easy reference.

BLINK

OFF

TV CODE

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 5

Programming ForVCR

1. Manually turn

on the VCR.

2. Press and hold

the SETUP

button until the

INDICATOR LIGHT

lights, then release

the SETUP

button.

3. Press and release

theVCR button (the

INDICATOR LIGHT

will blink then remain

lit).

4. Find the three digit

code for your VCR

in the code list in

the back of this book

and enter it using

the Number Buttons.

After your code is

entered, the INDICATOR

LIGHT will turn off.

5. Aim the remote at your

VCR and press the

POWER button.Your

VCR should turn off.

Note: If yourVCR does not respond, try all the

codes for your brand. If the codes do not work,

or your brand is not listed, try the Code Search

method on page 8.

6. With your VCR on, press

CHANNEL UP. If theVCR

responds, no further

programming is

required.

7. Enter your code

here for easy

reference.

BLINK

OFF

VCR CODE

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 6

Programming for Cable Box

1. Manually turn on

the Cable Box.

2. Press and hold the

SETUP button until

the INDICATOR

LIGHT lights, then

release the SETUP

button.

3. Press and release

the CAB button (the

INDICATOR LIGHT

will blink then

remain lit).

4. Find the three digit

code for your

Cable Box in the

code list in the

back of this book

and enter it using

the Number Buttons.

After your code is

entered, the INDICATOR

LIGHT will turn off.

5. Aim the remote at

your Cable Box and

press the POWER

button.Your Cable

Box should turn off.

Note: If your Cable Box does not respond, try

all the codes for your brand. If the codes do

not work, or your brand is not listed, try the

Code Search method on page 8.

6. With your Cable Box

on, press CHANNEL

UP. If the Cable Box

responds, no further

programming is

required.

7. Enter your code here

for easy reference.

BLINK

OFF

CABLE BOX CODE

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 7

The DVD/AUX Button

The DVD/AUX button can be used for a DVD

player. It can also be assigned to any other

type of device you have (another TV, VCR,

Cable Box, Satellite Receiver, CD Player, Mini

System, or Audio Receiver).

1. Manually turn on

the the device you

wish to assign to

the DVD/AUX button

(TV, VCR or Cable

Box).

2. Press and hold

the SETUP

button until the

INDICATOR LIGHT

lights, then release

SETUP button.

3. Press and release

the DVD/AUX button.

The INDICATOR LIGHT

will blink.

4. Find the three digit

code for the device

you wish to program in

the code list in the

back of this book. Enter

the code using the Number

Buttons. After your code

is entered, the INDICATOR

LIGHT will turn off.

5. Aim the remote at your

device and press the

POWER button.Your

device should turn off.

Note: If your device does not respond, try all

the codes for your brand. If the codes do not

work, or your brand is not listed, try the Code

Search method on page 8.

6. With your device on,

press CHANNEL UP.

If the device responds,

no further program

ming is required.

7. Enter your code here

for easy reference.

BLINK

OFF

DVD/AUX CODE

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 8

Programming With Code Search

IfyourTV,VCR, or Cable Box does not respond

after you have tried all the codes for your

brand, or if your brand is not listed, try search-

ing for your code by following the steps

below.

1. Turn on the device

you wish to program.

2. Press and hold

SETUP until the

INDICATOR LIGHT

lights, then release

SETUP.

3. Press and release the

device button for the

device you are

programming (TV,VCR,

CAB/SAT, DVD/AUX).

The INDICATOR

LIGHT will blink once.

For AUX, press AUX

then the device button

you are assigning to AUX.

4. Press and release POWER

until your device turns

off. Important:You

may have to press

POWER up to 200 times.

5. When your device turns

off, press the ENTER

button, the INDICATOR

LIGHT will go off.

BLINK

94901 Revised Size 1/29/02 2/25/02 4:15 PM Page 9

Retrieving Codes

If you need to find the three-digit code for

your device, after your device is set-up using

Code Search, use this procedure.

1. Press and hold SETUP

until the INDICATOR

LIGHT lights, then

release SETUP.

2. Press and release the

device button for the

device’s code you

are retrieving (TV,

VCR or CAB). The

INDICATOR LIGHT

will blink once.

3. Press and release

SETUP. The

INDICATOR LIGHT

will turn off.

4. Starting with 0

on the keypad,

press the number

buttons in order (0-9)

until the INDICATOR

LIGHT blinks.

5. The number which

causes the

INDICATOR LIGHT

to blink is the first

digit of your code.

6. Repeat step 4 until you

have retrieved all three

numbers in the code.

BLINK

OFF

. . .
