Centricity™ MP3510

Digitizer

User manual

5001 A EN UM Centricity CR MP3510.fm Page 1 Friday, March 15, 2002 10:33 AM

25001A EN 20020315

No parts of this document may be reproduced, copied, adapted or transmitted in any form or by any means

without the written permission of GE Medical Systems Information Technologies

GE Medical Systems Information Technologies makes no warranties or representation, expressed or

implied, with respect to the accuracy, completeness or usefulness of the information contained in this

document and specifically disclaims warranties of suitability for any particular purpose. GE Medical

Systems Information Technologies shall under no circumstances be liable for any damage arising from the

use or inability to use any information, apparatus, method or process disclosed in this document.

GE Medical Systems Information Technologies reserves the right to make changes to this document without

prior notice.

GE Medical Systems Information Technologies, 8200 W. Tower Avenue, Milwaukee, WI 53223, USA.

GE Medical Systems Information Technologies GmbH, Munzinger Strasse 3, D-79111, Freiburg,

Germany.

Centricity™ MP3510 is a trademark of GE Medical Systems Information Technologies, USA.

GEMS and GE signature are trademarks of General Electric Company, USA.

5001 A EN UM Centricity CR MP3510.fm Page 2 Friday, March 15, 2002 10:33 AM

5001A EN 20020315

Table of contents

Chapter 1: Introducing the Centricity™ MP3510.............................................5

Centricity™ MP3510, intended use ..................................................................6

Centricity™ MP3510 features...........................................................................7

Safety precautions ...........................................................................................8

Safety compliance..........................................................................................12

Operating modes ...........................................................................................13

The user interface ..........................................................................................14

Switching on the Centricity™ MP3510............................................................21

Switching off the Centricity™ MP3510............................................................23

Resetting the Centricity™ MP3510.................................................................24

Chapter 2: Basic operation (‘Operator mode’)...............................................25

Reading an image plate .................................................................................26

Reading an emergency image plate ...............................................................29

Re-erasing an image plate .............................................................................32

Chapter 3: Advanced operation (‘Key-operator mode’)................................37

Survey of advanced functions.........................................................................38

Preventive maintenance.................................................................................39

General procedure in case of malfunction.......................................................41

Troubleshooting .............................................................................................42

Clearing cassette jams...................................................................................43

Clearing image plate jams..............................................................................47

Appendix A: Equipment information sheet....................................................51

Specifications.................................................................................................52

5001 A EN UM Centricity CR MP3510.fm Page 3 Friday, March 15, 2002 10:33 AM

45001A EN 20020315

5001 A EN UM Centricity CR MP3510.fm Page 4 Friday, March 15, 2002 10:33 AM

Introducing the

Centricity™ MP3510

This chapter draws attention to important safety

precautions and introduces the Centricity™ MP3510.

qCentricity™ MP3510, intended use

qCentricity™ MP3510 features

qSafety precautions

qSafety compliance

qOperating modes

qThe user interface

qSwitching on the Centricity™ MP3510

qSwitching off the Centricity™ MP3510

qResetting the Centricity™ MP3510

Chapter 1

5001 A EN UM Centricity CR MP3510.fm Page 5 Friday, March 15, 2002 10:33 AM

65001A EN 20020315

Centricity™ MP3510, intended use

This device must only be used to scan exposed X-ray cassettes, containing

an erasable image plate (IP). This device is part of a system, consisting of X-

ray cassettes with erasable phosphor image plates, an identification station

for the cassettes and a workstation where the resulting digital image

information is further processed and routed. It is intended that this device is

only operated in a radiological environment by qualified staff.

5001 A EN UM Centricity CR MP3510.fm Page 6 Friday, March 15, 2002 10:33 AM

5001A EN 20020315

Centricity™ MP3510 features

The Centricity™ MP3510 scans the exposed Centricity™ CR compatible

image plate, converts the information into digital data and automatically

transfers the image to the image processing station for further processing and

visualization.

The Centricity™ MP3510 requires but little manual interaction. All you have to

do, after exposure and identification of the cassette, is to place it in the input

buffer of the Centricity™ MP3510. You can deposit up to 10 cassettes of

different sizes simultaneously in the input buffer. The Digitizer takes in the

cassettes one by one. The Digitizer reads the demographic data and routing

information from the memory chip in the cassette, opens the cassette,

removes the image plate and scans the latent image by means of a sweeping

laser beam.

Once the image is digitized, the cassette is returned to the output buffer to be

used for new exposures. After a full Digitizer cycle, the plate has turned 180°

in the cassette.

Depending on the X-ray intensity which has affected the phosphor during the

exposure, more or less light will be emitted during laser scanning. The light is

converted into an electrical signal. This signal is then converted into a digital

bit stream. Once converted into digital form, the digitized image is transferred

to the image processing station for further processing and visualization.

Further features of the Centricity™ MP3510 include:

nThe Centricity™ MP3510 permits assigning the status ‘emergency’ to an

image. An emergency image will be given priority by the image processing

station.

nThe Centricity™ MP3510 permits re-erasing an image plate before re-using

it. In specific cases, this is necessary to prevent ghost images caused by

previous exposures or stray radiation from interfering with the image of

interest. You can erase a batch of up to 9 image plates.

nThe Pathspeed™ CR Digitizers (Pathspeed™ SP1001 and Pathspeed™

MP3010) and the Centricity™ CR Digitizers (Centricity™ SP1001 and

Centricity™ MP3510) are designed for operation with Agfa CR cassettes and

Agfa CR phosphor plates. Contact your local GE Medical Systems sales

agent for product and ordering information.

5001 A EN UM Centricity CR MP3510.fm Page 7 Friday, March 15, 2002 10:33 AM

85001A EN 20020315

Safety precautions

General safety instructions

•Make sure that the Centricity™ MP3510 is constantly monitored in order to avoid

inappropriate handling, especially by children.

•Only trained service personnel must make repairs. Only authorized service

personnel must make changes to the Centricity™ MP3510.

•If there is any visible damage to the machine casing, do not start nor use the

Centricity™ MP3510.

•If you want to connect the Centricity™ MP3510 with other devices, components

or assemblies and if the technical data do not permit determining whether the

combination with these devices, components or assemblies involves hazards,

you must consult the respective manufacturers to avoid danger for operating

personnel or the environment.

•Do not override or disconnect the integrated safety features.

•As is the case for all technical devices, the Centricity™ MP3510 must be

operated, cared for and serviced correctly.

•If you don’t operate the Centricity™ MP3510 correctly or if you don’t have it

serviced correctly, GE Medical Systems Information Technologies is not liable for

resulting disturbances, damages or injuries.

•When installing the Centricity™ MP3510, care must be taken to ensure that

there is either a mains plug or an all-cable disconnecting device in the internal

installation fitted near the Centricity™ MP3510 and that it is easily accessible.

•If you notice conspicuous noise or smoke, disconnect the Centricity™ MP3510

immediately.

•Check that the mains voltage is within the specified range of the self adapting

power supply of the machine.

5001 A EN UM Centricity CR MP3510.fm Page 8 Friday, March 15, 2002 10:33 AM

5001A EN 20020315

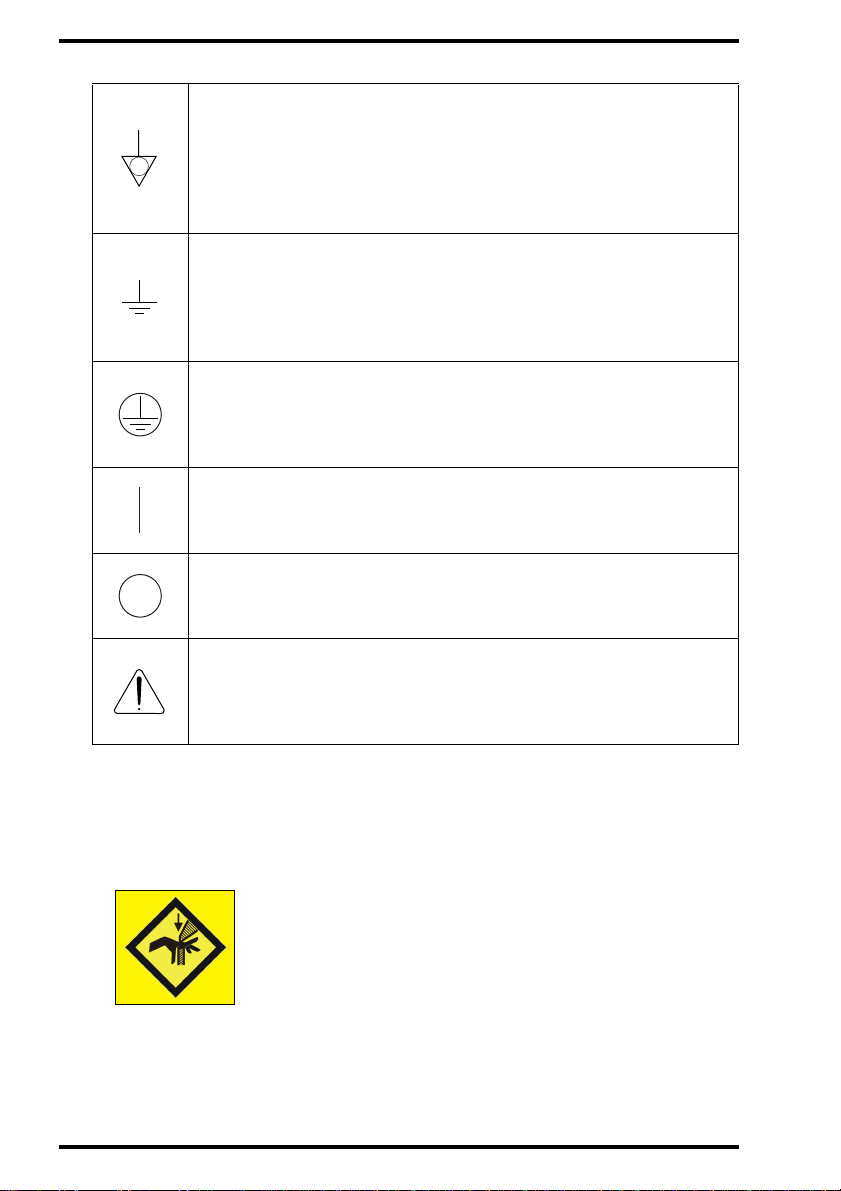

Markings and labels

Always take into account the markings and labels provided on the inside and

outside of the machine. A brief overview of these markings and labels and

their meaning is given below.

Safety warning, indicating that the Centricity™ MP3510 Manuals

should be consulted before making any connections to other

equipment. The use of accessory equipment not complying with

the equivalent safety requirements of this Digitizer may lead to a

reduced level of safety of the resulting system. Consideration

relating to the choice of accessory equipment shall include:

• Use of the accessory equipment in the patient vicinity,

• Evidence that the safety certification of the accessory equipment

has been performed in accordance with the appropriate IEC 601-

1 and IEC 601-1-1 harmonized national standard.

In addition all configurations must comply with the medical

electrical systems standard IEC 601-1-1. The party that makes the

connections acts as system configurator and is responsible for

complying with the systems standard.

If required contact your local service organization.

In order to reduce the risk of electric shock, do not remove any

covers.

Caution hot:

Keep hands clear from the erasure unit.

Type B equipment:

Indicates that the Centricity™ MP3510 complies with the limits for

type B equipment.

5001 A EN UM Centricity CR MP3510.fm Page 9 Friday, March 15, 2002 10:33 AM

10 5001A EN 20020315

•You can hurt your fingers if they are caught between the Centricity™ CR

compatible Cassette and the edge of the input slot. Insert the cassette in the

input buffer as described in

‘Reading an image plate’

on page

. At all times,

keep your fingers clear of the input slot. As soon as the Centricity™ MP3510

takes in the cassette, release it.

Supplementary protective earth connector:

Provides a connection between the Centricity™ MP3510 and the

potential equalization busbar of the electrical system as found in

medical environments. This plug should never be unplugged

before the power is turned off and the power plug has been

removed.

Intergrounding connector:

Provides a connection between the Digitizer and other equipment

which might exhibit minor ground potential differences. These

differences may degrade the quality of communication between

different equipment. Never remove connections to this terminal.

Protective earth (ground):

Provides a connection between the Digitizer and the protective

earth of the mains. Do not remove this connection, because this

will have a negative influence on the leakage current.

Power on

Power off

Note that the power cord has to be disconnected from the wall

outlet in order to disconnect the unit entirely from the mains.

Precautions for use in USA only:

Make sure that the circuit is single-phase center-tapped, if the

Digitizer is connected to a 240 V/60 Hz source instead of a

120 V/60 Hz source.

5001 A EN UM Centricity CR MP3510.fm Page 10 Friday, March 15, 2002 10:33 AM

Tabla de contenidos

Otros manuales de Instrumento de medición de GE

GE DigitalFlow DF868 Guía del usuario

GE PM880 Manual de usuario

GE Druck DPI 705 Manual de usuario

GE Hydran M2-X Manual de usuario

GE PM880 Manual de usuario

GE DigitalFlow GS868 Guía de instalación

GE 3300 Manual de usuario

GE Moisture Image 1 Series Guía del usuario

GE Centricity SP1001 Manual de usuario

GE MFE DMS 2 Manual de usuario

GE DigitalFlow GC868 Manual de usuario

GE RHM 04 Manual de usuario

GE Moisture Image 1 Series Manual del propietario

GE CL 5 Manual de usuario

GE EPM 5300 Manual de usuario

GE N60 Manual de usuario

GE Bently Nevada 330400 Manual de usuario

GE Moisture Target Series 6 Manual de usuario

GE Druck DPI 705 Manual de usuario

GE MAC VU360 Manual de usuario

GE RHM 03 Manual de usuario

GE Multilin EPM 2000 Series Manual de usuario

GE AquaTrans AT600 Manual de usuario

GE WiMAX WX-I210+c Guía de instalación

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
