GE Bently Nevada 3300/16 Manual de usuario

Part Number 86830-01

Rev. P (08/07)

Bently Nevada™ Asset Condition Monitoring

Operation Manual

3300/16 Dual Vibration Monitor

3300/16 Dual Vibration Monitor Operation Manual

The information contained in this document is subject to change without notice.

The following are trademarks of General Electric Company in the United States and other

countries:

Actionable Information, Actionable Information to the Right People at the Right Time,

ADRE, Because Better Machines Start With Better Bearings, Because the Right Results

Require the Right Knowledge, Because You Depend on Your Machinery, Bently ALIGN,

Bently BALANCE, Bently DOCUVIEW, Bently LUBE, Bently PERFORMANCE, Bently Nevada,

CableLoc, ClickLoc, Data Manager, Decision Support, DemoNet, Dynamic Data Manager,

Dynamic Transmitor, Engineer Assist, FieldMonitor, flexiTIM, flexiTAM, FluidLoc, Helping

You Protect and Manage All Your Machinery, HydroVU, Key ∅, Keyphasor, Machine

Condition Manager 2000, MachineLibrary, Machine Manager, MicroPROX, Move Data, Not

People, Move Information, Not Data, NSV, Preformalign, Prime Spike, PROXPAC,

Proximitor, REBAM, SE, Seismoprobe, ServoFluid, Smart Monitor, Snapshot, System 1,

System Extender, TDXnet, TDIXconnX, Tecknowledgy, TipLoc, TorXimitor, Transient Data

Manager, Trendmaster, TrimLoc, VAM, Velomitor, XLerometer

Contact Information

The following ways of contacting Bently Nevada are provided for those times when you

cannot contact your local representative:

Mailing Address 1631 Bently Parkway South

Minden, Nevada USA 89423

USA

Telephone 1.775.782.3611

1.800.227.5514

Fax 1.775.215.2873

Internet www.ge-energy.com/bently

Note:

In this document procedures are given only for channel A. Procedures for channel B are

similar except for the obvious substitutions of corresponding switches, terminals, and

indicators.

iii

Additional Information

Notice:

This manual does not contain all the information required to operate and maintain

the product. Refer to the following manuals for other required information.

3300 System Overview (Part Number 80171-01)

3300 System Installation Instructions (Part Number 80172-01)

3300 System Troubleshooting (Part Number 80173-01)

3300/12 AC Power Supply (Part Number 89602-01)

3300/14 DC Power Supply (Part Number 101256-01)

3300/03 System Monitor (Part Number 89604-01)

3300 Internal Barrier Manual (Part Number 88837-01)

RELATED PARTS

3300/16 Field Wiring Diagram Packet (Part Number 100311-01)

3300/16 Data Sheet (Part Number 141498-01)

3300/16 Meter Scales (Part Number 84113-16)

Product Disposal Statement

Customers and third parties, who are not member states of the European Union, who are

in control of the product at the end of its life or at the end of its use, are solely

responsible for the proper disposal of the product. No person, firm, corporation,

association or agency that is in control of product shall dispose of it in a manner that is

in violation of any applicable federal, state, local or international law. Bently Nevada LLC

is not responsible for the disposal of the product at the end of its life or at the end of its

use.

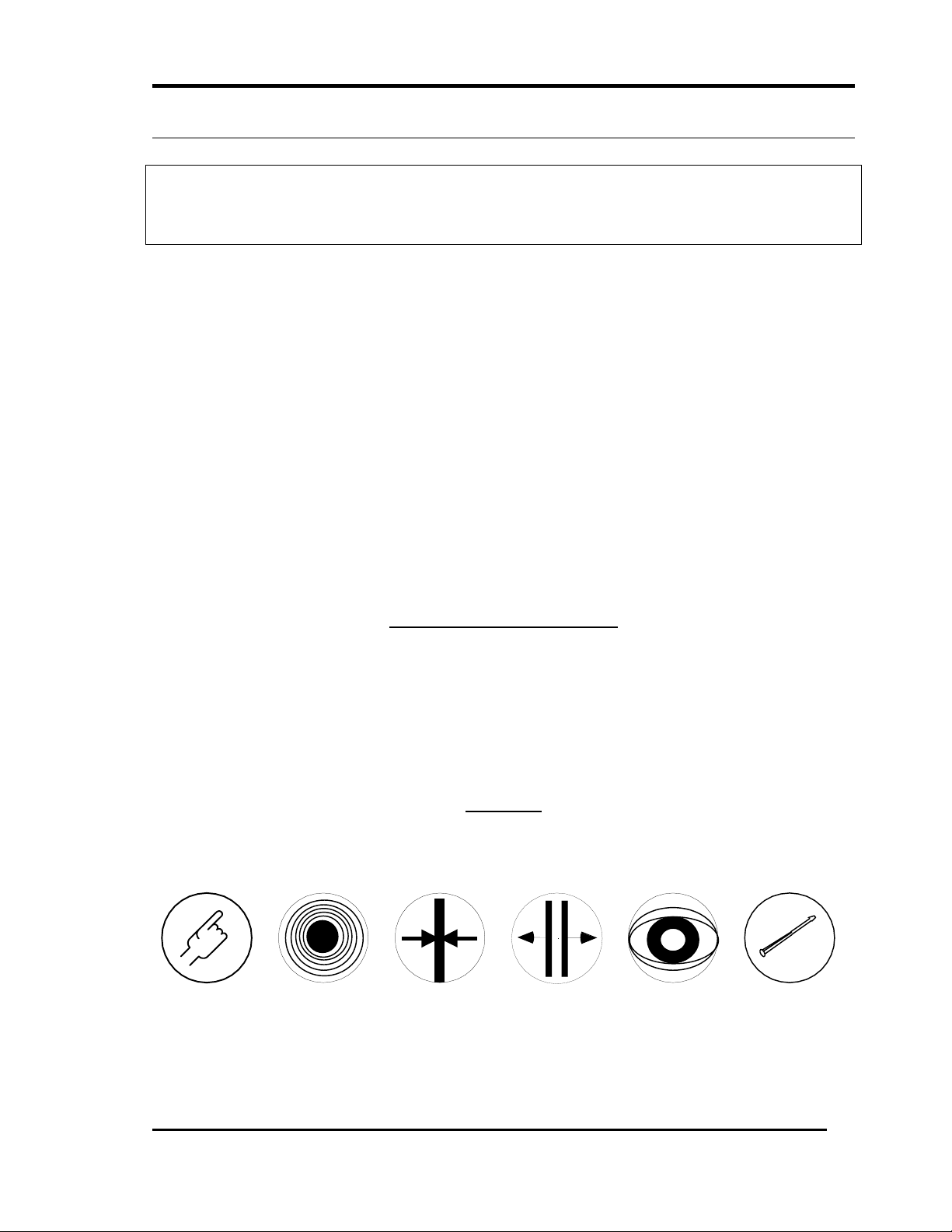

SYMBOLS

Special symbols are used in the manual to illustrate specifics in the step-by-step

processes. For example:

Press

Flashing

Connect

Disconnect

Observe

Screwdriver

3300/16 Dual Vibration Monitor Operation Manual

Contents

1. Dual Vibration Monitoring System..............................................................1

2. Front Panel Features......................................................................................2

3. Monitor Functions ..........................................................................................3

4. Channel Vibration...........................................................................................6

5. LED Functionality............................................................................................7

5.1 OK LEDs.................................................................................................................................................. 7

5.2 Bypass LEDs......................................................................................................................................... 8

5.3 Alert LEDs.............................................................................................................................................. 9

5.4 Danger LEDs......................................................................................................................................10

6. Read Gap Voltage .........................................................................................11

7. Read Setpoint Values ...................................................................................12

7.1 Read Alert Setpoints.......................................................................................................................12

7.2 Read Danger Setpoints.................................................................................................................13

8. Monitor Removal ..........................................................................................14

9. Monitor Disassembly ...................................................................................15

9.1 Side Cover Removal .......................................................................................................................15

9.2 Front Panel Removal......................................................................................................................16

9.3 Input Module .....................................................................................................................................17

9.3.1 Input Module Removal.............................................................................................................17

9.3.2 Dual Relay Module Options....................................................................................................18

9.3.3 Quad Relay Module Options..................................................................................................18

10. Monitor Options ........................................................................................19

11. Meter Scale Replacement........................................................................21

12. Alarm Setpoint Adjustment.....................................................................22

12.1 Alert and Danger Setpoint Adjustment .................................................................................22

12.2 Gap Alert Setpoint Adjustment..................................................................................................23

12.3 Channel B Adjust .............................................................................................................................23

13. Channel Bypass.........................................................................................24

14. Danger Bypass ..........................................................................................25

15. Test Alarms ................................................................................................26

15.1 Test Equipment Setup ...................................................................................................................26

15.2 Test Channel Alarms......................................................................................................................27

15.3 Test Gap Alarms...............................................................................................................................29

15.4 Channel B and Reinstallation.....................................................................................................30

16. Test OK Limits ........................................................................................... 31

16.1 Test Equipment Setup ...................................................................................................................31

16.2 Test Upper OK Limit........................................................................................................................32

16.3 Test Lower OK Limit........................................................................................................................32

16.4 Channel B and Reinstallation.....................................................................................................33

17. Calibrate Channels .................................................................................. 34

17.1 Calibration Equipment Setup.....................................................................................................34

17.2 Calibration Procedure ...................................................................................................................35

18. Zero Position Adjustment ....................................................................... 37

19. Self Test...................................................................................................... 39

20. Error Codes................................................................................................ 43

21. Appendix A – Monitor Options for PWA 140720-01 ........................... 44

21.1 Jumper Locations for PWA 140720-01 .................................................................................44

21.2 Main Board Option Settings........................................................................................................45

21.3 Recorder Output Options.............................................................................................................46

21.4 Gap Full Scale Range Options....................................................................................................46

21.5 Vibration Full Scale Range Options .........................................................................................47

21.6 Transducer Input Options............................................................................................................48

21.7 Trip Multiply........................................................................................................................................48

22. Appendix B - Monitor Options for PWA 135305-01............................ 50

22.1 Jumper Locations for 135305-01 ............................................................................................50

22.2 Main Board Option Settings........................................................................................................51

22.3 Recorder Output Options.............................................................................................................52

22.4 Gap Full Scale Range Options....................................................................................................52

22.5 Vibration Full Scale Range Options .........................................................................................53

22.6 Transducer Input Options............................................................................................................54

22.7 Trip Multiply........................................................................................................................................54

23. Appendix C – Monitor Options for PWA 86739-01 ............................. 56

23.1 Jumper locations for 86739-01. ...............................................................................................56

23.2 Main Board Option Settings........................................................................................................57

23.3 Recorder Output Options.............................................................................................................58

23.4 Gap Full Scale Range Options....................................................................................................58

23.5 Vibration Full Scale Range Options .........................................................................................59

3300/16 Dual Vibration Monitor Operation Manual

23.6 Transducer Input Options............................................................................................................59

23.7 Trip Multiply........................................................................................................................................60

24. Recommended Spare Parts.....................................................................61

25. Index ............................................................................................................63

Section 1 - Dual Vibration Monitoring System

1. Dual Vibration Monitoring System

3300/16 Dual Vibration Monitor Operation Manual

2. Front Panel Features

Section 3 - Monitor Functions

3. Monitor Functions

RADIAL VIBRATION - Radial vibration is defined as shaft dynamic motion in a direction

perpendicular to the shaft centerline. The Dual Vibration Monitor displays values for two

channels (Channel A and B).

PROBE GAP VOLTAGE - Probe gap is measured as a negative dc voltage that is directly

proportional to the gap distance between the face of a proximity probe and the surface

being monitored. Probe gap value for each channel is displayed on the front panel meter

by pressing the GAP switch.

OK - When the Proximitor output voltage is within its upper/lower limits, the transducer is

defined as OK. The OK detection circuit controls the channel OK LED and the monitor

relay drive to the system Relay.

OK RELAY - The OK Relay is located on the Power Input Module. Every channel in the

rack must be OK or bypassed to energize the OK Relay.

TIMED OK/CHANNEL DEFEAT - Timed OK/Channel Defeat prevents faulty transducer

wiring from causing false alarms. If the probe input signal level on a given channel is not

within upper/lower OK limits, that channel OK LED goes off, the BYPASS LED goes on, the

channel is disabled, and the OK Relay deenergizes. Once the channel input signal level is

restored within the upper/lower OK limits for at least 30 seconds, the channel OK LED will

start flashing at 1 Hertz (Hz) to indicate the OK state is restored, the BYPASS LED goes off,

and monitoring is enabled. You must press the RESET switch on the front panel of the

System Monitor to stop the OK LED from flashing (it will then remain on steadily). If the

channel remains in the not OK state, set the Channel Bypass switch on the monitor

circuit board to put the channel "out of service". You can then operate the monitor as a

single-channel monitor, and the OK Relay will return to an OK state (energized). Without

this feature, the OK Relay could not be reactivated. In the Timed OK/Channel Defeat and

Channel Bypass modes, the recorder output is clamped to zero vibration value and the

display is clamped to zero.

VIBRATION ALARM - Pressing the ALERT or DANGER switches on the front panel of the

monitor displays the Alert (first-level alarm) or Danger (second-level alarm) vibration

setpoints on the front panel meter. When the radial vibration signal level is equal to or

exceeds preset Alert setpoints for the selected time delay, the ALERT LEDs come on and

the appropriate Alert Alarm relay contacts are activated. When the radial vibration

signal level exceeds preset Danger setpoints, the DANGER LEDs come on and the

appropriate Danger alarm relay contacts are activated.

3300/16 Dual Vibration Monitor Operation Manual

GAP ALARM - Pressing the GAP and ALERT switches simultaneously displays the Gap

Alert setpoints. When the gap level is equal to or outside the over and under setpoint

window limits for 6 seconds, the ALERT LEDs come on and the appropriate Alert Alarm

relay contacts are activated.

FIRST OUT - Separate First Out circuits exist for the Alert and Danger alarms. A monitor

with First Out option selected flashes a channel alarm LED if that channel was the first

channel in the rack to go into alarm since the last rack power up or reset. Pressing the

RESET switch on the System Monitor acknowledge the First Out.

ALARMS RELAYS - Monitor alarms can operate in a latching or nonlatching mode. In the

nonlatching mode, the alarm resets automatically when the alarm no longer exists. In

the latching mode, you must reset the alarm condition manually by pressing the RESET

switch on the front panel of the System Monitor (or by closing external Reset contacts).

The alarm will not reset if the alarm condition still exists.

DANGER BYPASS - When you maintain machinery, you can set a Danger Bypass switch

on the monitor circuit board behind the front panel to inhibit the Danger relay drive. This

function causes the BYPASS LEDs to come on, but other front panel functions are not

affected. You can enable this switch by installing a jumper on the circuit board in the

monitor.

CHANNEL BYPASS - If a channel remains not OK, you can set the Channel Bypass switch

on the monitor circuit board to put the channel "out of service".

ZERO POSITION - A reference gap value that you can set when the Gap Full Scale Range

is in engineering units (mils or micrometers). You can then read gap on the meter scale

relative to this zero position on the center of the gap meter scale. Selecting a Gap Full

Scale Range in engineering units increases gap resolution on the display because only a

selected area within the transducer's OK limits is displayed.

BUFFERED OUTPUT - The coaxial cable connectors on the front panel of the monitor and

the terminals on the Signal Input Relay Module provide buffered signals from the

respective channel transducers. Use these connectors to attach external equipment to

the monitor.

TRIP MULTIPLY - The Trip Multiply function multiplies setpoints by 2X or 3X in response to

an external contact closure through terminals on the Power Input Module. The front

panel meter and recorder outputs could saturate in this mode.

RECORDER OUTPUTS - The recorder output is proportional to the measured vibration

signal over the monitor full-scale range. The output range is user selectable to be 0 to -

10Vdc, +1 to +5Vdc, or +4 to +20 mA.

Tabla de contenidos

Otros manuales de Instrumento de medición de GE

GE DigitalFlow DF968 Manual de usuario

GE moisture.IQ Manual de usuario

GE Kelman DGA900 Manual

GE Protimeter MMS Manual de usuario

GE Multilin EPM 6010 Manual de usuario

GE Sievers 900 Manual de usuario

GE MAC 800 Manual de usuario

GE AutoSigma 3000 DL Manual de uso y cuidado

GE RHM 03 Manual de usuario

GE DigitalFlow GC868 Manual de usuario

GE DigitalFlow GS868 Guía de instalación

GE MT144 Manual de usuario

GE PM880 Manual de usuario

GE Multilin DDFR Manual de usuario

GE SEER 1000 Manual de usuario

GE WiMAX WX-I210+c Guía de instalación

GE RHM 100 Manual de usuario

GE Protimeter Timbermaster Manual de usuario

GE UV-1 Manual de usuario

GE Hydran 201i Manual de usuario

GE Druck DPI 705 Manual de usuario

GE N60 Manual de usuario

GE RSDetection RS-S131-200-ER0000 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
