GBC Auto+ 100M Manual de usuario

S H R E D D E R S

Instruction Manual

www.accobrandsasia.com

A U T O + 100X&100M™

2min

MAX

100X

Sheet capacity:

Manual feed slot

6 sheets (80gsm)

Sheet capacity:

Autofeed chamber

100 sheets (80gsm)

Duty Cycle 5 min ON / 30 min OFF

Run time from cold 10 minutes

Volts / Hz UK Version: 230V / 50Hz

EK Version: 220V / 60Hz

Amperage UK Version: 1.2 Amps

EK Version: 1.2 Amps

Motor Watts UK Version: 200 Watts

EK Version: 300 Watts

Sheet capacity:

Manual feed slot

6 sheets (80gsm)

Sheet capacity:

Autofeed chamber

100 sheets (80gsm)

Duty Cycle 5 min ON / 30 min OFF

Run time from cold 10 minutes

Volts / Hz UK Version: 230V / 50Hz

EK Version: 220V / 60Hz

Amperage UK Version: 1.5 Amps

EK Version: 1.5 Amps

Motor Watts UK Version: 350 Watts

EK Version: 350 Watts

technical specifications

GBC Auto+ 100X GBC Auto+ 100M

A U T O + 100X&100M™S H R E D D E R S

including the “probe accessibility tests”, do not operate the shredder near children or pets.

There is a ‘cross shaped’ integral safety device, located on the left of the internal loading bay, which

is designed to prevent the shredder from operating when the loading door is open. You must NOT

under any circumstances tamper with with this switch, add any object into the cross-shaped interlock

switch other than the interlock actuator, as to do so would activate the cutting blades.

To guard against injury, the following basic safety precautions must be observed in the set-up of this

product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not

likely to trip up a passer by.

•

supplier.

• Unplug your shredder before moving it or when it is not in use for an extended period of time.

• Do NOT operate with a damaged power supply cord or plug, after it malfunctions, or after it has

been damaged in any manner.

•

• The socket-outlet should be near the equipment and should be easily accessible.

•

• Do NOT use near water.

• Do NOT use aerosol dusters or cleaners.

• Do NOT spray anything into the shredder.

• Do NOT load the auto-feed chamber with unopened junk mail, magazines, bound documents etc.

Although this shredder has been designed to comply with UL 60950-1 EN 60950-1 safety standards

points to note

control panel and indicators

Continuous Jam BoostReverse Auto

warning symbols

This means no aerosols.

This means keep children away

from shredder.

This means you should be careful

because long hair can become

entangled in the cutting head.

This means don’t reach into the

feed opening of the cutting head.

This means be careful of loose

jewellery which could become

entangeld in the cutting head.

This means no oil lubrication,

use Rexel oil sheets only.

This means be careful of ties and

other loose clothing which could

become entangled in the cutting

head.

This means the shredder can accept

small paperclips. 100M Autofeed ONLY

This means the shredder can accept

small staples. 100M Autofeed ONLY

Safety First

Sheet capacity of manual feed

entry slot.

Paper Loading Door/Bin Door

Open or Bin Full indicator –

This means either:

• Loading door is open

• Bin is open

• Bin is full

Paper jam indicator – This means

there is a paper jam in the auto feed

chamber.

shredder is attempting to clear a

paper jam automatically.

If this symbol is permanently

illuminated red please follow the

instructions under ‘Rare Occasions

of Jamming’.

Cool Down indicator – This means

the machine is cooling down.

Auto+ 100X/100M shredding capability

Auto+ 100X/100M CAN shred the following:

•100 sheets

• Stapled paper, 25mm within the corner. 100M Autofeed ONLY

• 26/6 and 24/6 or smaller staples

• Small sized paper loaded centrally

•100 sheets

• Paper clip paper, 25mm within the corner. 100M Autofeed ONLY

• Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)

• >80/100gsm paper (through manual feed slot ONLY)

• A3 folded in half max. 2 sheets

• 100 sheets

• 80 gsm paper

- A4 - 210mm x 297mm

- A5 - 148mm x 210mm

- A3 single sheet folded in half to make A4

Auto+ 100X/100M CAN shred (through the manual feed slot):

Thick paper or

card.

Multiple folded

sheets (e.g. A3

sheets folded in

half).

Unopened mail

(e.g. junk mail).

Glossy paper or

a sheet covered

with print on both

sides.

Auto+ 100X/100M CANNOT shred the following:

Large clips.

Check the length

of the paperclip

is not longer than

32mm.

Heavy duty

staples. Check

the staple leg

length is not

greater than

6mm.

Bound

documents

Bulldog clips

Magazines or

other documents

bound by multiple

staples or clips.

Adhesive labels.

Plastic sheets,

laminated

documents,

plastic folders.

A U T O + 100X&100M™S H R E D D E R S 7

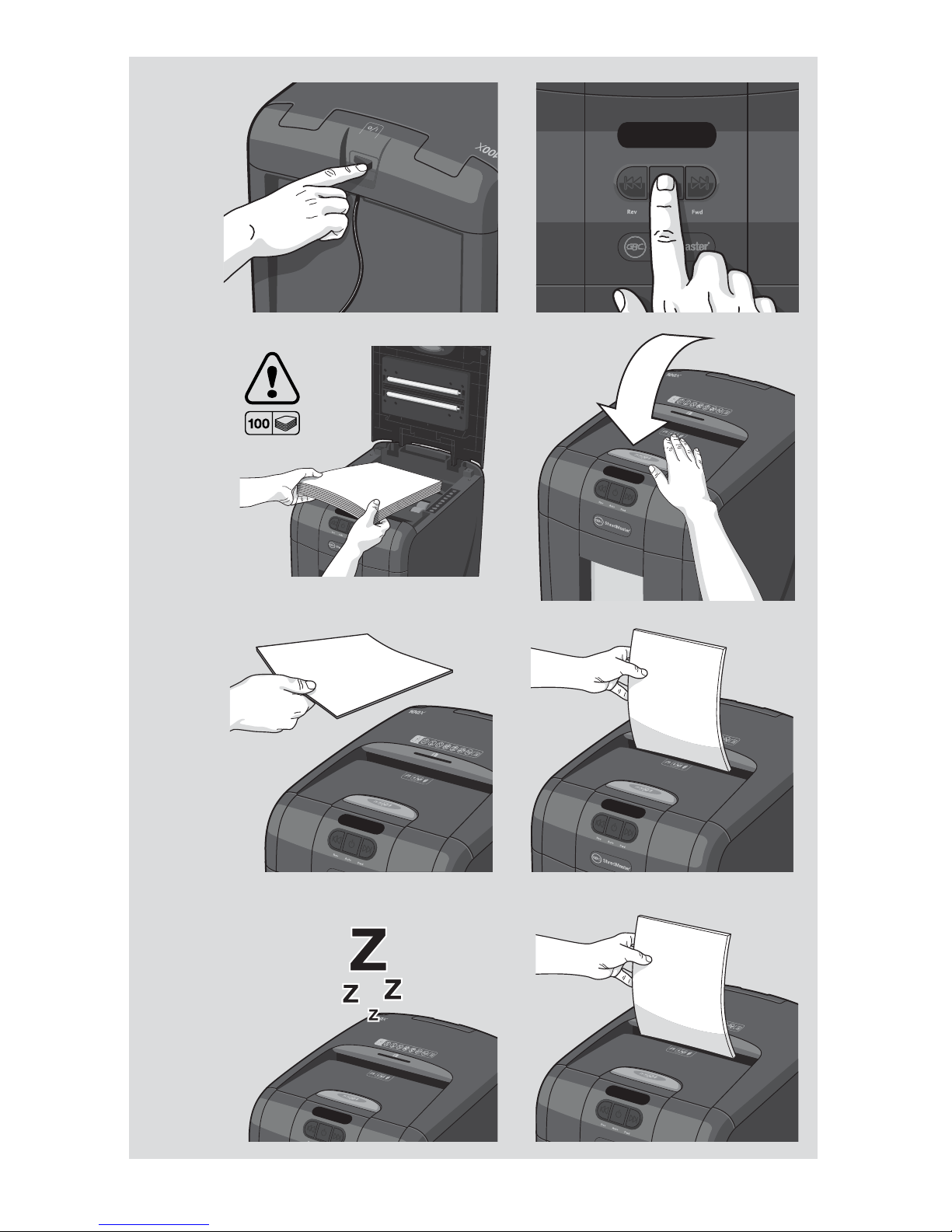

1. operation

1Unpack the product.

2Connect the shredder to mains supply.

3Ensure the ON/OFF button on the back of the machine is in the ON position.

4To commence shredding, press the central Auto button (

). This will illuminate the blue standby

symbol on the auto button, which sets the shredder into auto mode. You are now ready to shred.

5Press the loading door button to open the loading door. You can open the door further to

90 degrees for easier access if required. Load up to 100 sheets at a time into the feed chamber.

Do not fill above 100 MAX level, this could damage the shredder.

6Close the loading door without pressing the loading door button. The shredder will now start

automatically. If there is still paper in the Autofeed chamber after first attempt, open and reclose

the paper loading door a second time.

7If you only have up to 6 sheets to shred, you can use the manual feed slot, provided the auto

feed chamber is empty.

8Insert paper to be shredded into the feed area. The shredder will detect the paper and start

automatically.

9If the shredder is left in auto mode for more than 2 minutes without being used, the shredder

will automatically turn back to standby mode in order to save power.

10 The shredder will automatically ‘wake up’ from sleep mode when paper is inserted into the

shred mouth or you open the loading door. There is no need to press the Auto button (

autofeed technology

The Auto+ 100X/100M has been designed to automatically shred up to 100 sheets from the auto-

feed chamber and up to 6 sheets through the manual feed slot. The auto-feed mechanism has

been designed to handle paper fastened with staples and paper clips and to only pull a few sheets

of paper into the cutting mechanism to minimise the risk of paper jams

bin or loading door open safety function

As a safety precaution, if the bin or loading door is opened during shredding, the shredder will

stop and the bin full indicator will illuminate ( ).

Reverse the paper out then turn the machine off using the ON/OFF switch at the rear of the

) has been fitted for

2. reverse function

1Should you wish to reverse paper out whilst shredding, a reverse button (

your convenience.

shredder. Remove the paper from the manual feed slot (if being used) or open the loading door,

remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism.

3To resume shredding, turn the shredder on using the ON/OFF switch at the rear of the shredder.

Return the switch to the auto position ( ).

the cool down indicator will flash red (

over heating

If the Auto+ 100X/100M is used continuously for over 10 minutes the shredder may overheat and

). Please allow the shredder to cool down. When the

shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder

needs to cool down while shredding, no action is needed. The shredder will automatically restart

shredding paper once it has cooled down after periods of continuous use. All you need to do is

ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

A U T O + 100X&100M™S H R E D D E R S 9

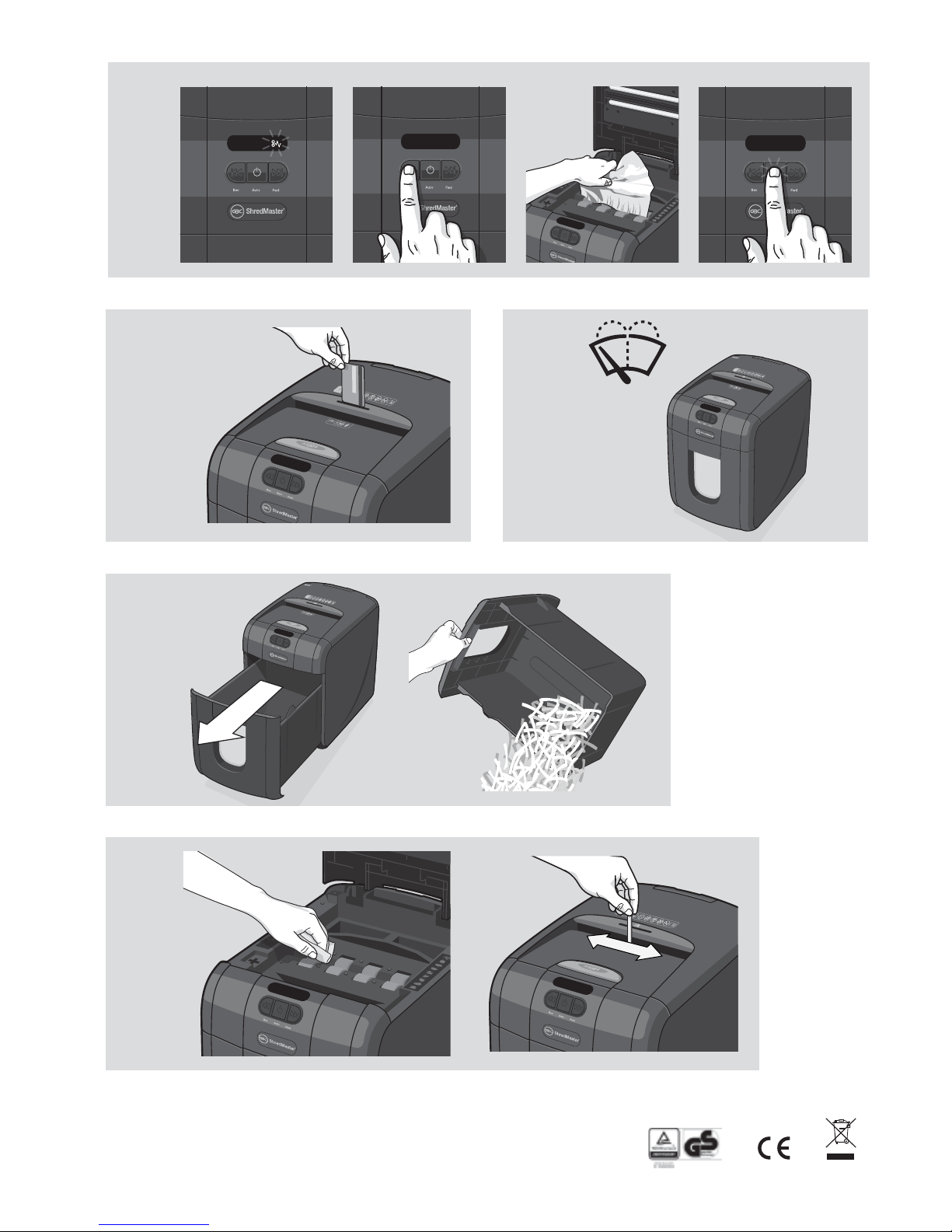

4. self-cleaning cutters

After emptying and replacing a full bin, the shredder will run in forward for 4 seconds, stop for

2 seconds and then reverse for 4 seconds to clear away any remaining paper from the cutter

mechanism. This unique ‘self-cleaning’ mechanism is additional jam prevention technology

from GBC.

5. bin full

The shredder will not function when the bin is full and the bin full symbol ( ) is illuminated.

You should empty the bin.

• Pull open the bin slowly to empty.

• Push the empty bin back into place and press the auto button to resume shredding.

The Auto+ 100X ONLY can shred credit cards, not CDs or DVDs. Switch the shredder to auto mode

and insert the credit card between the markings in the manual feed slot. Only shred one credit card

at a time.

GBC encourages customers to recycle shredded paper.

Please note that shredded paper cannot be recycled if mixed with credit card shards.

If recycling, please separate shredded paper and credit cards.

3. credit card shredding

rare occasions of jamming

If after this auto jam clearance cycle the shredder still has a paper jam, it will stop and the jam

indicator illuminate ( ). Try clearing the jam using the reverse ( ) and continuous jam boost

( ) buttons. If this is unsuccessful follow the reverse fuction instructions to clear any jammed

material.

automatic jam clearance

In the unlikely event of the shredder jamming, the Auto+ 100X and 100M will automatically reverse

and forward the engine three times to clear a jam. During this operation the Paper Jam indicator will

lubrication of the shredder

Only use Rexel Oil Sheets (2101948) to lubricate. ACCO Brands accepts no liability for

product performance or safety when other types or brands of lubricants are used on any part(s) of

this machine. GBC recommend using an oil sheet after the bin has been emptied three times (and

for ongoing three bin cycle thereafter). Insert the oil sheet into the manual feed slot and NOT in the

auto-feed chamber. Using an oil sheet in the auto-feed chamber will contaminate the feed rollers

preventing the auto-feed mechanism shredding. Follow the maintenance instructions if the rollers

become contaminated.

Only use Rexel Oil Sheets* (2101948) to

lubricate.

Oil Sheets

shredder accessories

Accessory Part Number Quantity

2101948 12 sheets/pack

ACCO Brands (ACCO) warrants its products and their parts against defects in materials and workmanship under normal

use for a period of 12 months from the original date of purchase. During this period, ACCO will, at its discretion, in

accordance with law, either repair the shredder using new or refurbished parts, or replace the shredder with a new or

refurbished shredder that is equivalent to the shredder being replaced. The warranty applies only to defects in materials

and workmanship under normal use and does not extend to damage to the product or parts which result from:-

- alteration, repair, modification or service carried out by anyone other than an authorised ACCO service centre.

- accident, neglect, abuse or misuse owing to failure to comply with the normal operating procedures of the product.

Please note that the cutter blades will be progressively worn down by shredding fastened sheets (staples and paperclips)

- this is not covered in the warranty. The Auto+ 100X has been design to shred up to 25 credit cards in the standard 1 year

warranty period. Any excessive credit card shredding will invalidate the cutter warranty. Auto+ 100X has NOT been

designed to shred CDs or DVDs, any attempt to do so will invalidate this warranty.

guarantee

* ACCO Brands accepts no liability for product performance or safety when other types or brands of lubricants are used on

any part(s) of this machine.

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a

dry cloth to maintain maximum product performance.

The auto-start infra-red sensor, located in the paper feed entry-slot, can occasionally become

covered in paper-dust causing the shredder to run despite no paper being fed into the

machine. Switch the shredder off at the rear of the machine and carefully clean the sensor

using a cottonswab.

6. maintenance

Otros manuales para Auto+ 100M

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Trituradora de papel de GBC

GBC

GBC Shredmaster 5570X Manual

GBC

GBC Shredmaster PRO 64C Manual de usuario

GBC

GBC AutoFeed+ 60X Manual de usuario

GBC

GBC SHREDMASTER PSX12-06 Manual de instrucciones

GBC

GBC CS50-59 Manual de usuario

GBC

GBC SHREDMASTER SX15-06 Manual de instrucciones

GBC

GBC Auto+200M Manual de usuario

GBC

GBC RLS32 Manual de usuario

GBC

GBC ShredMaster GDHS7 Manual de usuario

GBC

GBC 4500S-2 Manual de usuario

GBC

GBC Shredmaster 5020S Manual de usuario

GBC

GBC Auto+ 100M Manual de usuario

GBC

GBC ShredMaster CC055 Manual de usuario

GBC

GBC ShredMaster 3550X Manual

GBC

GBC 6550X-2 Manual de usuario

GBC

GBC ShredMaster GDS2213 Manual de usuario

GBC

GBC Shredmaster 5160X Manual de usuario

GBC

GBC AUTO+ 300X Manual de usuario

GBC

GBC Shredmaster 1236S Manual de usuario

GBC

GBC SHREDMASTER 1246S-2 Manual de usuario

GBC

GBC Shredmaster 1130S Manual de usuario

GBC

GBC Shredmaster 7500S Manual de usuario

GBC

GBC SHREDMASTER CC175 Manual de usuario

GBC

GBC SHEDMASTER RDS 1713 Manual de usuario

Manuales populares de Trituradora de papel de otras marcas

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Manual de instrucciones

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manual de usuario

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manual de usuario

Rexel

Rexel Optimum AutoFeed+ 45X Manual de usuario

Martin Yale

Martin Yale 227284S1 Manual de usuario

Bonsaii

Bonsaii DocShred C223-A Manual de usuario

HSM

HSM Pure 740 max Manual de usuario

TRU RED

TRU RED TR-BMC20A Manual de usuario

Fellowes

Fellowes 50S Manual de usuario

Gude

Gude GH 2600 P Manual de usuario

Ativa

Ativa DQ80M Manual de usuario

Q-Connect

Q-Connect Q8CC Manual de usuario

Fellowes

Fellowes POWERSHRED C-325CI Manual de usuario

Olivetti

Olivetti Privacy 5000C Guía de inicio rápido

UNITED OFFICE

UNITED OFFICE UAV 190 A1 Manual de usuario

Dahle

Dahle paperSAFE 22022 Manual de usuario

Formax

Formax OnSite FD 87 Manual de usuario

GEHA

GEHA Home & Office S7 CD Manual de usuario
