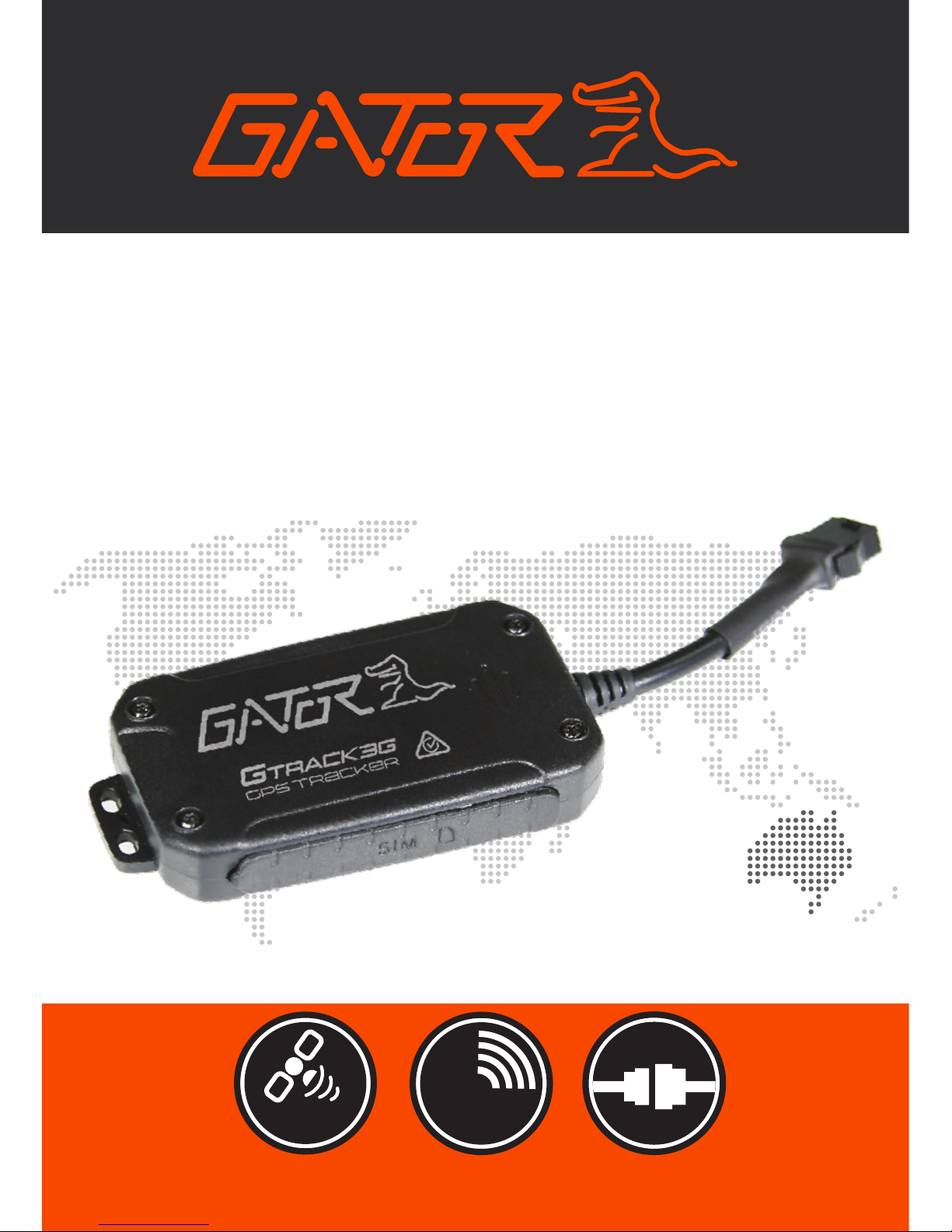

Gator GTRACK3G Manual de usuario

PRODUCT USER MANUAL

gps tracker

GTRAcK3G

Wired

Network

GPS

Data Recording

Introduction

Thank you for purchasing the

GTRACK3G GPS Tracker. Please

ensure that you have read the product

manual and instructions in full, prior to

installation and use. Failure to do so

may result in product failure/damage or

incorrect operation and therefore impact

the product performance.

Product overview

The GTRACK3G GPS Tracker has been

designed to offer an efcient, effective

vehicle tracking system for managing

your business eet. A 3G/4G GPS

tracking solution allows you to locate

and track the whereabouts of your

vehicle in real time via the Internet on a

computer or Smartphone.

Product features:

• Built-in cellular and GPS antenna for

easy installation

• 3G/4G compatible

• Requires active Text/Data Mini SIM

card (Mobile SIM) not included

• Real-time tracking with history route

• Lithium-ion rechargeable battery

• 3 hour battery backup

• Built-in motion sensor

• Shock/displacement/ low battery/

power off/ over speed alert

• Main power cut off alert

• Power saving sleep mode

• Built-in motion sensor

• ACC detection

• Geo-fence capable

• Remote immobilization

• A-GPS locating (improves startup performance)

• Unit dimension 75x40x12mm

• Weight 39.5g

Table of contents

Introduction...................................................p2

Product overview..................................................p2

Product features...................................................p3

Table of contents...................................................p4

Package components...........................................p5

Installation & setup.............................................p6-9

Function commands......................................p10-12

Download Smartphone App................................p12

Smartphone home screen..................................p15

Device list screen...............................................p16

Historical route screen........................................p17

Geofence location screen...................................p18

Issue command screen.......................................p19

Device screen.....................................................p20

Common command screen................................p21

General command screen..................................p22

Alarm setting screen...........................................p23

LED indicator denition......................................p25

Trouble shooting guide........................................p26

Cautions....................................................p27

Product specications...................................p28-29

SIM card information...........................................p30

APN settings.......................................................p31

Technicalassistance......................................p32-33

IMEI/SIM card number safeguard......................p34

Package components

1. GPS tracker

module

2. Relay

and harness

3. Power cable

with in-line

fuse

4. Adhesive

MountPad

Activation & Authorisation

1. Open the rubber plug, Insert an

active Text/Data Mini SIM mini card that

supports 3G/4G/GPRS network into the

slot and make sure the chip side is up.

(Picture 1)

2. Connect power cable and relay

(optional) and follow (Picture 2).

3. The Gtrack3G must know who you are

and where to send alerts.

Set ADMIN number, by sending a SMS

command to the SIM card inside your

device.

For example:

admin123456 xxxxxxxxxx

(123456) is the default password.

xxxxxxxxxx is your mobile number.

NOTE: There is a space between

password and mobile number.

Gtrack3G replies (admin okay).

4. Set APN number, by sending a SMS

command to the SIM card inside your

device.

APN123456 SIMCARD PROVIDER

(please use your local APN instead of

CMNET (default), if you do not know the

APN content you should contact your

SIM card supplier).

For example:

apn123456 xxxxxxxxxx

(123456) is the default password.

xxxxxxxxxx is your mobile SIM card

provider.

NOTE: There is a space between

password and SIM card provider.

For use in other countries replace the

APN with the corresponding countries

SIM card provider

5. Set the current time by sending a

SMS command to the SIM card inside

your device.

For example:

timezone123456 +10

(VIC daylight savings +10 hours ahead

of GMT).

NOTE: There is a space between

password and GMT time.

(Picture 2)

Function commands

Function

Text to send to Gtrack3G Reply

apn+123456+space+SIM

provider apn ok

apnuser+123456+space+SIM

provider

apnuser

APN

apnpasswd+123456+space+

SIM provider

apnpasswd

admin

number

admin123456+space+admin

phone number admin ok

time

zone

timezone+123456+space+

GMT No.

timezone

time

sleep sleep123456 time sleep time

shock

sleep

(default)

sleep123456 shock sleep

shock ok

no sleep

sleep123456 off sleep off

upload

frequency

upload123456+space+time upload ok

Desired

circuit

immobilise

555 Cut oil OK

Arm &

Disarm 111 or SF Arm delay

in 0s

Position G123456# or where Google

map

Restart rst restart ok

Back to

factory format No reply
