GPS 24XD NMEA 2000®

INSTALLATION INSTRUCTIONS

Important Safety Information

CAUTION

To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,

cutting, or sanding.

NOTICE

When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.

For the best performance and to avoid damage to your boat, read all installation instructions before

proceeding. Install the device per these instructions. Use the appropriate fasteners, tools, and mounts listed,

which are available at most marine dealers.

The Garmin® GPS 24xd NMEA 2000 high-sensitivity GPS antenna provides position information to your existing

NMEA 2000 network. If your boat does not have a NMEA 2000 network, you will need to install one.

For more information, go to garmin.com.

Tools Needed

• Drill

• 3.2 mm (1/8 in.) drill bit

• 19 mm (3/4 in.) drill bit for a pole-mount cable-hole

• 25 mm (1 in.) hole saw for a surface-mount cable-hole

• Countersink bit for mounting on fiberglass

• Screws for under-deck mounting

• Screwdriver, appropriate for the screw type

• Marine sealant (optional)

• Additional NMEA 2000 network components as needed

TA-2020/6796

GUID-28CE8C25-CFD8-4C12-B6D0-AD9CDF4D5084 v3June 2021

Mounting the Antenna

Antenna Mounting Considerations

CAUTION

Do not install or store the antenna near strong magnets, including speakers. A strong magnetic field can

damage the antenna.

You can mount the antenna on a flat surface or attach it to a standard 1 in. OD, 14 threads per inch, pipe-

threaded pole (not included). You can route the cable outside of the pole or through the pole. For best

performance, consider these guidelines when selecting the antenna mounting location.

• To ensure the best reception, the antenna should be mounted in a location that has a clear, unobstructed

view of the sky in all directions .

• The antenna should not be mounted where it is shaded by the superstructure of the boat , a radome

antenna, or the mast.

• The antenna should not be mounted near the engine or other sources of Electromagnetic Interference (EMI)

• The antenna should not be mounted near known ferrous metal objects such as a toolbox or compass.

• A handheld compass should be used to test for magnetic interference in the area where the antenna is to be

mounted. Your boat, motors, and devices must be on during the test.

If the needle on the handheld compass moves when you hold it where you intend to mount the antenna,

magnetic interference is present. You must choose another location and test again.

• Mounting screws are provided with the antenna. If you use mounting hardware other than the provided

screws, the hardware must be made of quality stainless steel or brass material to avoid magnetic

interference with the antenna.

NOTE: Test all mounting hardware with a handheld compass to make sure no magnetic fields are present in

the hardware.

• If a radar is present, the antenna should be mounted above the path of the radar . If necessary, the

antenna may be mounted below the path of the radar .

• The antenna should not be mounted directly in the path of the radar .

• The antenna should not be mounted within 1 m (3 ft.) of a VHF radio antenna or the path of a radar .

Testing the Mounting Location

1Temporarily secure the antenna in the preferred mounting location and test it for correct operation.

2If you experience interference with other electronics, move the antenna to a different location, and test it

again.

3Repeat steps 1–2 until you observe full or acceptable signal strength.

4Permanently mount the antenna.

Surface Mounting the Antenna

NOTICE

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a

clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer

when the screws are tightened.

Before you permanently mount the antenna, you must test the mounting location for correct operation (Testing

the Mounting Location, page 3).

1Using the surface-mount bracket as your mounting template, mark the three pilot-hole locations and

trace the cable-hole in the center of the bracket.

2Set the surface-mount bracket aside.

Do not drill through the bracket.

3Drill the three 3.2 mm (1/8 in.) pilot holes.

4Drill the 25 mm (1 in.) cable hole in the center.

5Use the included M4 screws to secure the surface-mount bracket to the mounting surface.

6Route the cable through the center hole, and connect it to the antenna.

7Verify the large gasket is in place on the bottom of the antenna, place the antenna on the surface-mount

bracket, and twist it clockwise to lock it in place.

8Secure the antenna to the mounting bracket with the included M3 screw .

9Route the cable away from sources of electronic interference.

Mounting the Antenna on a Pole

Mounting the Antenna with the Cable Routed Outside the Pole

Before you permanently mount the antenna, you must test the mounting location for correct operation (Testing

the Mounting Location, page 3).

1Route the cable through the pole-mount adapter , and place the cable in the vertical slot along the

base of the pole-mount adapter.

2Screw the pole-mount adapter onto a standard 1 in. OD, 14 threads per inch, pipe-threaded pole (not

included).

Do not overtighten the adapter on the pole.

3Connect the cable to the antenna.

4Place the antenna on the pole-mount adapter and twist it clockwise to lock it in place.

5Secure the antenna to the adapter with the included M3 set screw .

6With the antenna installed on the pole mount, fill the remaining gap in the vertical cable slot with a marine

sealant (optional).

7Attach the pole to the boat if it is not already attached.

8Route the cable away from sources of electronic interference.

Mounting the Antenna with the Cable Routed Through the Pole

Before you permanently mount the antenna, you must test the mounting location for correct operation (Testing

the Mounting Location, page 3).

1Position a standard 1 in. OD, 14 threads per inch, pipe-threaded pole (not included) in the selected location,

and mark the approximate center of the pole.

2Drill a hole using a 19 mm (3/4 in.) drill bit for the cable to pass through.

3Fasten the pole to the boat.

4Thread the pole-mount adapter onto the pole.

Do not overtighten the adapter.

5Route the cable through the pole and connect it to the antenna.

6Place the antenna on the pole-mount adapter and twist it clockwise to lock it in place.

7Secure the antenna to the adapter with the included M3 set screw .

8With the antenna installed on the pole mount, fill the vertical cable slot with a marine sealant (optional).

9Route the cable away from sources of electronic interference.

Mounting the Antenna Under a Surface

NOTICE

Verify that the supplied screws will not penetrate the surface before you install the under-deck mounting

bracket. If the supplied screws are too long, use surface-appropriate screws instead.

Because the antenna cannot acquire signals through metal, it must be mounted under a fiberglass surface only.

1Determine and test the location under a fiberglass surface where you want to mount the antenna (Testing

the Mounting Location, page 3).

2Place the adhesive pads on the under-deck mounting bracket .

3Place the antenna in the under-deck mounting bracket.

4Adhere the under-deck mounting bracket to the mounting surface.

5Secure the under-deck mounting bracket to the mounting surface with screws.

6Connect the cable to the antenna .

7Route the cable away from sources of electronic interference.

Connecting the Antenna

NMEA 2000 Network Connection

If you do not have an existing NMEA 2000 network, you must install a NMEA 2000 network on your boat. For

more information on NMEA 2000, go to garmin.com/manuals/nmea_2000.

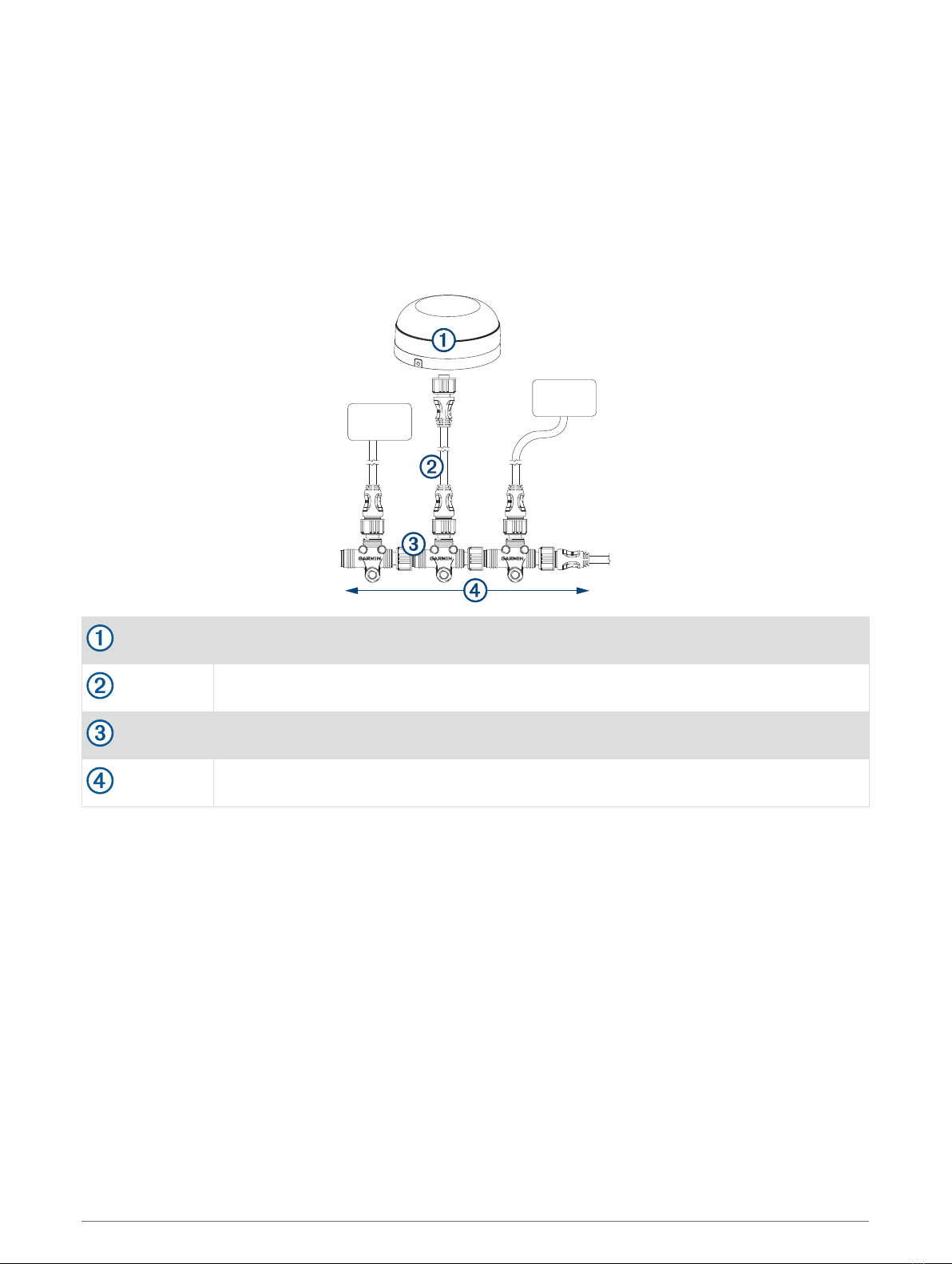

The antenna is packaged with a NMEA 2000 T-connector and a NMEA 2000 drop cable. You will use these two

components to connect the antenna to your existing NMEA 2000 network.

A 6 m (20 ft.) drop cable is included. If more cable is needed, add an extension to your NMEA 2000 backbone,

based on the NMEA 2000 guidelines. A shorter drop cable can be installed if desired.

GPS 24xd antenna

NMEA 2000 drop cable

NMEA 2000 T-connector

NMEA 2000 backbone

Heading Calibration

After installation is complete, you must calibrate the heading and perform the auto heading alignment to

receive magnetic heading data.

Depending on the types of devices connected to the NMEA 2000 network, you can calibrate the antenna using

either a menu-based method or a basic method.

If you connect the antenna to a NMEA 2000 network with a compatible Garmin chartplotter, you can perform

either the basic calibration or the menu-based calibration (Performing Menu-Based Calibration, page 9).

If you connect the antenna to a NMEA 2000 network without a compatible Garmin chartplotter or with a third-

party device, you must perform basic calibration instead of menu-based calibration.

Performing Menu-Based Calibration

Before you can perform menu-based calibration, you must connect the antenna to the same NMEA 2000

network as a compatible Garmin chartplotter.

1Select Menu > Settings > Communications > NMEA 2000 Setup > Device List.

2Select the GPS 24xd NMEA 2000 from the device list.

3Select Review > Compass Cal. > Begin.

4Follow the on-screen instructions until the compass calibration is complete, taking care to keep the boat as

steady and level as possible.

The boat should not list during calibration.

When the compass calibration is complete, a value appears near the Compass Cal. setting. A value near 100

indicates the antenna was installed in a perfect magnetic environment and calibrated correctly. If the

heading performance is unacceptable, and the value is closer to 0 than it is to 100, you might need to

relocate the antenna and calibrate the compass again.

NOTE: The antenna compass must be calibrated successfully and maintain a valid GPS position, which

requires the antenna to have a clear, unobstructed view of the sky in all directions, before you proceed to

Auto Heading Alignment.

5Select Auto Heading Alignment.

6Select Begin.

7Follow the on-screen instructions until the magnetic heading alignment is complete.

Disabling the Magnetic Heading Data

If you cannot mount the antenna in an ideal location for magnetic heading and GPS performance, you can

disable the magnetic heading data.

Perform a factory reset (Antenna Configuration, page 11).

The device still outputs GPS Course over Ground.

Adjusting the Fine Heading Alignment

You can adjust the Fine Heading Alignment in conjunction with Auto Heading Alignment to fine-tune the

heading output (optional).

NOTE: Fine heading alignment must be completed under open skies to ensure proper calibration.

1Select Settings > Communications > NMEA 2000 Setup > Device List.

2Select the GPS 24xd device.

3Select Review > Fine Heading Alignment.

4Using a landmark or a known good compass, determine the heading of your boat.

5Adjust the heading until it matches your measurement.

6Select Done.

Performing Basic Calibration

If you connect the antenna to a NMEA 2000 network without a compatible Garmin chartplotter or with a third-

party device, you must perform basic calibration instead of menu-based calibration.

Before you can perform basic calibration, you must be able to view heading data from the NMEA 2000 network

on a connected device. To perform basic calibration, you must remove from the network all sources of heading

data other than the antenna.

When performing basic calibration, you first calibrate the compass and then align the heading in one

continuous procedure.

NOTE: The boat must be able to reach a cruising speed of at least 6.4 km/h (4 mph) to perform the heading

alignment.

1Drive the boat to a location with calm, open water.

2Set the display to view heading data from the connected antenna.

NOTE: You must not use GPS Course Over Ground (COG) to perform basic calibration.

3Disconnect the antenna from the NMEA 2000 network or turn off the power to the NMEA 2000 network.

4Wait while the boat becomes level and stationary.

5Turn on power to the antenna, and wait until the heading data appears on the display .

NOTE: If you are performing the first basic calibration after a factory reset, the heading is blank.

6Within three minutes, complete two full, slow, tight circles , taking care to keep the boat as steady and

level as possible.

The boat should not list during calibration.

When the antenna is prepared to calibrate the compass, the heading data disappears from the display .

You may receive an error message that the heading was lost. You can ignore this message.

7Continue turning in the same direction at the same speed for approximately 1 1/2 rotations until the

heading data appears .

Otros manuales para GPS 24XD NMEA 2000

Tabla de contenidos

Otros manuales de GPS de Garmin

Garmin

Garmin Approach G5 - GPS-Enabled Golf Handheld Manual

Garmin

Garmin Quest TM Manual de usuario

Garmin

Garmin Approach G6 Manual de usuario

Garmin

Garmin Golf Logix Manual de usuario

Garmin

Garmin Personal Navigator GPS 40 Manual de usuario

Garmin

Garmin NUVI 2300 series Manual de instrucciones

Garmin

Garmin GPS 175 Manual de usuario

Garmin

Garmin GPS 19x NMEA 2000 Manual de usuario

Garmin

Garmin GNC 420W Instrucciones de instalación y funcionamiento

Garmin

Garmin GPSMAP 4008 - Marine GPS Receiver Guía de referencia

Garmin

Garmin aera 796 Manual

Garmin

Garmin nuvi 1690 Manual de usuario

Garmin

Garmin eTrex Touch 25 Manual de usuario

Garmin

Garmin GPSMAP 8400 series Manual de instrucciones

Garmin

Garmin echomap chirp 50 series Manual de usuario

Garmin

Garmin INREACH SE+ Manual de usuario

Garmin

Garmin nuvi 2405 series Manual de usuario

Garmin

Garmin GNS 430 Manual de usuario

Garmin

Garmin Montana 700i Manual de usuario

Garmin

Garmin nuvi 205W Series Guía de referencia

Garmin

Garmin ECHOMAP UHD2 5X Manual de usuario

Garmin

Garmin Oregon 650 Manual de usuario

Garmin

Garmin GNS 400W Manual de usuario

Garmin

Garmin GPSMAP 76 series Manual de usuario

Manuales populares de GPS de otras marcas

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Manual de usuario

Jigabot

Jigabot EX Manual de usuario

Pointer

Pointer Cellocator CelloTrack XT LTE Guía de instalación

Queclink

Queclink GV55LITE Manual de usuario

Voxson

Voxson Voxtrack GPS500 Manual de instrucciones

Starcom Systems

Starcom Systems Kylos Compact Manual de usuario

Cobra

Cobra Marine MC 600Ci Manual de usuario

Cellocator

Cellocator CelloTrack T Manual de usuario

Enfora

Enfora Mini-MT GSM2228UG001 Manual de usuario

Magellan

Magellan eXplorist 100 Manual de usuario

LTE

LTE G50B Manual de usuario

SkyGolf

SkyGolf SkyCaddie SG1 Manual de usuario

Kenwood

Kenwood DNN9330BT Manual de usuario

Safelet

Safelet Indra Manual de usuario

Bushnell

Bushnell 360100 Manual de usuario

Geneq

Geneq SXBlue Manual de usuario

ORIGO

ORIGO ED308 Manual de usuario
