Garmin AERA 660 Manual de usuario

model: 660

™

Quick Reference Guide

Draft

This manual reﬂects the operation of System Software version 1.0 or later. Some differences in

operation may be observed when comparing the information in this manual to earlier or later

software versions.

Garmin International, Inc., 1200 East 151st Street, Olathe, Kansas 66062, U.S.A.

Tel: 913/397.8200 Fax: 913/397.8282

Garmin AT, Inc., 2345 Turner Road SE, Salem, OR 97302, U.S.A.

Tel: 503/391.3411 Fax 503/364.2138

Garmin (Europe) Ltd, Liberty House, Bulls Copse Road, Hounsdown Business Park,

Southampton, SO40 9RB, U.K.

Tel: 44/0370.8501243 Fax: 44/0870.8501251

Garmin Corporation, No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan

Tel: 886/02.2642.9199 Fax: 886/02.2642.9099

Web Site Address: www.garmin.com

Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted,

disseminated, downloaded or stored in any storage medium, for any purpose without the express

written permission of Garmin. Garmin hereby grants permission to download a single copy of this

manual and of any revision to this manual onto a hard drive or other electronic storage medium to

be viewed for personal use, provided that such electronic or printed copy of this manual or revision

must contain the complete text of this copyright notice and provided further that any unauthorized

commercial distribution of this manual or any revision hereto is strictly prohibited.

Garmin

, FliteCharts

, SafeTaxi

, and MapSource

are registered trademarks of Garmin Ltd. or its

subsidiaries. aera

™

is a trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be

used without the express permission of Garmin.

Jeppesen

is a registered trademark of Jeppesen, Inc.

NavData

™

is a trademark of Jeppesen, Inc.

SiriusXM

is a registered trademark of SiriusXM Satellite Radio, Inc.

AC-U-KWIK

is a registered trademark of Penton Business Media, Inc.

November, 2015 190-02017-10 Rev. A Printed in the United States or Taiwan

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A 1

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Utilities Appendix Index

SECTION 1 OVERVIEW

1.1 UNIT OVERVIEW

The purpose of this document is to provide a resource with which to ﬁnd operating

instructions on the major features of the aera 660 quickly and easily. This Quick

Reference Guide is not intended to be a comprehensive operating guide. Refer to the

aera 660 Pilot’s Guide for complete operating procedures and warnings.

Power Button

USB Ports

Unit Overview

External Antenna Connector

Power Button

USB Connector

Micro SD Card Slot

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceUtilitiesAppendixIndex

1.2 GETTING STARTED

BATTERY INSTALLATION

Installing the battery:

Locate the lithium-ion battery that came in the product box.

Locate the metal contacts on the end of the lithium-ion battery.

Insert the battery so that the metal contacts on the battery line-up with the

metal contacts inside the battery compartment.

Insert the battery into the battery compartment, and push until it clicks into

place.

Unit Overview - Battery

CHARGING THE BATTERY

NOTE: While in Charge Mode, the unit draws a current from the aircraft. To

avoid discharging the aircraft’s battery, disconnect the external power cable

from the unit when not in use for several days.

Charging the unit’s battery using the aircraft's power outlet:

Mount the aera 660 in the aircraft and connect the power cable to the

aircraft power outlet (cigarette lighter receptacle).

Route the power cable so that it does not interfere with aircraft operation.

The unit begins charging as soon as external power is applied.

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A 3

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Utilities Appendix Index

GPS RECEIVER STATUS

The bars located at the top of the screen indicate the GPS signal strength.

Viewing the GPS status:

From the Main Menu, touch Info > Satellite Status

tab

DISPLAY ORIENTATION

The aera 660 can be viewed in either Portrait or Landscape Mode.

Changing the display orientation:

From the Main Menu, touch Tools > Setup > Display

Press the Power Button once quickly.

1.3 OPERATION

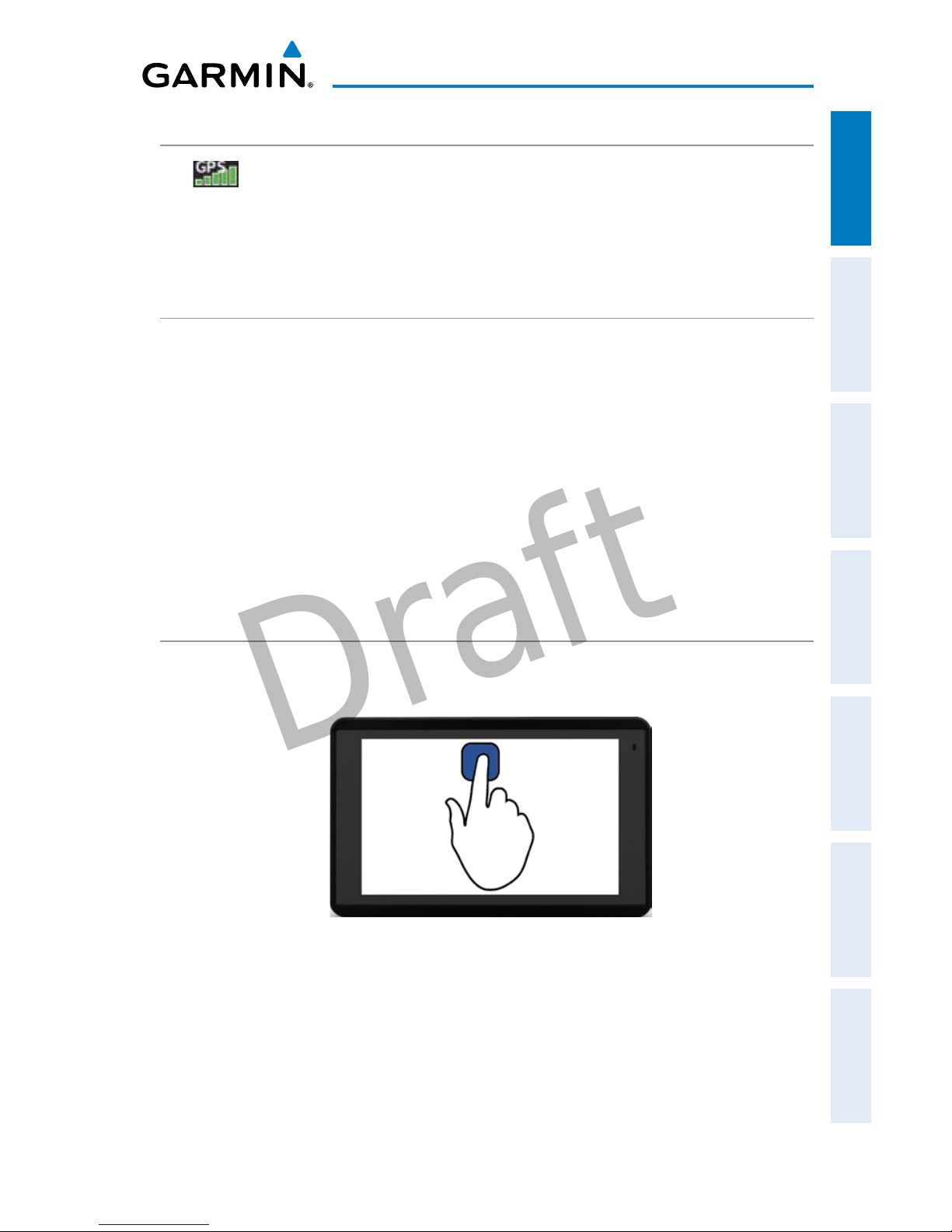

BASIC TOUCHSCREEN OPERATION

Touch the desired selection. The icon, menu option, etc., will momentarily

turn blue when selected.

Basic Touchscreen Operation

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceUtilitiesAppendixIndex

SCROLLING AND PANNING

Scrolling and panning on the touchscreen:

Drag up or down to scroll menus, documents, etc.

Or:

Drag in any direction to pan maps or charts.

Scroll

Pan

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A 5

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Utilities Appendix Index

ZOOMING

Zooming in and out on the touchscreen map displays:

Pinch ﬁngers together (zoom out), or pull ﬁngers apart (zoom in).

Zoom Out

Zoom In

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceUtilitiesAppendixIndex

DEDICATED PAGE ICONS

Dedicated Page Icons are located vertically on the right side of the screen in

landscape mode or horizontally along the bottom of the screen in portrait mode.

Nearest Airports Page

Dedicated

Page Icons

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A 7

Overview

Overview GPS Navigation Flight Planning Hazard Avoidance Utilities Appendix Index

Scroll up OR Returns to previous

screen.

Scroll down OR Touch and hold to

display the Main Menu.

Nearest Group Icons

(Nearest Page Only) OR Weather Group Icons

(Weather Page Only)

Direct-to function.

Page menu

• Previous Screen

• Main Menu (Touch

and Hold)

OR Cancel map pointer

Draft

Garmin aera 660 Quick Reference Guide

190-02017-10 Rev. A

Overview

OverviewGPS NavigationFlight PlanningHazard AvoidanceUtilitiesAppendixIndex

MAIN MENU

Touch and hold the

icon at any time to display the Main Menu.

MAIN MENU ICONS

Touch the following icons to display the associated page or menu:

Map Displays the Map View.

Charts Displays the VFR or IFR charts.

3D Vision Displays 3D Vision.

Nearest Displays the Nearest Page

Waypoint Displays the Waypoint Information.

Active Flight Plan Displays the Active Flight Plan.

Trafﬁc Displays the dedicated Trafﬁc Page.

3D Vision Displays 3D Vision Page

Terrain Displays the Terrain View.

Weather

Displays second-level Weather Icons

GPS Info Displays current position, satellite status, and data ﬁelds.
