Galvin Engineering GalvinAssist CP Manual de usuario

Product Installation Guidelines

Version 1, 25th May 2022, Page 1of 6

GalvinAssist®CP Hand Shower Kit W/-900 x 32

SS Hygienic G/Rail, ClevaCare Shw & CliniLever Tap

PRODUCT CODES:

- CLEVAKIT1CP

SPECIFICATIONS

- CP Brass swing arm with stainless steel spring.

- Supplied with stainless steel fasteners.

- Finished in bright chrome plate for easy cleaning and added durability.

IMPORTANT: All Galvin Engineering taps are tested in accordance with AS/NZS 3718 and leave our

premises in good working order.

TECHNICAL DATA

Inlet

½” BSP –Female

Outlet

Handheld Shower

Headwork

Ceramic Cartridge

Working Pressure Range (kPa)

Min

150

Max

500

Working Temperature Range (°C)

Min

Max

Nominal Flow Rate (LPM)

8.24

Finish

Chrome

NOTE: Galvin Specialised continually strive to improve their products. Specifications may change

without notice.

TOOLS REQUIRED

−Power drill

−Spanner or adjustable crescent

−Hex Key

−Thread Tape

Version 1, 1 June 2022, Page 2of 6

Product Installation Guidelines

Version 1, 25th May 2022, Page 2of 6

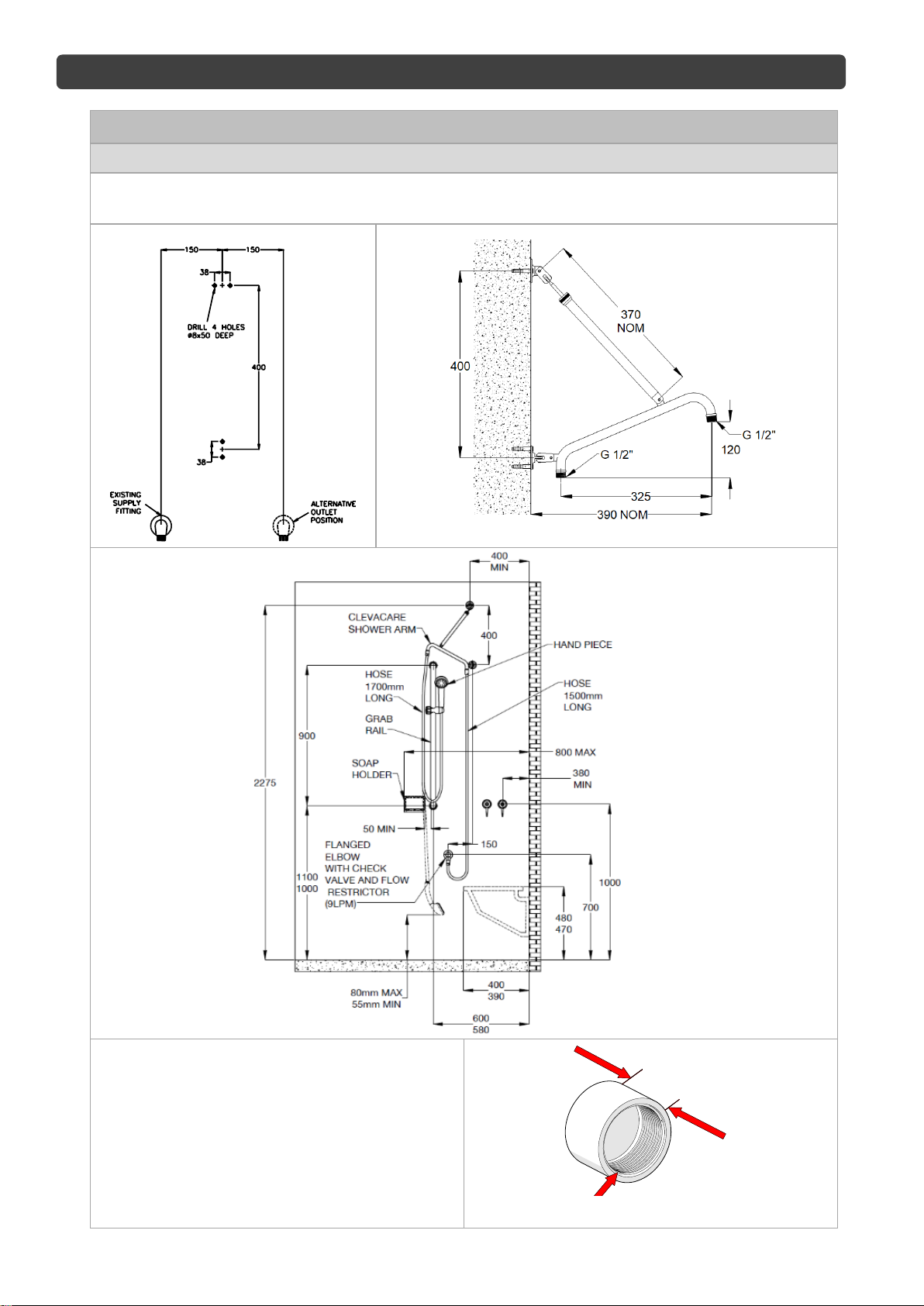

PRE-INSTALLATION

MOUNTING DETAILS

−If the mounting holes do not already exist, mark out and drill the holes as shown in rough-

in dimensions.

For Tapware

Wall body

−Wall body must be G5/8” FI and body should be

between 0 and 15mm behind the finished

wall surface.

0 to 15mm

G 5/8”

Version 1, 1 June 2022, Page 3of 6

Product Installation Guidelines

Version 1, 25th May 2022, Page 3of 6

INSTALLATION

INSTALLATION COMPLIANCE: Galvin Engineering products must be installed in accordance with these

installation instructions and in accordance with AS/NZS 3500, the PCA and your local regulatory

requirements. Water and/or electrical supply conditions must also comply to the applicable national and/or

state standards. Failing to comply with these provisions shall void the product warranty and may affect the

performance of the product.

1. Top Flange

Mark the height of the top flange centre point by

measuring vertically 2275mm above the floor. Then

measure approximately 150mm horizontally to the

left or right (depending on the position of the

shower recess) of the centre of the existing supply

fitting. Drill 2 holes Ø8 x 50mm deep, 38mm

horizontally apart to suit the top flange.

2. Bottom Flange

Mark the position of the bottom flange’s centre point

400mm below the top flange’s centre point. Then mark

the two holes for mounting the bottom flange in a

similar manner to the top flange.

Note: The bottom flange is mounted in a vertical

orientation.

Important: the functionality of this product relies on the

accuracy of the vertical alignment between the top and

bottom flanges.

3. Mount the shower arm

Attach both the wall flanges using the plastic star

plugs and self-tapping screws supplied (these

fasteners may not be appropriate for all wall

materials. If this is the case, other fastening

systems will have to be sourced by the installer).

4. Attach the hose

When fitting the inlet hose, lay the arm against the wall

in the preferred ‘resting’ position, then tighten the

hose. The arm will tend to return to this position when

not in use.

DRILL 2 HOLES

Ø8x50 DEEP

2275mm ABOVE

THE FLOOR

Version 1, 1 June 2022, Page 4of 6

Product Installation Guidelines

Version 1, 25th May 2022, Page 4of 6

Clevakit typical installation

Conforming to AS1428.1-2009

5. Check Shower for operation and leaks

Check the hose is securely connected. Turn on

water supply. Once installation is completed, the

unit must be tested for any leaks.

Notes:

1. To comply with backflow prevention

standards, the hand spray must hang at least

55mm above the floor providing an ‘air-gap’. If

the hand piece lies on the floor, then an

appropriate backflow prevention device must

be installed.

2. Shown is a Clevakit typical installation

conforming to AS1428.1-2009.

For Tapware

6. Fit spindle assembly

−Remove handle and flange from cartridge

assembly. Unscrew the ¼ turn ceramic head

part from the threaded sleeve assembly and

screw ceramic cartridge into the valve body by

hand, tighten using a 17mm spanner.

−Refit threaded sleeve and spindle.

The ¼ turn ceramic head part MUST be fitted into

the wall body prior to refitting the threaded

sleeve and spindle. DO NOT tighten cartridge by

using the spindle or the threaded sleeve.

7. Fit wall flange

−Ensure o-ring is fitted to the bottom of the

wall flange, and then hand-tighten the wall

flange onto the threaded sleeve.

Version 1, 1 June 2022, Page 5of 6

Product Installation Guidelines

Version 1, 25th May 2022, Page 5of 6

8. Fit handle

−Ensure the spindle is in the closed

position and firmly press the lever handle

onto the spindle in the desired

orientation.

−Check operation of lever handle. It

should turn freely for a full ¼ turn.

−Secure the handle in position using the

supplied washer and stainless-steel cap

screw.

9.Fit water temperature indicator & Test

−Once the lever handle is secure; fit the

appropriate water temperature indicator.

−Check the operation of the unit and inspect

for any leaks.

TROUBLESHOOTING

PROBLEM

CAUSE

RECTIFICATION

Water is not flowing or

inconsistent flow

Shower arm is blocked with

debris.

Remove debris from shower arm.

Leak from hose

connection

Hose connection loose

Check wall coupling locates properly with

hose connection.

Taps are dripping water

Ceramic discs are worn or

damaged

Remove and inspect SBA. Remove

debris and/or replace SBA if damaged.

Tap seat is damaged

Refurbish tap seat using a reseating tool.

Water is leaking from

spindle

O-ring on jumper valve spindle

is damaged or worn

Replace o-ring

Water is not flowing from

tap

Water is turned off

Turn on water

Aerator or flow regulator is

blocked by debris

Remove aerator and/or flow regulator

from tap and remove debris. Install an

inline strainer.

Spindle is difficult to turn

Build up of scale on spindle,

spindle worn or o-ring has

been damaged

Remove cartridge sleeve, clean and

regrease. Replace o-ring. Complete SBA

may need to be replaced.

Handle is loose

Screw has come loose

Tighten handle screw

Flange does not screw

down onto wall surface

Wall bodies are set too far out

Re-position tap bodies

Version 1, 1 June 2022, Page 6of 6

Product Installation Guidelines

Version 1, 25th May 2022, Page 6of 6

WARRANTY

The warranty set forth herein is given expressly and is the only warranty given by the Galvin

Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties,

express or implied. Galvin Engineering Pty. Ltd. hereby specifically disclaims all other warranties,

express or implied, including but not limited to the implied warranties of merchantability and fitness for a

particular purpose.

Galvin Engineering Pty Ltd products are covered under our manufacturer’s warranty available for

download from www.galvinengineering.com.au Galvin Engineering Pty Ltd expressly warrants that the

product is free from operational defects in workmanship and materials for the warranty period as shown

on the schedule in the manufacturer’s warranty. During the warranty period, Galvin Engineering will

replace or repair any defective products manufactured by Galvin Engineering without charge, so long as

the terms of the Manufacturer’s warranty are complied with.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive

remedy for breach of warranty, and Galvin Engineering Pty Ltd shall not be responsible for any

incidental, special or consequential damages, including without limitation, lost profits or the cost of

repairing or replacing other property which is damaged if this product does not work properly, other

costs resulting from labour charges, delays, vandalism, negligence, fouling caused by foreign material,

damage from adverse water conditions, chemical, electrical or any other circumstances over which

Galvin Engineering has no control. This warranty shall be invalidated by any abuse, misuse,

misapplication, improper installation or improper maintenance or alteration of the product.
