Installation Manual

ECDIS

Model

FMD-3200/FMD-3300/FMD-3200-BB

(ELECTRONIC CHART DISPLAY AND INFORMATION SYSTEM)

SAFETY INSTRUCTIONS ................................................................................................ i

SYSTEM CONFIGURATION ........................................................................................... ii

EQUIPMENT LISTS........................................................................................................ iv

1. MOUNTING..............................................................................................................1-1

1.1 Monitor Unit........................................................................................................................1-1

1.2 ECDIS Control Unit/Track Control Unit ..............................................................................1-1

1.3 Processor Unit ...................................................................................................................1-4

1.4 Sensor Adapter MC-3000S/3010A/3020D/3030D (option)................................................1-6

1.5 Intelligent Hub HUB-3000 (option) .....................................................................................1-7

1.6 Switching HUB HUB-100 (option)......................................................................................1-8

1.7 Radar Connection Box RCB-002 (option)..........................................................................1-8

2. WIRING....................................................................................................................2-1

2.1 Processor Unit ...................................................................................................................2-3

2.2 Monitor Unit......................................................................................................................2-13

2.3 Sensor Adapters (option).................................................................................................2-15

2.4 Intelligent HUB HUB-3000 (option) ..................................................................................2-33

2.5 How to Extend the Control Unit Cable (option) ................................................................2-34

2.6 Radar Connection Box RCB-002 (option)........................................................................2-38

3. ECN-303/304 (OPTION) ..........................................................................................3-1

3.1 How to Install the Console .................................................................................................3-1

3.2 How to Dismount the Rack for the Processor Unit.............................................................3-2

3.3 How to Connect External Cables .......................................................................................3-4

3.4 How to Mount the Rack for the Processor Unit..................................................................3-6

4. SETTING UP THE EQUIPMENT .............................................................................4-1

APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1

APPENDIX 2 ROD TERMINALS ..............................................................................AP-2

APPENDIX 3 RA/IF BOARD JUMPER VALUES .....................................................AP-8

PACKING LISTS ......................................................................................................... A-1

OUTLINE DRAWINGS ................................................................................................ D-1

INTERCONNECTION DIAGRAMS.............................................................................. S-1

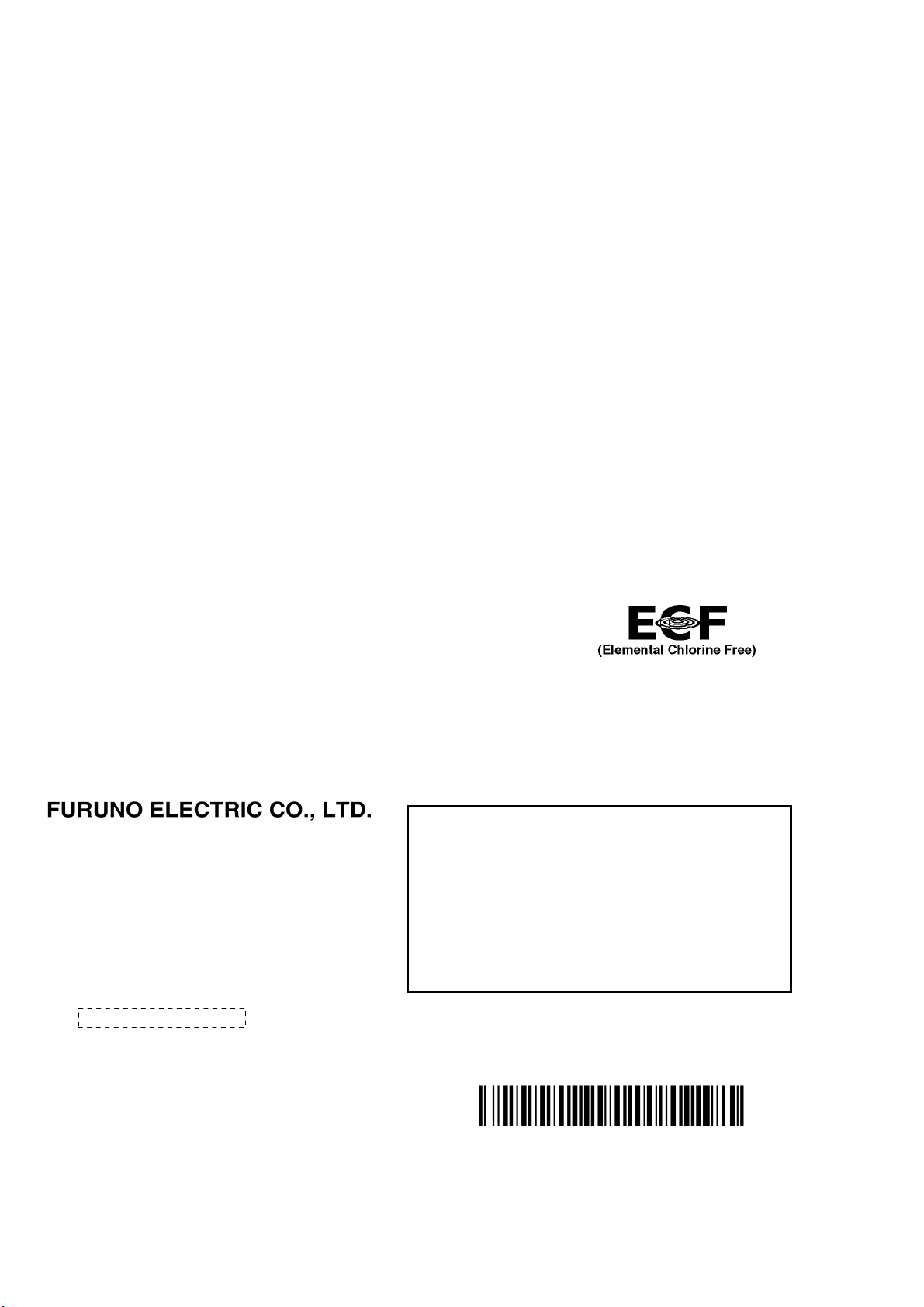

The paper used in this manual

is elemental chlorine free.

・FURUNO Authorized Distributor/Dealer

9 52 Ashihara cho,

Nishinomiya, 662 8580, JAPAN

APR

2012

Printed in Japan

APR

26, 2017

Pub. No.

IME-44730-H2

(

TEHI

)

FMD-3200/3200BB/3300

0 0 0 1 7 6 1 2 9 1 7

SAFETY INSTRUCTIONS

Be sure that the power supply is

compatible with the voltage rating of

the equipment.

Connection of an incorrect power supply

can cause fire or damage the equipment.

Use only the specified power cable.

Fire or damage to the equipment can result

if a different cable is used.

Attach protective earth

securely to the ship's body.

The protective earth

(grounding) is required for the

AC power supply to prevent

electrical shock.

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

WARNING

Turn off the power at the mains switch-

board before beginning the installation.

Fire, electrical shock or serious injury can

result if the power is left on or is applied

while the equipment is being installed.

ELECTRICAL

SHOCK

HAZARD

CAUTION

Observe the following compass safe

distances to prevent deviation of a

magnetic compass:

Standard

compass

Monitor Unit

(MU-190) 1.65 m 1.05 m

Monitor Unit

(MU-231) 2.55 m 1.55 m

Trackball Control

Unit (RCU-026) 0.30 m 0.30 m

Steering

compass

Intelligent HUB

(HUB-3000)

2.05 m 1.35 m

1.20 m 0.75 m

Processor

Unit (EC-3000) 2.40 m 1.55 m

Sensor Adapter

(MC-3000S)

ECDIS Control

Unit (RCU-024) 0.30 m 0.30 m

0.75 m 0.50 m

Sensor Adapter

(MC-3010A)

Sensor Adapter

(MC-3020D)

Sensor Adapter

(MC-3030D)

1.05 m 0.70 m

0.90 m 0.60 m

Mandatory Action

Prohibitive Action

WARNING

Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided,

can result in minor or moderate injury.

Warning, Caution

The installer of the equipment must read the safety instructions before attempting to

install the equipment.

WARNING

Do not install the monitor unit,

processor unit or control unit where

they may get wet from rain or

water splash, or in a dusty environment.

Water in the units can result in fire,

electrical shock, or damage the equipment.

Switching HUB

(HUB-100) 1.00 m 0.60 m

Radar Connection

Box (RCB-002) 1.45 m 0.95 m

Monitor Unit

(MU-270W) 0.90 m 0.55 m

SYSTEM CONFIGURATION

System with one processor unit

Note: The following monitors are available with the FMD-3200-BB:

Maker Model Viewing

distance (m) Maker Model Viewing

distance (m)

FURUNO MU-190 1.0138 Hatteland JH20T17FUD 0.8793

MU-231 1.0138 JH23T12FUD 1.0138

MU-270W 1.02 JH23T14FUD 1.0138

MU-201CE 1.0759 HD24T21MMD 0.9517

MU-231CE 1.0138 JH26T11MMD 0.9879

Hatteland JH19T14FUD 1.0138 HD26T21MMD 0.9879

Dashed lines indicate

optional or local supply

equipment.

Switching

Hub

HUB-100

Sensor Adapter

MC-3010A

Sensor Adapter

MC-3020D

Sensor Adapter

MC-3030D

Serial interface

Analog interface

Digital IN interface

Digital OUT interface

Category of units

All units protected

from the weather.

Sensor Adapter

MC-3000S

EC-3000

PROCESSOR

UNIT

100-115/220-230 VAC,

1ø, 50/60 Hz

IF Signal:

- Serial Interface x2 (IEC 61162-1/2)

- Serial Interface x6 (IEC 61162-1)

- Digital Out x6

(power fail/system fail/ NO x2, NC x2)

- Digital In (ack in)

Main Monitor* Sub Monitor

Conning

Monitor

Monitor Unit

MU-190/

MU-231/

MU-270W

Monitor Unit

MU-190/MU-231/MU-270W

HD26T21-MMD-MA4-FAGA

Monitor Unit

MU-190/

MU-231/

MU-270W

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

(Max. 2)

*: MU-190: Standard supply for FMD-3200

MU-231: Standard supply for FMD-3300

MU-270W: Standard supply for FMD-3300

HD26T21-MMD-MA4-FAGA: Standard supply for FMD-3300

100-115/200-230 VAC

1ø, 50/60 Hz

24 VDC

Intelligent Hub

HUB-3000

Radar 1

Radar Connection Box

RCB-002 Radar 2

100-230 VAC

Gateway network equipment

(radar, ECDIS, etc.)

AC-DC Power

Supply Unit

PR-240

SYSTEM CONFIGURATION

iii

System with two processor units

Note: The following monitors are available with the FMD-3200-BB:

Maker Model Viewing

distance (m) Maker Model Viewing

distance (m)

FURUNO MU-190 1.0138 Hatteland JH20T17FUD 0.8793

MU-231 1.0138 JH23T12FUD 1.0138

MU-270W 1.02 JH23T14FUD 1.0138

MU-201CE 1.0759 HD24T21MMD 0.9517

MU-231CE 1.0138 JH26T11MMD 0.9879

Hatteland JH19T14FUD 1.0138 HD26T21MMD 0.9879

EC-3000

PROCESSOR

UNIT

Dashed lines indicate

optional or local supply

equipment.

100-115/

220-230 VAC,

1ø, 50/60 Hz

Serial

interface

Analog

interface

Digital IN

interface

EC-3000

PROCESSOR

UNIT

Switching Hub

HUB-100

Digital OUT

interface

100-115/

220-230 VAC,

1ø, 50/60 Hz

Category of units

All units protected

from the weather.

Sensor Adapter

MC-3000S

Sensor Adapter

MC-3010A

Sensor Adapter

MC-3020D

Sensor Adapter

MC-3030D

IF Signal:

- Serial Interface x2

(IEC 61162-1/2)

- Serial Interface x6

(IEC 61162-1)

- Digital Out x6

(power fail/system fail/

NO x2, NC x2)

- Digital In (ack in)

IF Signal:

(Same as left.)

Main Monitor*Sub Monitor

Conning

Monitor

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

(Max. 2)

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

ECDIS

Control Unit

RCU-024

Trackball

Control Unit

RCU-026

(Max. 2)

Gateway network

equipment

(radar, ECDIS, etc.)

Intelligent Hub

HUB-3000

Main Monitor* Sub Monitor

Conning

Monitor

100-115/

220-230 VAC,

1ø, 50/60 Hz

Monitor Unit

MU-190/MU-231/MU-270W

HD26T21-MMD-MA4-FAGA

Monitor Unit

MU-190/

MU-231/

MU-270W

Monitor Unit

MU-190/

MU-231/

MU-270W

Monitor Unit

MU-190/MU-231/MU-270W

HD26T21-MMD-MA4-FAGA

Monitor Unit

MU-190/

MU-231/

MU-270W

Monitor Unit

MU-190/

MU-231/

MU-270W

100-230 VAC

Radar 1

Radar Connection Box

RCB-002

Radar 2

100-115/200-230 VAC

1ø, 50/60 Hz

24 VDC

AC-DC Power

Supply Unit

PR-240

*: MU-190: Standard supply for FMD-3200

MU-231: Standard supply for FMD-3300

MU-270W: Standard supply for FMD-3300

HD26T21-MMD-MA4-FAGA: Standard supply for FMD-3300

EQUIPMENT LISTS

Standard Supply

Console Type

Optional Supply

Name Type Code No. Qty Remarks

Monitor Unit MU-190 -

For FMD-3200, 19-inch

MU-231 - For FMD-3300, 23.1-inch

MU-270W For FMD-3300, 27-inch

HD26T21-MMD-

MA4-FAGA -For FMD-3300, supplied for the

HK specification.

Processor Unit EC-3000 - 1

ECDIS Control Unit RCU-024 - 1

Trackball Control Unit RCU-026 - 1

Installation Materials CP24-02100 000-020-557 1 CP24-02101 and cables

CP24-02201 001-170-810 1 For RCU-024

CP24-02301 001-170-910 1 For RCU-026

Accessories FP24-00602 001-258-610 1 For EC-3000

FP24-00701 001-170-820 1 For RCU-024

FP24-00801 001-170-920 1 For RCU-026

Spare Parts SP24-00601 001-170-660 1 For 100VAC

SP24-00602 001-170-670 1 For 220VAC

Name Type Code No. Qty Remarks

Standard

Console

ECN-303 -

Built-in type, monitor unit: MU-231

ECN-304 - Built-in type, monitor unit: MU-190

ECN-319 - Stand-alone type, monitor unit: MU-190

ECN-323 - Stand-alone type, monitor unit: MU-231

ECN-327 - Stand-alone type, monitor unit: MU-270W

Name Type Code No. Remarks

Sensor Adapter MC-3000S - Serial IN/OUT type

MC-3010A - Analog IN

MC-3020D - Digital IN

MC-3030D - Digital OUT

Radar Connection

Box RCB-002 - For connection of external radar

Intelligent HUB HUB-3000 -

Switching HUB HUB-100 -

AC/DC Power

Supply Unit PR-240 -

Monitor Unit MU-190 - 19-inch display

MU-231 - 23.1-inch display

MU-270W - 27-inch display

ECDIS Control Unit RCU-024 -

EQUIPMENT LISTS

Trackball Control

Unit RCU-026 -

Bracket Assembly OP26-5 000-016-270 For MU-190, w/knobs

OP26-15 001-116-730 For MU-231

OP26-30 001-439-060 For MU-270W

IPX2 Kit OP24-23 001-171-780 For EC-3000

Flush Mount OP24-24 001-171-790 For RCU-024

OP24-27 001-171-820 For RCU-026

Connection Stand

(19) OP24-25 001-171-800 For RCU-024, FMD-3200

Connection Stand

(23) OP24-26 001-171-810 For RCU-024, FMD-3300

Case Gasket OP24-28 001-169-970 For MC-3000S

OP24-29 001-169-960 For MC-3010A/3020D/3030D

Hood Assembly OP26-6 001-080-930 For MU-190

OP26-16 001-116-740-01 For MU-231

Flush Mount Kit OP26-12 001-116-280 For MU-190

OP26-13 001-116-290 For two MU-190s

OP26-18 000-017-273 For two MU-231s

OP26-14 001-116-300 For three MU-190s

OP26-19 000-017-274 For three MU-231s

OP26-17 001-116-750 For MU-231

Flush Mount

Assembly (Rear) OP26-31 001-439-070 For MU-270W

Mounting Bracket OP26-21 001-139-310 For MU-190

Monitor Replace-

ment Kit

OP26-22 001-139-320 For MU-190, flush mounting

OP26-23 001-139-360 For MU-190, desktop mounting

OP26-26 001-139-390 For MU-190, hood

OP26-27 001-139-570 For MU-231, desktop mounting

Control Unit

Replacement Kit OP24-31 001-181-700 For RCU-024

Hood Assembly OP26-24 001-139-370 For MU-190

OP26-25 001-139-380-01 For MU-231

Hood Assembly

(Front) OP26-32 001-439-090 For MU-270W

Hood Assembly

(Rear) OP26-33 001-439-110 For MU-270W

Connection Stand

(27) OP26-34 001-462-860 For MU-270W

Terminal Opener OP24-33 001-188-850

EC-3000 Attach-

ment Kit OP24-36 001-258-180 For EC-3000

Program Install

Software OP24-37 001-258-590

Replacement Kit OP24-50 000-027-446

Unit Mounting Base OP24-51 001-461-600 For ECN-319/323/327

FAN-LED Kit OP24-052 001-462-730 For ECN-319/323/327

Name Type Code No. Remarks

EQUIPMENT LISTS

Dust Cover 26-007-1201 001-116-260-10 For MU-190

26-007-2141 001-121-240-10 For MU-231

26-009-1093 001-439-120 For MU-270W

03-163-7271 001-121-230-10 For console type

Installation Materials CP03-28900 000-082-658 LAN cable for sensor adapter, 10 m

CP03-28910 000-082-659 LAN cable for sensor adapter, 20 m

CP03-28920 000-082-660 LAN cable for sensor adapter, 30 m

CP24-02900 001-208-050 LAN cable for HUB-3000, 10 m

CP24-02910 001-208-060 LAN cable for HUB-3000, 20 m

CP24-02920 001-208-070 LAN cable for HUB-3000, 30 m

Connector CP03-28901 008-542-460

Spare Parts SP03-15001 001-042-330 For HUB-100

SP24-00801 001-235-320 For HUB-3000

Hand Grip Assembly FP03-09840 008-535-570 For MU-190/231/270W

Cable Assy. DSUB9P-X2-L5M 001-188-260 For monitor unit, 5 m

DSUB9P-X2-L5M-

WP 000-177-053-10 For monitor unit, 5 m, waterproof

type

DSUB9P-X2-L10M 001-188-270 For monitor unit, 10 m

DSUB9P-X2-L10M-

WP 000-177-247-10 For monitor unit, 10 m, waterproof

type

DSUB9P-X2-A-L5M 000-178-119-10 Brightness control cable for monitor

unit, 5 m

DSUB9P-X2-A-

L10M 000-178-120-10 Brightness control cable for monitor

unit, 10 m

MC1.5-W-L600 001-187-470-10 Between sensor adapters, 0.6 m

MC1.5-W-L1000 001-187-480-10 Between sensor adapters, 1 m

MC1.5-W-L2000 001-187-490-10 Between sensor adapters, 2 m

MC1.5-W-L3000 001-187-500-10 Between sensor adapters, 3 m

6TPSH-XH12X2-

L5.0SP2 001-186-310-10 For RCU-026, 5 m

6TPSH-XH12X2-

L10SP2 001-186-320-10 For RCU-026, 10 m

6TPSH-XH12X2-

L20SP2 001-186-330-10 For RCU-026, 20 m

6TPSH-XH12X2-

L30SP2 001-186-340-10 For RCU-026, 30 m

6TPSH-XH12X2-

L5.0SP1 001-186-260-10 For RCU-024, 5 m

6TPSH-XH12X2-

L10SP1 001-186-270-10 For RCU-024, 10 m

6TPSH-XH12X2-

L20SP1 001-186-280-10 For RCU-024, 20 m

6TPSH-XH12X2-

L30SP1 001-186-290-10 For RCU-024, 30 m

DVI-D/D S-LINK 5M 001-132-960-10 For monitor unit, 5 m

DVI-D/D S-LINK

10M 001-133-980-10 For MU-190, 10 m

DVI-BNCX5-L2000 000-177-046-10 For VDR connection

OP24-32 001-188-300 USB cable (between processor and

control units), 5 m

Name Type Code No. Remarks

EQUIPMENT LISTS

vii

Cable Assy. MJ-A10SPF0020A-

050+ 001-283-370 Cable between RCB-002 and ex-

ternal radar, 5 m

MJ-A10SPF0020A-

100+ 001-283-380 Cable between RCB-002 and ex-

ternal radar, 10 m

MJ-A10SPF0020A-

200+ 001-283-390 Cable between RCB-002 and ex-

ternal radar, 20 m

MJ-A10SPF0020A-

300+ 001-283-400 Cable between RCB-002 and ex-

ternal radar, 30 m

AI.14-8AI.34-6L430 001-460-190 For ECN-319/323/327, cable be-

tween MC-3010A/3020D/3030D

IOK-V0024-2 001-460-210

For ECN-319/323/327, cable be-

tween HUB-3000 and processor

unit

Operator’s Manual OME-44730-* 000-176-125-** English

OMJ-44730-* 000-176-124-** Japanese

LOP Instruction

Manual E42-01411-* 000-190-356-** English

Radar Instruction

Manual E42-01502-* 000-190-843-** English

Crimping Tool CRIMPFOX10S 001-206-920 For ferrule

Name Type Code No. Remarks

EQUIPMENT LISTS

viii

This page is intentionally left blank.

Otros manuales para FMD-3200

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipos marinos de Furuno

Furuno

Furuno FA-30 Manual de usuario

Furuno

Furuno FCV-662 Manual de usuario

Furuno

Furuno AUTOPILOT FAP-300 Manual de usuario

Furuno

Furuno Black Box Video Sounder FCV-1200BB Manual de usuario

Furuno

Furuno NavPilot 711 Manual de usuario

Furuno

Furuno FELCOM19 Inmarsat Mini-C MES Manual de usuario

Furuno

Furuno GP-1650WF Guía de mantenimiento y servicio

Furuno

Furuno FE-400 Operators Manual de usuario

Furuno

Furuno PG500R Manual de usuario

Furuno

Furuno GP-3700F Manual de usuario

Furuno

Furuno FI-70 Manual de usuario

Furuno

Furuno FI-303 Manual de usuario

Furuno

Furuno FA-30 Instrucciones de montaje

Furuno

Furuno Navtex NX-700-B Manual de usuario

Furuno

Furuno VR-7000 Manual

Furuno

Furuno FMV-603 Manual de usuario

Furuno

Furuno NX-700A/B Operators Manual de usuario

Furuno

Furuno TZT9 Manual de usuario

Furuno

Furuno FE-700 Manual

Furuno

Furuno DS-50 Manual de usuario

Furuno

Furuno FMD-3200-BB Manual de usuario

Furuno

Furuno Felcom 50 Manual de usuario

Furuno

Furuno FE-700 Manual de usuario

Furuno

Furuno NX-300 Manual de usuario

Manuales populares de Equipos marinos de otras marcas

Clarion

Clarion CMS2 Manual de reparación

EBS

EBS M7000 Manual de usuario

Kongsberg

Kongsberg M3 Bathy Manual de usuario

NPK

NPK SCS-1002 Manual de usuario

Harken

Harken 1561 Manual de usuario

Simrad

Simrad DD15 Manual de usuario

Notifier

Notifier FS-BSO Manual de usuario

Raymarine

Raymarine ST40 Manual de usuario

E2S

E2S E2XS112UL Manual de usuario

R2Sonic

R2Sonic 2026 Manual de usuario

COBHAM

COBHAM SAILOR 6000 Manual de usuario

Clarion

Clarion GR10BT Manual de reparación

Raymarine

Raymarine Maxiview ST80 Guía del usuario

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instrucciones de montaje

Raymarine

Raymarine ST60 Tridata Guía del usuario

olympia electronics

olympia electronics ΒS-531/1/MAR Manual de usuario

Sonic

Sonic 2024 Manual de usuario

Quicksilver

Quicksilver 88688A25 Manual
