Installation Manual

GPS/WAAS COLOR CHART PLOTTER with FISH FINDER

Model GP-3700F

(Product Name: GPS PLOTTER/SOUNDER)

SAFETY INSTRUCTIONS ................................................................................................ i

SYSTEM CONFIGURATION ........................................................................................... ii

EQUIPMENT LISTS........................................................................................................ iii

1. MOUNTING..............................................................................................................1-1

1.1 Display Unit........................................................................................................................1-1

1.2 Antenna Unit ......................................................................................................................1-5

1.3 Installation of Transducers (Option)...................................................................................1-6

1.4 Installation of Sensors (Option)........................................................................................1-16

1.5 Trackball Control Unit (Option) ........................................................................................1-17

1.6 External Monitor (Locally Supplied) .................................................................................1-19

2. WIRING....................................................................................................................2-1

2.1 How to Connect the Unit....................................................................................................2-1

2.2 DIP Switch Settings .........................................................................................................2-11

2.3 Input/Output Data.............................................................................................................2-11

3. SETTING UP THE EQUIPMENT .............................................................................3-1

3.1 Language Setting...............................................................................................................3-2

3.2 Echo Sounder Setting........................................................................................................3-3

3.3 Sensor and NMEA Equipment Setting...............................................................................3-4

3.4 Own Ship Information Setting ............................................................................................3-6

3.5 Event Switch Setting ..........................................................................................................3-8

3.6 Input/Output Port Setting ...................................................................................................3-9

3.7 DGPS Setting...................................................................................................................3-14

3.8 How to Control Charts......................................................................................................3-16

APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1

APPENDIX 2 INSTALLATION FOR TRANSDUCER (THRU-HULL MOUNT).........AP-2

APPENDIX 3 INSTALLATION OF TEMPERATURE SENSORS .............................AP-6

PACKING LISTS ......................................................................................................... A-1

OUTLINE DRAWINGS ................................................................................................ D-1

INTERCONNECTION DIAGRAM ................................................................................ S-1

7KHSDSHUXVHGLQWKLVPDQXDO

LVHOHPHQWDOFKORULQHIUHH

࣭)85812$XWKRUL]HG'LVWULEXWRU'HDOHU

$VKLKDUDFKR

1LVKLQRPL\D-$3$1

$  $35 



3ULQWHGLQ-DSDQ

$OOULJKWVUHVHUYHG

%  129  

3XE1R ,0(%

<27$  *3

 

SAFETY INSTRUCTIONS

The installer must read the appropriate safety instructions before attempting to install the equip-

ment.

Indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate injury.

WARNING

CAUTION

Warning, Caution Prohibitive Action Mandatory Action

(Examples of symbols)

WARNING

Turn off the power at the

switchboard before beginning the

installation.

Fire or electrical shock can result if the

power is left on.

Be sure no water leaks in at the

transducer mounting location.

Water leakage can sink the vessel.

Also, confirm that vibrations will not

lossen the transducer. The installer of

the equipment is solely responsible for

the proper installation of the equip-

ment. FURUNO will assume no

responsibility for any damage associ-

ated with improper installation.

CAUTION

Ground the equipment to prevent

electrical shock and mutual interfer-

ence.

Use the proper fuse.

Use of an incorrect fuse may damage the

equipment.

Use only the specified power and

signal cable.

Fire or damage to the equipment can

result if a different cable is used.

CAUTION

Observe the following compass

safe distances to prevent interfer-

ence to a magnetic compass:

Standard

compass

Steering

compass

1.05 m 0.70 m

Trackball Control Unit

RCU-030

0.50 m 0.30 m

Display Unit

GP-3700F

Do not open the equipment unless

totally familiar with electrical

circuits and service manual.

Only qualified personnel can work

inside the equipment.

ELECTRICAL

SHOCK

HAZARD

The transducer cable must handled

carefully, following the guidelines

below.

- Keep fuels and oils away from the

cable.

- Locate the cable where it will not be

damaged.

- Do not paint the cable.

The cable sheath is made of chloro-

phrane or polychloride vinyl, which are

easily damaged by plastic solvents such

as toluene. Locate the cables away from

plastic solvents.

Do not turn the equipment on with the

transducer out of water.

The transducer can be damaged.

SYSTEM CONFIGURATION

Environmental category

Units Category

Antenna Unit Exposed to the weather

Transducer Submerged or in continuous

contact with sea water

: Standard supply

: Optional or local supply

: Use when the display unit has

no beacon receiver.

: Use when the internal beacon

receiver is installed in the

display unit.

Other Units Protected from the weather

Speed/Temperature Sensor

ST-02MSB, ST-02PSB

Temperature Sensor

T-04MSB

520-5PSD, 520-5MSD, 520-PLD,

525-5PWD, 525T-PWD, 50B-6,

50B-6B, 200B-5S, 50/200-1T,

525T-BSD, 525T-LTD/12,

525T-LTD/20, 525STID-MSD,

525STID-PWD, SS60-SLTD/12,

SS60-SLTD/20, 526TID-HDD

: Required for 1 kW transducer

(50B-6, 50B-6B, 200B-5S

and 50/200-1T).

Display Unit

GP-3700F

Antenna Unit

GPA-020S

Antenna Unit

GPA-021S

Event Switch 1

Event Switch 2

External Monitor

USB Flash

Memory

NMEA0183 Equipment

(Radar)

NMEA0183 Equipment

(Autopilot FAP-330)

Ethernet HUB

HUB-101

Radar

AIS Receiver

24 VDC

Trackball Control Unit RCU-030

Matching Box

MB-1100

Transducer

NMEA2000 (CAN bus) Backbone

NMEA2000 Equipment

(Autopilot

NAVpilot-700 series

)

NMEA2000 Equipment

(Satellite Compass

SC-30)

Rectifier

RU-3423

12-24 VDC

100/110/220/230 VAC

, 50/60Hz

: Optional transducer

: When connected to a NAVpilot-700 series which is

set to NAV mode, only one of either GP-3700 or

GP-3700F can be connected.

: Turn the GP-3700F power off before connecting

to the NMEA2000 network.

iii

EQUIPMENT LISTS

Standard Supply

*: Not supplied depending on configuration purchased.

Optional Supply

Name Type Code No. Qty Remarks

Display Unit GP-3700F - 1 With hard cover

Antenna Unit

GPA-020S -

For GPS. Use when the display unit

has no beacon receiver.

GPA-021S -

For DGPS. Use when the internal bea-

con receiver is installed to the display

unit.

Installation Materials

CP14-08200 000-029-328

With antenna cable assy and mast

mount kit

CP14-08210 000-029-329 With antenna cable assy

Without mast mount kit

CP14-08220 000-029-330 Without antenna cable assy and mast

mount kit

Accessories FP14-03400 000-029-327 1

Spare Parts SP14-03601 001-246-900 1

Name Type Code No. Remarks

Trackball Control Unit RCU-030 -

Beacon Receiver Set OP14-80 000-029-392

Monitor Option OP14-82 000-029-467

Flush Mount OP14-83 000-029-394 For display unit

FM Fixture Assembly OP24-38 001-263-190 For trackball control unit

Antenna Unit GPA-020S - For GPS

GPA-021S - For DGPS

Antenna Cable

Assembly

CP20-01700 004-372-110 30 m antenna extension cable,

w/CP20-01701

CP20-01720 001-207-980 40 m antenna extension cable,

w/CP20-01701

CP20-01710 004-372-120 50 m antenna extension cable,

w/CP20-01701

CP20-02700 004-381-160 30 m antenna extension cable,

w/CP20-02701

CP20-02720 001-207-990 40 m antenna extension cable,

w/CP20-02701

CP20-02710 004-381-170 50 m antenna extension cable,

w/CP20-02701

Joint Box TL-CAT-012 000-167-140-10 For LAN cable extension

Transducer

520-5PSD*-Thru-hull mount,

plastic

600 W

520-PLD*-Thru-hull mount,

plastic

520-5MSD*-Thru-hull mount,

metal

EQUIPMENT LISTS

Transducer

525-5PWD*-Transom mount,

plastic 600 W

50/200-1T*-10m

1 kW

50B-6 - 10 m

50B-6B - 15 m

200B-5S - 10 m

Triducer

525T-PWD*-Transom mount,

plastic

600 W

525T-BSD*-Thru-hull mount,

metal

525STID-MSD*-Thru-hull mount,

metal

525STID-PWD*-Transom mount,

plastic

525T-LTD/12*-12° tilt, thru-hull

mount, metal

525T-LTD/20*-20° tilt, thru-hull

mount, metal

SS60-SLTD/12*-

12° tilt, thru-hull

mount, stainless

steel

SS60-SLTD/20*-

20° tilt, thru-hull

mount, stainless

steel

526TID-HDD*-

Thru-hull mount,

metal, not required

MB-1100

1 kW

Matching Box MB-1100 - For 1 kW transducer

Rectifier RU-3423 -

Temperature Sensor T-04MSB - Thru-hull mount

Speed/Temperature

Sensor

ST-02MSB - Thru-hull mount, metal

ST-02PSB - Thru-hull mount, plastic

Inner Hull Mounting Kit 22S0191 - Not compatible with bottom

discrimination display

Right Angle Mounting

Base NO.13-QA330 001-111-910-10

For antenna unit

L-Angle Mounting

Base NO.13-QA310 001-111-900-10

Handrail Mounting

Base NO.13-RC5160 001-111-920-10

Mast Mounting Kit CP20-01111 004-365-780

Installation Materials CP03-28920 000-082-660 30 m LAN cable, w/armor

CP03-28930 000-084-368 50 m LAN cable, w/armor

LAN Cable Assembly

MOD-WPAS0001-030+ 000-164-609-10 LAN cable with waterproofing

modular plug, 3 m

MOD-Z072-020+ 001-167-880-10 2 m

MOD-Z072-050+ 001-167-890-10 5 m

MOD-Z072-100+ 001-167-900-10 10 m

Cable Assembly 02S4147-2 001-258-330 For temperature and speed/tem-

perature sensor

TNC-PS/PS-3D-L15M-R 001-173-110-10 15 m antenna cable

Name Type Code No. Remarks

EQUIPMENT LISTS

Cable Assembly

M12-05BM+05BF-010 001-105-750-10 w/micro type con-

nectors, 1 m

For

NMEA

2000

connec-

tion

M12-05BM+05BF-020 001-105-760-10 w/micro type con-

nectors, 2 m

M12-05BM+05BF-060 001-105-770-10 w/micro type con-

nectors, 6 m

M12-05BFFM-010 001-105-780-10 w/micro type con-

nector, 1 m

M12-05BFFM-020 001-105-790-10 w/micro type con-

nector, 2 m

M12-05BFFM-060 001-105-800-10 w/micro type con-

nector, 6 m

CB-05PM+05BF-010 000-167-968-11 w/mini type connec-

tors, 1 m

CB-05PM+05BF-020 000-167-969-11 w/mini type connec-

tors, 2 m

CB-05PM+05BF-060 000-167-970-11 w/mini type connec-

tors, 6 m

CB-05BFFM-010 000-167-971-11 w/mini type connec-

tor, 1 m

CB-05BFFM-020 000-167-972-11 w/mini type connec-

tor, 2 m

CB-05BFFM-060 000-167-973-11 w/mini type connec-

tor, 6 m

3COX-2P-6C 5M 001-077-230-10 For external monitor, 5 m

3COX-2P-6C 10M 001-077-220-10 For external monitor, 10 m

MJ-A6SPF0012-050C 000-154-053-10 w/MJ connectors,

5 m

For

NMEA

0183

connec-

tion

MJ-A6SPF0012-100C 000-154-037-10 w/MJ connectors,

10 m

MJ-A6SPF0012-150C 000-161-513-10 w/MJ connectors,

15 m

MJ-A6SPF0003-020C 000-154-029-10 w/MJ connector,

2 m

MJ-A6SPF0003-050C 000-154-054-10 w/MJ connector,

5 m

MJ-A6SPF0003-100C 000-168-924-10 w/MJ connector,

10 m

MJ-A6SPF0003-150C 000-159-643-10 w/MJ connector,

15 m

Extension Cable** C332 10M 001-464-120 10 m transducer extension cable

*: Compatible with ACCU-FISH™and bottom discrimination display

**: Use of the extension cable may cause the following problems:

• Reduced detection ability

• Wrong ACCU-FISH™information (fish length smaller than actual length, fewer fish detections, er-

ror in individual fish detection)/

• Wrong speed data

• No TD-ID recognition

Name Type Code No. Remarks

EQUIPMENT LISTS

This page is intentionally left blank.

1-1

1. MOUNTING

1.1 Display Unit

The display unit can be installed on a desktop, overhead or flush mounted in a console

(option kit is required).

Mounting consideration

Select a mounting location, keeping in mind the following points:

• Select a location where the unit can easily be operated.

• Keep the unit out of direct sunlight.

The LCD can blackout if the unit is exposed to direct sunlight for a long time.

• Locate the unit way from places subject to water splash and rain.

• The temperature at the mounting location shall be between -15°C and +55°C.

• Locate the unit away from exhaust pipes and vents.

• The mounting location should be well ventilated.

• Select a location where shock and vibration are minimal.

• Referring to the outline drawings at the back of this manual, allow sufficient space

for maintenance and service.

• Select a mounting location considering the length of the cables to be connected to

the unit.

• Do not place items which should not get wet near the display unit.

There is the drain hole on the bottom of this unit. If water enters the unit from the

clearance around the trackball, water is drained from the drain hole.

• A magnetic compass will be affected if the unit is placed too close to the magnetic

compass. Observe the compass safe distances at the front of this manual to prevent

interference to a magnetic compass.

NOTICE

Do not apply paint, anti-corrosive sealant or contact spray to

coating or plastic parts of the equipment.

Those items contain organic solvents that can damage coating and

plastic parts, especially plastic connectors.

1. MOUNTING

1-2

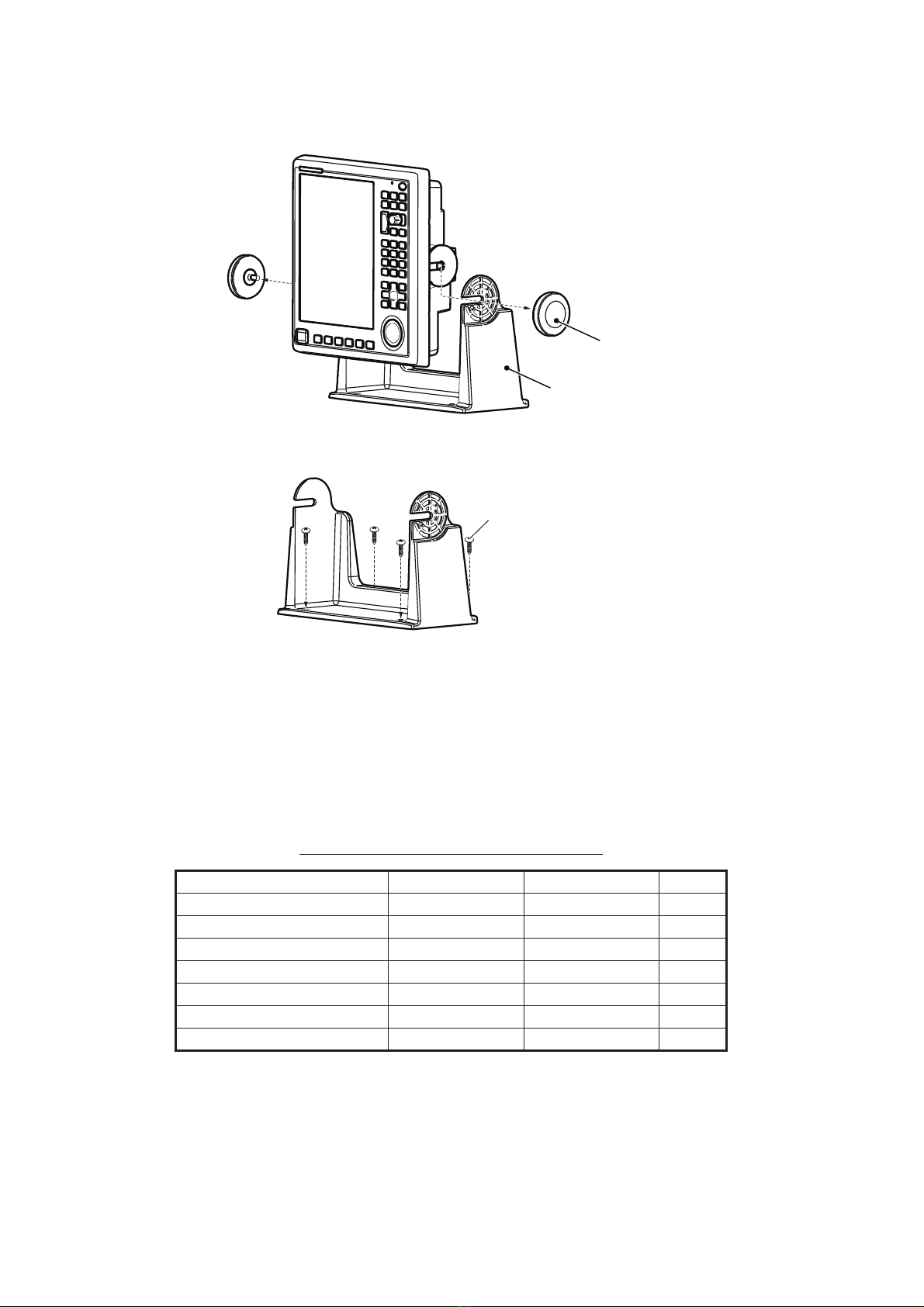

1.1.1 Desktop or overhead mounting

1. Unfasten the knob bolts and remove the display unit from the bracket.

2. Secure the bracket to the mounting location with four self-tapping screws (φ5×20,

supplied).

3. Connect all necessary cables, referring section 2.1.

Note: Place the display unit face-down on a soft, clean surface to prevent damage

to the LCD.

4. Set the display unit in the bracket, then fasten the knob bolts.

1.1.2 Flush mounting in a console (option)

Use the optional flush mount kit OP14-83, for flush mounting the display unit.

Type: OP14-83, Code No.: 000-029-394

Note: Ensure the mounting location is flat, with no indents or protrusions, to allow a

secure fit.

1. Prepare a mounting hole in the installation location, using the supplied mounting

template.

2. Unfasten the two knob bolts to remove the display unit from the bracket.

Name Type Code No. Qty

F Mount Sponge TOP 14-083-1091-0 100-401-120-10 1

F Mount Sponge SIDE 14-083-1092-0 100-401-130-10 2

F Mount Sponge BOT 14-083-1093-1 100-401-141-10 1

Flush Mount Fixture OP03-228-1 001-258-040 1

Hexagonal Head Slot Bolt M8×15 000-162-916-10 2

Flat Washer M8 000-167-464-10 2

Front Fixing Plate 14-083-1094-0 100-401-150-10 1

Knob bolt

Bracket

Self-tapping screw

(Ø5×20, 4 pcs)

Otros manuales para GP-3700F

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipos marinos de Furuno

Furuno

Furuno FCV-780/782 Manual de usuario

Furuno

Furuno BBDS1 Manual de usuario

Furuno

Furuno Felcom 50 Manual de usuario

Furuno

Furuno GP-1650DF Manual de usuario

Furuno

Furuno FMD-3200 Manual de usuario

Furuno

Furuno DSC-6 Manual

Furuno

Furuno 1824C-BB Manual de usuario

Furuno

Furuno FE-400 Operators Manual de usuario

Furuno

Furuno FMD-3200 Manual de usuario

Furuno

Furuno NAVpilot-611 Manual de usuario

Furuno

Furuno Navigational Echo Sounder FE851S Manual de usuario

Furuno

Furuno CN-24 Manual de usuario

Furuno

Furuno NAVpilot 711C Manual de usuario

Furuno

Furuno FCV30BB Manual de usuario

Furuno

Furuno FCV-1500 Manual de usuario

Furuno

Furuno FCV-561 Manual de usuario

Furuno

Furuno FCV-1000 Manual de usuario

Furuno

Furuno MFDBB Manual de usuario

Furuno

Furuno FELCOM251 Manual de usuario

Furuno

Furuno Color Video Sounder FCV-522 Manual de usuario

Furuno

Furuno FCV-271 Manual de usuario

Furuno

Furuno Network Sounder DFF3 Manual de usuario

Furuno

Furuno DS-8500 Manual de usuario

Furuno

Furuno felcom15 Manual de usuario

Manuales populares de Equipos marinos de otras marcas

Clarion

Clarion CMS2 Manual de reparación

EBS

EBS M7000 Manual de usuario

Kongsberg

Kongsberg M3 Bathy Manual de usuario

NPK

NPK SCS-1002 Manual de usuario

Harken

Harken 1561 Manual de usuario

Simrad

Simrad DD15 Manual de usuario

Notifier

Notifier FS-BSO Manual de usuario

Raymarine

Raymarine ST40 Manual de usuario

E2S

E2S E2XS112UL Manual de usuario

R2Sonic

R2Sonic 2026 Manual de usuario

COBHAM

COBHAM SAILOR 6000 Manual de usuario

Clarion

Clarion GR10BT Manual de reparación

Raymarine

Raymarine Maxiview ST80 Guía del usuario

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Instrucciones de montaje

Raymarine

Raymarine ST60 Tridata Guía del usuario

olympia electronics

olympia electronics ΒS-531/1/MAR Manual de usuario

Sonic

Sonic 2024 Manual de usuario

Quicksilver

Quicksilver 88688A25 Manual
