Introduction

This Technical Manual describes the system boards of the PRIMERGY 870 server systems, which

can be equipped with up to four Intel Xeon processors.

You may find further information in the description "BIOS Setup".

Further information to drivers is provided in the readme files on hard disk or on the supplied drivers

diskettes or on the "Drivers & Utility" or "ServerStart" CD.

Notational conventions

The meanings of the symbols and fonts used in this manual are as follows:

!Pay particular attention to texts marked with this symbol. Failure to observe this warning

endangers your life, destroys the system, or may lead to loss of data.

iThis symbol is followed by supplementary information, remarks and tips.

Texts which follow this symbol describe activities that must be performed in the order shown.

Texts in italics indicate commands or menu item.

"Quotation marks" indicate names of chapters and terms that are being emphasized.

Overview

The PRIMERGY 870 server systems mainly consist of the following plug-in boards:

• I/O board

• Processor board

• Memory board (2x)

• Interface board

• SCSI board (3x)

• Power supply board

• ECU board

• Drive board (2x)

Introduction Abbreviations

2 - English U41029-J-Z146-1-7400

Abbreviations

ASIC Application Specific Integrated Circuit

ASR&R Automatic Server Recovery & Restart

BIOS Basic Input Output System

CAN Controller Area Network (CAN-Bus)

CPU Central Processing Unit

DAC Disk Array Controller

DIMM Dual Inline Memory Module

DIP Dual Inline Package

DMA Direct Memory Access

ECU Environment Control Unit

EDO-DRAM Enhanced Data Output Dynamic Random Access Memory

FPM Fast Page Mode

I2O Intelligent Input Output

IDE Integrated Drive Electronics

ISA Industry Standard Architecture

ISP In-System Programmable

LAN Local Area Network

LCD Liquid Crystal Display

LED Light-Emitting Diode

LVD Low Voltage Differential

MINT Multiprocessor Interrupt (Controller)

OLR On-Line Replaceable

PIIX4 PCI/ISA Bridge and IDE Accelerator

PCI Peripheral Component Interconnect

PIO Programmed Input Output

PXB PCI Expander Bridge

RTC Real Time Clock

RTDS Remote Test and Diagnostic System (RemoteView)

SAF-TE SCSI Accessed Fault-Tolerant Enclosure

SCA Single Connected Attachment

SCSI Small Computer System Interface

SE Single Ended

STM SAF-TE Terminator Module

USB Universal Serial Bus

VGA Video Graphics Array

Abbreviations Important notes

U41029-J-Z146-1-7400 English - 3

Important notes

Store this manual close to the device. If you pass on the device to third parties, you should also

pass on this manual.

!Be sure to read this page carefully and note the information before you open the Server.

Please note the information provided in the chapter "Safety" in the Operating Manual of

the server.

Incorrect replacement of the lithium battery may lead to a risk of explosion. It is therefore

essential to observe the instructions in the chapter "I/O board" - "Replacing the lithium

battery".

The lithium battery must be replaced with an identical battery or a battery type

recommended by the manufacturer (CR2032).

Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with

local regulations concerning special waste.

Connecting cables for peripherals must be adequately insulated to avoid interference.

!Components can become very hot during operation. Make sure you do not touch

components when making extensions to the boards. There is a danger of burns!

iThe warranty expires if the device is damaged during the installation or replacement of

system expansions. Information on which system expansions you can use is available

from your sales office or the customer service.

Boards with electrostatic sensitive devices (ESD) may be identified by labels.

When you handle boards fitted with ESDs, you must observe the following points under all

circumstances:

• You must always discharge yourself (e.g. by touching a grounded object) before working.

• The equipment and tools you use must be free of static charges.

• Pull out the power plug before inserting or pulling out boards containing ESDs.

• Always hold boards with ESDs by their edges.

• Never touch pins or conductors on boards fitted with ESDs.

I/O board Abbreviations

4 - English U41029-J-Z146-1-7400

I/O board

Features

• Intel Chipset 82450NX

• 512 Kbytes Flash BIOS

• Intel i960 processor for PCI-to-PCI-Bridge, I2O and Server Management

• Intel 82527 CAN controller

• Intel 82558 Fast Ethernet LAN controller

• two Symbios 53C875 Ultra Wide SCSI controller

• Cirrus CL-GD5446 graphics controller with 2 Mbyte video memory

• IDE hard disk controller connected to PCI bus for up to two IDE drives

ultra DMA33 mode capable, supports PIO modes 0-4

• Real-time clock/calendar with integrated battery backup

• Floppy disk controller (up to 2.88 Mbytes format)

• four 64 bit hot-plug PCI slots

• four 32 bit hot-plug PCI slots

• two 32 bit PCI slots (one slot shared)

• four ISA slots (three slots shared)

• two 32-bit PCI slots over i960 processor (both shared)

• PS/2 mouse port

• PS/2 keyboard port

• four external serial ports

• USB (Universal Serial Bus)

• CAN bus

• LAN port

• Cover detection

• Remote On possible via modem, via internal fax modem and via the four external serial ports

• Wake On LAN

Interfaces and connectors I/O board

U41029-J-Z146-1-7400 English - 5

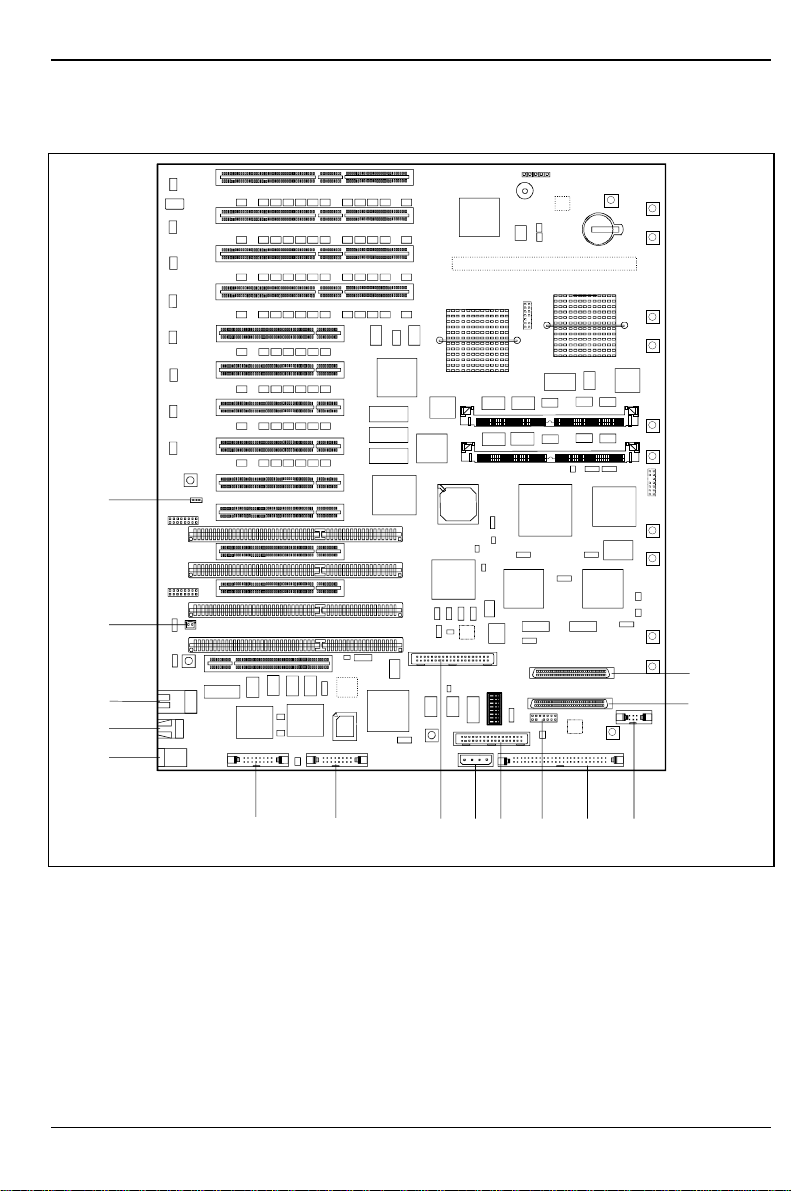

Interfaces and connectors

1 = SCSI 1 16 bit

2 = SCSI 2 16 bit

3 = Cover detection

4 = ECU

5 = ISP

6 = Floppy disk drive

7 = IDE power supply

8 = IDE drives

9 = Hot-plug PCI panel for 64 bit slots

10 = Hot-plug PCI panel for 32 bit slots

11 = Keyboard and mouse

12 = USB

13 = LAN

14 = Remote On (Fax modem / Internal Modem

On)

15 = Wake up on LAN

I/O board Possible screen resolution

6 - English U41029-J-Z146-1-7400

Possible screen resolution

Depending on the operating system used the screen resolutions in the following table refer to the

screen controller on the I/O board. If you are using an external screen controller, you will find details

of supported screen resolutions in the Operating Manual or Technical Manual supplied with the

controller.

Screen resolution Refresh rate (Hz) Horizontal-

rate (kHz) ** Max. number of colors

640x350 70 31,5 16

640x350 84 38 16

640x480 60 31,5 16777216

640x480 75 37,5 16777216

640x480 85 43,4 16777216

640x480 100 50,6 16777216

720x400 70 31,5 16

720x400 84 38 16

800x600 60 38 65536

800x600 60 38 16777216

800x600 72 48 65536

800x600 72 48 16777216

800x600 75 47 65536

800x600 75 47 16777216

800x600 85 53,7 65536

800x600 85 53,7 16777216

800x600 100 63 65536

800x600 100 63 16777216

1024x768 87 interlaced 36 256

1024x768 87 interlaced 36 65536

1024x768 60 48,4 256

1024x768 60 48,4 65536

1024x768 75 60 256

1024x768 75 60 65536

1024x768 85 68,7 256 *

1024x768 100 81 256 *

1280x1024 87 interlaced 49 16

1280x1024 87 interlaced 49 256

1280x1024 60 63,7 256 *

1280x1024 75 80,4 256 *

* no 16 color mode

** The horizontal rate values may have a tolerance range of ± 0.3 kHz.

Settings with the switch block I/O board

U41029-J-Z146-1-7400 English - 7

Settings with the switch block

OFF

12345678

Switch 1 to 5 = not used

Switch 6 = Write protection for floppy disks Switch 7 = Skipping password query

Switch 8 = Recovering system BIOS

I/O board Settings with the switch block

8 - English U41029-J-Z146-1-7400

Write protection for floppy disks - switch 6

Switch 6 is used to define whether floppy disks can be written or deleted in the floppy disk drive. To

write and delete floppy disks, the write -protection in BIOS setup must be disabled (in menu Security,

the field Diskette Write must be set to Enabled).

on The floppy disk drive is write-protected.

off Read, write and delete floppy disks is possible (default setting).

Skipping the password query - switch 7

Switch 7 is used to define whether the password is queried at system startup, if the password

protection is enabled in BIOS Setup (in Security menu , the Password field must be set to Enabled).

on The password query is effective.

off The password query is skipped (default setting).

Recovering System BIOS - switch 8

Switch 8 enables recovery of the old system BIOS after an attempt to update has failed. To restore

the old system BIOS you need a Flash BIOS Diskette (please call our customer service).

on The system boots from the "Flash BIOS floppy disk" from Drive A and reprograms

the system BIOS on the I/O board.

off The system is started with the system BIOS on the I/O board. The system BIOS

cannot be reprogrammed. (Default setting)

Add-on modules I/O board

U41029-J-Z146-1-7400 English - 9

Add-on modules

1 = Battery

2 = Slots for i960 memory (odd)

3 = Slots for i960 memory (even)

4 = Flash BIOS

5 = Interface board

6 = ISA slots

7 = 32 bit PCI slots (bus 1-i960)

8 = 32 bit PCI slots (bus 0-0A)

9 = 32 bit Hot-plug PCI slots (bus 2-0B)

10 = 64 bit Hot-plug PCI slots (bus 3-1A)

All PCI slots have bus master capability.

I/O board Add-on modules

10 - English U41029-J-Z146-1-7400

Memory extension for i960

The I/O board is equipped with two installation banks (even and odd) for memory modules. Both

memory banks can be equipped with single-sided or double-sided memory modules. Equipping

must begin with the even installation bank.

The board supports a maximum of 16 Mbytes.

Only the combination possibilities listed in the following table are permitted.

Even Bank Odd Bank Maximum memory

configuration

4 Mbyte single-sided no memory module 4 Mbyte

4 Mbyte single-sided 4 Mbyte single-sided 8 Mbyte

8 Mbyte double-sided 8 Mbyte double-sided 16 Mbyte

Equipping sequence/slot priority

Equip the slots according to the following table. Go through the table from top to bottom. The priority

decreases from top to bottom.

Board Slot

12345678910 11 12 13

PCI screen controller* 1. 1.

PCI DAC (one) 1.

64 bit PCI controller 1. 2. 3. 4.

PCI DAC (several) 2. 4. 6. 1. 3. 5.

ISA controller 4. 3. 2. 1.

32 bit PCI controller (other) 2. 3. 5. 7. 1. 4. 6. 8. 10. 9. 12.

*: The PCI screen controller must be inserted in either slot 9 or slot 10.

Tabla de contenidos

Otros manuales de Servidor de Fujitsu

Fujitsu

Fujitsu PRIMEQUEST 2000 Series Instrucciones de montaje

Fujitsu

Fujitsu B23Q8WD-G-01-J Instrucciones de instalación

Fujitsu

Fujitsu SPARC Enterprise T5120 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX2550 M5 Manual de usuario

Fujitsu

Fujitsu PRIMERGY CX122 S1 Manual del propietario

Fujitsu

Fujitsu Primergy BX620 S2 Guía rápida

Fujitsu

Fujitsu PRIMERGY TX120 S3p Manual de usuario

Fujitsu

Fujitsu PRIMERGY RX200 S3 Manual de usuario

Fujitsu

Fujitsu PRIMERGY TX100 S2 Manual del propietario

Fujitsu

Fujitsu SPARC Enterprise M8000 Manual de usuario

Fujitsu

Fujitsu PRIMEQUEST 3000 Series Manual de usuario

Fujitsu

Fujitsu PRIMERGY BX600 S3 Manual de usuario

Fujitsu

Fujitsu PRIMERGY RX200 S2 Manual de usuario

Fujitsu

Fujitsu FUTRO S450 Manual de usuario

Fujitsu

Fujitsu SPARC Enterprise M4000 Manual de usuario

Fujitsu

Fujitsu SPARC Enterprise T5120 Manual de instalación y funcionamiento

Fujitsu

Fujitsu Primergy RX200 S4 Manual del propietario

Fujitsu

Fujitsu SPARC M10-4 Manual de usuario

Fujitsu

Fujitsu PRIMERGY Econel 200 S2 Manual del propietario

Fujitsu

Fujitsu PRIMERGY BX900 Manual de usuario

Fujitsu

Fujitsu SE700 Manual de usuario

Fujitsu

Fujitsu Primergy RX100 S3 Manual de usuario

Fujitsu

Fujitsu PRIMERGY T850 Guía del usuario

Fujitsu

Fujitsu PRIMERGY RX600 S5 Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
