ApeosPort ®C7070 / C6570 / C5570 / C4570 / C3570 / C3070


Page 1 of 7

CONTENTS
目錄
1Clear Paper Jam 夾紙排解............................................................................................................................................2
1.1 Duplex Automatic Document Feeder / 自動雙面送稿裝置................................................................2
1.2 Inside Upper Left Cover 左上蓋內部............................................................................................................3
1.3 Inside Lower Left Cover 左下蓋內部............................................................................................................4
1.4 Standard Tray 標準紙盤 ......................................................................................................................................5
1.5 Bypass Tray 手送紙盤............................................................................................................................................5
2Replacing Toner 更換碳粉匣........................................................................................................................................6
3Replacing Waste Toner Container 更換碳粉回收匣.......................................................................................7
4Extra Information 更多資訊............................................................................................................................................8

Page 2 of 7

1 CLEAR PAPER JAM 夾紙排解

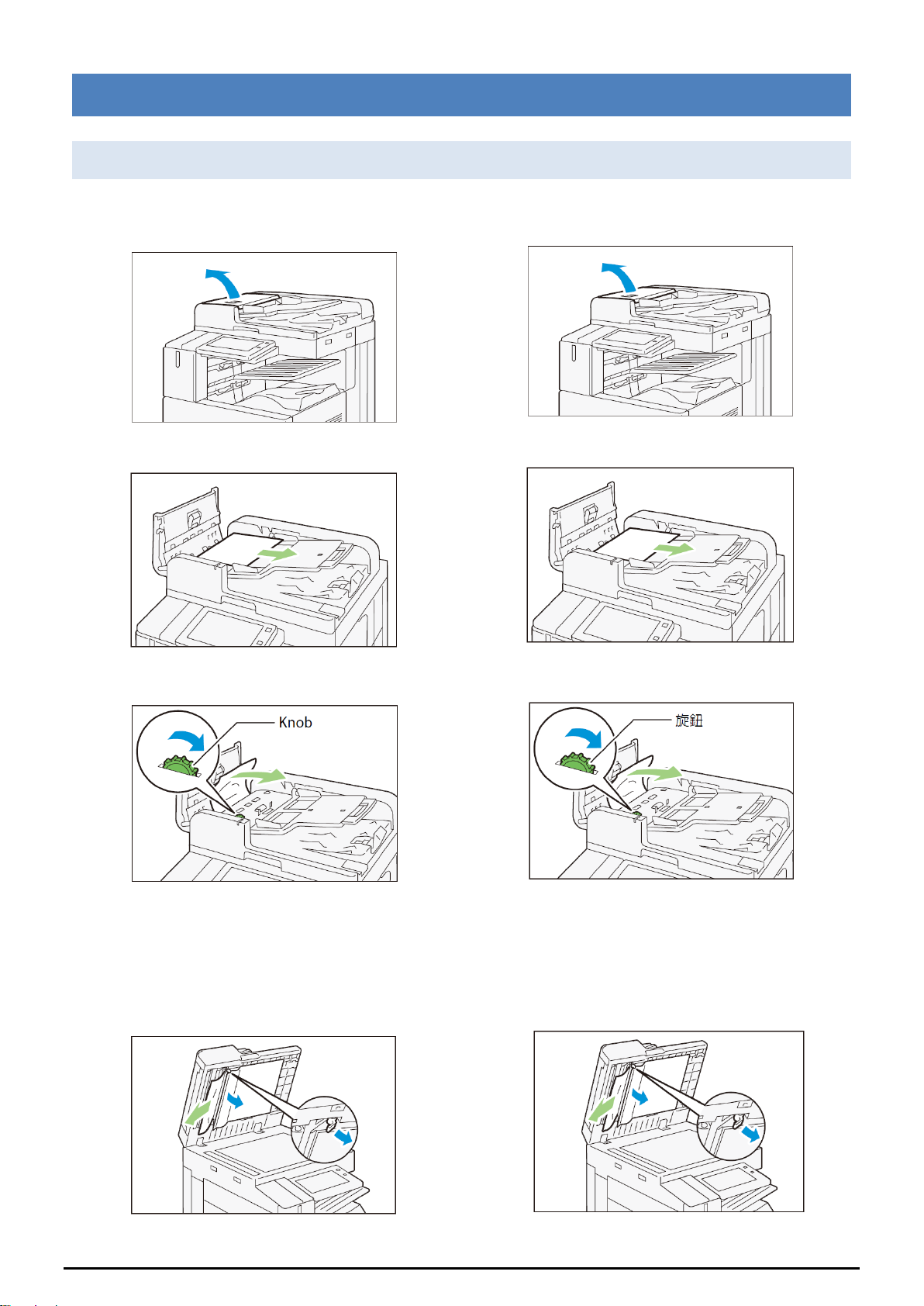

1.1 DUPLEX AUTOMATIC DOCUMENT FEEDER /自動雙面送稿裝置

1. Open the document feeder left cover

until it stops.

2. Remove the document.

3. Turn the knob to eject the document.

4. If you cannot find the document, open

the document cover, grip the lever to

open the Side 2 scanner, and then

remove the document.

1. 向上拉起自動送稿裝置左蓋把手，將左

蓋完全打開。

2. 清除原稿。

3. 旋轉旋鈕，取出原稿。

4. 找不到原稿時，打開原稿蓋，抓著拉

桿，開啟反面掃描部，取出原稿。

Page 3 of 7

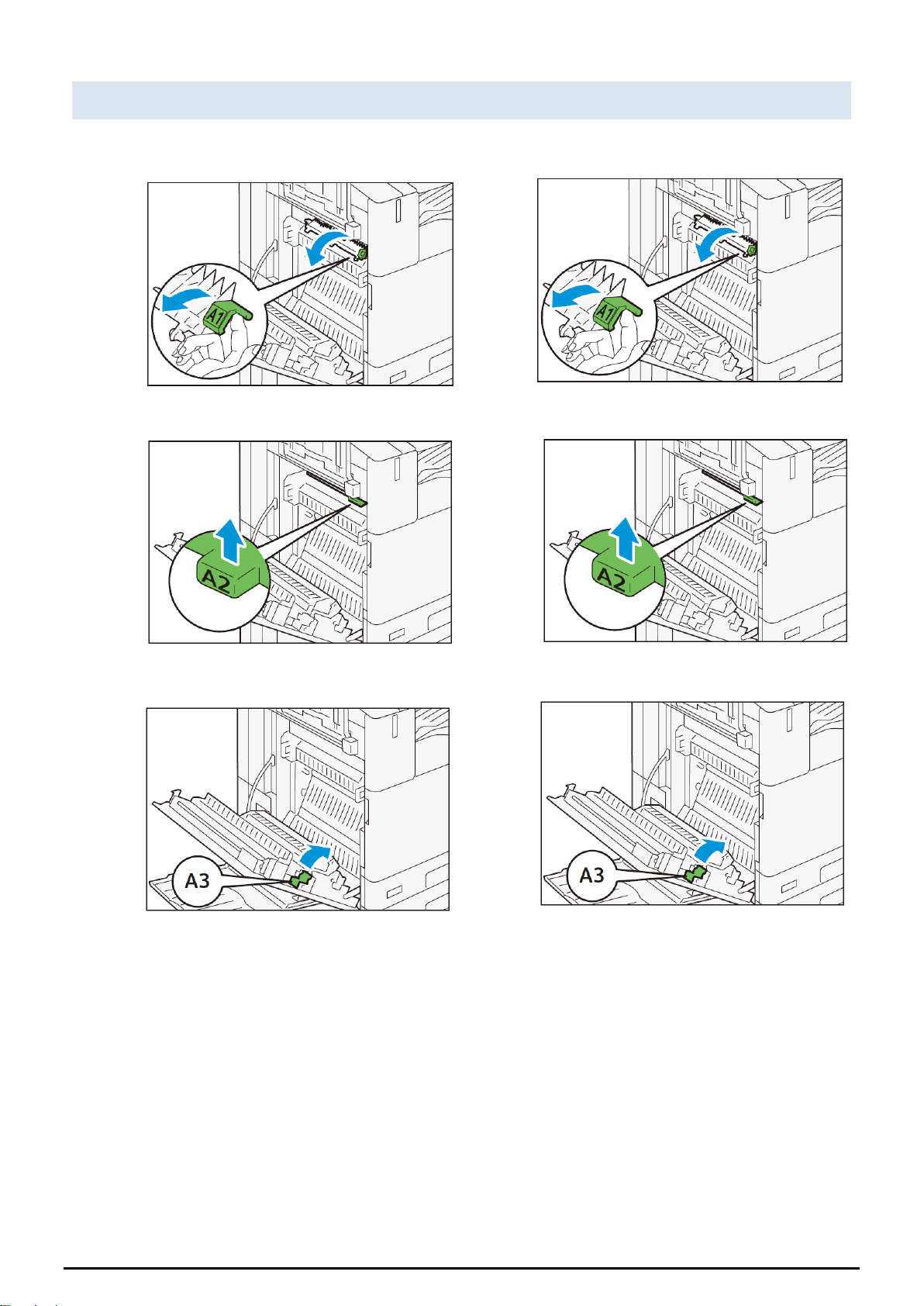

1.2 INSIDE UPPER LEFT COVER 左上蓋內部

1. Pull the lever [A1].

2. Pull the lever [A2].

3. Pull the lever [A3].

1. 拉出拉桿[A1]。

2. 拉出拉桿[A2]。

3. 拉出拉桿[A3]。

Page 4 of 7

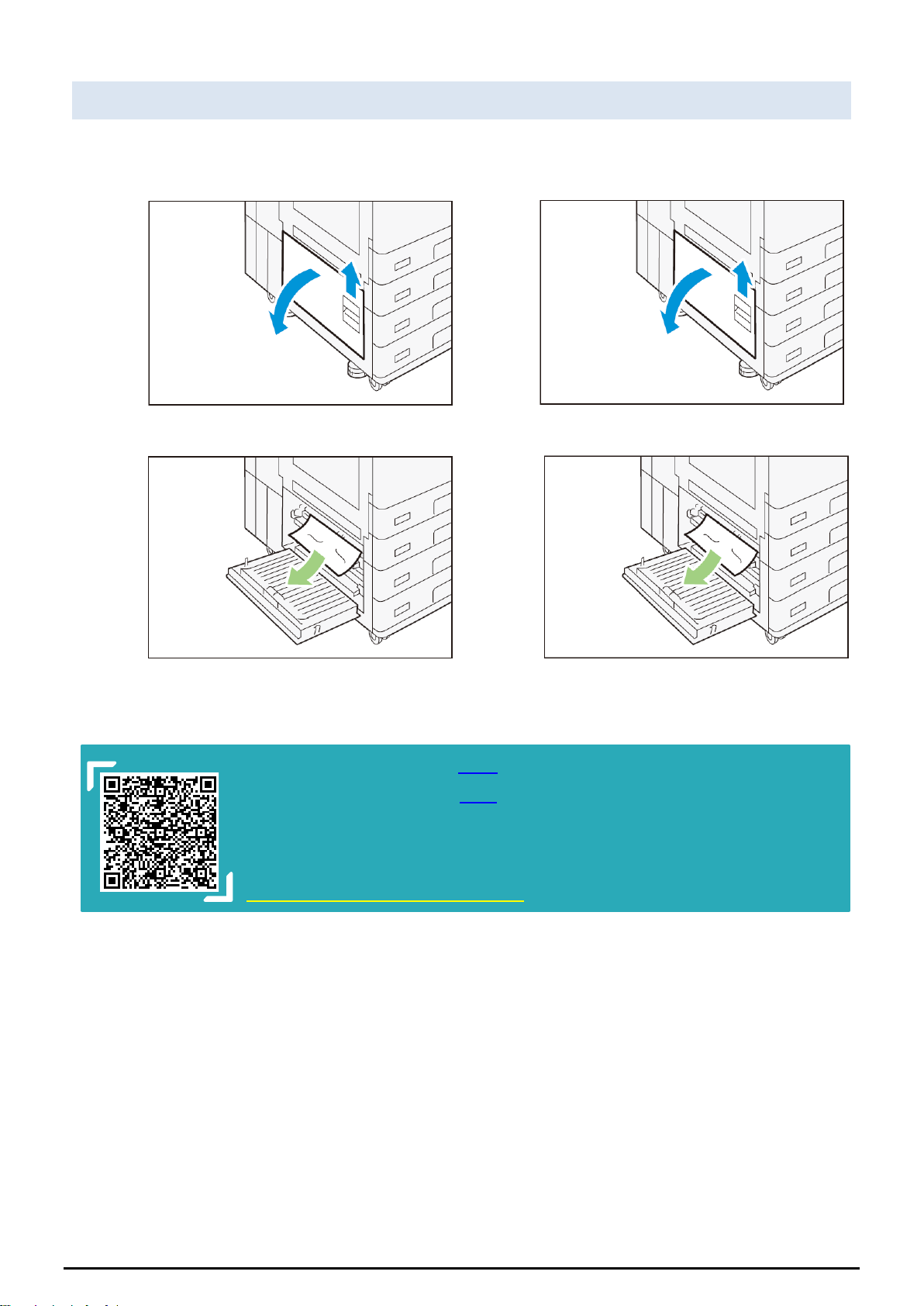

1.3 INSIDE LOWER LEFT COVER 左下蓋內部

1. While lifting up the release lever,

open the lower left cover.

2. Remove the jammed paper.

1. 提起釋放桿，開啟左下蓋。

2. 清除卡紙的紙張。

Scan QR Code OR Click here for video version of this chapter.

請掃描 QR Code 或者點擊這裡查看本章的視頻版本

For more online support information please visit

更多相關資料，請訪問以下網址：

https://support-fb.fujifilm.com

Page 5 of 7

1.4 STANDARD TRAY 標準紙盤

1. Pull out the paper tray where the

paper jam occurred until it stops.

2. Remove the jammed paper.

3. Push in the paper tray.

1. 將發生卡紙的紙盤完全拉出。

2. 清除卡紙的紙張。

3. 推入紙盤。

1.5 BYPASS TRAY 手送紙盤

1. Remove the jammed paper.

1. 清除卡紙的紙張。

Page 6 of 7

2 REPLACING TONER 更換碳粉匣

1. Confirm that the machine is not operating,

and open the front cover.

2. Pull out the toner cartridge slowly.

3. Shake the new toner cartridge gently.

4. Hold the cartridge with the arrow facing up,

and insert the cartridge slowly.

5. Close the front door.

1. 先確定裝置已經停止運作，然後開啟前蓋。

2. 慢慢拉出碳粉卡匣。

3. 輕輕搖晃新碳粉卡匣。

4. 把碳粉卡匣的箭咀標誌向上，然後慢慢地插

入卡匣。

5. 關上前蓋。

Scan QR Code OR Click here for video version of this chapter.

請掃描 QR Code 或者點擊這裡查看本章的視頻版本

For more online support information please visit

更多相關資料，請訪問以下網址：

https://support-fb.fujifilm.com

Page 7 of 7

3 REPLACING WASTE TONER CONTAINER 更換碳粉回收匣

1. Make sure that the device is not

operating, and open the front door.

2. Take out the waste toner container

from the device.

3. Put the new waste toner container into

the device properly.

1. 先確定裝置已經停止運作，然後開啟前蓋。

2. 把碳粉回收匣從裝置中取出。

3. 把新的碳粉回收匣正確地裝回裝置內。

Scan QR Code OR Click here for video version of this chapter.

請掃描 QR Code 或者點擊這裡查看本章的視頻版本

For more online support information please visit

更多相關資料，請訪問以下網址：

https://support-fb.fujifilm.com

4EXTRA INFORMATION 更多資訊

Scan QR Code OR Click here

請掃描 QR Code 或者點擊這裡

How to replace the drum cartridge

如何更換感光鼓

Scan QR Code OR Click here

請掃描 QR Code 或者點擊這裡

How to replace the C Finisher R1 Finisher staple cartridge

如何更換 C裝訂器的 R1 裝訂器釘書釘盒

Scan QR Code OR Click here

請掃描 QR Code 或者點擊這裡

How to empty the hole punch waste container

如何清空打孔廢紙容器
