FujiFilm Instax square Link Manual de usuario

User's Guide (Full version)

WW_EN

model number: FI017W FI017-EN-WW-01

Table of Contents

Before Use��3

Notes on Disposing of the Printer�� 3

Part Names��3

Installing the App��4

Charging the Battery ��4

LED charging status indicator ��4

Loading/Unloading the“instax SQUARE” Film Pack ��5

Loading a Film Pack��5

Unloading a Used Film Pack ��5

Turning the Printer on/off ��6

Printer Status – LED Light Indicator��6

Connecting and Printing��6

When connecting to the printer for the first time��6

When the Printer and Smartphone are Already Connected��9

Reprinting an Image ��10

Taking a Photo with the App��11

Enjoying AR Print and INSTAX Connect��11

Specifications* ��11

Troubleshooting ��12

IMPORTANT SAFETY NOTICE��13

Simple printer care�� 13

Bluetooth® Devices: Cautions�� 15

Independent JPEG Group (IJG) Licenses

This software is based in part on the work of the Independent

JPEG Group.

Before Use

Before using the printer, check the following has been included

with your printer.

Supplied Accessories

• USB Type-C cable

for charging (1)

(YR059291QAD0000)

• User’s Guide (1)

The battery is not fully charged at the factory, be sure to

charge the battery before using the printer.

Notes on Disposing of the Printer

A built-in lithium-ion battery is used for this printer.

When you dispose of the printer, follow your local regulations and

dispose of it properly.

Please refer to the supplied CONTACT INFORMATION sheet for

inquiry.

If your country or region is not included in the sheet, please

contact your local distributor.

CAUTION

Do not remove the built-in battery by yourself; otherwise, you may

be injured.

Disposal of Electric and Electronic Equipment in Private

Households

Disposal of used Electrical & Electronic Equipment

(Applicable in the European Union and other European

countries with separate collection systems)

This symbol on the product, in the manual and in the warranty,

and/or on its packaging indicates that this product should not be

treated as household waste. Instead, it should be taken to an

appropriate collection point for the recycling of electrical and

electronic equipment.

By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences to the environment and

human health, which could otherwise be caused by inappropriate

waste handling of this product.

The recycling of materials will help to conserve natural resources.

For more detailed information about recycling this product, please

contact your local city office, your household waste disposal

service or the shop where you purchased the product.

In Countries outside of EU: If you wish to discard this product,

please contact your local authorities and ask for the correct way of

disposal.

This Symbol on the batteries or accumulators indicates

that those batteries should not be treated as household

waste.

For customers in Turkey:

EEE Complies with Directive.

Read “IMPORTANT SAFETY NOTICE”(p. 13) for safety use.

Part Names

When using the printer for the first time, ensure that the battery

is fully charged.

Front

Rear

1 Film ejection slot

2 Function button

3 Power button/LED*1

4 USB port cover

5 Reset button*2

6 USB Type-C port

7 Film door lock

8 Film door

*1 For details on the LED indication status, see pages 4 and 6.

*2 If the printer does not work properly, press the reset button to

reset the printer.

Installing the App

Please install the instax SQUARE Link app on your smartphone

before using the printer.

• If you are using an Android OS smartphone, please search for

the instax SQUARE Link app in the Google Play Store and install

it.

*Requirements for Android OS smartphones: Android Ver. 7.0

or higher with Google Play Store installed

• If you are using an iOS smartphone, please search for the

instax SQUARE Link app in the App Store and install it.

*Requirements for iOS smartphones: iOS Ver. 12.0 or higher

• Even if you have downloaded the app and your smartphone

meets the above requirements, you may not be able to use the

instax SQUARE Link app. This is dependent upon your

smartphone model.

Access the instax SQUARE Link app download site for the latest

information on system requirements�

Android OSiOS

Scan to download the instax SQUARE Link Smartphone App

The text QR Code itself is a registered trademark and wordmark of

Denso Wave Incorporated.

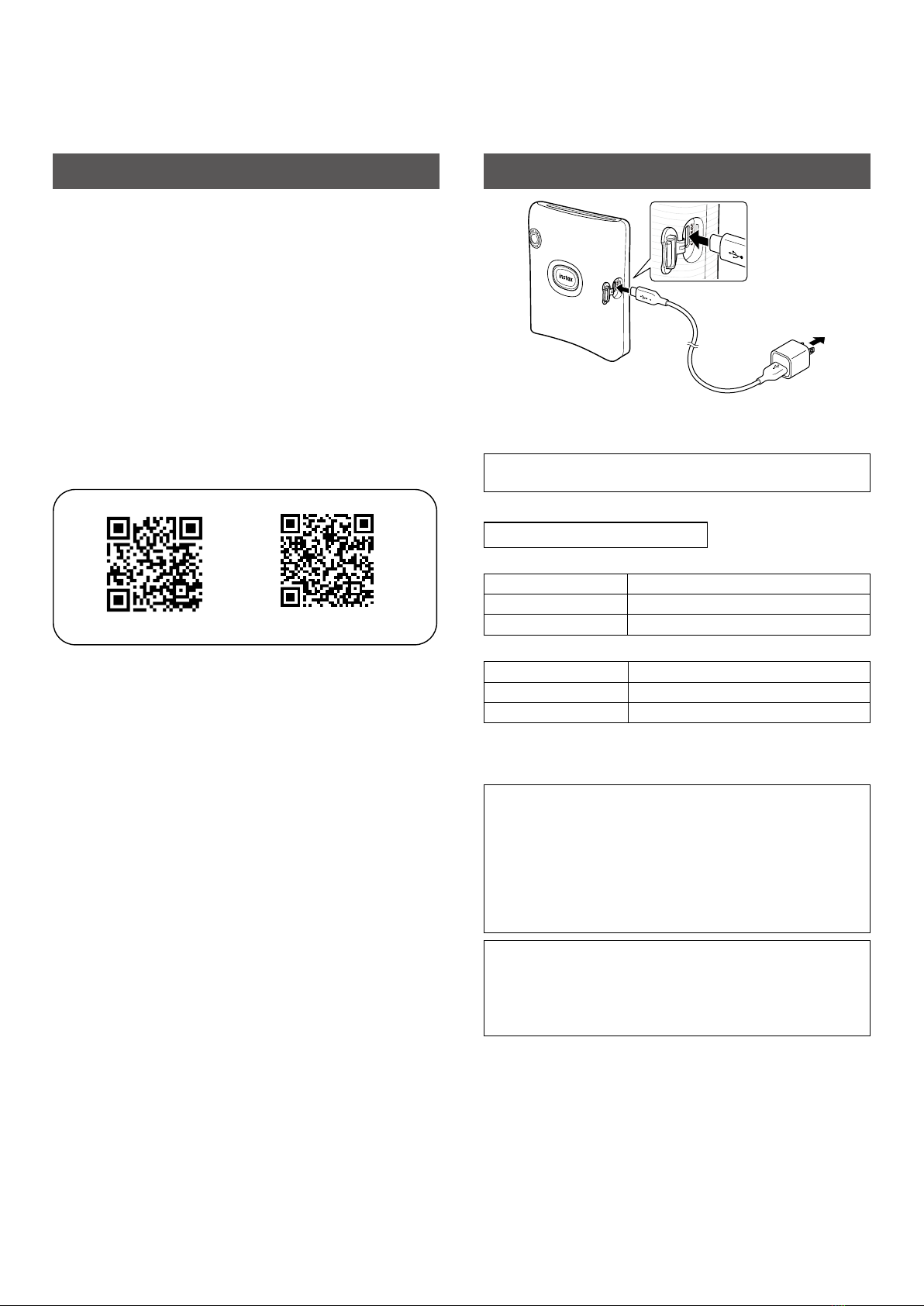

Charging the Battery

Connect the printer using the supplied USB Type-C cable to a USB

AC adapter (supplied with your smartphone) then connect the

USB AC adapter to an indoor power supply.

• You can print an image while charging is in progress.

• Charging time is approximately 80 to 120 minutes.

LED charging status indicator

When the printer is turned on:

Indicator Charging status

LED lights up white Not charging or charging is complete

LED flashes white Charging

When the printer is turned off:

Indicator Charging status

LED is turned off Not charging or charging is complete

LED flashes green Charging

Check the charging status with your smartphone when connected

to the app.

Charging from a PC:

• Connect the printer and PC directly. Do not connect via a USB

hub or keyboard.

• If the PC goes into sleep mode while charging, charging is

paused. To continue charging, exit sleep mode and then

reconnect the

USB Type-C cable

• The battery may not be able to charge depending on the

specifications, settings or conditions of the PC.

Notes

• The battery is not fully charged at the factory, be sure to

charge the battery before using the printer.

• The battery cannot be removed.

• For notes about the battery, see “Simple printer care”. (p.13)

Loading/Unloading the“instax SQUARE” Film

Pack

Caution

Do not open the film door until you have used up all of the

film; otherwise, the remainder of the film will be exposed and

turn white, exposed film can no longer be used�

• When you load the film pack, never press the two rectangular

holes on the back of the film pack.

• Never use a film pack beyond its shelf life; otherwise, it may

damage the printer.

Use FUJIFILM instax SQUARE Instant Film only. instax mini Film

and instax WIDE Film cannot be used.

Notes on the film pack

• Each FUJIFILM instax SQUARE Film pack contains one black

film protective cover and 10 film sheets.

• Do not remove the film pack from its inner foil packaging

until you are ready to load the film into the printer.

• The film cover is ejected automatically when the film door is

closed.

For details, refer to the instructions and warnings on FUJIFILM

instax SQUARE Instant Film packaging.

Loading a Film Pack

1 Slide the film door lock to unlock, then open the film

door�

2 Insert film pack by aligning the yellow marks on the

film pack and body of the printer�

Note

Be sure to align the yellow marks on the printer and on the

film pack.

3 Close the film door�

4 A black film cover will automatically be ejected,

remove and dispose�

Unloading a Used Film Pack

1 Slide the film door lock to open the film door�

2 Grasp the rectangular holes on the film pack and

remove the empty film cartridge, and dispose�

Turning the Printer on/off

• Press and hold the Power button for approximately 1 second to

turn the printer on or off.

• The LED lights up when the printer is turned on.

• The printer turns off automatically when not in use for a certain

period of time.

Printer Status – LED Light Indicator

The LED light indicates the printer status.

Indication Status

LED flashes blue Firmware is being updated

LED flashes purple Reprinting

LED lights up yellow for 3

seconds, then turns off

Low battery

* If this phenomenon continues

even after charging, there may be

a malfunction. In such cases,

contact a FUJIFILM authorized

dealer.

LED continues flashing

yellow

Print error occurred

* If this phenomenon frequently

occurs, there may be a

malfunction. In such cases,

contact a FUJIFILM authorized

dealer.

Connecting and Printing

You can enjoy creating various prints such as adding text and

applying filters to images with the functions of the

instax SQUARE Link App.

For details on how to use the app, refer to the following site.

https://instax.com/square_link/

When connecting to the printer for the first time

1 Press and hold the Power button for approximately

1 second to turn the printer on�

The LED lights up.

2 Open the “instax SQUARE Link” App�

3 Setup the app as indicated below� 4 Read the terms of use, then put a checkmark in the

[Agree] box, and tap [Agree →]�

5 Quick instructions are displayed� Read the

instructions and tap [Let’s Play! →]�

8 When this message is displayed, put a checkmark in

the check box and tap [PAIR]�

9 When a printer is connected, tap [Cancel]�

10 Select an image that you wish to print�

To edit images

The following image editing options are available before

printing.

Enters text or adds a sticker on images.

Zooms in/out and can rotate images.

Applies a filter to images.

Adjusts the brightness of images.

6 Tap [Set]�

[Bluetooth connection] can also be set in the process of

printing.

7 When a printer is detected, tap [Connect]�

If multiple printers are detected, select the printer to

connect from the list.

The printers identifier (device name) is located on the

bottom of the printer.

Note

When your smartphone’s Bluetooth is switched off, tap

[Please turn on Bluetooth] to turn the Bluetooth settings on.

11 Tap or swipe up on the screen�

The printer will start printing.

You can also select the number of copies to print during

image transfer.

12 When the film has been ejected (the printer stops

making a sound), hold the edge of the film and

remove from the printer�

You can view the number of prints remaining in the app.

When the Printer and Smartphone are Already

Connected

1 Press and hold the Power button for approximately

1 second to turn the printer on�

The LED lights up.

2 Open the “instax SQUARE Link” App�

3 Select an image that you wish to print�

To edit images

The following image editing options are available before

printing.

Enters text or adds a sticker on images.

Zooms in/out and can rotate images.

Applies a filter to images.

Adjusts the brightness of images.

4 Tap or swipe up on the screen�

The printer will start printing.

You can also select the number of copies to print during

image transfer.

5 When the film has been ejected (the printer stops

making a sound), hold the edge of the film and

remove from the printer�

You can view the number of prints remaining in the app.

Reprinting an Image

The last image printed can be reprinted by pressing the function

button for 2 seconds.

Note

• The last stored image that has been printed is deleted when the

printer is turned off. In this case, you are able to print the image

from the app.

Otros manuales para instax square Link

Tabla de contenidos

Otros manuales de Impresora de FujiFilm

FujiFilm

FujiFilm instax SHARE SP-2 Manual de usuario

FujiFilm

FujiFilm Frontier-S DX100 Manual de usuario

FujiFilm

FujiFilm Frontier-S DX100 Manual de usuario

FujiFilm

FujiFilm B9136 Manual de usuario

FujiFilm

FujiFilm JAVELIN 8300N-S Manual de usuario

FujiFilm

FujiFilm Apeos C8180 Manual de usuario

FujiFilm

FujiFilm instax SHARE SP-3 Manual de usuario

FujiFilm

FujiFilm Frontier DE100 Manual de usuario

FujiFilm

FujiFilm Apeos C7070 Manual de usuario

FujiFilm

FujiFilm instax mini Link 2 Manual de usuario

FujiFilm

FujiFilm Instax Link Wide Manual de usuario

FujiFilm

FujiFilm Apeos 5570 Manual de usuario

FujiFilm

FujiFilm Apeos 7580 Manual de usuario

FujiFilm

FujiFilm Apeos 3560 Manual de instrucciones

FujiFilm

FujiFilm ApeosPro C810 Manual de usuario

FujiFilm

FujiFilm SP-3000 Manual de usuario

FujiFilm

FujiFilm PICTROGRAPHY 4500 Manual de usuario

FujiFilm

FujiFilm ApeosPort 2560 Manual de usuario

FujiFilm

FujiFilm ApeosPro C810 Manual de usuario

FujiFilm

FujiFilm PICTOGRAPHY 3500 Manual de usuario

FujiFilm

FujiFilm CX 3240 Manual de usuario

FujiFilm

FujiFilm ApeosPro C810 Manual de usuario

FujiFilm

FujiFilm ApeosPort-VII C4421 Manual de usuario

FujiFilm

FujiFilm ApeosPort-VII 4021 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

FujiFilm instax square Link Manual de usuario

Manuales populares de Impresora de otras marcas
