FujiFilm Apeos C8180 Manual de usuario

April 2021 GM1040E1-1 Ver. 1 FUJIFILM Business Innovation Corp.

Apeos™ C8180

Apeos C7580

Apeos C6580

Reference Guide

Optional Units

2Reference Guide Optional Units

1Preface

A guide describing the operations for optional units, such as the Finisher.

Refer

Descriptions for the following optional products are provided in different guides.

Simple catch tray, Offset catch tray: Reference Guide- Main Unit

Wireless kit, print / scan / FAX function-related products: Reference Guide - Operations

Face authentication system, finger vein authentication system, IC card reader: Official site of our

company

In this manual, safety instructions are preceded by the symbol . Always read and follow the

instructions before performing the required procedures.

For trademarks and notations in the manual, refer to the Reference Guide- Main Unit.

This manual may not be edited, modified or copied in whole or in part without the written

consent of the publisher.

Parts of this manual are subject to change without prior notice.

The screen shots and the illustrations in this manual are used as examples. They may differ from

yours depending on the model, the software, or the OS.

2 High Capacity Feeder B1

2High Capacity Feeder B1

2.1 Device Components

Main specifications

No. Component Function

1 Remaining Volume Display You can check the remaining paper volume.

2 High Capacity Tray (Paper

Tray 6)

Load paper here.

3 Top Cover Open this cover to clear paper jams.

Item Specification

Paper size A4 , Letter , JIS B5 , 7.25 x 10.5" (184 x 267 mm)

Paper weight (g/m2)52 to 220

Maximum number of sheets

(sheets) (C2paper)

2,470

Dimensions (mm) Width 389 x Depth 610 x Height 377

Weight (kg) 29

2 1

4Reference Guide Optional Units

2.2 Paper and Other Media

After loading paper, configure the Paper Tray 6 settings on the Home screen.

Refer

For details, refer to “Setup” in Reference Guide - Operations.

The top face of loaded paper is the surface printed on.

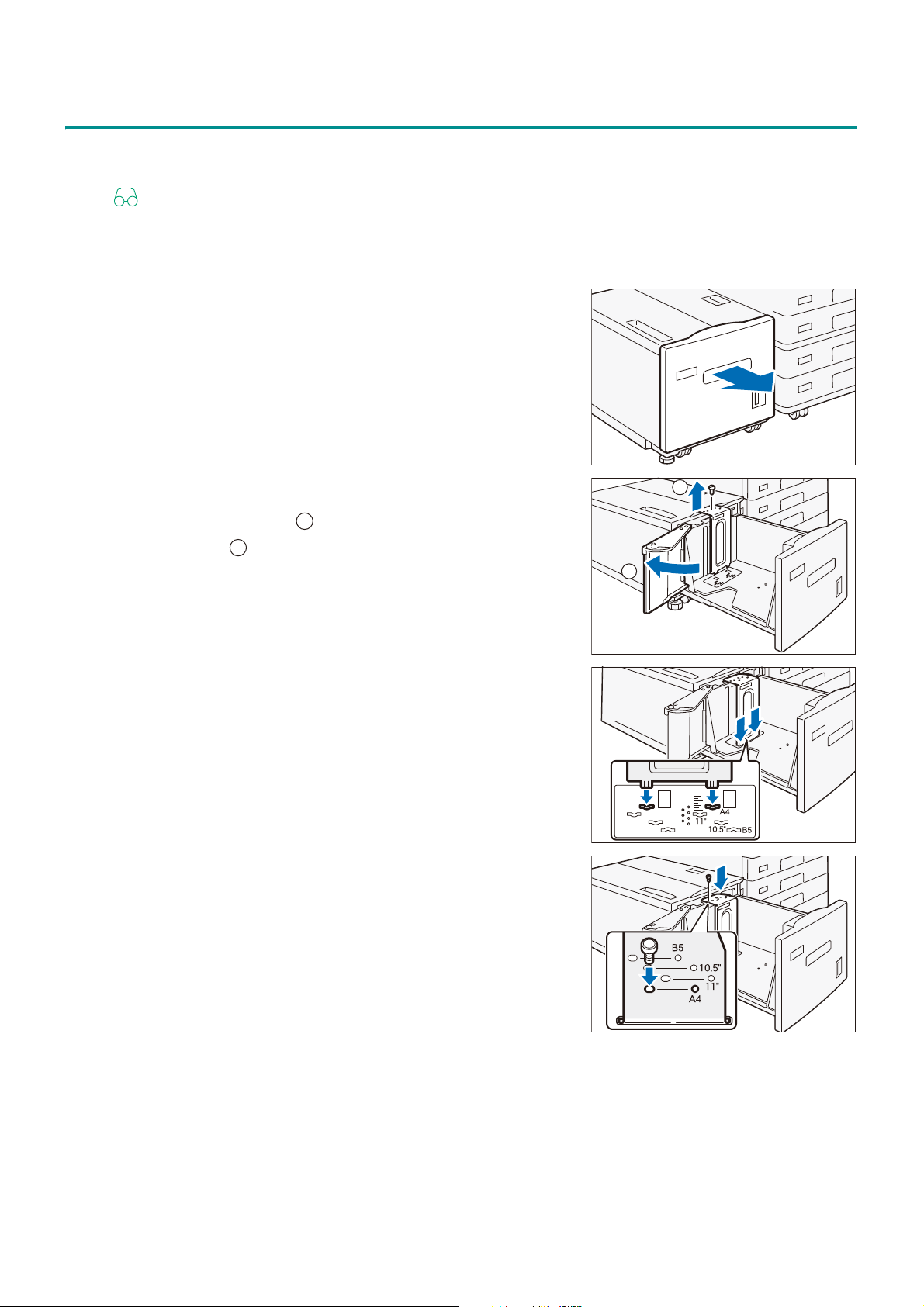

1. Pull out the Paper Tray 6 until it stops.

2. When paper is already loaded in the tray, take out the paper.

3. If changing the Paper Size, adjust the guide position.

1)Open the end guide ( ), remove the screw for the guide

in the back ( ), and remove the guide from the Paper

Tray 6.

2)Insert the protrusions under the guide into the Paper Size

holes.

3)Insert the Paper Tray 6 protrusions into the Paper Size

holes on top of the guide and tighten the screw.

2 High Capacity Feeder B1

4)Remove the screw for the guide in front and remove the

guide from the Paper Tray 6.

5)Insert the protrusions under the guide into the Paper Size

holes.

6)Insert the Paper Tray 6 protrusions into the Paper Size

holes on top of the guide and tighten the screw.

7)Pull the handle for the end guide up ( ), align with the

Paper Size while moving the handle along the groove ( ),

and lower the handle ( ).

Note

The groove on the left side of the end guide 8.5” is not used.

4. Fan a stack of paper, face the print surface up, and then load

the paper with edges aligned according to the direction of the

arrow.

6Reference Guide Optional Units

5. Close the end guide completely.

6. Push in the Paper Tray 6.

Setting special paper and other media

Hole punched paper

Paper orientation: Load paper with holes facing the right side when viewed from the front of the

machine

2 High Capacity Feeder B1

2.3 Paper Jams

If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control

panel. Follow the message displayed to remove the jammed paper.

Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from

the machine, remove all the torn pieces making sure that none remain inside the machine.

When you have finished clearing the paper jam, printing is resumed from the state before the paper

jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the

state before the paper jam occurred.

Note

Clear the paper jams while the machine is on.

Exit

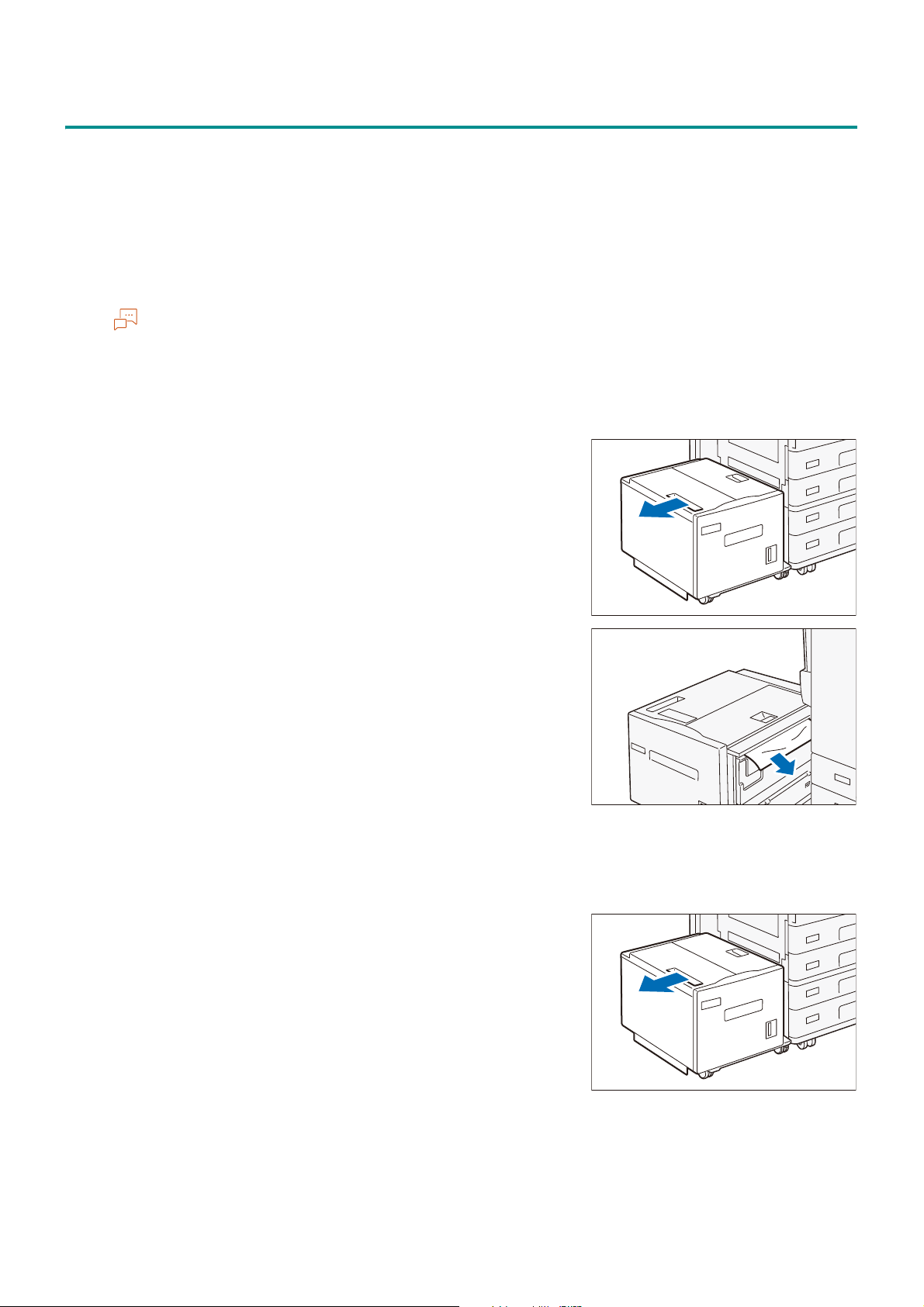

1. Hold the handle and move the unit all the way to the left.

2. Remove the jammed paper.

3. Move the unit to the right and connect it with the main unit.

Inside of the Upper Cover

1. Hold the handle and move the unit all the way to the left.

8Reference Guide Optional Units

2. Pull the handle ( ) and open the cover ( ).

3. Remove the jammed paper.

4. Close the cover.

5. Move the unit to the right and connect it with the main unit.

Paper Tray 6

1. Pull out the Paper Tray 6 until it stops.

2. Remove the jammed paper.

3. Push in the Paper Tray 6.

3 High Capacity Feeder B1-S/C3-DS

3High Capacity Feeder

B1-S/C3-DS

3.1 Device Components

B1-S

C3-DS

645

10 Reference Guide Optional Units

Ground Fault Interrupter

The switch is normally at the top position.

When not using for an extended period or when moving the

unit, set the switch to the lower position to turn the machine

power off.

Note

Do not operate the Ground Fault Interrupter under normal

circumstances because it is turned off when a current leakage is

detected.

For the current leakage, refer to User's Manual.

No. Component Function

1 Bypass Tray (Paper Tray 5) Load paper here.

The top face of loaded paper is the surface printed on.

2 Upper Cover of Bypass Tray Open this cover to clear paper jams.

3 Error Indicator When paper jam occurs, the indicator is turned on.

4 Right Cover Open this cover to clear paper jams.

5 Remaining Volume Indicator When the Paper Tray is in operation, the top lamp is turned

on.

You can check the remaining volume of paper with the 4

lamps (each lamp indicates 25%) at the center.

When Paper Replenish Indicator is turned on, paper is

empty.

6B1-S Consumables

Storage Unit

Stores papers and consumables.

C3-DS Large Capacity

Tray

(Paper Tray 6)

Load paper here.

The top face of loaded paper is the surface printed on.

7B1-S LargeCapacity

Tray

(Paper Tray 6)

Load paper here.

The top face of loaded paper is the surface printed on.

C3-DS Large Capacity

Tray

(Paper Tray 7)

8 Ground Fault Interrupter A switch to automatically switch the machine off when a

current leakage is detected.

Circuit Breaker Switch

TEST button
