The FRITZ!Repeater6000
The FRITZ! Repeater6000 extends the Wi-Fi network of a FRITZ!Box or any
other wireless router. On its two LAN sockets, additional network devices can
be connected to the FRITZ!Repeater, or it can be connected with a FRITZ!Box
or another wireless router by cable.
Manual
This quick guide includes important information for launching operation of
your FRITZ!Repeater6000. All further information is presented in our PDF
manual and in the Knowledge Base at en.avm.de/service.
Wireless Routers from Other Manufacturers
You can use the FRITZ!Repeater6000 with routers from other manufacturers.
For the sake of simplicity, this quick guide will refer to the FRITZ!Box, unless a
given function is only supported by a certain type of device.
Mesh with FRITZ!
The FRITZ!Repeater6000 supports Mesh in combination with a FRITZ!Box
with FRITZ!OS7.0 (or higher).
In the Mesh of a FRITZ!Box, FRITZ! products with Wi-Fi functionality automati-
cally adopt various settings to build an especially powerful Wi-Fi network. The
Mesh Overview of the FRITZ!Box user interface presents information on the
connections in the Mesh and allows you to update your FRITZ! products.
3
Package Contents
Name Illustration
1 FRITZ!Repeater6000
Connect
1 power adapter
1 LAN cables
1 quick guide no illustration
Security
ˊOperate the FRITZ!Repeater6000 in a dry place that is free of dust and
protected from direct sunlight, and provide for sucient ventilation.
ˊThe FRITZ!Repeater6000 is intended for indoor use only. Never let liquids
get inside the housing.
ˊConnect the FRITZ!Repeater6000 to an easily accessible outlet.
ˊDo not open the FRITZ!Repeater6000 housing. Opening and/or repairing
the device can present a hazard.
ˊUnplug the FRITZ!Repeater6000 from the outlet before cleaning.
Clean the device using a moist cloth.
4
Package Contents
Name Illustration
1 FRITZ!Repeater6000
Connect
1 power adapter
1 LAN cables
1 quick guide no illustration
5
Connection Possibilities
You can connect the FRITZ!Repeater6000 with a FRITZ!Box via Wi-Fi or using
a LAN cable.
Wi-Fi connection to the FRITZ!Box if LAN connection to the FRITZ!Box if
the FRITZ!Repeater is to be deployed within
the Wi-Fi range of the FRITZ!Box
the FRITZ!Repeater is to be deployed out-
side the Wi-Fi range of the FRITZ!Box or
another repeater in the home network
multiple network devices without Wi-Fi are
to be integrated into the home network on
the LAN ports of the repeater
it is possible to establish a LAN con-
nection (for example using the existing
cabling in your home)
Connect
Info
Connect/WPS
Fon/DECT
WLAN
Power/DSL
Wi-Fi
Wi-Fi
LAN
Connect
Info
Connect/WPS
Fon/DECT
WLAN
Power/DSL
Wi-Fi
LAN
Continue reading at “Setting Up the Wi-Fi
Connection” on page8.
Continue reading at “Conguring a LAN
Connection” on page9.

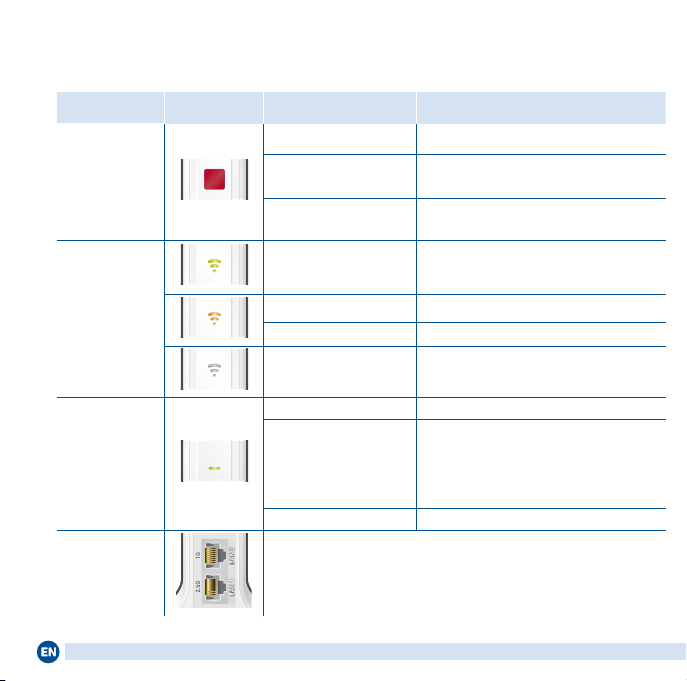

Device Features
Name Illustration Function Action/Meaning
Connect
button
Connect
Establish connection Press and hold for 1second
Connect with another
access point Press and hold for 6seconds
Load factory settings Press and hold for 15seconds
Connection
Quality
LED
Connect
on Connection established, good con-
nection
Connect
on Weak connection
ashing Connection interrupted
Connect
o Wi-Fi not enabled; a schedule may be
congured
Connect LED
Connect
on Connection good
ashing
slowly (2 second intervals):
not connected with FRITZ!Box,
no Wi-Fi connection congured
fast (twice per second):
WPS, restart or update in progress
o Schedule enabled (wireless bridge)
LAN ports Connect network devices by cable
6
Connection Possibilities
You can connect the FRITZ!Repeater6000 with a FRITZ!Box via Wi-Fi or using
a LAN cable.
Wi-Fi connection to the FRITZ!Box if LAN connection to the FRITZ!Box if
the FRITZ!Repeater is to be deployed within
the Wi-Fi range of the FRITZ!Box
the FRITZ!Repeater is to be deployed out-
side the Wi-Fi range of the FRITZ!Box or
another repeater in the home network
multiple network devices without Wi-Fi are
to be integrated into the home network on
the LAN ports of the repeater
it is possible to establish a LAN con-
nection (for example using the existing
cabling in your home)
Connect
Info
Connect/WPS
Fon/DECT
WLAN
Power/DSL
Wi-FiWi-Fi
LAN
Connect
Info
Connect/WPS
Fon/DECT
WLAN
Power/DSL
Wi-Fi
LAN
Continue reading at “Setting Up the Wi-Fi
Connection” on page8.
Continue reading at “Conguring a LAN
Connection” on page9.
7
Setting Up the Wi-Fi Connection
Action Illustration
1Connect the FRITZ!Repeater to an outlet close to the FRITZ!Box.
2Wait until the Connect LED starts ashing slowly. Connect
3Start the connection to the FRITZ!Repeater: Press the Connect
button. The Connect LED ashes quickly.
Connect
4
Start the connection to your FRITZ!Box:
• FRITZ!Box with Connect/WPS, Connect or WPS button:
Press button briey. The WLAN or Connect LED ashes.
• On a FRITZ!Box with WLAN/WPS or WLAN button: Press the
button for about 6seconds until WLAN starts ashing.
• On another wireless router, press the button that starts WPS.
Connect / WPS
within
2 minutes
5
As soon as the Connect LED on the FRITZ!Repeater lights up
permanently, the connection has been established.
If the Connect LED on the FRITZ!Repeater starts ashing slow-
ly again, repeat steps 3 and 4 of these instructions.
Connect
When the wireless connection has been established, move the FRITZ!Repeater
to the desired location. Continue reading on pageSeite 10.
If the Wi-Fi connection cannot be established at the touch of a button, alterna-
tiveinstructions are presented in the PDF manual at en/avm.de/service.
8
Conguring a LAN Connection
The table shows how to congure a LAN connection between the FRITZ!Repeat-
er and the FRITZ!Box on a computer. More conguration options are presented
in our PDF manual at en.avm.de/service.
1Plug the the FRITZ!Repeater into an electrical outlet.
2Connect the FRITZ!Repeater to your computer using a LAN cable and wait until
the Connect LED starts ashing slowly.
3Enter http://fritz.repeater in a web browser. The user interface of the
FRITZ!Repeater appears.
4Follow the instructions of the wizard in the user interface until conguration is
complete, selecting LAN bridge as the type of connection.
5
Connect the FRITZ!Repeater to your FRITZ!Box using a LAN cable.
As soon as the Connection Quality and Connect LEDs light up permanently, the
FRITZ!Repeater is ready for operation.
On a FRITZ!Box with FRITZ!OS7.0 or higher, enable Mesh
1Press the Connect button on the FRITZ!Repeater. The Connect LED ashes.
2
Within two minutes, conrm on your FRITZ!Box that Mesh has been enabled:
• FRITZ!Box with Connect/WPS, Connect or WPS button: Press button briey
• FRITZ!Box with WLAN/WPS or WLAN button: Press button for at least
6seconds
en.avm.de/mesh
9
FRITZ!AppWLAN
The FRITZ!AppWLAN assists you in nding the ideal position for your
FRITZ!Repeater. The FRITZ!AppWLAN is available for your smartphone free of
charge.
Google Play (Android) App Store (iOS)
FRITZ!AppWLAN
Find the ideal location for the
FRITZ!Repeater
en.avm.de/products/fritzapps
Positioning the FRITZ!Repeater
Once you have congured a Wi-Fi connection to the FRITZ!Box for the
FRITZ!Repeater, move the repeater to the desired location.
Connect the FRITZ!Repeater to an outlet located about halfway between
the FRITZ!Box and the wireless devices for which the Wi-Fi network is to be
extended. The FRITZ!Repeater and the FRITZ!Box reestablish the congured
connection automatically.

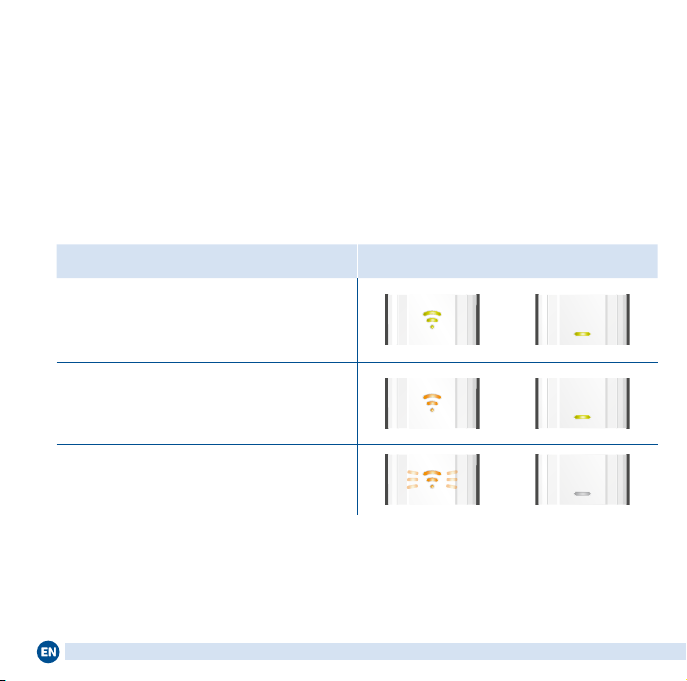

Connection Quality Display on the FRITZ!Repeater
good connection
Connect
Connect
weak connection
Connect
Connect
no connection
Connect
Connect
If connection quality is insucient, select an outlet closer to the FRITZ!Box.
You can position the FRITZ!Repeater precisely using the FRITZ!AppWLAN.
10
