OWNER’S MANUAL

Washing Machine

Read This Manual

Use all instructions and explanations of

the installation before use. Follow the

instructions carefully. Keep the operation

instructions handy for later use. If the

application is sold or passed on then ensure

that the new owner always receives those

operation instructions.

FW712

SAFETY INSTRUCTIONS

Safety Instructions ..................................................

INSTALLATION

Product Description .................................................

Installation ............................................................

OPERATIONS

Quick Start .. ............................................................

Before Each Washing ...............................................

Detergent Dispenser ................................................

Control Panel ..........................................................

Option....................................................................

Other Functions . .....................................................

Programmes.............................................................

Washing Programmes Table ......................................

M AINTENANCES

Cleaning And Care .................................................

Trouble Shooting ....................................................

Technical Specifications ..........................................

CONTENTS

Safety Instructions

For your safety,the information in this manual must be followed

to minimize the risk of fire or explosion, electric shock, or to

prevent property damage, personal injury or loss of life.

Explanation of the symbols:

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

• If the supply cord is damaged, it must be replaced by the

The electric shock!

SAFETY INSTRUCTIONS

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

death or serious injuries unless it’s avoided.

Warning!

！

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries.

Note!

This combination of symbol and signal word indicates

a potentially dangerous situation which may result in

slight or minor injuries or damage to property and the

environment.

Caution!

Warning!

！

• The new h ose-sets supplied w ith t he appliance are to be

u sed and t hat o ld hose-sets should not b e reused.

• Before any maintenance the device, unplug t he

a ppliance from t he mains.

• Alw ays unplug t he machine and t urn off t he w ater

supply after use. The max. inlet w at er pressure, in

p ascals. The min. inlet water pressure, in pascals.

• To ensure your safety, pow er plug m ust b e inserted into

a n earthed three-pole socket. Check carefully and make

sure that y our socket i s properly and reliably earthed.

• Make sure that t he wat er and electrical devices must

be connected by a qualified t echnician in accordance

with t he manufacturer' s instructions and local safety

r egulat ions.

Risk to children!

f rom 8 y ears and above and persons with reduced physical,

sensory or mental capabilities or l ack of experience and

k now ledge if t hey have been given supervision or

i nstruction concerning use of t he appliance in a safe w ay

a nd understand t he hazards involved. Children shall not

p lay w it h t he appliance. Cleaning and user maintenance

shall not b e made by children w ithout supervision.

•

• Children of l ess than 3years should be supervised t o

ensure that t hey do not p lay w ith appliance.

• Animals and children may climb into t he machine. Check

t he machine before every operation.

• K ids should be supervised t hat t hey do not p lay w it h

t he appliance.

The appliance can be used by children aged

SAFETY INSTRUCTIONS

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

• Glass door may be very hot during the operation. Keep

kids and pets far away from the machine during the

operation very wet rooms as well as in the rooms with

explosive or caustic gas.

• Plug must be accessible after installation.

Risk of explosion!

•

Do not wash or dry articles that have been cleaned in, washed

in, soaked in, or dabbed with combustible or explosive

substances( such as wax, oil, paint, gasoline, degreasers,

dry-cleaning solvents, kerosene, etc.) This may result in

fire or explosion.

Before hand thoroughly rinse items of washing by hand.

• This washing machine is for indoor use only.

• It isn't intended to be built-in using.

• The openings must not be obstructed by a carpet.

• Washing machine shall not be installed in bath room or

very wet rooms as well as in the rooms with explosive

or caustic gases.

• The washing machine with single inlet valve only can be

connected to the cold water supply. The product with

double inlet valves should be correctly connected to the

hot water and cold water supply.

• Plug must be accessible after installation.

Installing the product!

SAFETY INSTRUCTIONS

Caution!

• Remove all packages and transport bolts before using

the appliance. Otherwise, serious damage may result.

Risk of damaging appliance!

• Your product is only for home use and is only designed

for the textiles suitable for machine washing.

• Do not climb up and sit on top cover of the machine.

• Do not lean against machine door.

• Cautions during Handling Machine:

1.Transport bolts shall be reinstalled to the machine by

a specialized person.

2.The accumulated water shall be drained out of the

machine.

3.Handle the machine carefully. Never hold each protruded

part on the machine while lifting. Machine door can

not be used as the handle during the conveyance.

4.This appliance is heavy. Transport with care.

• Please do not close the door with excessive forces. If it

is found difficult to close the door, please check if the

clothes are put in or distributed well.

• It is forbidden to wash carpets.

Operating the appliance!

• Before washing the clothes at first time, the product

shall be operated in one round of the whole procedures

without the clothes inside.

• Flammable and explosive or toxic solvents are forbidden.

Gasoline and alcohol etc.Shall not be used as detergents.

Please only select the detergents suitable for machine

washing, especially for drum.

SAFETY INSTRUCTIONS

• Make sure that all pockets are emptied. Sharp and rigid

items such as coin,brooch,nail,screw or stone etc. may

cause serious damages to this machine.

• Please check whether the water inside the drum has

been drained before opening its door.Please do not open

the door if there is any water visible.

• Be careful of burning when the product drains hot

washing water.

• Never refill the water by hand during washing.

• After the program is completed, Please wait for two

minutes to open the door.

Environment

SAFETY INSTRUCTIONS

Effective from 31 December 2018, the disposal licensing control, import and

export permit control and landfill disposal ban in respect of abandoned regulated

electrical equipment (REE) have commenced. Any person who is engaged in the

storage, treatment, reprocessing or recycling of abandoned REE must obtain a

waste disposal licence; a permit is required for the import and export of

abandoned REE; and abandoned REE is no longer be accepted for disposal at

the landfills and other designated waste disposal facilities (e.g. refuse transfer

stations).

Accessories

Product Description

Transport

plughole

Supply hose hot

water (optional)

Supply hose

cold water

Drain hose

(optional

support

)

• The product line chart is for reference only, please refer to real product as

standard.

Note!

Drum

Power supply cord

Control panel

Detergent dispenser

Service filter

Door

Water supply hose

Top cover

Drain hose

Owner’s manual

INSTALLATION

Installation

Before installing the machine, the location characterized

follows shall be selected:

1.Rigid, dry, and level surface

2.Avoid direct sunlight

3.Sufficient ventilation

4.Room temperature is above 0℃

5.Keep far away from the heat resources such as coal or gas.

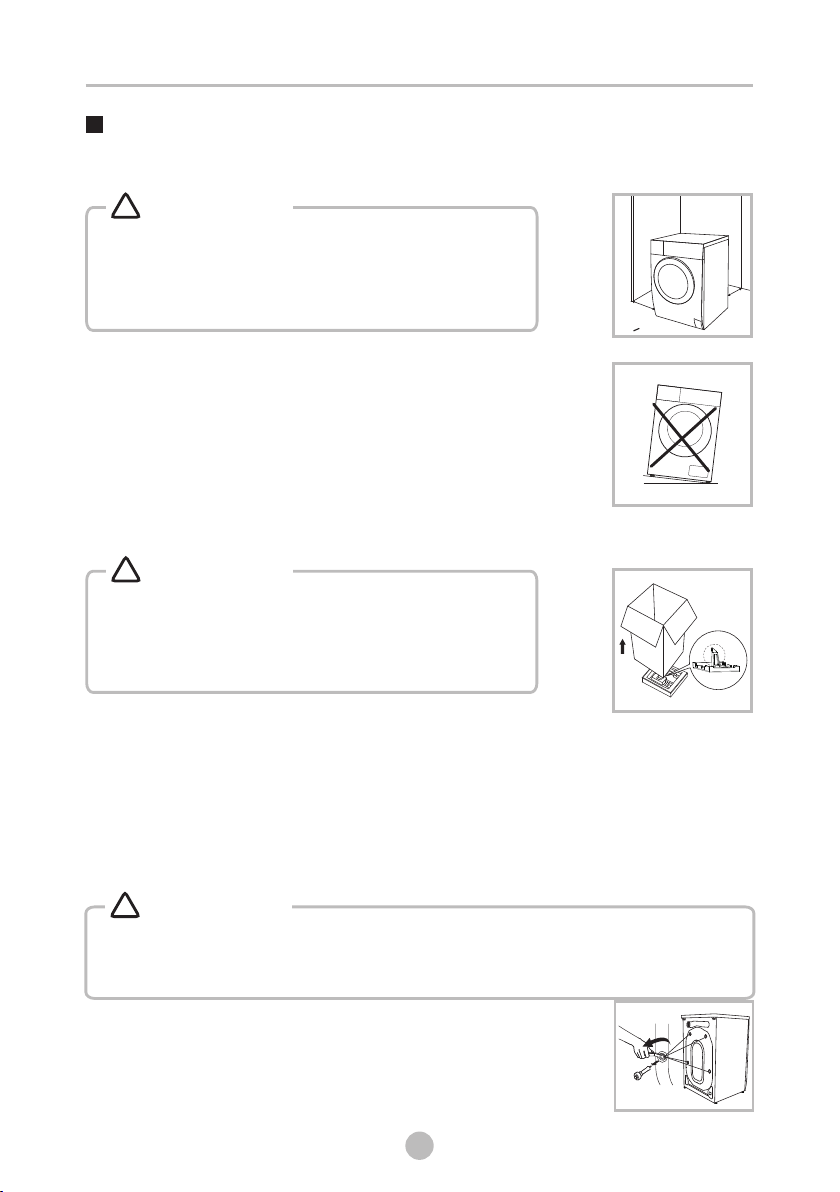

Unpacking the washing machine

1. Remove the cardboard box and styrofoam packing.

2. Lift the washing machine and remove the base packing.

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

Make sure the small triangle

foam is removed with the bottom one together. If not, lay the unit down with side

surface, then remove the small foam from the unit bottom manually.

Please take the following steps to remove the bolts:

1.Loosen 4 bolts with spanner and then remove them.

2.Stop the holes with transport hole plugs.

3.Keep the transport bolts properly for future use.

Remove transport bolts

•

Stability is important to prevent the product from

wandering!

Make sure that the product should not stand on

the power cord.

Warning!

！

•

Packaging material (e.g. Films, Styrofoam) can be

dangerous for children.

There is a risk of suffocation ! Keep all packaging

well away from children.

Warning!

！

•

• product

you

You must remove the transport bolts from the backside before using the product.

You’ll need the transport bolts again if you move the , so make sure

keep them in a safe place.

Warning!

！

INSTALLATION

W> 20mm

Installation area

1.Check if the legs are closely attached to the cabinet. If not, please turn them to

their original positions tighten the nuts.

2.Loosen the lock nut turn the feet until it closely contacts with the floor.

3.Adjust the legs and lock them with a spanner, make sure the machine is steady.

Levelling the washing machine

• The lock nuts on all four feet must be screwed tightly against the housing.

Connect Water Supply Hose

Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.

1.Connection between ordinary tap and inlet hose.

• To prevent leakage or water damage, follow the instructions in this chapter

Do not kink, crush, modify or sever .

• water inlet hose

• For the model equips hot valve,connect it to hot water tap with hot water supply

hose. Energy consumption will decrease automatically for some program.

234

Raise Lower

Lock nut

foot

Warning!

！

Warning!

！

INSTALLATION

Loosen clamp nut and

four bolts

Tighten clamp nut Press slide bushing,

insert inlet hose into

connecting base

slide bushing

2341

Connection finished

clamp nut

Tap with threads and inlet hose Special tap for washing machine

2.Connection between screw tap and inlet hose.

slide bushing

Tabla de contenidos

Otros manuales de Arandela de Frigidaire

Frigidaire

Frigidaire Gallery FWT445GC Manual de usuario

Frigidaire

Frigidaire FTF2140ES0 Manual de usuario

Frigidaire

Frigidaire FCCW2000LS0 Manual de usuario

Frigidaire

Frigidaire Gallery GLWS1349AS0 Manual de usuario

Frigidaire

Frigidaire 134851000C (0712) Manual de usuario

Frigidaire

Frigidaire LCE756A Manual de usuario

Frigidaire

Frigidaire CTF140ES0 Manual

Frigidaire

Frigidaire Gallery GLWS1649AS2 Manual de usuario

Frigidaire

Frigidaire GLTF1570E Manual de usuario

Frigidaire

Frigidaire FTF530FS - 27" Front-Load Washer Manual de usuario

Frigidaire

Frigidaire FRFW3700LW Manual de instrucciones

Frigidaire

Frigidaire GLTR1670AS0 Manual de usuario

Frigidaire

Frigidaire GLWY1343AS1 Manual de usuario

Frigidaire

Frigidaire Affinity FAFW3511K B Manual de usuario

Frigidaire

Frigidaire FAFW3001LW1 Manual de usuario

Frigidaire

Frigidaire FTF530ES0 Manual de usuario

Frigidaire

Frigidaire BKFW3517KT0 Manual del propietario

Frigidaire

Frigidaire Gallery FWT449GFS2 Manual de usuario

Frigidaire

Frigidaire LTF6000ES0 Manual de usuario

Frigidaire

Frigidaire Affinity FAFW3921NW Manual de usuario

Frigidaire

Frigidaire FTFB2940F Manual de usuario

Frigidaire

Frigidaire FRFW3700L W Instrucciones de uso

Frigidaire

Frigidaire FWX833AS3 Manual de usuario

Frigidaire

Frigidaire GLWS1439FS2 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Whirlpool

Whirlpool 3LBR5132AN0 Manual de usuario
