Frigidaire Gallery GLWS1649A Manual de usuario

WASHER

Model No.

GLWS1649A

FACTORY PARTS CATALOG

WASHER

WIRING DIAGRAM - # 134125700

OWNER’S GUIDE - # 131843000

INSTALLATION INSTRUCTIONS - # 131964000

OPERATING INSTRUCTIONS - # 134223500

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLWS1649AS2 GLWS1649A Gallery white 120

MARKET

North America

Publication No.

5995390894

030519

-EN/SERVICE /KC

361

05/03 2

Publication No. GLWS1649AS2

5995390894

CABINET / TOP

# = Fast-moving Parts 3 05/03

* = Non-Illustrated Parts

GLWS1649AS2 Publication No.

5995390894

CABINET / TOP

POS. NO PART NO DESCRIPTION

1 134203900 Screw,pan hd phillips ,6-32 x 0.337 ,dog point

2 131168200 Screw,pan head ,8-18B x 0.31

3 131433300 Bumper,lid hinge

3A 134075500 Bumper,lid ,front

4 131385910 Hinge Bar,LH

4A 131374220 Hinge Bar,RH

5 5303208743 Grommet,hinge

6 131374401 Lid,white ,no inst.

7 3205821 Clip,top-to-front

9 131390000 Lid Strike

11 3204368 Screw,lid strike mtg ,6-20B X 0.375

20 5303208751 Hinge,top panel ,cabinet rear

31 134100800 Power Cord,electric svce

32 5303209428 Bushing,power cord

33 # 131900200 Valve,water ,115 V

34 131205500 Screw,cab body ,1/4-14 x 0.625 ,side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw,shipping ,1/4-20 x 1.001 ,yellow ,unit base,thread forming

38 5303311213 Base Assembly

41 131258400 Screw,10-16AB x 0.500

42 131104303 Panel,front ,white

43 131422100 Pad,leveling leg ,front

43A 131422200 Pad,self lvlg leg ,rear

44 5303309673 Screw,leveling leg ,with pad

45 131346400 Pin,panel locator ,side

46 134046600 Cabinet Assy,white ,back and sides

50 # 134101800 Lock,lid ,w/ext switch

53 131452692 Panel,white ,top

54 5303208778 Dispenser,bleach

55 5303212876 Spring,lid assist

56 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive

58 131744202 Damper,vibration

05/03 4

Publication No. GLWS1649AS2

5995390894

MOTOR / TUB

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

GLWS1649AS2 Publication No.

5995390894

MOTOR / TUB

POS. NO PART NO DESCRIPTION

3 131551102 Cover,splash tub ,with seal

3* 131901400 Seal,splash cover

4 # 131212301 Capacitor,motor

6 5303271009 Hose,inlet ,48 inch long

7 5303161296 Washer,inlet hose

9 5303304824 Clamp,blower wheel

10 131726300 Hose Assy,w/nozzle,clamp

11 # 131605901 Agitator Assy,dual action

12 131221300 Tub,spin

13 5303283293 Screw,trunion ,5/16-18 x 0.625 ,(5)

14 131192800 Screw,lockplate ,5/16-18 x 1.625

15 5308001923 Plate,lock

16 131545101 Trunnion

18 131557201 Tub,splash ,w/air dome,brg

19 131205300 Screw,10-16 x 0.750

20 3205150 Screw,tub bearing ,8-12B x 0.750

21 5308002401 Washer,spin bearing ,upper

22 131373610 Leg & Dome Assy

23 5303208858 Spring,vertical ,short

23* 5303212877 Insert,spring adjuster ,vertical

23A 5303208860 Spring,vertical

24 131373900 Spring,horizontal

26 # 3204405 Bearing,outer tub

27 5303304825 Screw,set,hx hd cp ,5/16-18 x 0.85 ,xmsn pulley,hex head cup pt

28 # 134161100 V-Belt,washer drive ,standard 4L

29 # 131498301 Pulley,xmsn drive

30 # 131862900 Idler Arm Assy,VAW ,with pulley

33 3204425 Spring,torsional

34 3204426 Sleeve,idler pivot

35 3161433 Ring,retaining

36 5303261031 Washer,pivot shaft

37 5303161306 Washer,spring type

38 5303318708 Nut,hex flange ,motor mounting

40 # 134159500 Motor,3/4 hp,2 speed ,with pulley

41 131513300 Shield,motor assy ,w/speed nuts

41* 5303283052 Speed Nut,motor shield ,steel clip

43 # 134051200 Pump,drain

45 134049200 Hose,drain

45* 131453000 Bushing,snap-in ,drain hose

45* 131462500 Clip,drain hose ,base

45* 131506500 Clip,drain hose ,back sheet ,(2)

45* 131663500 Cushion,drain hose ,base

48 131306234 Clamp,pump to trap

49 # 131494800 Hose,pump to tub

51 131659000 Screw,leg,hex wshr hd ,5/16-18 x 0.875 ,type 23

52 131315800 Washer,leg ,1.25 OD x 0.335 ,0.040 ID

53 5300771996 Tube-pressure

56 131468900 Screw,agitator mtg ,5/16-18 x 1.250

57 131339600 Spacer,agitator mtg ,rubber

58 134160900 Screw,quadrex ,10-16AB X 0.750

60 131304300 Washer,0.21 x 0.71 ,0.06 thick

62 131258400 Screw,10-16AB x 0.500

66 131624500 Agitator Cap Assy,dispenser cup ,dual action

67 131606210 Mechanism,disp cap assy ,dual action

68 131707800 Ring,drain hose

68* 5303309503 Clip,drain hose ,back sheet

05/03 6

Publication No. GLWS1649AS2

5995390894

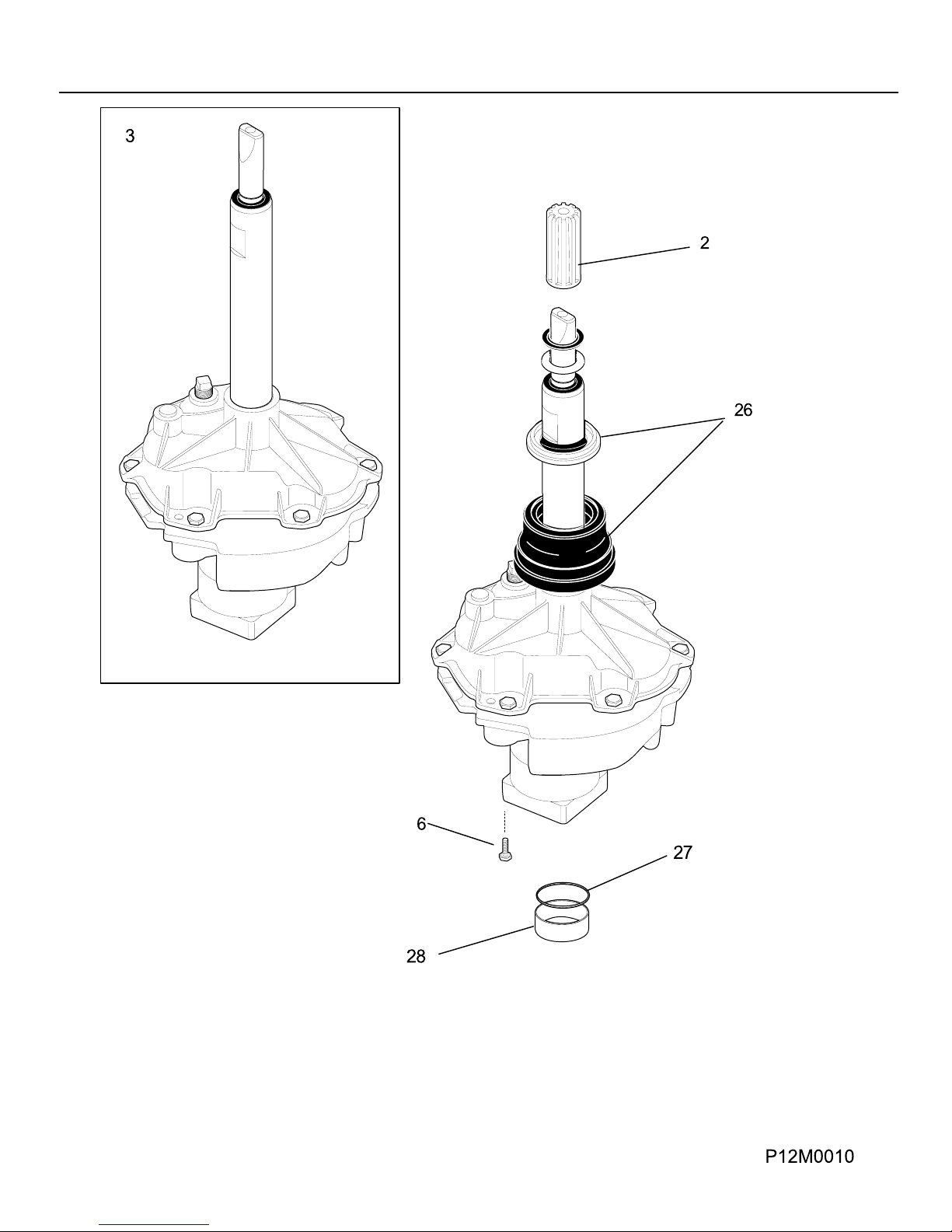

TRANSMISSION

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

GLWS1649AS2 Publication No.

5995390894

TRANSMISSION

POS. NO PART NO DESCRIPTION

2 # 131475100 Hub,drive ,agitator

3 # 131878402 Transmission Assy,H+helical gear

6 134197900 Screw,hex washer head ,1/4-20 x 0.437

26 # 5303279394 Seal Assy,tub ,transmission

27 131784300 Washer,bearing block ,transmission

28 131784400 Spacer,bearing block ,transmission

05/03 8

Publication No. GLWS1649AS2

5995390894

CONTROL PANEL

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

GLWS1649AS2 Publication No.

5995390894

CONTROL PANEL

POS. NO PART NO DESCRIPTION

1 # 131157900 Switch,speed control ,3 posn rotary

2 134096100 Spacer,console mtg

4 134034900 Knob,rotary ,white

5 # 131396200 Switch,pressure ,infinite

8 # 131856400 Timer,5-off

9 131992910 Panel,backsheet ,console

11 134019900 Closure,console trim ,white ,front

12 131168200 Screw,pan head ,8-18B x 0.31

15 # 131081200 Switch,temp selector ,4 posn rotary

16 131477001 Screw,pan head ,10-16AB x 0.375

17 131993000 Bracket,control mtg.

18 134074200 Panel,trimplate ,console front

20 134019610 End Cap,white ,LH

21 134035200 Knob,timer ,white ,assy

22 131266330 Screw,8-18 x 1.250

25 134035100 Pointer,timer knob ,white ,dark gray ind.

27 131197000 Clip,console mtg

29 # 134123100 Wiring Harness,controls

31 134019600 End Cap,white ,RH

33 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)

39 131205100 Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive

56 131243800 Screw,pan hd locking ,8-32CA x 0.375 ,cup point

* 134220200 Energy Guide

05/03 10

Publication No. GLWS1649AS2

5995390894

WIRING DIAGRAM
