Frigidaire FTW3014K Manual de usuario

Product No. FTW3014KW0

Market North America

Color white

Volts 120

Wiring Diagram 137171200

Owner's Guide 137153200

Installation Instructions

137153100

Energy Guide 137152500

P12L0040.eps P12V0131.eps P12T0092.eps P12M0014.eps P12C0399.eps

137171200.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539425

09/05/04

(EN/SERVICE/WTC)

361

TOP-LOAD WASHING

MACHINE

Model No.

FTW3014K

Publication No: 5995539425 FTW3014KW0

05/09 2

CABINET/TOP

P12V0131

31 32

FTW3014KW0 Publication No: 5995539425

# Functional Parts 3 05/09

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point

3A 134075500 Bumper, lid, front

4 131385910 Hinge Bar, LH

4A 134883900 Hinge Bar, RH

5 5303208743 Grommet, hinge

6 131374401 Lid, white

7 3205821 Clip, top-to-front

9 131390000 Lid Strike

11 3204368 Screw, lid strike mtg, 6-20B X 0.375

20 5303208751 Hinge, top panel, cabinet rear

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 134890600 Valve, water, 115 V

34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming

38 134773500 Base Assembly

41 131258400 Screw, 10-16AB x 0.500

42 131104303 Panel, front, white

43 131422100 Pad, leveling leg

44 5303309673 Screw, leveling leg, with pad

45 131346400 Pin, panel locator

46 134046600 Cabinet Assy, white, back and sides

50 134936800 Lock, lid

53 137098892 Panel, washer top, white

54 5303208778 Dispenser, bleach

55 134890500 Spring, lid assist

57 131800405 Insulation, noise absorber

58 131744202 Damper, vibration

80 134547800 Screw, 10-16AB x 0.375

Publication No: 5995539425 FTW3014KW0

05/09 4

MOTOR/TUB

P12T0092

35 36 37

23A

FTW3014KW0 Publication No: 5995539425

# Functional Parts 5 05/09

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131551103 Cover, splash tub, with seal

3* 131901400 •Seal, splash cover

4 # 131212303 Capacitor, motor

6 131454100 Hose, water inlet, 4 ft., hose & washer

7 5303161296 Washer, inlet hose

9 5303304824 Clamp

10 134211700 Hose Assy, w/nozzle

11 # 131605901 Agitator Assy, dual action

12 131221300 Tub, spin

13 5303283293 Screw, trunion, 5/16-18 x 0.625, (5)

14 131192800 Screw, lockplate, 5/16-18 x 1.625

15 5308001923 Plate, lock

16 131545101 Trunnion

18 131557201 Tub, splash, w/air dome, brg

19 131205300 Screw, 10-16 x 0.750

20 3205150 Screw, tub bearing, 8-12B x 0.750

21 5308002401 Washer, spin bearing, upper

22 131373610 Leg & Dome Assy

23 134886600 Spring, vertical, short

23* 5303212877 Insert, spring adjuster, vertical

23A 134885900 Spring, vertical

24 131373900 Spring, horizontal

26 # 3204405 Bearing, outer tub

27 5303304825 Screw, set, hex hd cup, 5/16-18 x 0.85, xmsn pulley, hex head cup pt

28 # 134511600 V-Belt, washer drive, standard 4L

29 # 131498301 Pulley, xmsn drive

30 # 131862900 Idler Arm Assy, VAW, with pulley

33 3204425 Spring, torsional

34 3204426 Sleeve, idler pivot

35 3161433 Ring, retaining

36 5303261031 Washer, pivot shaft

37 5303161306 Washer, spring type

38 5303318708 Nut, hex flange, motor mounting

40 # 134159500 Motor, 3/4 hp, 2 speed, with pulley

41 131715801 Shield, motor assy, incl capacitor

41 134455500 •Shield, motor assy

43 # 137151800 Pump, drain

45 # 134592700 Hose, drain

45* 131453000 Bushing, snap-in

45* 131663500 Cushion, drain hose, base

45* 134261300 Clip, drain hose, push-mount

45* 134745300 Clip, drain hose

48 131306234 Clamp, hose, wire

49 # 131494800 Hose, pump to tub

51 134164400 Screw, hex washer head, 5/16-18 x 0.625

53 5300771996 Tube, pressure, vinyl

56 131468900 Screw, agitator mtg, 5/16-18 x 1.250

57 131339600 Spacer, agitator mtg, rubber

58 134160900 Screw, washer hd, 10-16AB X 0.75

62 131258400 Screw, 10-16AB x 0.500

66 131624500 Agitator Cap Assy, dispenser cup, dual action

67 131606210 Mechanism, disp cap assy, dual action

68 131707800 Ring, drain hose

68* 5303309503 Clip, drain hose, back sheet

Publication No: 5995539425 FTW3014KW0

05/09 6

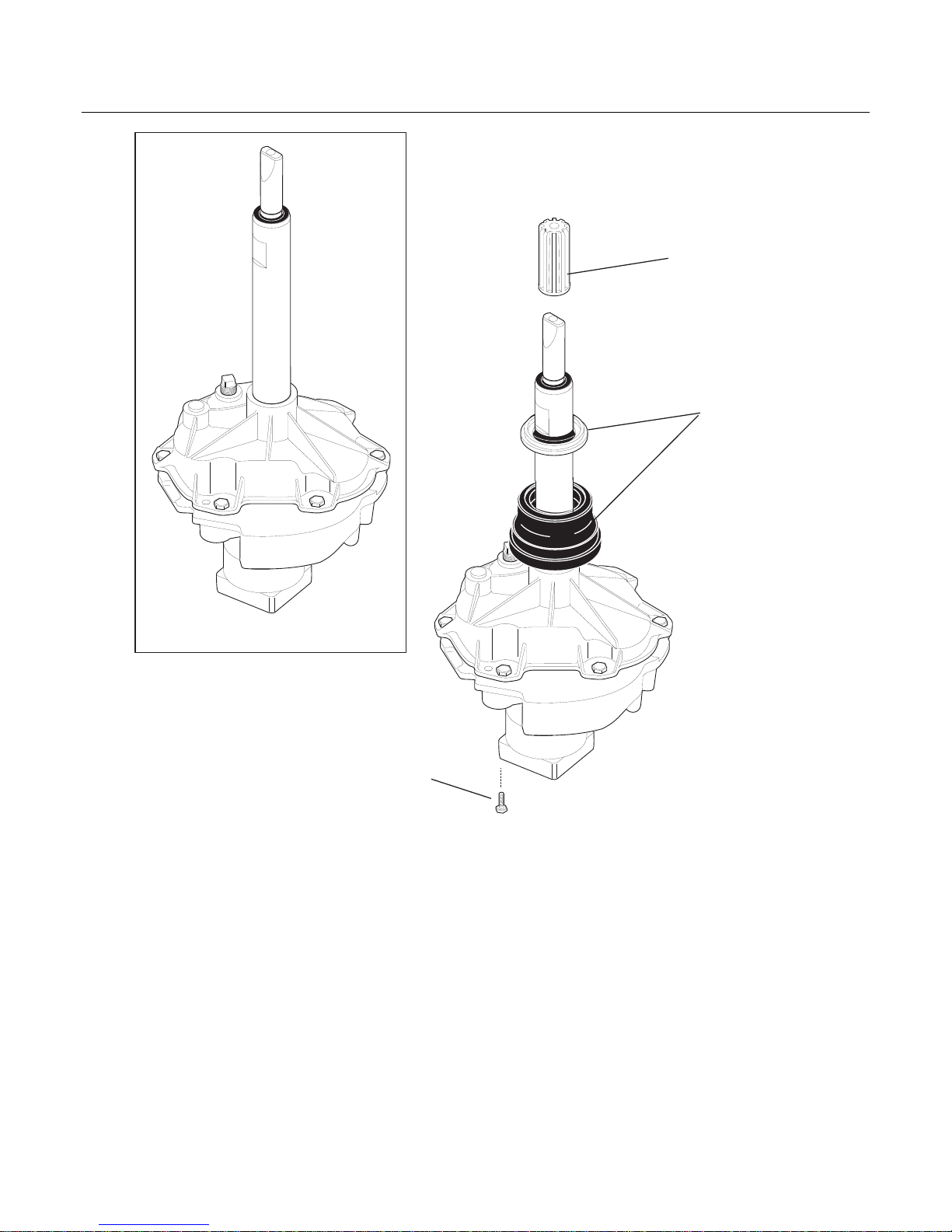

TRANSMISSION

P12M0014

FTW3014KW0 Publication No: 5995539425

# Functional Parts 7 05/09

* Non-Illustrated Parts

TRANSMISSION

POS. NO PART NO. DESCRIPTION

2 # 134418700 Hub, drive, agitator

3 # 134737100 Transmission, service kit

6 134197900 Screw, hex washer head, 1/4-20 x 0.437

26 # 5303279394 Seal Assy, tub, transmission

Publication No: 5995539425 FTW3014KW0

05/09 8

CONTROL/PANEL

P12C0399

17 5

12 12

FTW3014KW0 Publication No: 5995539425

# Functional Parts 9 05/09

* Non-Illustrated Parts

CONTROL/PANEL

POS. NO PART NO. DESCRIPTION

1 # 134404200 Switch, speed control, 4 posn rotary

2 134096100 Spacer, console mtg

4 134844410 Knob, rotary, white

5 # 137014800 Switch, pressure

8 # 137169400 Timer, washer

9 131992910 Panel, backsheet, console

11 134019900 Closure, console trim, white, front

12 134547800 Screw, 10-16AB x 0.375

15 # 134409000 Switch, temperature, 4 posn rotary

17 131993040 Bracket, control mtg.

18 137152600 Panel, trimplate, white, console front

20 134019610 End Cap, white, LH

21 134034800 Knob, timer, white, assy

22 131266330 Screw, 8-18 x 1.250

25 134034700 Pointer, timer

26 5308015493 Spacer, washer, timer shaft

27 131197000 Clip, console mtg

29 # 137171100 Wire harness

31 134019600 End Cap, white, RH

33 # 134406000 Switch, water temp, 4 posn rotary

56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

64 # 131891010 Control Board, temperature, ATC

* 137152500 Energy Guide

Publication No: 5995539425 FTW3014KW0

05/09 10

WIRING DIAGRAM
