Product No. FSC23F7TDB7 FSC23F7TDS7

Series counter depth counter depth

Color black stainless

Volts 115 115

Wiring Diagram 241516401A 241516401A

Owner's Guide 241540301 241540301

Market North America North America

Energy Guide 241585919 241585919

Service Data Sheet 241532603 241532603

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995448460

05/09/20

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FSC23F7TD

Publication No: 5995448460 FSC23F7TD

09/05 2

FREEZER DOOR

21B

37A

37B

22C

13A

22A

21A

N58FKGCFA0

FSC23F7TD Publication No: 5995448460

# Functional Parts 3 09/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFSC23F7TD (FSC23F7TDB7)

BFSC23F7TD (FSC23F7TDS7)

POS. NO PART NO. DESCRIPTION

1 # 241510204 A B Gasket-frzr door, black, magnetic

4B 241511602 A B Bin-door

5 241545001 A B Bin-tilt out, tilt-out

11 241668176 A B Door-frzr, black, complete assy

13A 240537106 A B Door Stop, black, frzr

18 241533605 A - Handle-frzr door, black

18 241533607 - B Handle-frzr door, aluminum

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21B 241543201 A B Screw, #10-16 x 2

22A 240328202 A B Bearing-hinge(frz), closer

22C 240328404 A B Bearing-hinge, black, upper

37 241533705 A - Trim-door, black, side

37 241533707 - B Trim-door, black, side

37A 241534205 A - Trim-door, black, top

37A 241534207 - B Trim-door, aluminum, top

37B 241533805 A - Trim-frzr door, lower

37B 241533807 - B Trim-door, aluminum, bottom

68 241525101 A B Chute-ice

* 240352102 A B Connector-water, straight

* 240388601 A B Elbow-water tube

* 240411501 A B Clip-dispenser cover

* 240552102 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995448460 FSC23F7TD

09/05 4

REFRIGERATOR DOOR

N58RKGCHB0

49A

22B

21A

37B

21B

37A

27A

FSC23F7TD Publication No: 5995448460

# Functional Parts 5 09/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFSC23F7TD (FSC23F7TDB7)

BFSC23F7TD (FSC23F7TDS7)

POS. NO PART NO. DESCRIPTION

2 # 241510203 A B Gasket-refr door, black, magnetic

5 241516102 A B Rack-can

6 241515901 A B Lug-dairy compartment

7 241515601 A B Door-dairy

13 240537105 A B Door Stop, black, ref

15 241534515 A B Door-refr, black, complete assy

18 241533606 A - Handle-door, black

18 241533608 - B Handle-refr door, aluminum

21 218781100 A B Screw, pan head, 8-18 x 0.625

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21B 241543201 A B Screw, #10-16 x 2

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

27A 240396102 A B Retainer, tall bottle

37 241533706 A - Trim-door, black, side

37 241533708 - B Trim-door, aluminum, side

37A 241534206 A - Trim-door, black, top

37A 241534208 - B Trim-door, aluminum, top

37B 241533806 A - Trim-refr door, bottom

37B 241533808 - B Trim-door, aluminum, bottom

48 241511701 A B Bin-door, ref

49 241505301 A B Bin-door, 2-liter

49A 241505501 A B Bin-door, gallon

50 241508401 A B Cover-magnet

70 241515801 A B Compartment-dairy, removable

Publication No: 5995448460 FSC23F7TD

09/05 6

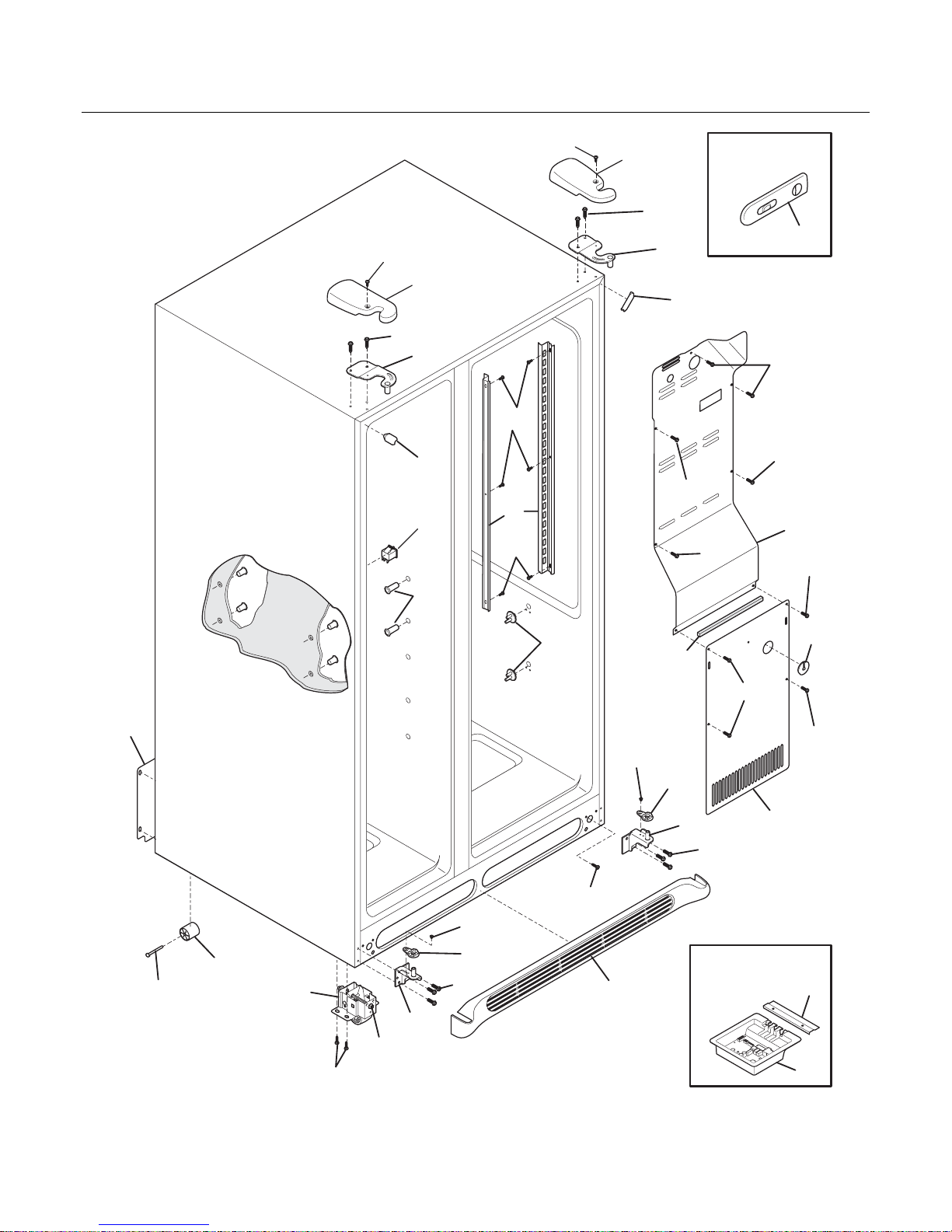

CABINET

100

38A

30A

21C

10A

N58BABAAD2

14A

21C

40A

FSC23F7TD Publication No: 5995448460

# Functional Parts 7 09/05

* Non-Illustrated Parts

CABINET

Model Index: AFSC23F7TD (FSC23F7TDB7)

BFSC23F7TD (FSC23F7TDS7)

POS. NO PART NO. DESCRIPTION

10 241509802 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B Bracket-lower hinge, ref

30A 241603702 A B Bracket-lower hinge

37 240337603 A B Trim-cabinet corner, black, (2)

38 241617901 A B Bracket-upper hinge

38A 241617902 A B Bracket-upper hinge

40 241519205 A B Cover-hinge, black

40A 241519206 A B Cover-hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, adjustable, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 241513001 A B Channel-shelf mtg, side, (2)

50 241511101 A B Board-main power

50* 241524801 A B Seal-Mother Board Housing

50* 241532501 A B Clip-harness

54 241532401 A B Channel

66 241513601 A B Damper Assy

72 241521610 A B Grille/Kickplate, black

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B Cover access

90 218249808 A B Seal-coil cover

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 240479601 A B Plug, button, cab liner holes, (2)

* 241591701 A B Louver

* 5303305345 A B Paint, touch-up, black

Publication No: 5995448460 FSC23F7TD

09/05 8

SHELVES

49B

N58SEDLBC13

24B

140

25B

47B

47A

25A

26A

101

100

109 15A

15A 16A

126

120

24B

52A

11A

51A

122

121

136

FSC23F7TD Publication No: 5995448460

# Functional Parts 9 09/05

* Non-Illustrated Parts

SHELVES

Model Index: AFSC23F7TD (FSC23F7TDB7)

BFSC23F7TD (FSC23F7TDS7)

POS. NO PART NO. DESCRIPTION

2 241510605 A B Trim-basket

11 240443357 A B Shelf-freezer, glass, lower

11A 240443358 A B Shelf-freezer, glass, upper

15A 241552801 A B Light Bulb

16A 241622802 A B Socket-light

16A* 241523201 A B Harness-wiring

24 240355240 A B Shelf-"Spill-Safe", fixed, (3)

24B 240350129 A B Shelf-"Spill-Safe", cantilever, sliding

25 240599301 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

25B 240599801 A B Cover-meat pan

26 240351005 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240362201 A B Control-humidity

27 240351205 A B Pan-crisper, lower

39 240367603 A B Trim-shelf, 11.65", front

41 241637601 A B Baffle-air

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

47B 240443360 A B Insert-pan cover, glass

49 241515001 A B Basket-sliding

49B 241514901 A B Basket-sliding, upper, full

51 241514501 A B Hanger-basket, RH

51A 241514701 A B Hanger-shelf glass, RH

52 241514601 A B Hanger-basket, LH

52A 241514801 A B Hanger-shelf glass, LH

62 240599701 A B Pan-meat

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 241532002 A B Water Tank

100 241549901 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

109 241513202 A B Base-crisper light socket

120 241504501 A B Shelf-ice cream

121 241504701 A B Rail-ice cream shelf, LH

122 241504702 A B Rail-ice cream shelf, RH

126 241630701 A B Channel, auger mtg, LH

126 241630702 A B Channel, auger mtg, RH

136 240424502 A B Dispenser-can, clear

140 240430504 A B Channel, wtr tube cover

Publication No: 5995448460 FSC23F7TD

09/05 10

CONTROLS

201

199

198

151

149

139

138

137

116

115

N58TBAAAB2
