Frigidaire FRS20ZSH Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS20ZSHB2 FRS20ZSH PRO-GALLERY black/stainless 115

FRS20ZSHB3 FRS20ZSH PRO-GALLERY black/stainless 115

MARKET

North America

Publication No.

5995327854

990915

-EN/SERVICE /ECL

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS20ZSH

FACTORY PARTS CATALOG

SIDE BY SIDE

REFRIGERATOR

WIRING DIAGRAM - # 218875901

OWNER’S GUIDE - # 218953800

SERVICE DATA SHEET - # 218909400

101 Masters Blvd.

Anderson, SC 29624

09/99 2

Publication No. FRS20ZSH

5995327854

FREEZER DOOR

# = Fast-moving Parts 3 09/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995327854

FREEZER DOOR

A = FRS20ZSH (FRS20ZSHB2)

B = FRS20ZSH (FRS20ZSHB3)

POS. NO PART NO DESCRIPTION

1 # 215734321 A B Gasket-frzr door,black ,magnetic

5 5303288950 A B Support-door rack,RH/LH

6 5303323484 A B Support-door rack,white ,LH

6A 5303323485 A B Support-door rack,white ,RH

8 218807017 A B Rack-door,w/end caps

8A 215474047 A B Rack-door

9 218748601 A B Panel-inner door,frzr

11 218619097 A B Panel-frzr door,stainless steel ,w/foam insulatn

13 5303289522 A B Door Stop

18 218756501 A B Handle-door,stainless steel ,with insert

21 218709100 A B Screw-handle mtg,hex head ,10-32 x 0.500

21A 218578600 A B Screw-door stop mtg,phl truss hd ,10-16 x 3/4

22A 215615300 A B Bushing-door,bronze

23 5303001020 A B Screw,cr flat head ,8-32D x 1/2

47 218922901 A B Wiring Harness,frzr door

58 218781100 A B Screw,pan head ,8-18 x 0.625

68 218020600 A B Chute-ice

140 218922801 A B Elbow-water tube

141 218929601 A B Tool-Push Connector

* 218490900 A B Cleaner,stainless steel

* 218789501 A B Heater-lower flange

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

09/99 4

Publication No. FRS20ZSH

5995327854

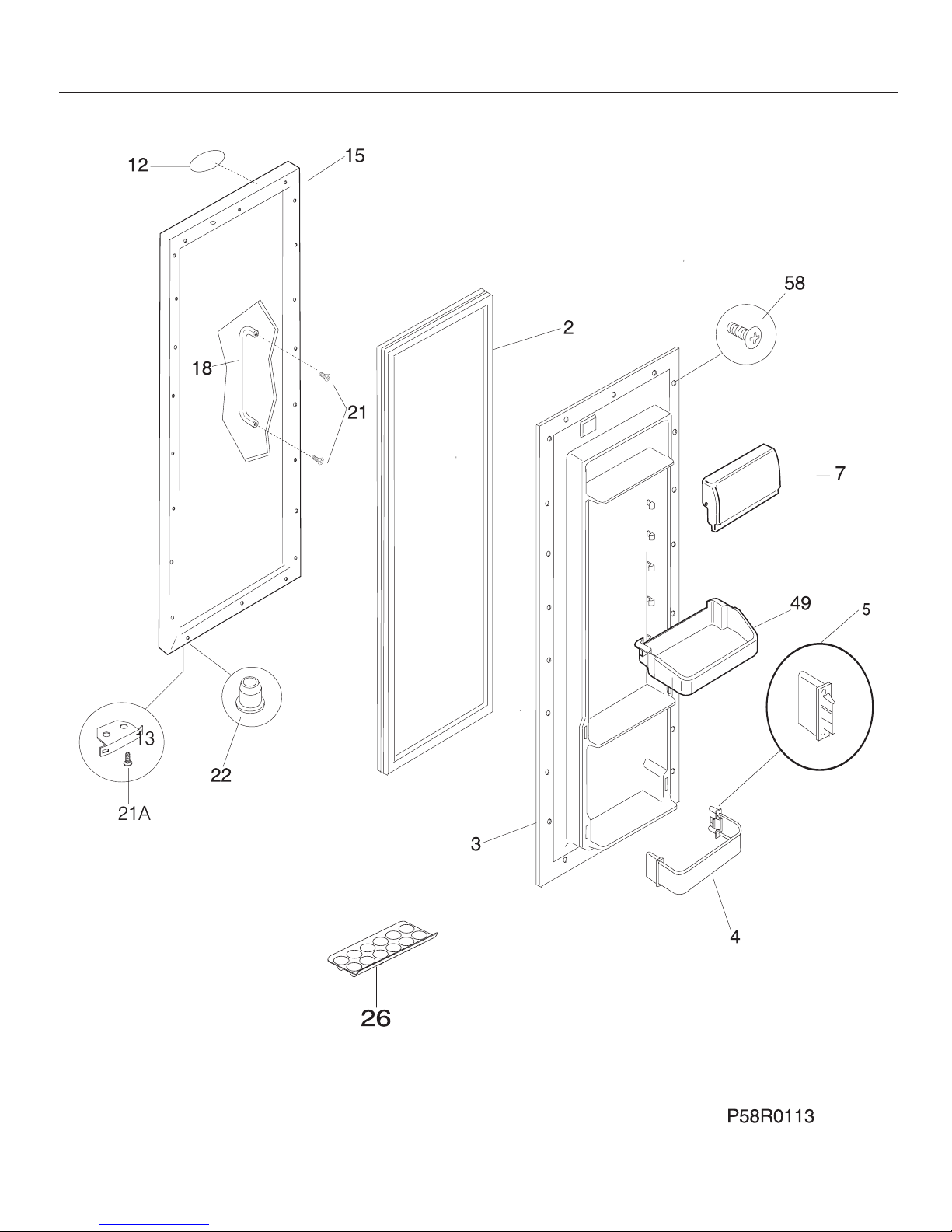

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995327854

A = FRS20ZSH (FRS20ZSHB2)

B = FRS20ZSH (FRS20ZSHB3)

POS. NO PART NO DESCRIPTION

2 # 215734322 A B Gasket-refr door,black ,magnetic

3 218749301 A B Panel-inner door,refr

4 218807016 A B Rack-door,(2)

5 5303288950 A B Support-door rack,RH/LH

7 5303308347 A B Door-dairy,12.96" wide

12 218395401 A B Nameplate,black

13 5303289522 A B Door Stop

15 218618962 A B Panel-refr door,stainless steel ,w/foam insulatn

18 218756501 A B Handle-door,stainless steel ,with insert

21 218709100 A B Screw-handle mtg,hex head ,10-32 x 0.500

21A 218578600 A B Screw-door stop mtg,phl truss hd ,10-16 x 3/4

22 5303289320 A B Bearing-hinge

26 215817806 A B Tray-egg

49 218592305 A B Bin-door,gallon ,with trim

58 218781100 A B Screw,pan head ,8-18 x 0.625

* 218490900 A B Cleaner,stainless steel

* 5303917276 A B Insulation-door,fiberglass ,(bulk)

REFRIGERATOR DOOR

09/99 6

Publication No. FRS20ZSH

5995327854

CABINET

# = Fast-moving Parts 7 09/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995327854

A = FRS20ZSH (FRS20ZSHB2)

B = FRS20ZSH (FRS20ZSHB3)

POS. NO PART NO DESCRIPTION

10 218748901 A B Cover-air duct

10* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding

10A 218751301 A B Cover-evap coil,lower

11 5303208309 A B Plug-hole,factory test

12 215230400 A B Plug-harness hole

18 5303289043 A B Support-air duct cvr,2.55" long

18* 5303289044 A B Support-air duct cvr,1.83" long

28 5303289062 A B Bolt-roller adj,hex head ,5/16-24 x 7/8

29 215314301 A B Washer,.40 x .75 x .06 ,nylon

29* 215598900 A B Washer-flat,.691x1x.05,zinc ,I&W hinge brkt

29* 218871201 A B Washer,nylon ,0.363 ID w/nibs

30 5303289060 A B Bracket-lower hinge,RH ,w/hinge pin

30* 218730800 A B Tapping Plate,RH

30A 215009000 A B Bracket-lower hinge,LH ,w/hinge pin

30A* 218730700 A B Tapping Plate,LH

37 5303321083 A B Trim-cabinet corner,black

38 218215214 A B Bracket-upper hinge,with closer ,black ,RH

38 218215216 A B Bracket-upper hinge,with closer ,black ,LH

40 5303323268 A B Cover-upper hinge,black

41 5303001609 A B Grommet,shelf/rod mtg ,RH

41* 5308009759 A B Grommet,shelf mtg ,LH

43 218615300 A B Roller Assy,front ,(2)

43* 5308017044 A B Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8

44 218738300 A B Roller Assy,rear ,(2)

47 218659500 A B Channel-shelf mtg,side ,(2)

52 215454600 A B Tube-water inlet

58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500 ,special

66 215050201 A B Damper-meat keeper

66A 218171301 A B Cover-meat kpr dmpr

72 218359615 A B Grille/Kickplate,black

77 5303001216 A B Washer-nylon,3/16 x 5/8 OD

78 5303274237 A B Screw-bracket,hex wshr hd ,8-32CA x 0.500

80 218249802 A B Seal-coil cover,(2)

81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,low profile

85 218922705 A B Cover-lower hinge,black

89 215741407 A B Cover-machine compt,w/caution label

90 215022602 A B Seal-foam

90* 5303322647 A B Tape-foam

91 218769900 A B Deflector-air,air duct cover

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

101 218663103 A B Gasket-air duct cvr

* 218902101 A B Cap-protector, lower hinge

* 5303305345 A B Paint,touch-up ,black

CABINET

09/99 8

Publication No. FRS20ZSH

5995327854

SHELVES

# = Fast-moving Parts 9 09/99

* = Non-Illustrated Parts

FRS20ZSH Publication No.

5995327854

A = FRS20ZSH (FRS20ZSHB2)

B = FRS20ZSH (FRS20ZSHB3)

POS. NO PART NO DESCRIPTION

2 5303300707 A B Trim-basket

11 218298005 A B Shelf-freezer,sliding ,wire

11* 218159700 A B Spacer-shelf

11B 5304405990 A B Shelf-freezer,fixed wire

24 218746001 A B Shelf-"Spill-Safe",sliding ,(3)

25A 218015301 A B Trim-storage pan cvr,snap-on ,front

25C 218015401 A B Trim-storage pan cvr,snap-on ,rear

26 5303306579 A B Pan-storage,upper

26A 5303288968 A B Pan-storage,lower

28 08013638 A B End Cap-shelf,protector ,lower fzr shelf

39 215217562 A B Trim-frzr shelf

39A 215217563 A B Trim-frzr shelf

46 218278301 A B Front-storage pan,upper

46A 218278302 A B Front-storage pan,lower

47 218498118 A B Insert-pan cover,glass ,w/graphics

47A 215723551 A B Insert-pan cover,14.61" x 17.32" ,glass

49 5303288957 A B Basket-sliding

51 5303288960 A B Hanger-basket,RH

52 215162501 A B Hanger-basket,LH,with/spring

57 5303271653 A B Ferrule-inner

66 5304402116 A B Rack-wine

OPTIONAL ACCESS0RY

81 5308016566 A B Screw,hex wshr hd ,8-15A x 0.625 ,low profile

96 215192600 A B Support-water tank

97 218942701 A B Water Tank

100A 218015501 A B Support-pan cover,LH

100B 218015601 A B Support-pan cover,RH

101 215005000 A B Screw,hex wshr hd ,8-18AB x 0.750 ,gusset/hanger

126 218867401 A B Channel,auger mtg ,LH

126 218867402 A B Channel,auger mtg ,RH

* 215328300 A B Clip-shelf

SHELVES

09/99 10

Publication No. FRS20ZSH

5995327854

CONTROLS
