Frigidaire FRS23KR4A Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS23KR4AB0 FRS23KR4A R134a black 115

FRS23KR4AB1 FRS23KR4A R134a black 115

FRS23KR4AQ0 FRS23KR4A R134a bisque 115

FRS23KR4AQ1 FRS23KR4A R134a bisque 115

FRS23KR4AW0 FRS23KR4A R134a white 115

FRS23KR4AW1 FRS23KR4A R134a white 115

MARKET

North America

Publication No.

5995352761

010420

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS23KR4A

WIRING DIAGRAM -0=#2404261013 & 1 = #240443001

OWNER’S GUIDE - # 240389300

SERVICE DATA SHEET-0=#240389600 & 1 = #240389603

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

04/01 2

Publication No. FRS23KR4A

5995352761

FREEZER DOOR

# = Fast-moving Parts 3 04/01

* = Non-Illustrated Parts

FRS23KR4A Publication No.

5995352761

FREEZER DOOR

A = FRS23KR4A (FRS23KR4AB0)

B = FRS23KR4A (FRS23KR4AB1)

C = FRS23KR4A (FRS23KR4AQ0)

D = FRS23KR4A (FRS23KR4AQ1)

E = FRS23KR4A (FRS23KR4AW0)

F = FRS23KR4A (FRS23KR4AW1)

POS. NO PART NO DESCRIPTION

1 # 240390608 A B - - - - Gasket-frzr door,black ,magnetic

1 240390604 - - C D E F Gasket-door,white

4A 240367301 A B C D E F Bin-door,frzr-upper

4B 240359001 A B C D E F Bin-door

11 240451829 A B - - - - Door-frzr,black ,complete assy

11 240451825 - - C D - - Door-frzr,bisque ,complete assy

11 240451819 - - - - E F Door-frzr,white ,complete assy

13A 240456906 A B - - - - Door Stop,black ,frzr

13A 240456904 - - C D - - Door Stop,bisque ,frzr

13A 240456902 - - - - E F Door Stop,white ,frzr

14 218915703 A B - - - - Plug-button,black

14 218915704 - - C D - - Plug-button,bisque

14 218915701 - - - - E F Plug-button,white

18 218762703 A B - - - - Handle-door,black

18 218762706 - - C D - - Handle-door,bisque

18 218762701 - - - - E F Handle-door,white

21A 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500

21C 218781100 A B C D E F Screw,pan head ,8-18 x 0.625

22A 240328202 A B C D E F Bearing-hinge,closer

22C 240328404 A B - - - - Bearing-hinge,black ,upper

22C 240328402 - - C D E F Bearing-hinge,upper

37 218811620 A B - - - - Trim-handle,black ,upper

37 218811632 - - C D - - Trim-handle,bisque ,upper

37 218811618 - - - - E F Trim-handle,white ,upper

37* 218676004 A B C D E F Band-decorative,satin aluminum, handle trim

37A 218811617 A B - - - - Trim-handle,black ,lower

37A 218811631 - - C D - - Trim-handle,bisque ,lower

37A 218811615 - - - - E F Trim-handle,white ,lower

37A* 215782300 A B C D E F Lock-handle trim,snap-in

68 240321902 A B C D E F Chute-ice

96 240345504 A B - - - - Plug-foam hole,black

96 240345503 - - C D E F Plug-foam hole,white

* 240323201 A B C D E F Wiring Harness

* 240352101 A B C D E F Connector-water,straight

04/01 4

Publication No. FRS23KR4A

5995352761

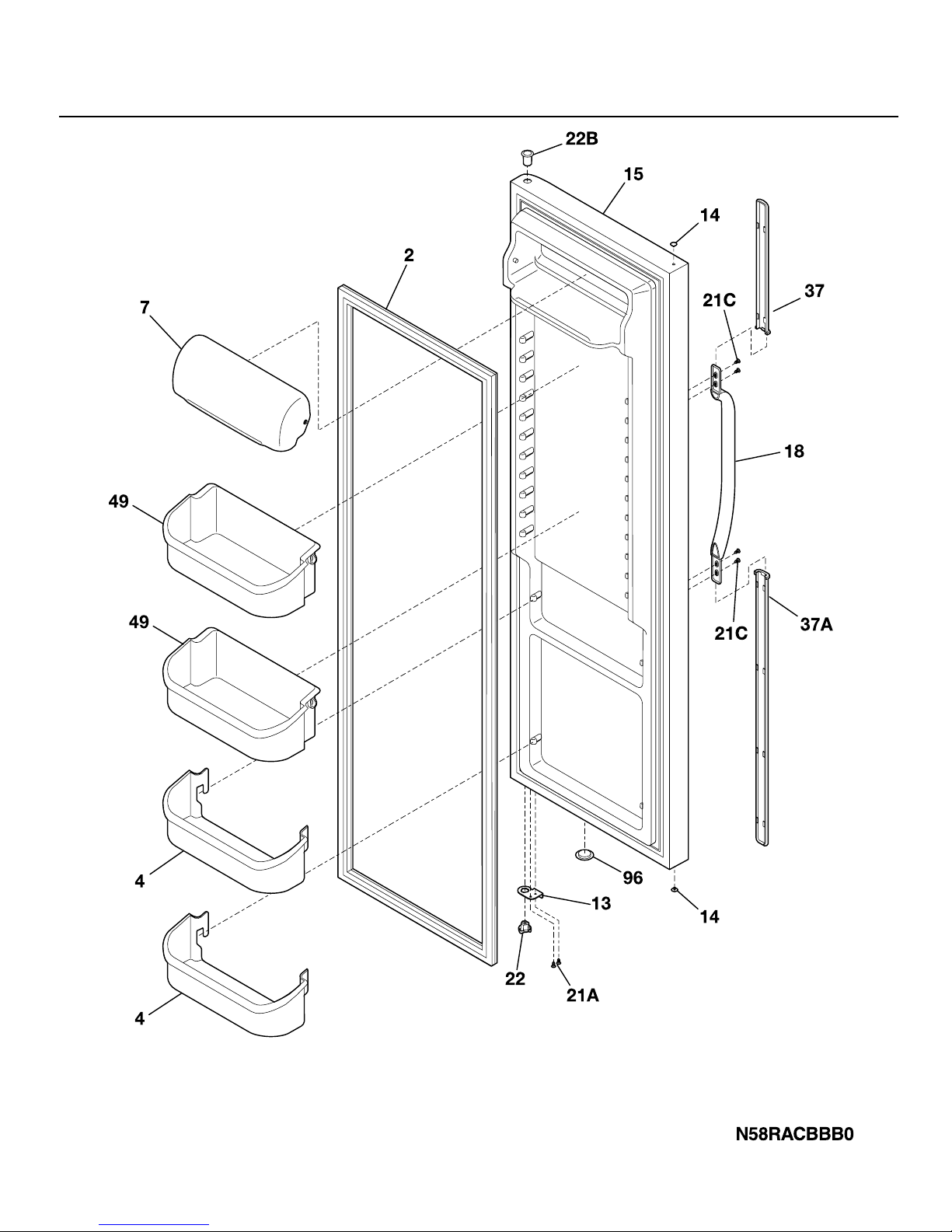

REFRIGERATOR DOOR

# = Fast-moving Parts 5 04/01

* = Non-Illustrated Parts

FRS23KR4A Publication No.

5995352761

A = FRS23KR4A (FRS23KR4AB0)

B = FRS23KR4A (FRS23KR4AB1)

C = FRS23KR4A (FRS23KR4AQ0)

D = FRS23KR4A (FRS23KR4AQ1)

E = FRS23KR4A (FRS23KR4AW0)

F = FRS23KR4A (FRS23KR4AW1)

POS. NO PART NO DESCRIPTION

2 # 240390607 A B - - - - Gasket-refr door,black ,magnetic

2 # 240390603 - - C D E F Gasket-refr door,white ,magnetic

4 240363701 A B C D E F Bin-door,2-liter

7 240338303 A B C D E F Door-dairy

13 240456905 A B - - - - Door Stop,black ,ref

13 240456903 - - C D - - Door Stop,bisque ,ref

13 240456901 - - - - E F Door Stop,white ,ref

14 218915703 A B - - - - Plug-button,black

14 218915704 - - C D - - Plug-button,bisque

14 218915701 - - - - E F Plug-button,white

15 240451920 A B - - - - Door-refr,black ,complete assy

15 240451916 - - C D - - Door-refr,bisque ,complete assy

15 240451912 - - - - E F Door-refr,white ,complete assy

18 218762703 A B - - - - Handle-door,black

18 218762706 - - C D - - Handle-door,bisque

18 218762701 - - - - E F Handle-door,white

21A 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500

21C 218781100 A B C D E F Screw,pan head ,8-18 x 0.625

22 240328201 A B C D E F Bearing-hinge,closer

22B 240328403 A B - - - - Bearing-hinge,upper

22B 240328401 - - C D E F Bearing-hinge,upper

37 218811620 A B - - - - Trim-handle,black ,upper

37 218811632 - - C D - - Trim-handle,bisque ,upper

37 218811618 - - - - E F Trim-handle,white ,upper

37* 218676004 A B C D E F Band-decorative, satin aluminum, handle trim

37A 218811617 A B - - - - Trim-handle,black ,lower

37A 218811631 - - C D - - Trim-handle,bisque ,lower

37A 218811615 - - - - E F Trim-handle,white ,lower

37A* 215782300 A B C D E F Lock-handle trim,snap-in

49 240324501 A B C D E F Bin-door,gallon

96 240345504 A B - - - - Plug-foam hole,black

96 240345503 - - C D E F Plug-foam hole,white

REFRIGERATOR DOOR

04/01 6

Publication No. FRS23KR4A

5995352761

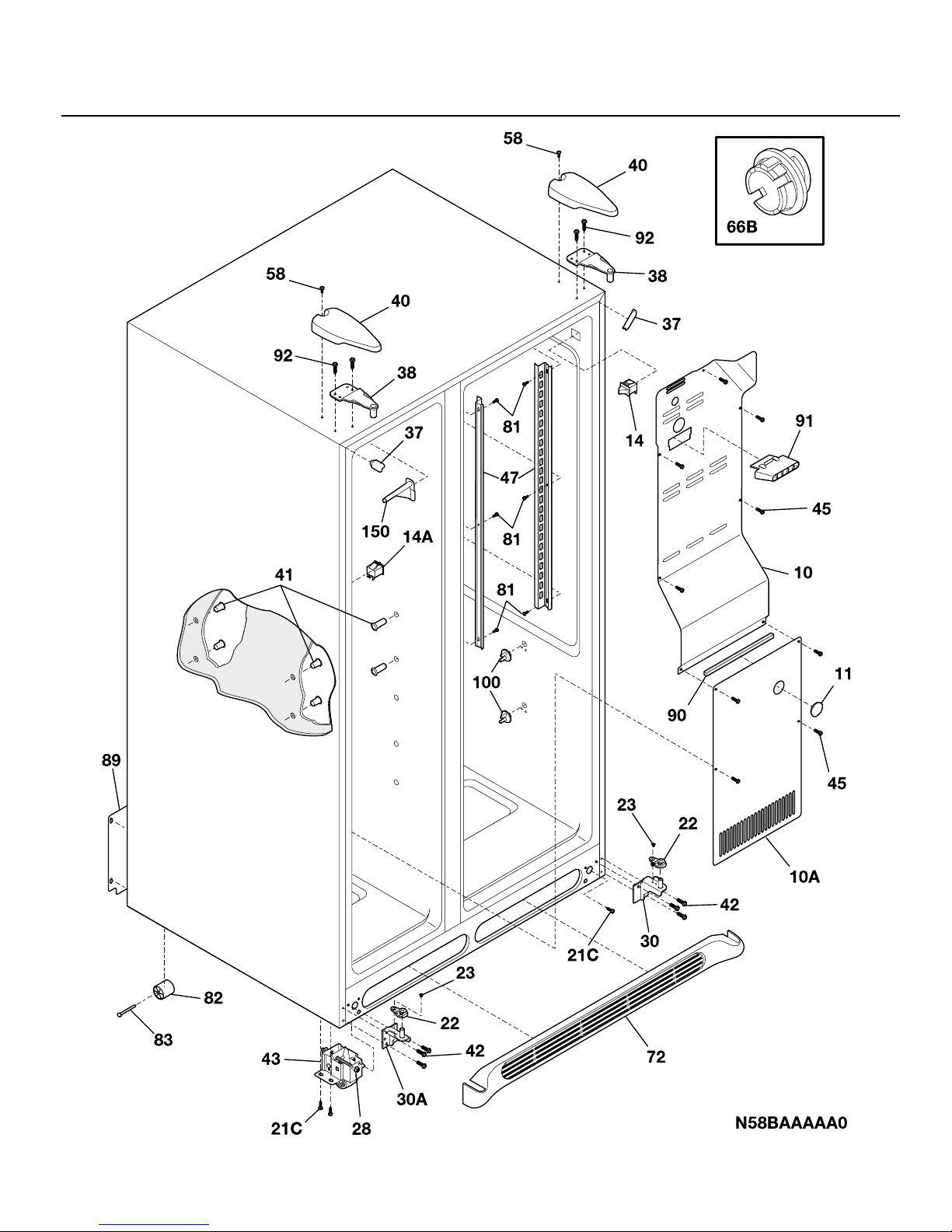

CABINET

# = Fast-moving Parts 7 04/01

* = Non-Illustrated Parts

FRS23KR4A Publication No.

5995352761

A = FRS23KR4A (FRS23KR4AB0)

B = FRS23KR4A (FRS23KR4AB1)

C = FRS23KR4A (FRS23KR4AQ0)

D = FRS23KR4A (FRS23KR4AQ1)

E = FRS23KR4A (FRS23KR4AW0)

F = FRS23KR4A (FRS23KR4AW1)

POS. NO PART NO DESCRIPTION

10 240435901 A B C D E F Cover-air duct

10A 240435801 A B C D E F Cover-evap coil,lower

11 5303208309 A B C D E F Plug-hole,factory test

14 # 240413601 A B C D E F Switch-light/lamp

14A# 215486600 A B C D E F Switch-light/lamp

21C 218252200 A B C D E F Screw,#8 truss hd ,10-32CA x 0.500

22 240407801 A B C D E F Plate-door closer

23 240402701 A B C D E F Screw-#10-32 x 1/4 flat hd

28 240335501 A B C D E F Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419101 A B C D E F Bracket-lower hinge, ref

30A 240419102 A B C D E F Bracket-lower hinge

37 240337603 A B - - - - Trim-cabinet corner,black

37 240337604 - - C D - - Trim-cabinet corner,bisque ,(2)

37 240337601 - - - - E F Trim-cabinet corner,white ,(2)

38 240327201 A B C D E F Bracket-upper hinge

40 240327003 A B - - - - Cover-upper hinge,black

40 240327002 - - C D - - Cover-upper hinge,bisque

40 240327001 - - - - E F Cover-hinge

41 240358701 A B C D E F Grommet-shelf mtg,1.40" long

41* 240358801 A B C D E F Grommet-shelf mtg,.875" long

42 240315301 A B C D E F Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C D E F Roller Assy,front ,(2)

45 241500301 A B C D E F Screw,#8 18 x .500 ,(3)

47 218659500 A B C D E F Channel-shelf mtg,side ,(2)

58 218749600 A B C D E F Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B C D E F Diffuser-air

72 240324405 A B - - - - Grille/Kickplate,black

72 240324403 - - C D - - Grille/Kickplate,bisque

72 240324401 - - - - E F Grille/Kickplate,white

82 5304418225 A B C D E F Roller-rear,comp base ,(2)

83 215164200 A B C D E F Pin-roller,(2)

89 240326103 A B C D E F Cover-access,w/label

90 218249804 A B C D E F Seal-coil cover

91 240380101 A B C D E F Duct-ice maker

92 5303001479 A B C D E F Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B C D E F Support-crspr cover,(4)

100* 240350802 A B C D E F Support-crspr cover,(4)

150 240368701 A B C D E F Guide-control bulb

* 5303305345 A B - - - - Paint,touch-up ,black

* 5304414035 - - C D - - Paint,touch-up ,bisque

* 5303305324 - - - - E F Paint,touch-up ,white

CABINET

04/01 8

Publication No. FRS23KR4A

5995352761

SHELVES

# = Fast-moving Parts 9 04/01

* = Non-Illustrated Parts

FRS23KR4A Publication No.

5995352761

A = FRS23KR4A (FRS23KR4AB0)

B = FRS23KR4A (FRS23KR4AB1)

C = FRS23KR4A (FRS23KR4AQ0)

D = FRS23KR4A (FRS23KR4AQ1)

E = FRS23KR4A (FRS23KR4AW0)

F = FRS23KR4A (FRS23KR4AW1)

POS. NO PART NO DESCRIPTION

2 240434601 A B C D E F Trim-basket

11 240338801 A B C D E F Shelf-freezer,flip-up

11A 240338701 A B C D E F Shelf-freezer,fixed wire

11B 240338703 A B C D E F Shelf-freezer,fixed wire

24 240355211 A B C D E F Shelf-"Spill-Safe",fixed

25 240354501 A B C D E F Cover-crisper pan,upper

25* 240362101 A B C D E F Clip-slide,cover-crisper

25A 240354601 A B C D E F Cover-crisper pan,lower

26 240354705 A B C D E F Pan-crisper,upper

26* 240349801 A B C D E F Clip-slide,pan-crisper

26A 240351101 A B C D E F Control-humidity

27 240354805 A B C D E F Pan-crisper,lower

39 240430705 A B C D E F Trim-shelf,front

39B 240430701 A B C D E F Trim-shelf,front

42 240356501 A B C D E F Hanger-meat pan,RH

42 240365401 A B C D E F Hanger-meat pan,white ,LH

47 240350635 A B C D E F Insert-pan cover,glass

47A 240350614 A B C D E F Insert-pan cover,glass

49 240338401 A B C D E F Basket-sliding

51 240343001 A B C D E F Hanger-basket,RH

52 240343101 A B C D E F Hanger-basket,LH

54 240351901 A B C D E F Plug-hanger,right hand

55 240352001 A B C D E F Plug-hanger,left hand

62 240355506 A B C D E F Pan-meat

81 5308016566 A B C D E F Screw,hex wshr hd ,8-15A x 0.625, low profile

97 240453002 A B C D E F Water Tank Assy,with tubes

100 240326301 A B C D E F Cover-water tank

101 218493100 A B C D E F Screw,hex washer head ,8-18AB x 1-3/4

123 215005100 A B C D E F Screw-roller/hanger,8-10 x 0.438

126 218867401 A B C D E F Channel,auger mtg ,LH

126 218867402 A B C D E F Channel,auger mtg ,RH

SHELVES

04/01 10

Publication No. FRS23KR4A

5995352761

CONTROLS
