Frigidaire FRT21FR7E Manual de usuario

Product No. FRT21FR7EQ1

Series R134a

Color bisque

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Energy Guide 241607580

Service Data Sheet 240379014

Installation Instructions 240568300

N05L00002.eps N05DCDBCA1.eps N05BAAAAC2.eps N05SACAFH11.eps

N05CAAAAC5.eps 115-1.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995431466

05/03/14

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21FR7E

Publication No: 5995431466 FRT21FR7EQ1

03/05 2

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21FR7EQ1 Publication No: 5995431466

# Functional Parts 3 03/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514607 Gasket, seal, white, frzr door, magnetic

2 # 240514608 Gasket, seal, white, refr door, magnetic

7 240337703 Door-dairy, w/o graphics, clear

10 240381302 Plug-button, bisque, hinge brg hole, (2)

11 240450306 Door, frzr, bisque

12 240416303 Label-nameplate, bisque

13 240312407 Door Stop, bisque, ref

13A 240312408 Door Stop, bisque, frzr

14 240494002 Plug-button, bisque

14B 240383602 Plug-button, bisque, door handle

15 240450406 Door, refr, bisque

18 240339204 Handle-door, bisque

18A 240339209 Handle-door, bisque

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995431466 FRT21FR7EQ1

03/05 4

CABINET

FRT21FR7EQ1 Publication No: 5995431466

# Functional Parts 5 03/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313609 Cover-evap coil, w/light

10* 240568606 Seal-coil cover

10*# 241537701 Wiring Harness, freezer section, with light

11 5303208309 Plug-hole, factory test

13 # 240369702 Motor-evap fan

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

15 241560701 Light Bulb

16 # 241513901 Socket-light

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774919 Plug-button, bisque, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314004 Bracket-lower hinge, bisque

34 240311303 Washer, hinge, nylon, (2)

35 240313804 Bracket-ctr hinge, bisque

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337604 Trim-cabinet corner, bisque, (2)

38 240313701 Bracket-upper hinge

40 240354403 Cover-upper hinge, bisque

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

47 218233300 Channel-shelf mtg, side, (2)

48 5303292395 Channel-shelf mtg, center

49 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442704 Screw-#10-32 X 3/4, bisque

72 240368206 Grille/Kickplate, bisque

74 240354301 Shield-light, frzr

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114 240505801 Switch, light/lamp

* 218990901 Clip-wire

* 5304414035 Paint, touch-up, bisque

Publication No: 5995431466 FRT21FR7EQ1

03/05 6

SHELVES

25B

25C

N05SACAFH11

123

22A

24B

FRT21FR7EQ1 Publication No: 5995431466

# Functional Parts 7 03/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358003 Shelf, freezer, full-width, wire

11* 5303299664 Spacer, shelf

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 240364201 Socket-light/lamp, dual

17 240368101 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304445058 Control-temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 Shelf-"Spill-Safe", cantilever, fixed

24B 240408903 Shelf-"Spill-Safe", cantilever fixe

25 240364718 Cover-crisper pan

25B 240361201 Control-humidity

25C 240361301 Damper, humidity cont.

26 240343803 Pan, crisper, (2)

31 240530903 Pan-meat, w/o graphics, clear

34 240385201 Container, ice bin

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350654 Insert-pan cover, glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995431466 FRT21FR7EQ1

03/05 8

SYSTEM

59B

59A

59A 58

N05CAAAAC5

FRT21FR7EQ1 Publication No: 5995431466

# Functional Parts 9 03/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 241537701 Wiring Harness, freezer section, with light

14 # 5303918247 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332602 Pan-defrost drain

29 # 5303918312 Compressor Kit

30 # 241527804 Starter

32 241527901 Clamp, elec cont mtg, compressor

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 Capacitor-run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 240569201 Screw, 8-18 x 0.500

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

59A 240346501 Bracket-support, cond mtr, (3)

59B 240346601 Grommet-bracket, (3)

60 # 241584301 Motor-condenser fan

60* 240569501 Screw, 8-18 X 1 3/4, (2)

61 241536201 Blade-condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240493101 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918210 Heat Exchanger Kit, suction line

* 5304421289 Hot Tube Repair Kit, service

Publication No: 5995431466 FRT21FR7EQ1

03/05 10

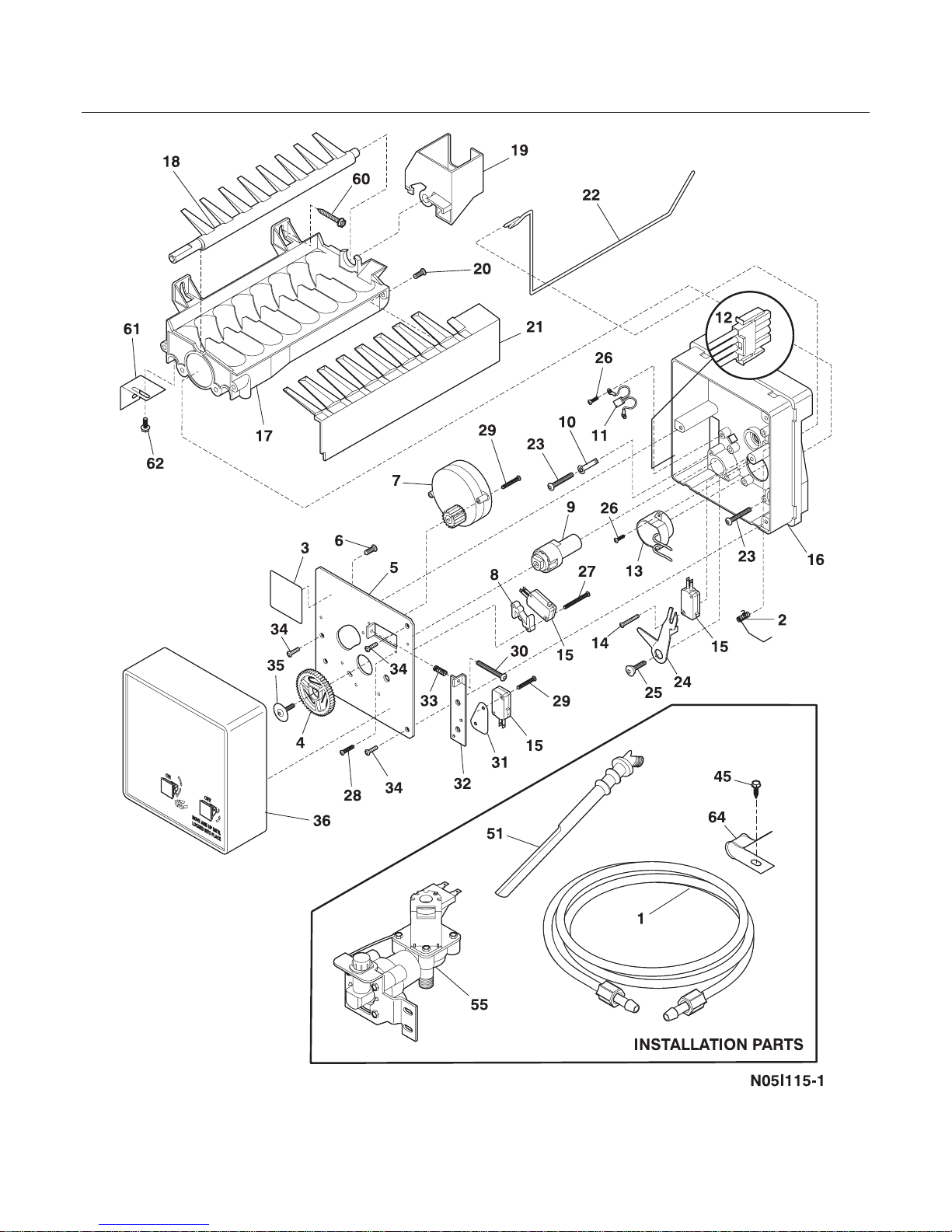

ICE MAKER
