REFRIGERATOR

Model number

FRU17G4JW6

FACTORY PARTS CATALOG

REFRIGERATOR

WIRING DIAGRAM - # 216758400

OWNER’S GUIDE - # 216781800

SERVICE DATA SHEET - # 216758400

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRU17G4JW6 FRU17G4JW 134A white 115

MARKET

North America

Publication No.

5995365607

020208

-EN/SERVICE /BLT

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

02/02 2

Publication No FRU17G4JW6

5995365607

DOOR

# = Fast-moving Parts 3 02/02

* = Non-Illustrated Parts

FRU17G4JW6 Publication No.

5995365607

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

9 216527813 Panel-inner door,frzr

11 216526518 Panel-outer door,white

12 240415201 Label-nameplate,white

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 218762701 Handle-door,white

21A 08005520 Screw-door stop mtg,flat hd metric ,4.0 x 0.7-19.7

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 5303925197 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

32 5309950074 Valve-breather

37 215870619 Trim-handle,2.47" ,white ,w/chrome band

64 216403700 Plug-button,door base

72 216514100 Shelf,tilt out ,wire

73 216513900 End Cap,tiltout ,LH

74 216514000 End Cap,tiltout ,RH

76 216521800 Support psuedo bin,LH

77 216522100 Support psuedo bin,RH

78 216806100 Rack-door,CONTOUR ,(5)

93 5303161215 Screw

* 216722100 Harness-lid/defrost

02/02 4

Publication No FRU17G4JW6

5995365607

CABINET

# = Fast-moving Parts 5 02/02

* = Non-Illustrated Parts

FRU17G4JW6 Publication No.

5995365607

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

9 216603300 Breaker Kit w/corners,32" ,top or bottom

10 216740900 Pan-drain assy

10A 216710400 Bracket,top drain pan

10B 216710500 Bracket,btm. drain pan

13 216822500 Motor-fan

14 216822900 Light/Lamp,ramp

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 216817600 Light/Lamp,indicator

18 216707200 Knob-control cold

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216807800 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737100 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

29 216313503 Hose-drain

31 216732400 Pan-drain

32 5308005500 Drain

34 216816200 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge-upper

39 5303294372 Nut-insert,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42 216781700 Glass-,fixed ,full width

42A 216458200 Shelf,12.50x27.88 ,white

47 216661601 Baffle-plate

50 216394000 Bracket-motor mtg fan

59 216372800 Basket,(2)

60 5303212693 Slide-basket

63 216396900 Foot-adjustable

69 5305878546 Bumper-basket

71A 216347500 Screw,quadrex

72 216174000 Grille/Kickplate,white

79 3017666 Nut-insert

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

101 216835200 Kit-top hinge

132 5303283898 Screw,6-20AB x 3/8

137A 216781600 Frame,fixed ,full width

138A 216492200 Trim-cantilever/fixed shelf,24.21" ,glass,front ,1

144 216781500 Shelf-assy,fixed,glass ,complete

253 216492300 Trim-cantilever/fixed shelf,24.21" ,rear

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 216758400 Service Data Sheet

CABINET

02/02 6

Publication No FRU17G4JW6

5995365607

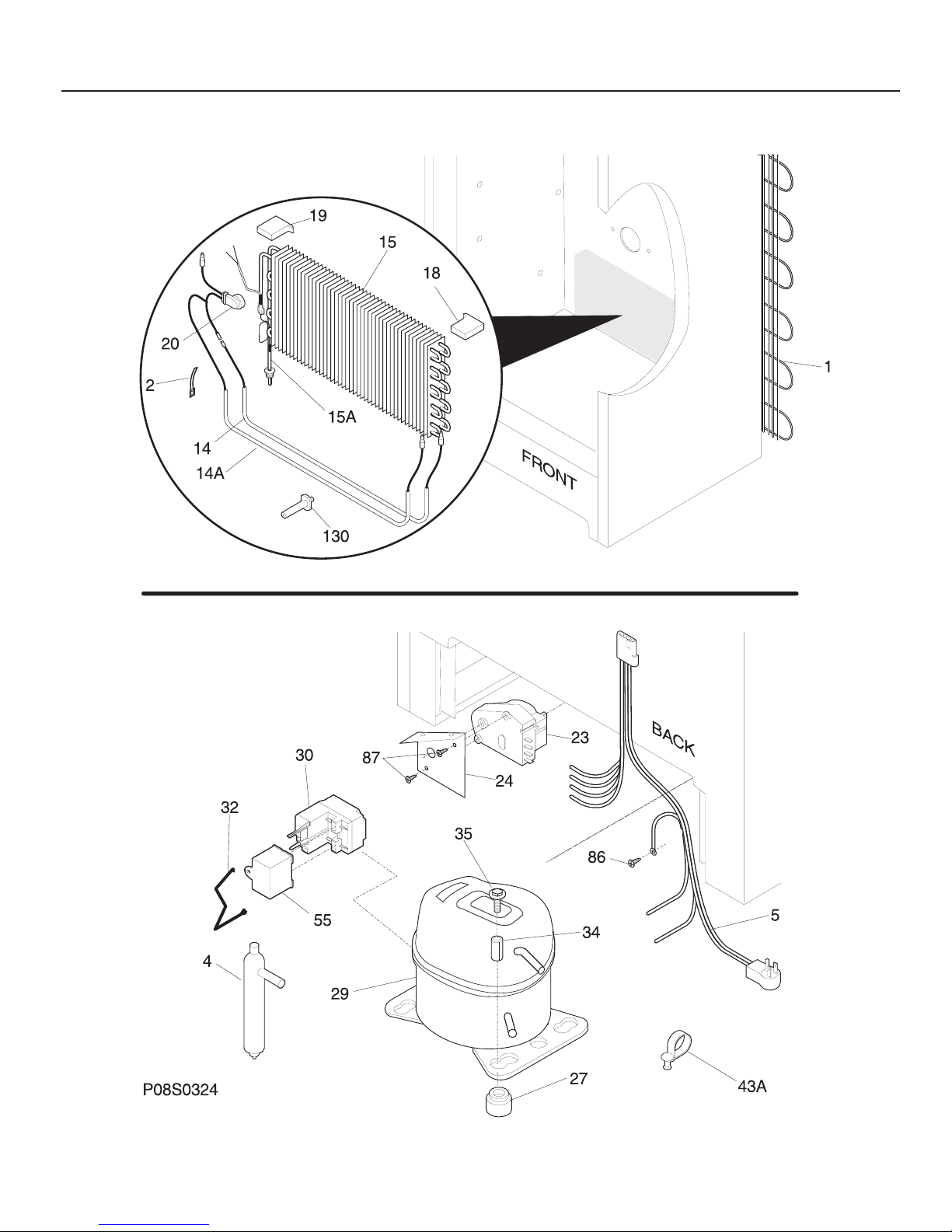

SYSTEM

# = Fast-moving Parts 7 02/02

* = Non-Illustrated Parts

FRU17G4JW6 Publication No.

5995365607

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216842000 Harness-main

14 216730700 Heater-defrost

14A# 216730500 Heater-internal

15 # 216737300 Evaporator

15A 216751100 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 216744400 Timer-defrost

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 # 216784800 Compressor,w/o electricals

30 216649304 Controller

32 216694500 Clip,controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

55 216696700 Capacitor-run,180 VAC ,15 microfarad

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

* 216502500 Sleeve-tube insert
