Frigidaire FRS26KR4C Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26KR4CB0 FRS26KR4C R134a black 115

FRS26KR4CQ0 FRS26KR4C R134a bisque 115

FRS26KR4CW0 FRS26KR4C R134a white 115

MARKET

North American

Publication No.

5995388815

030411

-EN/SERVICE /DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26KR4C

WIRING DIAGRAM - 240389610

OWNER’S GUIDE - 240581300

SERVICE DATA SHEET - 240389610

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

04/03 2

Publication No. FRS26KR4C

5995388815

FREEZER DOOR

# = Fast-moving Parts 3 04/03

* = Non-Illustrated Parts

FRS26KR4C Publication No.

5995388815

FREEZER DOOR

A = FRS26KR4C (FRS26KR4CB0)

B = FRS26KR4C (FRS26KR4CQ0)

C = FRS26KR4C (FRS26KR4CW0)

POS. NO PART NO DESCRIPTION

1 # 240390606 A - - Gasket-frzr door,black ,magnetic

1 # 240390602 - B C Gasket-frzr door,white ,magnetic

4A 240334201 A B C Bin-door,frzr-upper

4B 240351601 A B C Bin-door

11 240451815 A - - Door-frzr,black ,complete assy

11 240451807 - B - Door-frzr,bisque ,complete assy

11 240451801 - - C Door-frzr,white ,complete assy

13A 240537106 A - - Door Stop,black ,frzr

13A 240537104 - B - Door Stop,bisque ,frzr

13A 240537102 - - C Door Stop,white ,frzr

18 218762703 A - - Handle-door,black

18 218762706 - B - Handle-door,bisque

18 218762701 - - C Handle-door,white

21A 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22A 240328202 A B C Bearing-hinge,closer

22C 240328404 A - - Bearing-hinge,black ,upper

22C 240328402 - B C Bearing-hinge,upper

37 218811620 A - - Trim-handle,black ,upper

37 218811632 - B - Trim-handle,bisque ,upper

37 218811618 - - C Trim-handle,white ,upper

37* 218676004 A B C Band-decorative,satin aluminum ,handle trim

37A 218811617 A - - Trim-handle,black ,lower

37A 218811631 - B - Trim-handle,bisque ,lower

37A 218811615 - - C Trim-handle,white ,lower

37A* 215782300 A B C Lock-handle trim,snap-in

68 240467701 A B C Chute-ice

* 240545101 A B C Connector-water,straight

* 240552101 A B C Harness-wiring,door

* 5303918256 A B C Dispenser heater kit

04/03 4

Publication No. FRS26KR4C

5995388815

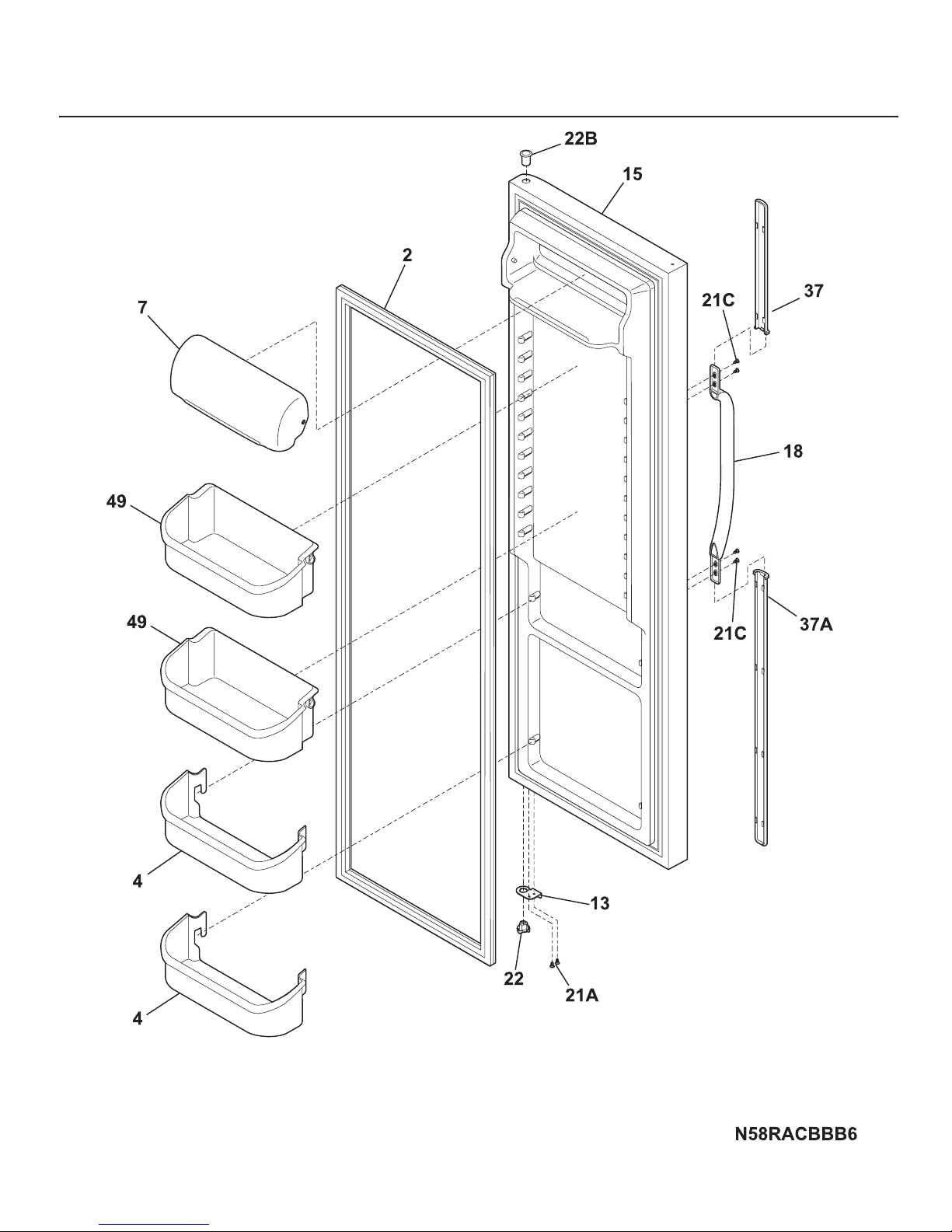

REFRIGERATOR DOOR

# = Fast-moving Parts 5 04/03

* = Non-Illustrated Parts

FRS26KR4C Publication No.

5995388815

A = FRS26KR4C (FRS26KR4CB0)

B = FRS26KR4C (FRS26KR4CQ0)

C = FRS26KR4C (FRS26KR4CW0)

POS. NO PART NO DESCRIPTION

2 240390605 A - - Gasket-refr door,black ,magnetic

2 # 240390601 - B C Gasket-refr door,white ,magnetic

4 240323001 A B C Bin-door,pseudo ,bottom

7 240326203 A B C Door-dairy

13 240537105 A - - Door Stop,black ,ref

13 240537103 - B - Door Stop,bisque ,ref

13 240537101 - - C Door Stop,white ,ref

15 240451908 A - - Panel-refr door,black ,complete assy

15 240451905 - B - Door-refr,bisque ,complete assy

15 240451901 - - C Door-refr,white ,complete assy

18 218762703 A - - Handle-door,black

18 218762706 - B - Handle-door,bisque

18 218762701 - - C Handle-door,white

21A 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22 240328201 A B C Bearing-hinge,closer

22B 240328403 A - - Bearing-hinge,upper

22B 240328401 - B C Bearing-hinge,upper

37 218811620 A - - Trim-handle,black ,upper

37 218811632 - B - Trim-handle,bisque ,upper

37 218811618 - - C Trim-handle,white ,upper

37* 218676004 A B C Band-decorative,satin aluminum ,handle trim

37A 218811617 A - - Trim-handle,black ,lower

37A 218811631 - B - Trim-handle,bisque ,lower

37A 218811615 - - C Trim-handle,white ,lower

37A* 215782300 A B C Lock-handle trim,snap-in

49 240356401 A B C Bin-door,gallon

REFRIGERATOR DOOR

04/03 6

Publication No. FRS26KR4C

5995388815

CABINET

# = Fast-moving Parts 7 04/03

* = Non-Illustrated Parts

FRS26KR4C Publication No.

5995388815

A = FRS26KR4C (FRS26KR4CB0)

B = FRS26KR4C (FRS26KR4CQ0)

C = FRS26KR4C (FRS26KR4CW0)

POS. NO PART NO DESCRIPTION

10 240435902 A B C Cover-air duct

10A 240475902 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240505801 A B C Switch,light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj,hex wsher hd,1/4-20x4.020,(2) ,special

30 240419103 A B C Bracket-lower hinge, ref

30A 240419104 A B C Bracket-lower hinge

37 240337603 A - - Trim-cabinet corner,black ,(2)

37 240337604 - B - Trim-cabinet corner,bisque ,(2)

37 240337601 - - C Trim-cabinet corner,white ,(2)

38 240327202 A B C Bracket-upper hinge

40 240327007 A - - Cover-upper hinge,black

40 240327006 - B - Cover-upper hinge,bisque

40 240327005 - - C Cover-upper hinge,white

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240578901 A B C Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 A B C Roller Assy,front ,(2)

45 241500301 A B C Screw,hex washer head ,8-18AB x 0.500

47 218659500 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66B 240374301 A B C Diffuser-air

66B* 240518802 A B C Pin-push,push-in ,plastic

72 240324406 A - - Grille/Kickplate,black

72 240324404 - B - Grille/Kickplate,bisque

72 240324402 - - C Grille/Kickplate,white

81 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 A B C Roller,compressor base ,rear ,(2)

83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326104 A B C Cover,access ,system compt ,with label

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 216850900 A B C Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

100 240423701 A B C Support,crisper cover ,front ,(4)

100* 240350802 A B C Support,crisper cover ,rear ,(4)

150 240368701 A B C Guide-control bulb

* 240479601 A B C Plug,button ,cab liner holes

* 240481601 A B C Shim-lower hinge

* 5303305345 A - - Paint,touch-up ,black

* 5304414035 - B - Paint,touch-up ,bisque

* 5303305324 - - C Paint,touch-up ,white

CABINET

04/03 8

Publication No. FRS26KR4C

5995388815

SHELVES

# = Fast-moving Parts 9 04/03

* = Non-Illustrated Parts

FRS26KR4C Publication No.

5995388815

A = FRS26KR4C (FRS26KR4CB0)

B = FRS26KR4C (FRS26KR4CQ0)

C = FRS26KR4C (FRS26KR4CW0)

POS. NO PART NO DESCRIPTION

2 240434604 A B C Trim-basket

11 240338802 A B C Shelf-freezer,flip-up

11A 240338702 A B C Shelf-freezer,fixed wire

11B 240338704 A B C Shelf-freezer,fixed wire

24 240355208 A B C Shelf-"Spill-Safe",fixed

25 240350702 A B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240350901 A B C Cover-crisper pan,lower

26 240351006 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

27 240351206 A B C Pan-crisper,lower

39 240430706 A B C Trim-shelf,11.21" ,front

39A 240430702 A B C Trim-shelf,12.39" ,front

47 240350633 A B C Insert-pan cover,glass

47A 240350603 A B C Insert-pan cover,glass

49 240530402 A B C Basket-sliding

51 240343002 A B C Hanger-basket,RH

52 240343102 A B C Hanger-basket,LH

81 5308016566 A B C Screw,hex washer head ,8-15A x 0.625 ,low profile

97 240545302 A B C Water Tank Assy,coiled tubing ,rear filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4

126 218867405 A B C Channel,auger mtg ,LH

126 218867406 A B C Channel,auger mtg ,RH

140 240430501 A B C Channel,wtr tube cover

* 240572167 A B C Label-energy

SHELVES

04/03 10

Publication No. FRS26KR4C

5995388815

CONTROLS
