Frigidaire FRT21FR7E Manual de usuario

Product No. FRT21FR7EB5 FRT21FR7EQ5 FRT21FR7EW5

Series R134a R134a R134a

Color black bisque white

Volts 115 115 115

Wiring Diagram 240398801 240398801 240398801

Owner's Guide 240400112 240400112 240400112

Market North America North America North America

Energy Guide 241607580 241607580 241607580

Service Data Sheet 240379014 240379014 240379014

Installation Instructions 240568300 240568300 240568300

N05L00003.eps N05DCDBCA1.eps N05BAAABC5.eps N05SACAFH11.eps

N05CAAAAC6.eps 115-1.eps 240398801.eps 240398601.eps

u x Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995452454

05/10/26

(EN/SERVICE/WC)

357

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT21FR7E

Publication No: 5995452454 FRT21FR7E

10/05 2

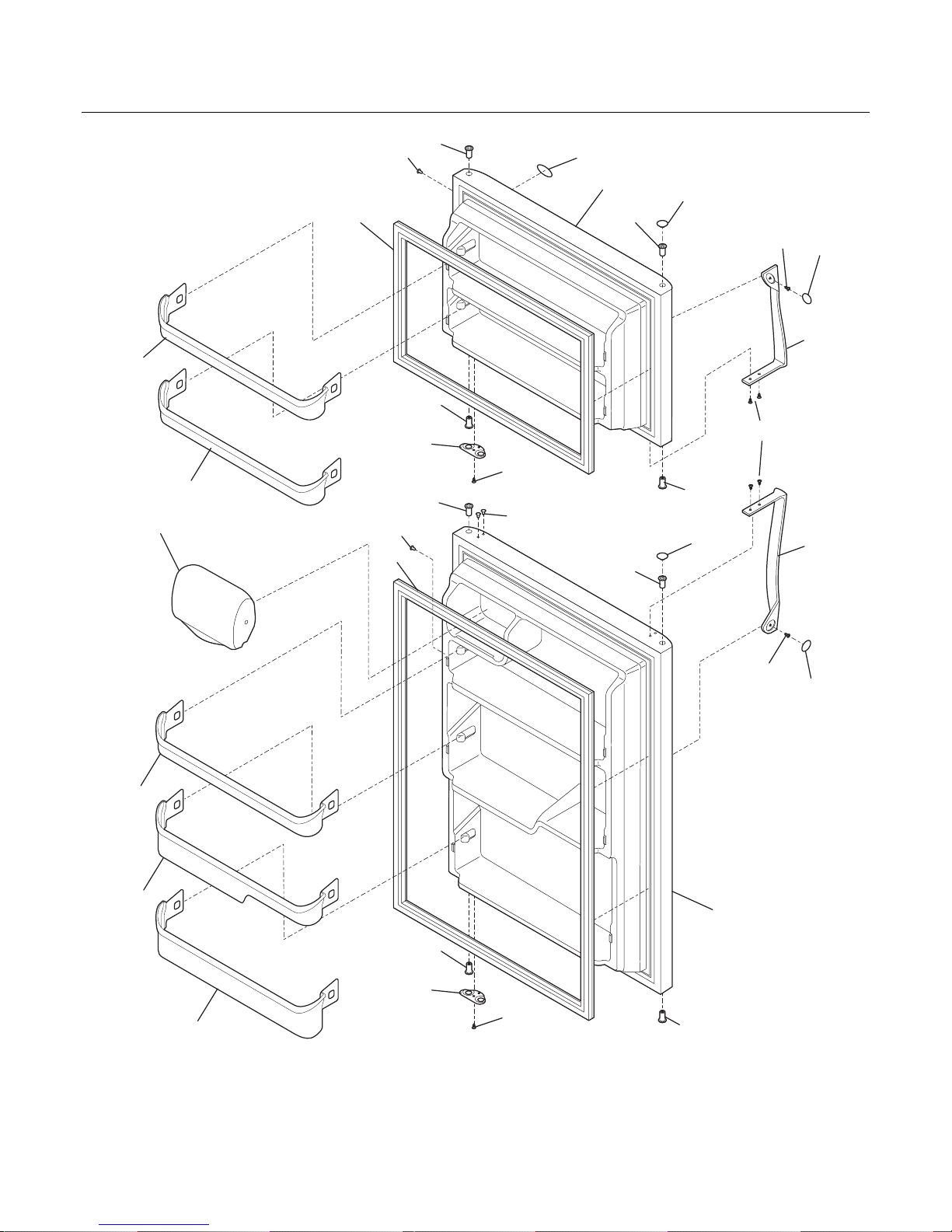

DOOR

48A

48B

13A

21C

N05DCDBCA1

21 14B

14B

18A

FRT21FR7E Publication No: 5995452454

# Functional Parts 3 10/05

* Non-Illustrated Parts

DOOR

Model Index: AFRT21FR7E (FRT21FR7EB5)

BFRT21FR7E (FRT21FR7EQ5)

CFRT21FR7E (FRT21FR7EW5)

POS. NO PART NO. DESCRIPTION

1 # 240514611 A - - Gasket, seal, black, frzr door, magnetic

1 # 240514607 - B C Gasket, seal, white, frzr door, magnetic

2 # 240514612 A - - Gasket, seal, black, refr door, magnetic

2 # 240514608 - B C Gasket, seal, white, refr door, magnetic

7 240337703 A B C Door-dairy, w/o graphics, clear

10 240381303 A - - Plug-button, black, hinge brg hole

10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)

10 240381301 - - C Plug-button, white, hinge brg hole, (2)

11 240450312 A - - Door, frzr, black

11 240450306 - B - Door, frzr, bisque

11 240450302 - - C Door, frzr, white

12 240416304 A - - Nameplate, black

12 240416303 - B - Label-nameplate, bisque

12 240416301 - - C Label-nameplate, white

13 240312405 A - - Door Stop, black, refr

13 240312407 - B - Door Stop, bisque, ref

13 240312403 - - C Door Stop, white, ref

13A 240312406 A - - Door Stop, black, frzr

13A 240312408 - B - Door Stop, bisque, frzr

13A 240312404 - - C Door Stop, white, frzr

14 240494003 A - - Plug-button, black

14 240494002 - B - Plug-button, bisque

14 240494001 - - C Plug-button, white

14B 240383603 A - - Plug-button, black, door handle

14B 240383602 - B - Plug-button, bisque, door handle

14B 240383601 - - C Plug-button, white, door handle

15 240450412 A - - Door, refr, black

15 240450406 - B - Door-refr, refr, bisque, complete assy

15 240450402 - - C Door, refr, white

18 240339203 A - - Handle-door, black, refr-LH/frzr-RH

18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH

18 240339201 - - C Handle-door, white, refr-LH/frzr-RH

18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH

18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH

18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH

21 240383401 A B C Screw, truss hd quad, #10-16 x .500

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 A - - Bearing-hinge, black

22 240527101 - B C Bearing-hinge, natural color

48 240338101 A B C Bin-door, pseudo, bottom

48A 240337901 A B C Bin-door, refr

48B 240338001 A B C Bin-door, pseudo, gallon, refr

49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995452454 FRT21FR7E

10/05 4

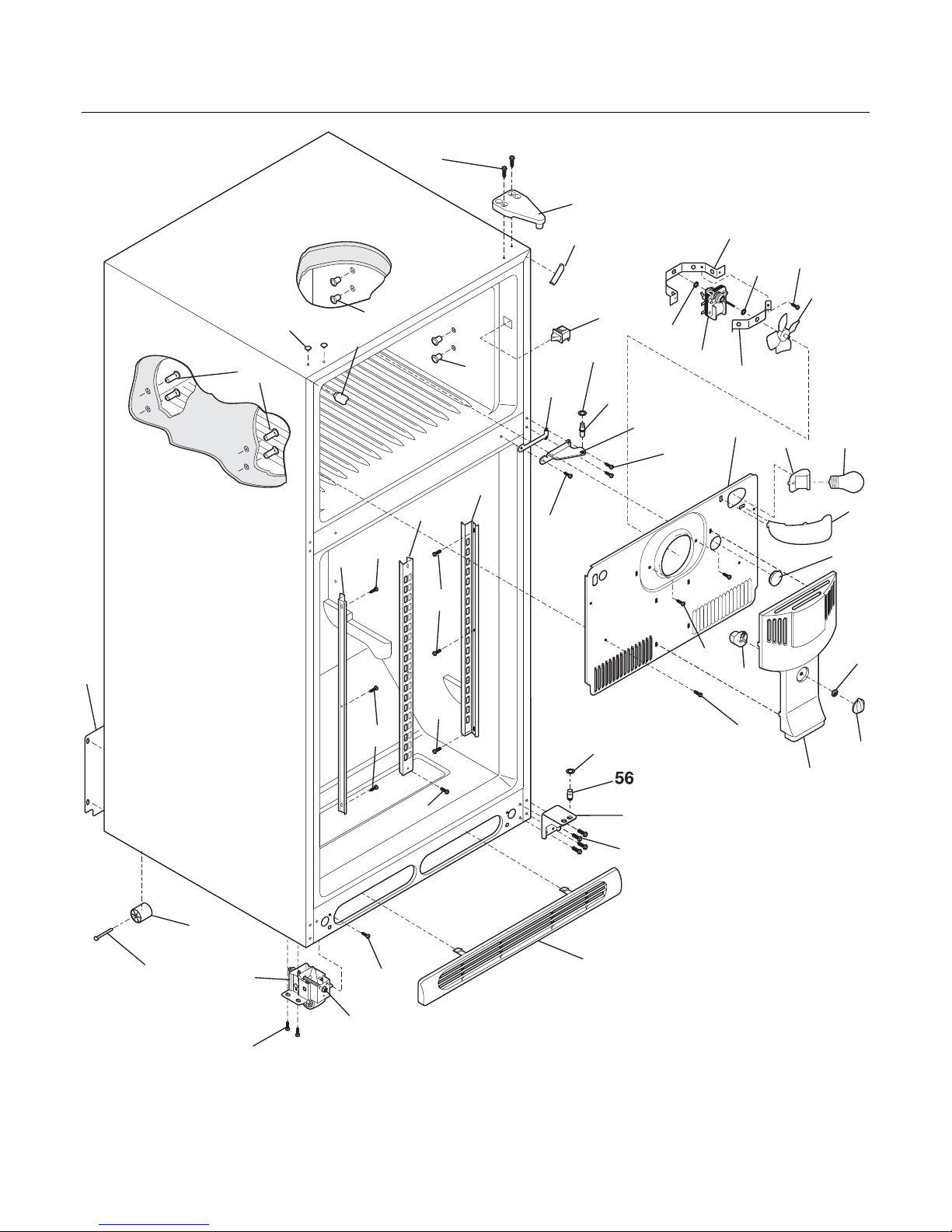

CABINET

114

35A 36

N05BAAABC5

21C

FRT21FR7E Publication No: 5995452454

# Functional Parts 5 10/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT21FR7E (FRT21FR7EB5)

BFRT21FR7E (FRT21FR7EQ5)

CFRT21FR7E (FRT21FR7EW5)

POS. NO PART NO. DESCRIPTION

1 240355402 A B C Cover-fan

2 240367001 A B C Knob-damper control

3 5303212803 A B C Nut

4 241523701 A B C Damper-fan cover

5 # 5308000010 A B C Fan Blade, red, evaporator fan

8 5300157666 A B C Bushing-motor mtg, (2)

9 5303292396 A B C Bracket-motor mtg, front

10 240313609 A B C Cover-evap coil, w/light

10* 240568606 A B C Seal-coil cover

10*# 241537701 A B C Wiring Harness, freezer section, with light

11 5303208309 A B C Plug-hole, factory test

13 240369702 A B C Motor-evap fan

14 5303292397 A B C Bracket-motor mtg, rear

14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375

15 241560701 A B C Light Bulb

16 241513901 A B C Socket-light

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 A - - Plug-button, black, upr hinge holes

22 215774919 - B - Plug-button, bisque, upr hinge holes

22 215774901 - - C Plug-button, white, upr hinge holes

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 A - - Bracket-lower hinge, black

30 240314001 - B C Bracket-lower hinge, zinc

34 240311303 A B C Washer, hinge, nylon, (2)

35 240313803 A - - Bracket-ctr hinge, black

35 240313801 - B C Bracket-ctr hinge, zinc

35A 240336802 A B C Spacer-hinge, center

36 240516401 A B C Pin-center hinge

37 240337603 A - - Trim-cabinet corner, black, (2)

37 240337604 - B - Trim-cabinet corner, bisque, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 241622603 A - - Hinge-up-plastic-blk, plastic, black

38 241622604 - B - Hinge-up-plastic-bis, plastic, bisque

38 241622601 - - C Hinge-up-plastc-wht, plastic, white

41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, adjustable, front, (2)

47 218233300 A B C Channel-shelf mtg, side, (2)

48 5303292395 A B C Channel-shelf mtg, center

49 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

56 240516501 A B C Pin-lower hinge

58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500

59 240442703 A - - Screw-#10-32 X 3/4, black

59 240442701 - B C Screw-#10-32 X 3/4, zinc

72 240368207 A - - Grille/Kickplate, black

72 240368206 - B - Grille/Kickplate, bisque

72 240368205 - - C Grille/Kickplate, white

74 240354301 A B C Shield-light, frzr

Publication No: 5995452454 FRT21FR7E

10/05 6

CABINET

114

35A 36

N05BAAABC5

21C

FRT21FR7E Publication No: 5995452454

# Functional Parts 7 10/05

* Non-Illustrated Parts

CABINET

Model Index: AFRT21FR7E (FRT21FR7EB5)

BFRT21FR7E (FRT21FR7EQ5)

CFRT21FR7E (FRT21FR7EW5)

POS. NO PART NO. DESCRIPTION

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 A B C Cover-access, w/label

89* 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

114# 240505801 A B C Switch, light/lamp

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303305324 - - C Paint, touch-up, white

Publication No: 5995452454 FRT21FR7E

10/05 8

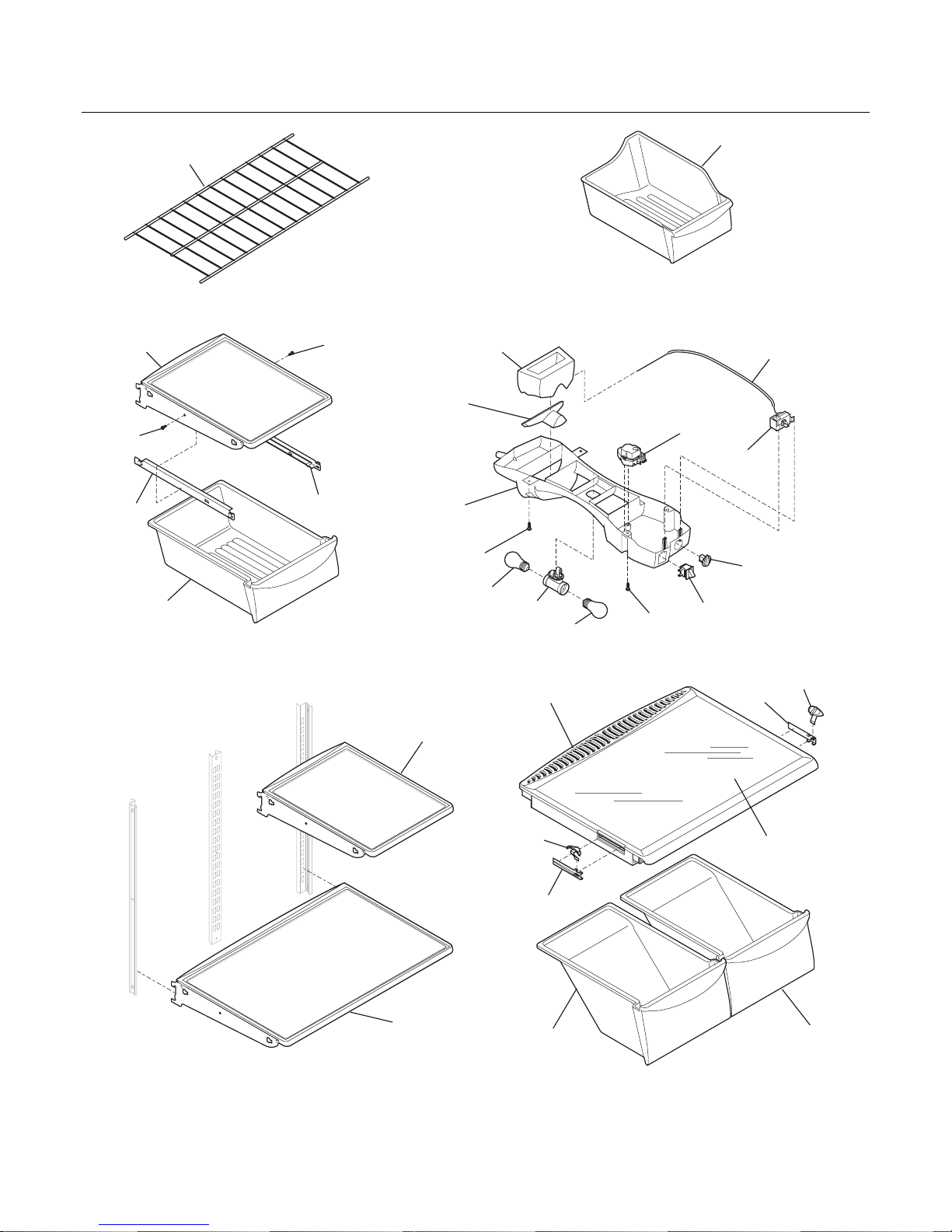

SHELVES

25B

25C

N05SACAFH11

123

22A

24B

FRT21FR7E Publication No: 5995452454

# Functional Parts 9 10/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRT21FR7E (FRT21FR7EB5)

BFRT21FR7E (FRT21FR7EQ5)

CFRT21FR7E (FRT21FR7EW5)

POS. NO PART NO. DESCRIPTION

11 240358006 A B C Shelf, freezer, full-width, wire

12 240545901 A B C Diffuser-air, top

13 240362601 A B C Diffuser, air, bottom

14 # 241554901 A B C Switch-light/lamp

15 241555401 A B C Light Bulb

16 240364201 A B C Socket-light/lamp, dual

17 240368101 A B C Control Box

17*# 240388701 A B C Wiring Harness, control box

18 240360801 A B C Knob, temp control

21 5304445058 A B C Control-temperature

22A 5303916855 A B C Tube, sensor sleeve, plastic, clear

23 # 215846606 A B C Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240355214 A B C Shelf-"Spill-Safe", cantilever, fixed

24B 240408903 A B C Shelf-"Spill-Safe", cantilever fixe

25 240364718 A B C Cover-crisper pan

25B 240361201 A B C Control-humidity

25C 240361301 A B C Damper, humidity cont.

26 240343803 A B C Pan, crisper, (2)

31 240530803 A B C Pan-meat, w/o graphics, clear

34 240385201 A B C Container, ice bin

42 240356501 A B C Track, meat pan hanger, RH

42 240365401 A B C Track, meat pan hanger, LH

47 240350654 A B C Insert-pan cover, glass

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995452454 FRT21FR7E

10/05 10

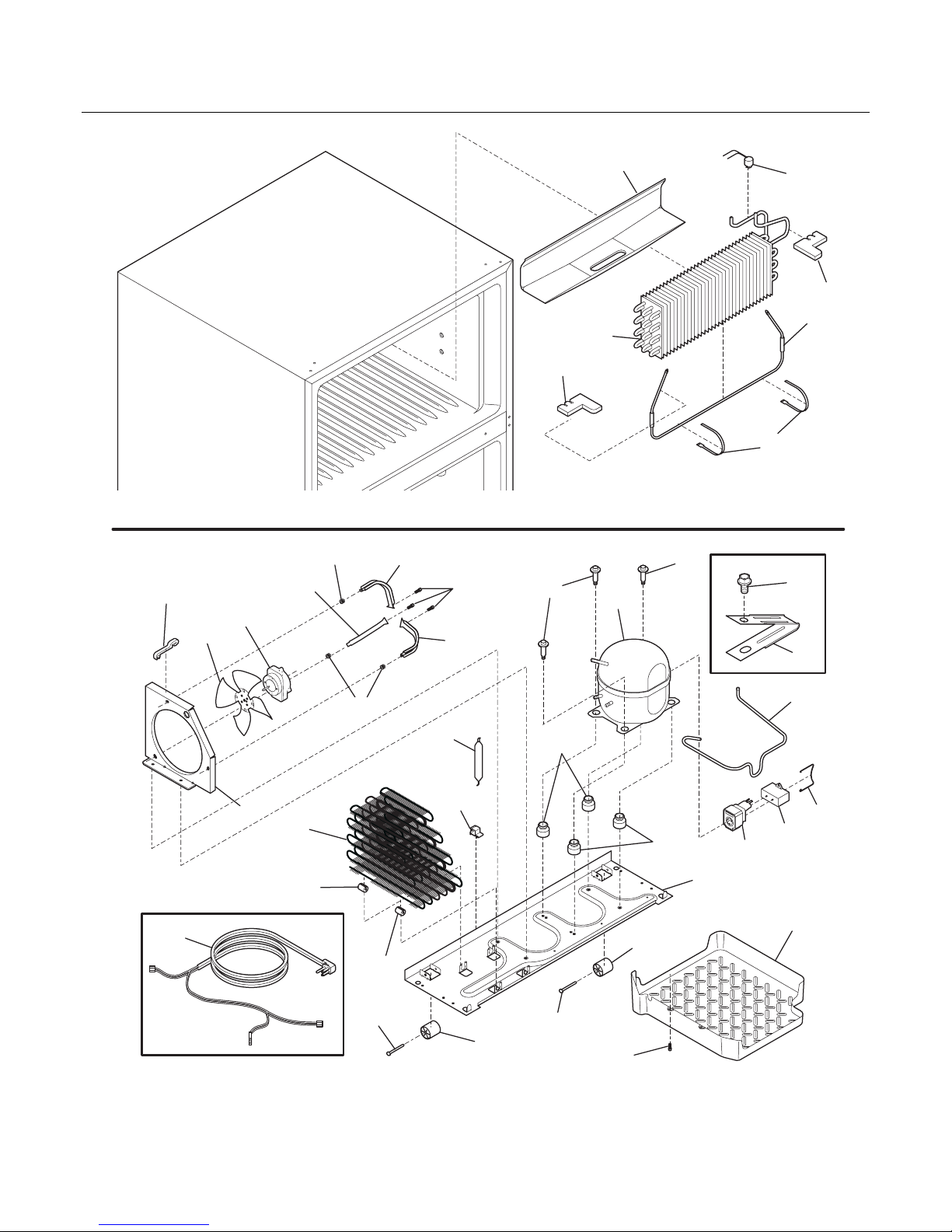

SYSTEM

59B

59A

59A 58

N05CAAAAC6
