PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

GLHS237ZAB1 GLHS237ZA R134a Gallery black 115

GLHS237ZAQ1 GLHS237ZA R134a Gallery bisque 115

GLHS237ZAW1 GLHS237ZA R134a Gallery white 115

MARKET

North America

Publication No.

5995356911

010801

-EN/SERVICE/KHB

357

SIDE BY SIDE

REFRIGERATOR

Model No.

GLHS237ZA

WIRING DIAGRAM - 240443001

OWNER’S GUIDE - 240389302

SERVICE DATA SHEET - 240389604

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/01 2

Publication No. GLHS237ZA

5995356911

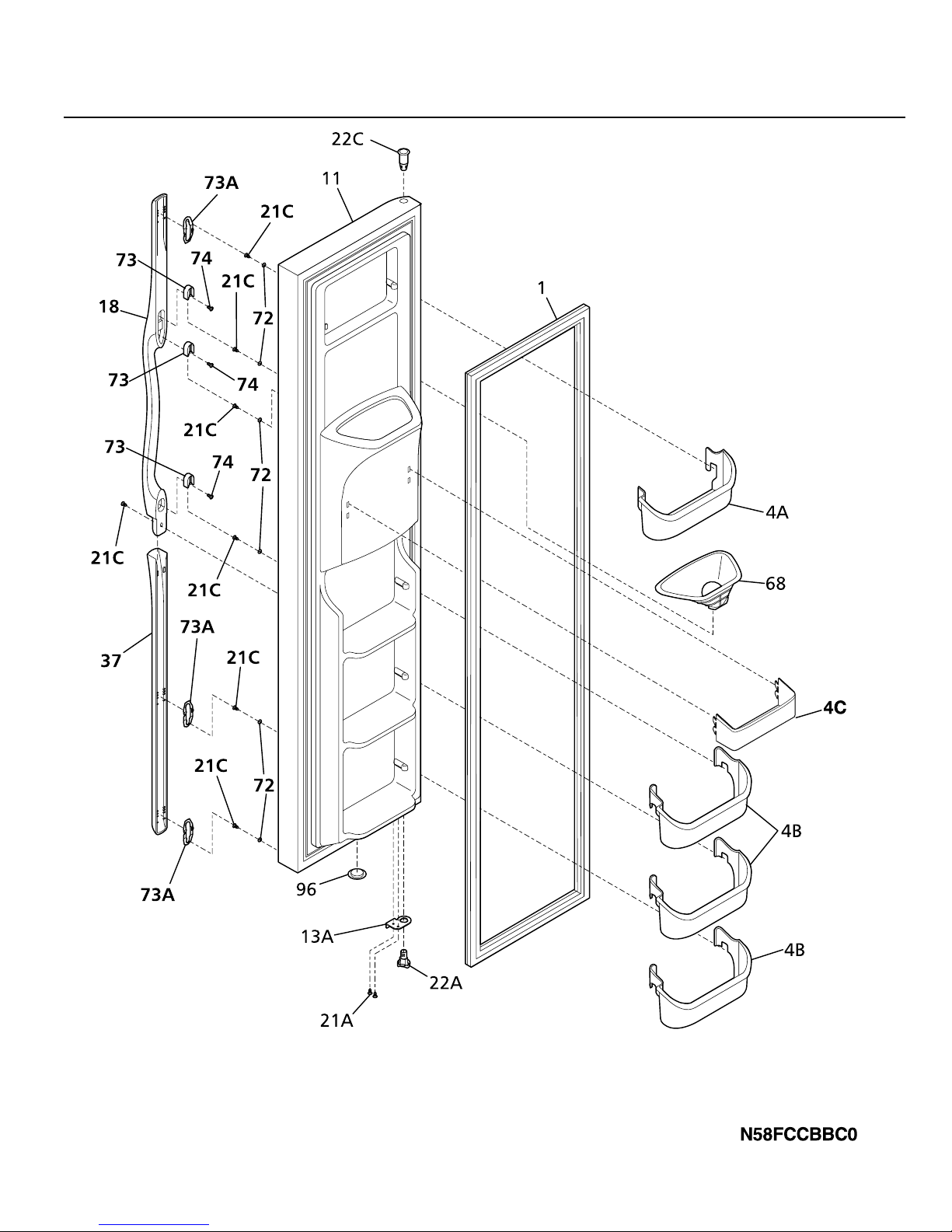

FREEZER DOOR

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

GLHS237ZA Publication No.

5995356911

FREEZER DOOR

A = GLHS237ZA (GLHS237ZAB1)

B = GLHS237ZA (GLHS237ZAQ1)

C = GLHS237ZA (GLHS237ZAW1)

POS. NO PART NO DESCRIPTION

1 # 240390608 A - - Gasket-frzr door,black ,magnetic

1 240390604 - B C Gasket-door,white

4A 240367302 A B C Bin-door,frzr-upper

4B 240359002 A B C Bin-door

4C 240358402 A B C Bin-door,frzr-dispenser

11 240451833 A - - Panel-frzr door,black ,complete assy

11 240451831 - B - Panel-frzr door,bisque ,complete assy

11 240451823 - - C Panel-frzr door,white ,complete assy

13A 240456906 A - - Door Stop,black ,frzr

13A 240456904 - B - Door Stop,bisque ,frzr

13A 240456902 - - C Door Stop,white ,frzr

18 240359108 A - - Handle-door,black

18 240359109 - B - Handle-door,bisque

18 240359106 - - C Handle-door

21A 5308016566 A B C Screw, hex wshr hd,8-15A x 0.625, low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22A 240328202 A B C Bearing-hinge,closer

22C 240328404 A - - Bearing-hinge,black ,upper

22C 240328402 - B C Bearing-hinge,upper

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

68 240465801 A B C Chute-ice

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345504 A - - Plug-foam hole,black

96 240345503 - B C Plug-foam hole,white

* 240323202 A B C Harness-wiring,door

* 240352101 A B C Connector-water,straight

08/01 4

Publication No. GLHS237ZA

5995356911

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

GLHS237ZA Publication No.

5995356911

A = GLHS237ZA (GLHS237ZAB1)

B = GLHS237ZA (GLHS237ZAQ1)

C = GLHS237ZA (GLHS237ZAW1)

POS. NO PART NO DESCRIPTION

2 # 240390607 A - - Gasket-refr door,black ,magnetic

2 # 240390603 - B C Gasket-refr door,white ,magnetic

4 240363702 A B C Bin-door,2-liter

7 240338303 A B C Door-dairy

13 240456905 A - - Door Stop,black ,ref

13 240456903 - B - Door Stop,bisque ,ref

13 240456901 - - C Door Stop,white ,ref

15 240451919 A - - Panel-refr door,black ,complete assy

15 240451917 - B - Panel-refr door,bisque ,complete assy

15 240451913 - - C Door-refr,white ,complete assy

18 240359103 A - - Handle-door,white

18 240359104 - B - Handle-door,bisque

18 240359101 - - C Handle-door

21A 5308016566 A B C Screw, hex wshr hd, 8-15A x 0.625, low profile

21C 218781100 A B C Screw,pan head ,8-18 x 0.625

22 240328201 A B C Bearing-hinge,closer

22B 240328403 A - - Bearing-hinge,upper

22B 240328401 - B C Bearing-hinge,upper

27A 240396102 A B C Retainer,tall bottle

37 240359203 A - - Trim-handle,30.13" ,black ,lower

37 240359204 - B - Trim-handle,30.13" ,bisque ,lower

37 240359201 - - C Trim-handle,30.13" ,white ,lower

49 240430303 A B C Bin-door,gallon

72 240421701 A B C Button-handle mtg,dovetail

73 218396700 A B C Block-handle mtg,dovetail

73A 240339101 A B C Clip-trim

74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500

96 240345504 A - - Plug-foam hole,black

96 240345503 - B C Plug-foam hole,white

REFRIGERATOR DOOR

08/01 6

Publication No. GLHS237ZA

5995356911

CABINET

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

GLHS237ZA Publication No.

5995356911

A = GLHS237ZA (GLHS237ZAB1)

B = GLHS237ZA (GLHS237ZAQ1)

C = GLHS237ZA (GLHS237ZAW1)

POS. NO PART NO DESCRIPTION

10 240435901 A B C Cover-air duct

10A 240475901 A B C Cover-evap coil,lower

11 5303208309 A B C Plug-hole,factory test

14 # 240413601 A B C Switch-light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 A B C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020,(2),special

30 240419101 A B C Bracket-lower hinge, ref

30A 240419102 A B C Bracket-lower hinge

37 240337603 A - - Trim-cabinet corner,black

37 240337604 - B - Trim-cabinet corner,bisque ,(2)

37 240337601 - - C Trim-cabinet corner,white ,(2)

38 240327201 A B C Bracket-upper hinge

40 240327003 A - - Cover-upper hinge,black

40 240327002 - B - Cover-upper hinge,bisque

40 240327001 - - C Cover-hinge

41 240358701 A B C Grommet-shelf mtg,1.40" long

41* 240358801 A B C Grommet-shelf mtg,.875" long

42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B C Roller Assy,front ,(2)

45 241500301 A B C Screw,#8 18 x .500 ,(3)

47 240349401 A B C Channel-shelf mtg,side ,(2)

58 218749600 A B C Screw,#10 pan hd ,8-18 x .5

66 240470201 A B C Cover-damper

66A 240470301 A B C Damper-meat keeper

66B 240355901 A B C Insulation-damper

72 240324405 A - - Grille/Kickplate,black

72 240324403 - B - Grille/Kickplate,bisque

72 240324401 - - C Grille/Kickplate,white

81 5308016566 A B C Screw,hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B C Roller,compressor base ,rear ,(2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 A B C Cover-access,w/label

90 218249807 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 A B C Support-crspr cover,(4)

100* 240350802 A B C Support-crspr cover,(4)

150 240368701 A B C Guide-control bulb

* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural

* 5303305345 A - - Paint,touch-up ,black

* 5304414035 - B - Paint,touch-up ,bisque

* 5303305324 - - C Paint,touch-up ,white

CABINET

08/01 8

Publication No. GLHS237ZA

5995356911

SHELVES

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

GLHS237ZA Publication No.

5995356911

A = GLHS237ZA (GLHS237ZAB1)

B = GLHS237ZA (GLHS237ZAQ1)

C = GLHS237ZA (GLHS237ZAW1)

POS. NO PART NO DESCRIPTION

2 240434601 A B C Trim-basket

11 240350648 A B C Shelf-freezer,glass ,lower

11A 240350647 A B C Shelf-freezer,glass ,upper

15A 215812200 A B C Light Bulb/Lamp,25W

16A 218906801 A B C Socket-light/lamp

24 240355201 A B C Shelf-"Spill-Safe",fixed ,(3)

24B 240350103 A B C Shelf-"Spill-Safe",sliding ,(3)

25 240354501 A B C Cover-crisper pan,upper

25* 240362101 A B C Clip-slide,cover-crisper

25A 240354601 A B C Cover-crisper pan,lower

26 240354705 A B C Pan-crisper,upper

26* 240349801 A B C Clip-slide,pan-crisper

26A 240351101 A B C Control-humidity

27 240354805 A B C Pan-crisper,lower

39 240367601 A B C Trim-shelf,front

42 240356501 A B C Hanger-meat pan,RH

42A 240349701 A B C Hanger-meat pan,LH

42A* 240349901 A B C Block-meat pan rail,LH

42A* 240350001 A B C Spring-meat pan rail

47 240350613 A B C Insert-pan cover,glass

47A 240350614 A B C Insert-pan cover,glass

49 240338401 A B C Basket-sliding

49A 240338501 A B C Basket-sliding,upper ,half

49B 240338503 A B C Basket-sliding,upper ,full

51 240343001 A B C Hanger-basket,RH

51A 240395501 A B C Hanger-basket,RH

52 240343101 A B C Hanger-basket,LH

52A 240395601 A B C Hanger-basket,LH

54 240351901 A B C Plug-hanger,right hand

55 240352001 A B C Plug-hanger,left hand

62 240355505 A B C Pan-meat

66 5303295947 A B C Rack-wine

81 5308016566 A B C Screw, hex wshr hd,8-15A x 0.625, low profile

97 240453003 A B C Water Tank Assy,with tubes

100 240326301 A B C Cover-water tank

101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4

109 240351301 A B C Base-crisper light socket

120 240342902 A B C Shelf-ice cream

123 215005100 A B C Screw-roller/hanger,8-10 x 0.438

126 218867401 A B C Channel,auger mtg ,LH

126 218867402 A B C Channel,auger mtg ,RH

SHELVES

08/01 10

Publication No. GLHS237ZA

5995356911

CONTROLS
