Frigidaire FRS26W2BS Manual de usuario

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRS26W2BSB2 FRS26W2BS R134a stain/blk 115

MARKET

North America

Publication No.

5995377446

020826

-EN/SERVICE /DCS

357

SIDE BY SIDE

REFRIGERATOR

Model No.

FRS26W2BS

ENERGY GUIDE - 218791402

OWNER’S GUIDE - 240389307

SERVICE DATA SHEET - 240389607

ELECTROLUX HOME PRODUCTS, INC

P.O. BOX 212378, Augusta, GA 30917

FACTORY

PARTS CATALOG

08/02 2

Publication No. FRS26W2BSB2

5995377446

FREEZER DOOR

# = Fast-moving Parts 3 08/02

* = Non-Illustrated Parts

FRS26W2BSB2 Publication No.

5995377446

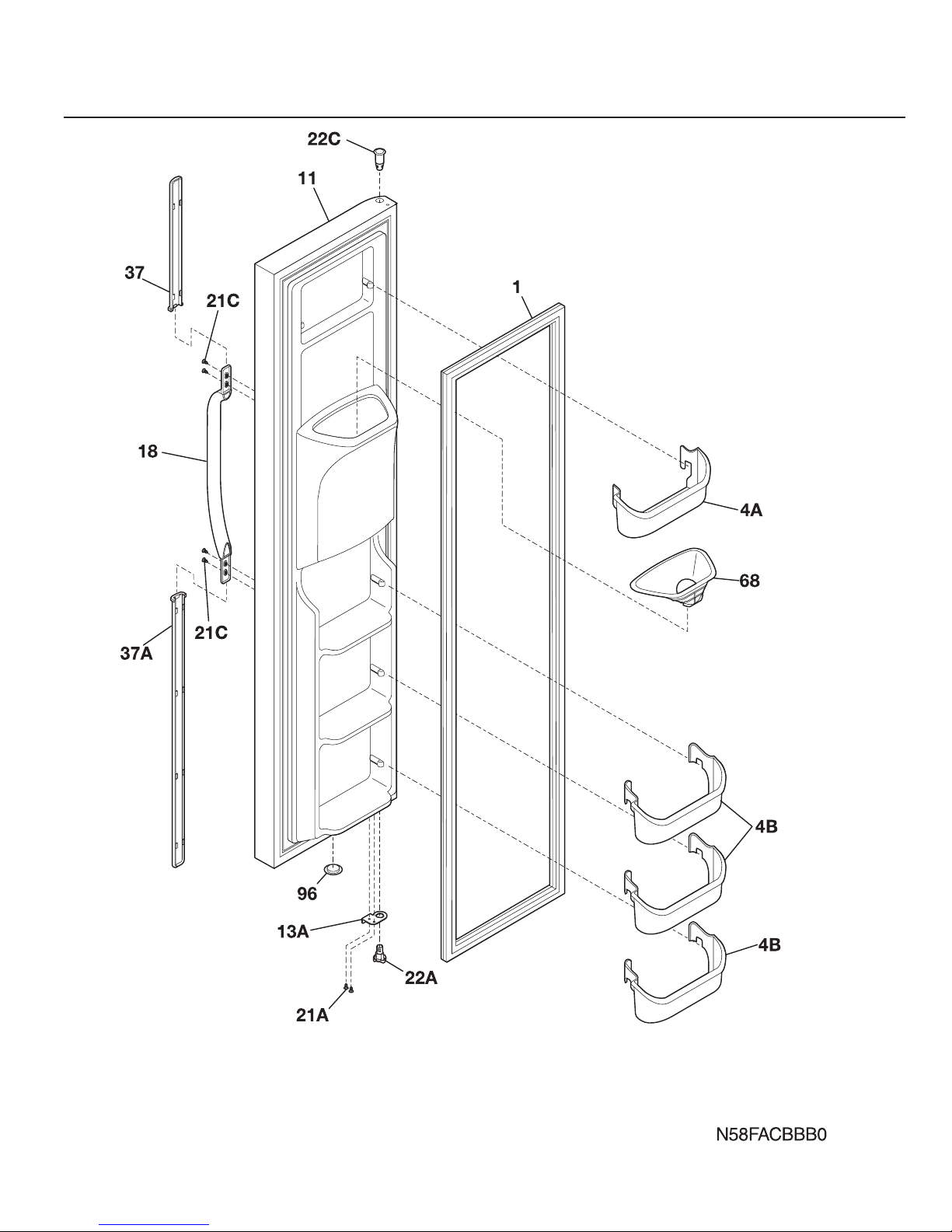

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390606 Gasket-frzr door,black ,magnetic

4A 240334201 Bin-door,frzr-upper

4B 240351601 Bin-door

11 240451896 Door-frzr,stainless steel ,complete assy

13A 240537106 Door Stop,black ,frzr

18 218762703 Handle-door,black

21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 Screw,pan head ,8-18 x 0.625

22A 240328202 Bearing-hinge,closer

22C 240328404 Bearing-hinge,black ,upper

37 218811620 Trim-handle,black ,upper

37A 218811617 Trim-handle,black ,lower

37A* 215782300 Lock-handle trim,snap-in

37A* 218676004 Band-decorative,satin aluminum ,handle trim

68 240467701 Chute-ice

96 240345506 Plug,door foam hole ,black

* 218490900 Cleaner,stainless steel

* 240552101 Harness-wiring,door

* 240545101 Connector-water,straight

* 5303918256 Dispenser heater kit

08/02 4

Publication No. FRS26W2BSB2

5995377446

REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/02

* = Non-Illustrated Parts

FRS26W2BSB2 Publication No.

5995377446

POS. NO PART NO DESCRIPTION

2 240390605 Gasket-refr door,black ,magnetic

4 240323001 Bin-door,pseudo ,bottom

7 240326203 Door-dairy

13 240537105 Door Stop,black ,ref

15 240451960 Door-refr,stainless steel ,complete assy

18 218762703 Handle-door,black

21A 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

21C 218781100 Screw,pan head ,8-18 x 0.625

22 240328201 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

37 218811620 Trim-handle,black ,upper

37A 218811617 Trim-handle,black ,lower

37A* 215782300 Lock-handle trim,snap-in

37A* 218676004 Band-decorative,satin aluminum ,handle trim

49 240356401 Bin-door,gallon

96 240345506 Plug,door foam hole ,black

* 218490900 Cleaner,stainless steel

REFRIGERATOR DOOR

08/02 6

Publication No. FRS26W2BSB2

5995377446

CABINET

# = Fast-moving Parts 7 08/02

* = Non-Illustrated Parts

FRS26W2BSB2 Publication No.

5995377446

POS. NO PART NO DESCRIPTION

10 240435902 Cover-air duct

10A 240475902 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 218659500 Channel-shelf mtg,side ,(2)

58 218749600 Screw,#10 pan hd ,8-18 x .5

66B 240374301 Diffuser-air

66B* 240518802 Pin-push,push-in ,plastic

72 240324406 Grille/Kickplate,black

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326104 Cover,access ,system compt ,with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 240481601 Shim-lower hinge

* 5303305345 Paint,touch-up ,black

CABINET

08/02 8

Publication No. FRS26W2BSB2

5995377446

SHELVES

# = Fast-moving Parts 9 08/02

* = Non-Illustrated Parts

FRS26W2BSB2 Publication No.

5995377446

POS. NO PART NO DESCRIPTION

2 240434604 Trim-basket

11 240338802 Shelf-freezer,flip-up

11A 240338702 Shelf-freezer,fixed wire

11B 240338704 Shelf-freezer,fixed wire

24 240373108 Frame-shelf,cantilever

25 240350702 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240350902 Cover-crisper pan,lower

26 240351007 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

27 240351207 Pan-crisper,lower

29 240357706 Trim-shelf,front

39 240430706 Trim-shelf,11.21" ,front

39B 240430702 Trim-shelf,12.39" ,front

40 240350623 Glass-shelf,16.76" x 17.60"

41 240357806 Trim-shelf,rear

47 240350649 Insert-pan cover,glass

47A 240350603 Insert-pan cover,glass

49 240530402 Basket-sliding

51 240343002 Hanger-basket,RH

52 240343102 Hanger-basket,LH

54 240351901 Plug-hanger,right hand

55 240352001 Plug-hanger,left hand

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

97 240545301 Water Tank Assy,coiled tubing ,no filter

100 240326302 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

126 218867401 Channel,auger mtg ,LH

126 218867402 Channel,auger mtg ,RH

* 218791402 Label,energy guide

SHELVES

08/02 10

Publication No. FRS26W2BSB2

5995377446

CONTROLS
