Frigidaire FRS26KF5C Manual de usuario

N58L00001.eps N58FCCBBB2.eps N58RCCBBB5.eps N58BAAAAA0.eps

N58SACAAD1.eps N58TAAAAB3.eps N58CAAAAA3.eps N58XDAAAA1.eps

N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26KF5CS0

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 240581300

Market North America

Energy Guide 240598634

Service Data Sheet 240389615

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995418356

04/10/08

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26KF5C

Publication No: 5995418356 FRS26KF5CS0

10/04 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS26KF5CS0 Publication No: 5995418356

# Functional Parts 3 10/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390606 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 240554228 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22A 240328202 Bearing-hinge(frz), closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

68 240467701 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995418356 FRS26KF5CS0

10/04 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB5

FRS26KF5CS0 Publication No: 5995418356

# Functional Parts 5 10/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 240390605 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 240451982 Door-refr, stainless steel, complete assy

18 240359103 Handle-door, black, RH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22 240328201 Bearing-hinge(ref), closer

22B 240328403 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

49 240356401 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

Publication No: 5995418356 FRS26KF5CS0

10/04 6

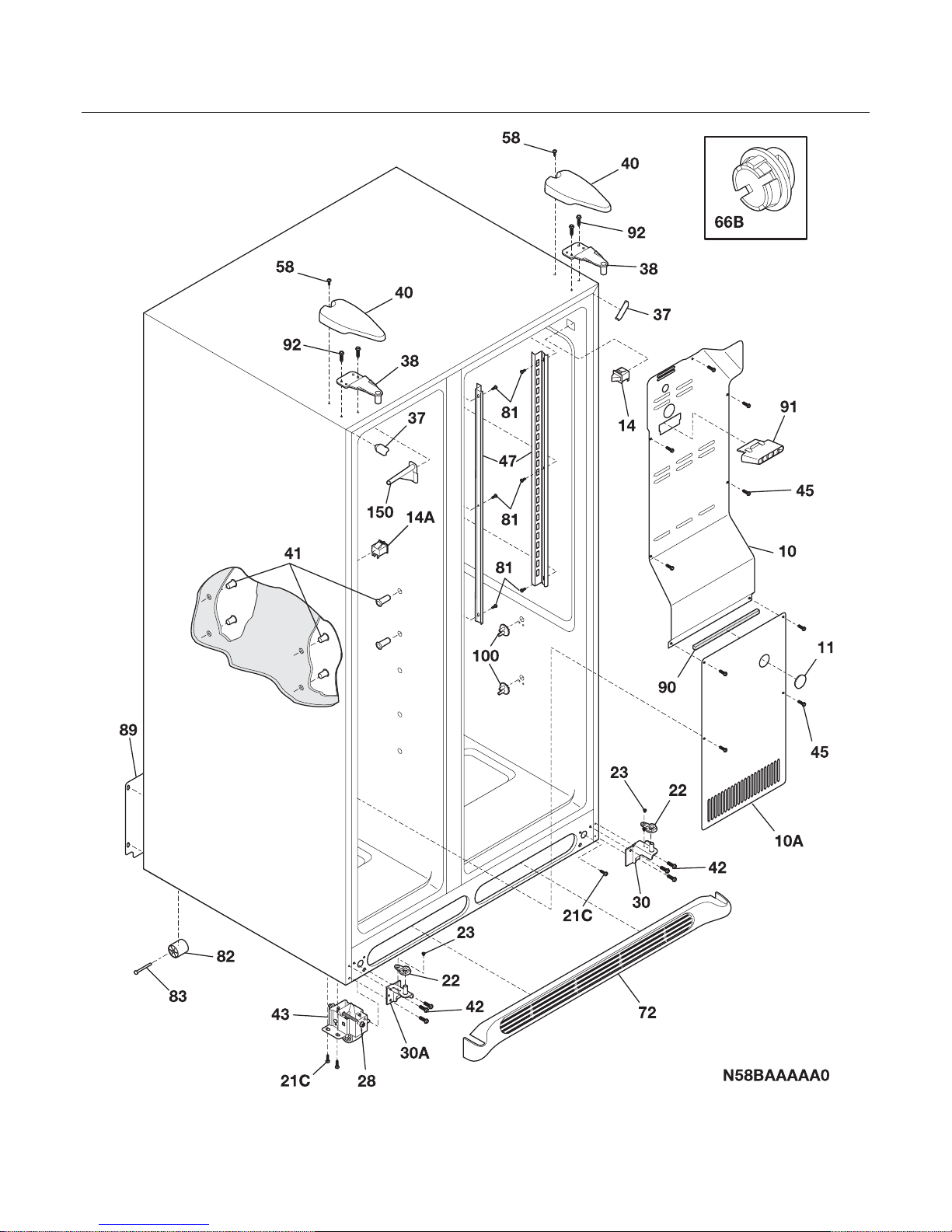

CABINET

FRS26KF5CS0 Publication No: 5995418356

# Functional Parts 7 10/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435904 Cover-air duct

10A 240475904 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 Cover, access, system compt, with label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995418356 FRS26KF5CS0

10/04 8

SHELVES

FRS26KF5CS0 Publication No: 5995418356

# Functional Parts 9 10/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240338802 Shelf-freezer, flip-up

11A 240338702 Shelf-freezer, fixed wire

11B 240338704 Shelf-freezer, fixed wire

15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16A# 241513901 Socket-light

16A* 241537602 Harness-wiring

24 240355208 Shelf-"Spill-Safe", fixed

24A 240350108 Shelf-"Spill-Safe", cantilever, sliding

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351206 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240530402 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342806 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995418356 FRS26KF5CS0

10/04 10

CONTROLS
