Frigidaire FRS26R2A Manual de usuario

N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps

N58SACACB22.eps N58TAAAAA4.eps N58CAAAAA3.eps N58XCAAAA0.eps

N58YCAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26R2AQ7 FRS26R2AW7

Series R134a R134a

Color bisque white

Volts 115 115

Wiring Diagram 241526901 241526901

Owner's Guide 240389311 240389311

Market North America North America

Service Data Sheet 240389616 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995410395

04/05/25

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26R2A

Publication No: 5995410395 FRS26R2A

05/04 2

FREEZER DOOR

FRS26R2A Publication No: 5995410395

# Functional Parts 3 05/04

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS26R2A (FRS26R2AQ7)

BFRS26R2A (FRS26R2AW7)

POS. NO PART NO. DESCRIPTION

1 # 240390602 A B Gasket-frzr door, white, magnetic

4A 240334201 A B Bin-door, frzr-upper

4B 240351601 A B Bin-door

11 240451808 A - Door-frzr, bisque, complete assy

11 240451802 - B Door-frzr, white, complete assy

13A 240537104 A - Door Stop, bisque, frzr

13A 240537102 - B Door Stop, white, frzr

18 218762706 A - Handle-door, bisque

18 218762701 - B Handle-door, white

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B Screw, pan head, 8-18 x 0.625

22A 240328202 A B Bearing-hinge, closer

22C 240328402 A B Bearing-hinge, upper

37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band

68 241525101 A B Chute-ice

* 240352102 A B Connector-water, straight

* 240552101 A B Harness-wiring, door

* 5303918256 A B Dispenser heater kit

Publication No: 5995410395 FRS26R2A

05/04 4

REFRIGERATOR DOOR

FRS26R2A Publication No: 5995410395

# Functional Parts 5 05/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS26R2A (FRS26R2AQ7)

BFRS26R2A (FRS26R2AW7)

POS. NO PART NO. DESCRIPTION

2 # 240390601 A B Gasket-refr door, white, magnetic

4 240323001 A B Bin-door, pseudo, bottom

7 240326203 A B Door-dairy

13 240537103 A - Door Stop, bisque, ref

13 240537101 - B Door Stop, white, ref

15 240451906 A - Door-refr, bisque, complete assy

15 240451902 - B Door-refr, white, complete assy

18 218762706 A - Handle-door, bisque

18 218762701 - B Handle-door, white

21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 A B Screw, pan head, 8-18 x 0.625

22 240328201 A B Bearing-hinge, closer

22B 240328401 A B Bearing-hinge, upper

37A 215870633 A - Trim-handle, 2.47", bisque, w/satin AL band

37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band

49 240356401 A B Bin-door, gallon

Publication No: 5995410395 FRS26R2A

05/04 6

CABINET

FRS26R2A Publication No: 5995410395

# Functional Parts 7 05/04

* Non-Illustrated Parts

CABINET

Model Index: AFRS26R2A (FRS26R2AQ7)

BFRS26R2A (FRS26R2AW7)

POS. NO PART NO. DESCRIPTION

10 240435906 A B Cover-air duct

10A 240475907 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 240505801 A B Switch, light/lamp

14A# 215486600 A B Switch-light/lamp

21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 A B Plate-door closer

23 240402701 A B Screw-#10-32 x 1/4 flat hd

28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 A B Bracket-lower hinge, ref

30A 240419104 A B Bracket-lower hinge

37 240337604 A - Trim-cabinet corner, bisque, (2)

37 240337601 - B Trim-cabinet corner, white, (2)

38 240327202 A B Bracket-upper hinge

40 240327006 A - Cover-upper hinge, bisque

40 240327005 - B Cover-upper hinge, white

41 240358701 A B Grommet-shelf mtg, 1.40" long

41* 240358801 A B Grommet-shelf mtg, .875" long

42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B Roller Assy, front, (2)

45 241500301 A B Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781100 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324404 A - Grille/Kickplate, bisque

72 240324402 - B Grille/Kickplate, white

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326104 A B Cover, access, system compt, with label

90 218249808 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes, (2)

* 240481601 A B Shim-lower hinge

* 5304414035 A - Paint, touch-up, bisque

* 5303305324 - B Paint, touch-up, white

Publication No: 5995410395 FRS26R2A

05/04 8

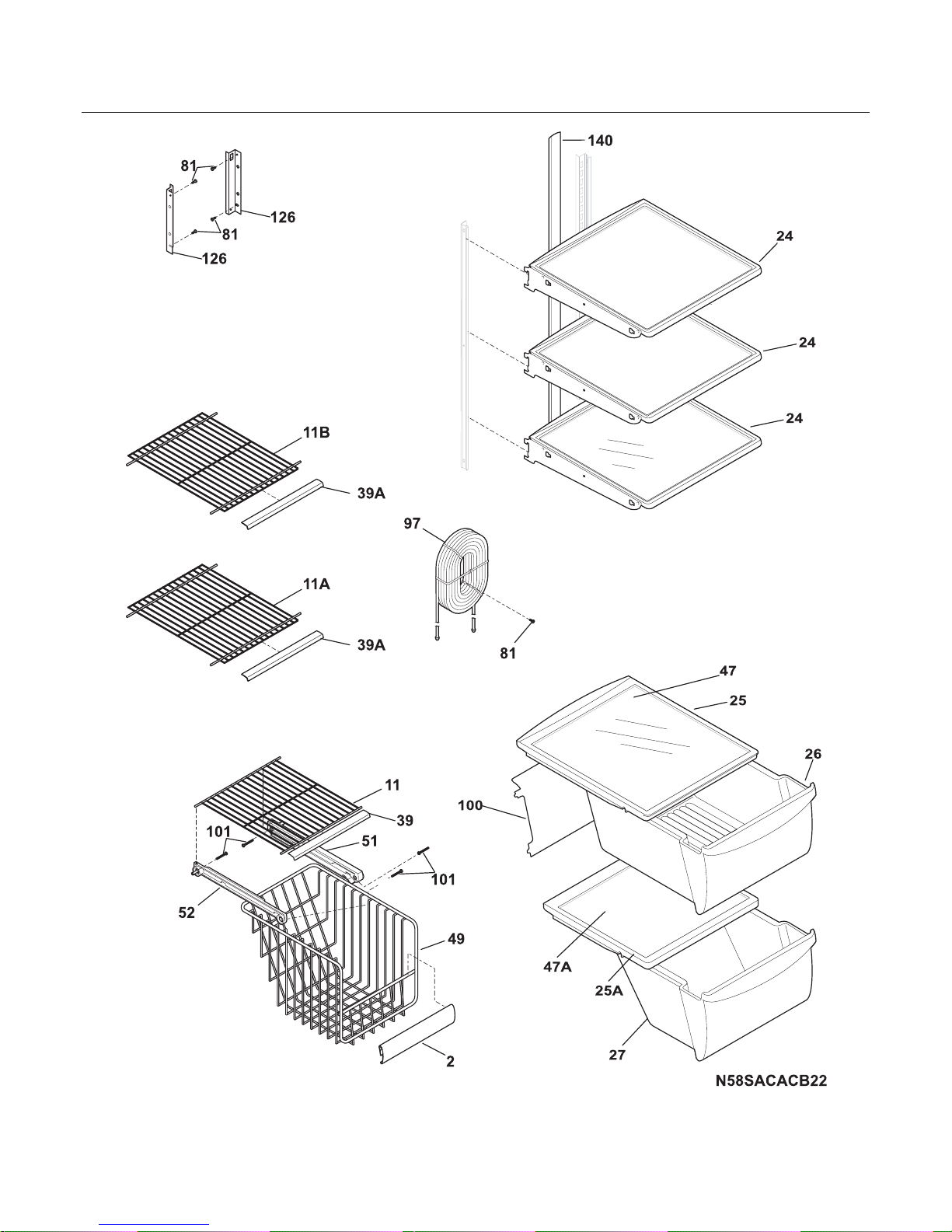

SHELVES

FRS26R2A Publication No: 5995410395

# Functional Parts 9 05/04

* Non-Illustrated Parts

SHELVES

Model Index: AFRS26R2A (FRS26R2AQ7)

BFRS26R2A (FRS26R2AW7)

POS. NO PART NO. DESCRIPTION

2 241510604 A B Trim-basket

11 240338802 A B Shelf-freezer, flip-up

11A 240338702 A B Shelf-freezer, fixed wire

11B 240338704 A B Shelf-freezer, fixed wire

24 240355208 A B Shelf-"Spill-Safe", fixed

25 240350702 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

26 240351007 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

27 240351207 A B Pan-crisper, lower

39 240430706 A B Trim-shelf, 11.21", front

39A 240430702 A B Trim-shelf, 12.39", front

47 240350633 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

49 240530402 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 A B Water Tank Assy, coiled tubing, rear filter

100 240326302 A B Cover-water tank

101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4

126 218867405 A B Channel, auger mtg, LH

126 218867406 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

Publication No: 5995410395 FRS26R2A

05/04 10

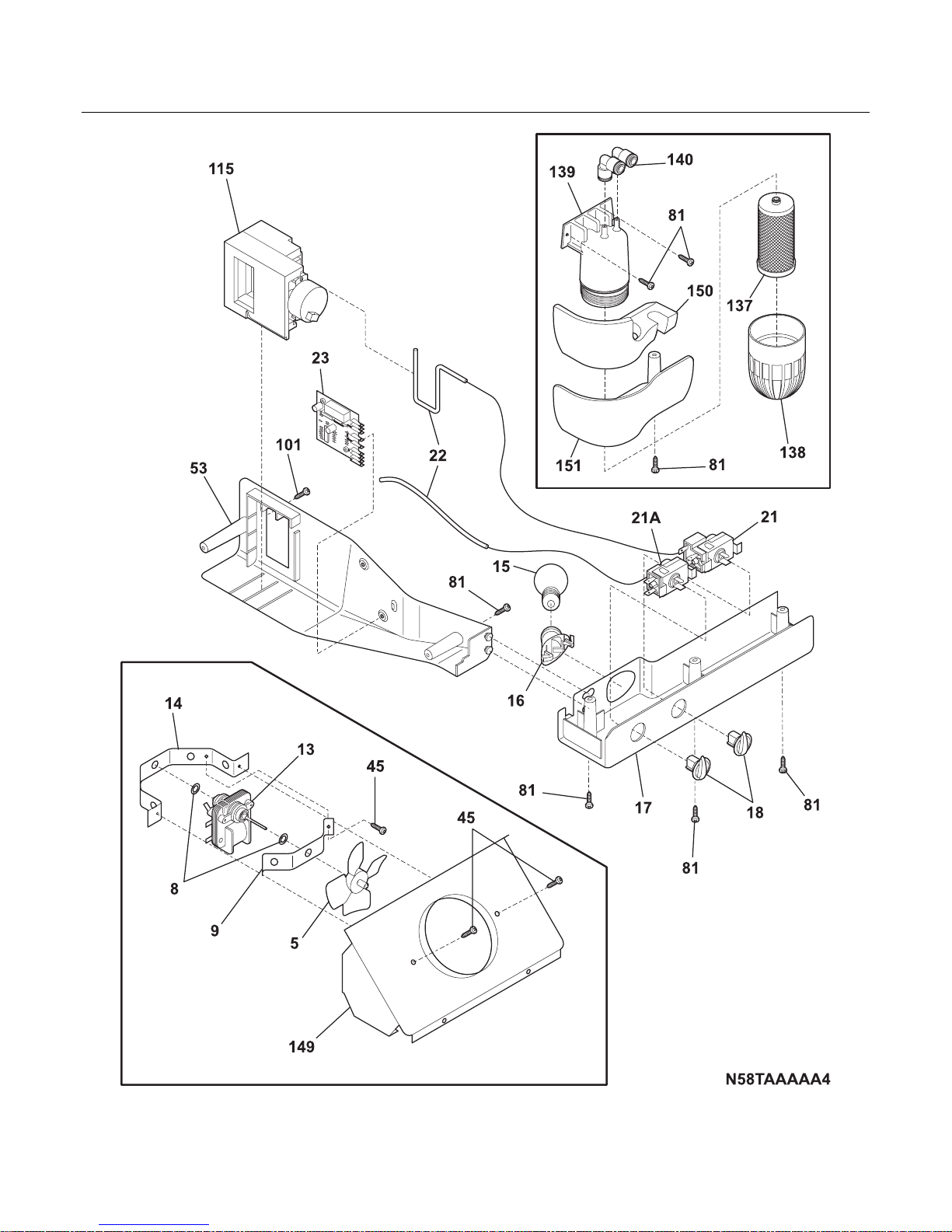

CONTROLS
