Frigidaire FRS26LF8C Manual de instrucciones

N58L00001.eps N58FCFEBC0.eps N58RCFAAA0.eps N58BAAAAB1.eps

N58SLDGBE13.eps N58TAAAAB4.eps N58CAAAAC0.eps N58XEAAAA0.eps

N58YAAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS26LF8CSN FRS26LF8CS9 FRS26LF8CW4

Series R134a R134a R134a

Color stain/blk stain/blk white

Volts 115 115 115

Wiring Diagram 241526901 241526901 241526901

Owner's Guide 240389312 240389616 240389312

Market North American North American North American

Energy Guide 241538713 241538713 241538712

Service Data Sheet 240389616 240389616 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995428330

05/02/04

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS26LF8C

Publication No: 5995428330 FRS26LF8C

02/05 2

FREEZER DOOR

Stainless Handle

79 80

21C

22C

13A

22A

21A

N58FCFEBC0

FRS26LF8C Publication No: 5995428330

# Functional Parts 3 02/05

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS26LF8C (FRS26LF8CSN)

BFRS26LF8C (FRS26LF8CS9)

CFRS26LF8C (FRS26LF8CW4)

POS. NO PART NO. DESCRIPTION

1 # 240390606 A B - Gasket-frzr door,black, magnetic

1 # 240390602 - - C Gasket-frzr door, white, magnetic

4A 240334202 A B C Bin-door, frzr-upper

4B 240351602 A B C Bin-door

4C 240351702 A B C Bin-door, frzr-dispenser

11 241615116 A B - Door-frzr, stainless, complete assy

11 240554249 - - C Door-frzr, white, completeassy

13A 240581906 A B - DoorStop, black, frzr

13A 240537102 - - C Door Stop, white, frzr

18 240536801 A B - Handle-door, stainless steel, with insert

18 240359106 - - C Handle-door, white

21 218781100 - - C Screw, pan head, 8-18 x 0.625

21A 240598401 A B - Screw, 10-32 x 1/2

21A 5308016566 - - C Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 - - C Screw, #8-18 x 3/4

22A 240328204 A B - Bearing-hinge(frz), black, closer

22A 240328202 - - C Bearing-hinge(frz), closer

22C 240328404 A B - Bearing-hinge, black, upper

22C 240328402 - - C Bearing-hinge, natural, upper

37 240359201 - - C Trim-handle, 30.13", white, lower

68 241525101 A B C Chute-ice

72 240421701 - - C Button-handle mtg, dovetail

73 218396700 - - C Block-handle mtg, dovetail

74 215503200 - - C Screw, cr pan hd, 10-16 x 0.500

79 218755402 A B - Screw-set, 10-32 x 0.375

80 218755503 A B - Screw-shoulder, #10 AB, handle mounting

* 240352102 A B C Connector-water, straight

* 240470401 A B C Connector-amp

* 240552102 A B C Harness-wiring, door

* 5303918256 A B C Dispenser heater kit

Publication No: 5995428330 FRS26LF8C

02/05 4

REFRIGERATOR DOOR

Stainless Handle

21C

21A

22B

N58RCFAAA0

27A

FRS26LF8C Publication No: 5995428330

# Functional Parts 5 02/05

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS26LF8C (FRS26LF8CSN)

BFRS26LF8C (FRS26LF8CS9)

CFRS26LF8C (FRS26LF8CW4)

POS. NO PART NO. DESCRIPTION

2 240390605 A B - Gasket-refr door, black, magnetic

2 # 240390601 - - C Gasket-refr door, white, magnetic

4 240323002 A B C Bin-door, pseudo, bottom

7 240326203 A B C Door-dairy

12 240572601 A B C Label-nameplate

13 240581905 A B - Door Stop, black, ref

13 240537101 - - C Door Stop, white, ref

15 241534541 A B - Door-refr, stainless steel, complete assy

15 240451968 - - C Door-refr, white, complete assy

18 240536801 A B - Handle-door, stainless steel, with insert

18 240359101 - - C Handle-door, white

21 218781100 - - C Screw, pan head, 8-18 x 0.625

21A 240598401 A B - Screw, 10-32 x 1/2

21A 5308016566 - - C Screw, hex washer head, 8-15A x 0.625, low profile

21C 240521302 - - C Screw, #8-18 x 3/4

22 240328203 A B - Bearing-hinge, black, closer

22 240328201 - - C Bearing-hinge(ref), closer

22B 240328404 A B - Bearing-hinge, black, upper

22B 240328401 - - C Bearing-hinge(ref), natural, upper

27A 240396102 A B C Retainer, tall bottle

37 240359201 - - C Trim-handle, 30.13", white, lower

49 240356402 A B C Bin-door, gallon

72 240421701 - - C Button-handle mtg, dovetail

73 218396700 - - C Block-handle mtg, dovetail

74 215503200 - - C Screw, cr pan hd, 10-16 x 0.500

79 218755402 A B - Screw-set, 10-32 x 0.375

80 218755503 A B - Screw-shoulder, #10 AB, handle mounting

Publication No: 5995428330 FRS26LF8C

02/05 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS26LF8C Publication No: 5995428330

# Functional Parts 7 02/05

* Non-Illustrated Parts

CABINET

Model Index: AFRS26LF8C (FRS26LF8CSN)

BFRS26LF8C (FRS26LF8CS9)

CFRS26LF8C (FRS26LF8CW4)

POS. NO PART NO. DESCRIPTION

10 240435906 A B C Cover-airduct

10A 240475907 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14 # 240505801 A B C Switch, light/lamp

14A# 215486600 A B C Switch-light/lamp

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B - Plate-door closer

22 240457701 - - C Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 A B C Bracket-lower hinge, ref

30A 240419102 A B C Bracket-lower hinge

37 240337603 A B - Trim-cabinet corner, black, (2)

37 240337601 - - C Trim-cabinet corner, white, (2)

38 240327201 A B C Bracket-upper hinge

40 240327007 A B - Cover-upper hinge, black

40 240327005 - - C Cover-upper hinge, white

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, front, (2)

45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B C Channel-shelf mtg, side, (2)

58 218781100 A B C Screw, pan head, 8-18 x 0.625

66 5304424968 A B C Damper Cover Assy

66* 240518802 A B C Pin-push, push-in, plastic

72 240324406 A B - Grille/Kickplate, black

72 240324402 - - C Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574605 A B C Cover-access, w/label

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

150 240368701 A B C Guide-control bulb

* 240396801 A B C Clamp, tube/wiring, nylon, black/natural

* 240479601 A B C Plug, button, cab liner holes, (2)

* 240481601 A B C Shim-lower hinge

* 5303305345 A B - Paint, touch-up, black

* 5303305324 - - C Paint, touch-up, white

Publication No: 5995428330 FRS26LF8C

02/05 8

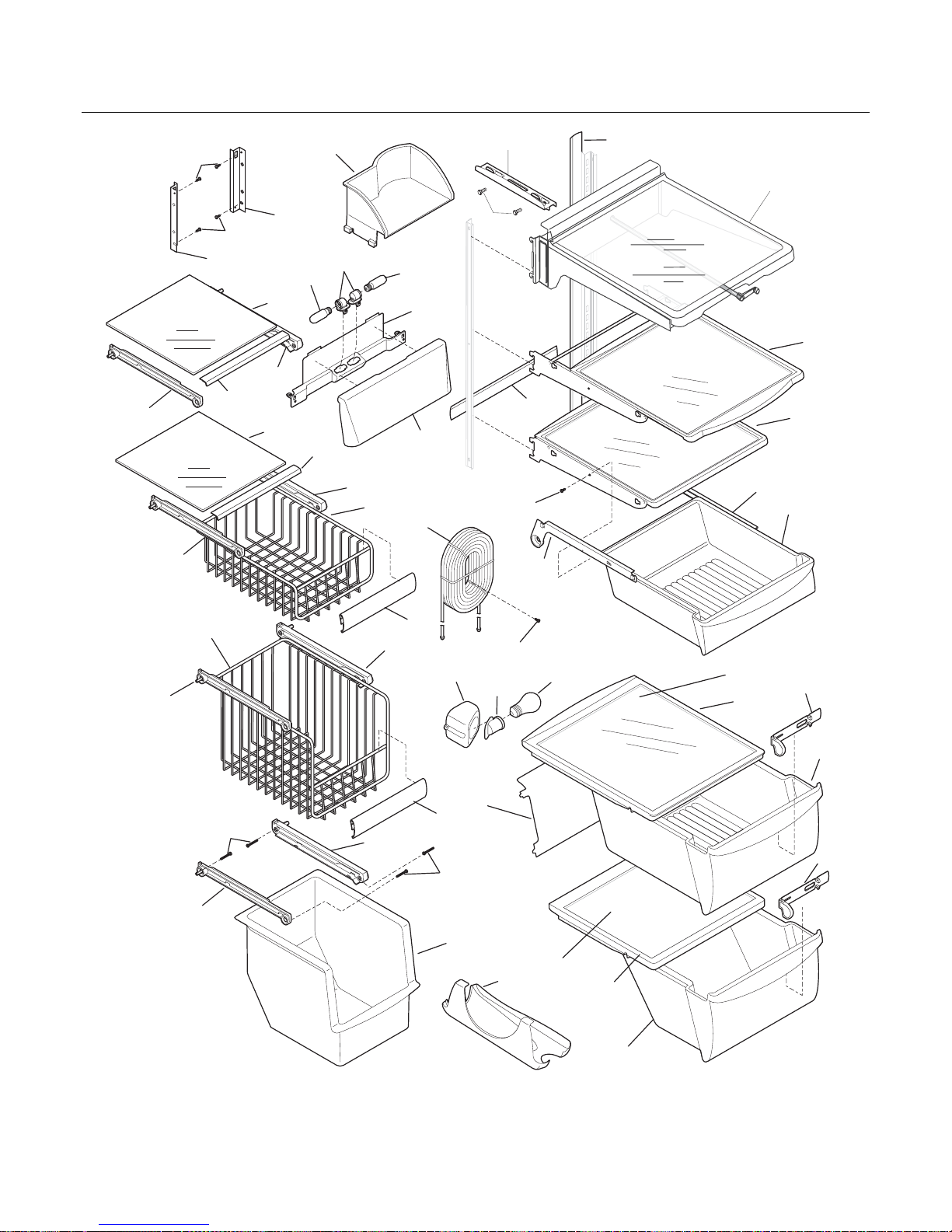

SHELVES

11A

16 15

141

142

140A

126

52A

109

51A

49B

49A

101

N58SLDGBE13

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

120

11C

24B

136

FRS26LF8C Publication No: 5995428330

# Functional Parts 9 02/05

* Non-Illustrated Parts

SHELVES

Model Index: AFRS26LF8C (FRS26LF8CSN)

BFRS26LF8C (FRS26LF8CS9)

CFRS26LF8C (FRS26LF8CW4)

POS. NO PART NO. DESCRIPTION

2 241510604 A B C Trim-basket

11 240350668 A B C Shelf-freezer, glass, lower

11A 240350667 A B C Shelf-freezer, glass, upper

11C 240324101 A B C Shelf-pizza

15 241552801 A B C Light Bulb

15A 241555401 A B C Light Bulb

16 240590401 A B C Socket-light

16A# 241513901 A B C Socket-light

16A* 241537502 A B C Harness-wiring

24 240355203 A B C Shelf-"Spill-Safe", fixed

24A 240350106 A B C Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 A B C Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240350902 A B C Cover-crisper pan, lower

26 240351009 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26* 240423101 A B C Channel-divider

26* 240423201 A B C Retainer

26* 240423301 A B C Divider-crisper pan

26A 241552301 A B C Control-humidity

26A* 241552401 A B C Frame-humidity control, upper

27 240351205 A B C Pan-crisper, lower

27A 240362201 A B C Control-humidity

39 240367602 A B C Trim-shelf, front

42 240356501 A B C Track, meat pan hanger, RH

42A 240349701 A B C Hanger-meat pan, LH

42A* 240349901 A B C Block-meat pan rail, LH

42A* 240350001 A B C Spring-meat pan rail

47 240350602 A B C Insert-pan cover, glass

47A 240350603 A B C Insert-pan cover, glass

49 240564401 A B C Basket-sliding

49A 240530502 A B C Basket-sliding, upper, half

49B 240530504 A B C Basket-sliding, upper, full

51 240343002 A B C Hanger-basket, RH

51A 240395502 A B C Hanger-basket, RH

52 240343102 A B C Hanger-basket, LH

52A 240395602 A B C Hanger-basket, LH

62 240342805 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy, coiled tubing, front filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B C Base-crisper light socket

120 240342902 A B C Shelf-ice cream

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 A B C Channel, auger mtg, LH

126 218867406 A B C Channel, auger mtg, RH

Publication No: 5995428330 FRS26LF8C

02/05 10

SHELVES

11A

16 15

141

142

140A

126

52A

109

51A

49B

49A

101

N58SLDGBE13

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

120

11C

24B

136

Otros manuales para FRS26LF8C

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Frigidaire

Frigidaire

Frigidaire FRT22RGJW2 Instrucciones de montaje

Frigidaire

Frigidaire FRS26ZRGB3 Manual de usuario

Frigidaire

Frigidaire FRS26LH5D Manual de usuario

Frigidaire

Frigidaire FRT18HS6A Manual de usuario

Frigidaire

Frigidaire FRT8KR7E Manual de usuario

Frigidaire

Frigidaire FFHS2313L S Manual de usuario

Frigidaire

Frigidaire FRT21P6C Manual de usuario

Frigidaire

Frigidaire GLHS269ZC Manual de usuario

Frigidaire

Frigidaire FRT17B3A Manual de usuario

Frigidaire

Frigidaire GLHS68EG Manual de usuario

Frigidaire

Frigidaire FGHS2665KF - GAL26 CFTRANSV1 S 2 F Spill Manual de usuario

Frigidaire

Frigidaire FRT21H7AS Manual de usuario

Frigidaire

Frigidaire FRT15GG3A Manual de usuario

Frigidaire

Frigidaire FRS23KF6E Manual de usuario

Frigidaire

Frigidaire FRS23H5DS Manual de usuario

Frigidaire

Frigidaire FRT18QGFW1 Manual de instrucciones

Frigidaire

Frigidaire FRT21FG3C Manual de usuario

Frigidaire

Frigidaire FRT18IS6C Manual de usuario

Frigidaire

Frigidaire FRT18P5A Manual de usuario

Frigidaire

Frigidaire FRT21KS6D Manual de usuario

Frigidaire

Frigidaire FGHS2669K Manual de usuario

Frigidaire

Frigidaire FRS23LH5D Manual de usuario

Frigidaire

Frigidaire FRS6HR35K Manual de usuario

Frigidaire

Frigidaire FRS26RLEC Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Beko

Beko LSP4579W Manual de usuario

Teledyne

Teledyne 6712FR and Instrucciones de funcionamiento
