Frigidaire FRS23LH5D Manual de usuario
Product No. FRS23LH5DW5
Series R134a
Color white
Volts 115
Wiring Diagram 241526901
Owner's Guide 240581300
Market North America
Energy Guide 241538736
Service Data Sheet 240389616
N58L00001.eps N58FACBBB4.eps N58RACBBB7.eps N58BAAAAA0.eps
N58SJCAAB1.eps N58TAAAAA6.eps N58CAAAAA4.eps N58XDAAAA1.eps
N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995423471
04/12/06
(EN/SERVICE/KHB)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS23LH5D
Copyright ©2004 Home Pr oducts, Inc.
All rights reserved.
Publication No: 5995423471 FRS23LH5DW5
12/04 2
FREEZER DOOR
FRS23LH5DW5 Publication No: 5995423471
# Functional Parts 3 12/04
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 240390604 Gasket-frzr door, white
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 240451819 Door-frzr, white, complete assy
13A 240537102 Door Stop, white, frzr
18 218762701 Handle-door, white
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 Screw, pan head, 8-18 x 0.625
22C 240328402 Bearing-hinge, natural, upper
37 218811618 Trim-handle, white, upper
37* 218676004 Band-decorative, satin aluminum, handle trim
37A 218811615 Trim-handle, white, lower
37A* 215782300 Lock-handle trim, snap-in
68 241525101 Chute-ice
* 240352102 Connector-water, straight
* 240552101 Harness-wiring, door
* 5303918256 Dispenser heater kit
Publication No: 5995423471 FRS23LH5DW5
12/04 4
REFRIGERATOR DOOR
21A
22
13
15
22B
2
7
49
49
4
4
21C
21C 37A
37
18
N58RACBBB7
12
FRS23LH5DW5 Publication No: 5995423471
# Functional Parts 5 12/04
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 240390603 Gasket-refr door, white, magnetic
4 240363701 Bin-door, 2-liter
7 240338303 Door, dairy, clear
12 240572601 Label-nameplate
13 240537101 Door Stop, white, ref
15 240451912 Door-refr, white, complete assy
18 218762701 Handle-door, white
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 Screw, pan head, 8-18 x 0.625
22 240328201 Bearing-hinge(ref), closer
22B 240328401 Bearing-hinge(ref), natural, upper
37 218811618 Trim-handle, white, upper
37* 218676004 Band-decorative, satin aluminum, handle trim
37A 218811615 Trim-handle, white, lower
37A* 215782300 Lock-handle trim, snap-in
49 240324502 Bin-door, gallon
Publication No: 5995423471 FRS23LH5DW5
12/04 6
CABINET
FRS23LH5DW5 Publication No: 5995423471
# Functional Parts 7 12/04
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435905 Cover-air duct
10A 240475906 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240419101 Bracket-lower hinge, ref
30A 240419102 Bracket-lower hinge
37 240337601 Trim-cabinet corner, white, (2)
40 240327005 Cover-upper hinge, white
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 Roller Assy, front, (2)
45 241500301 Screw, hex washer head, 8-18AB x 0.500
47 218659500 Channel-shelf mtg, side, (2)
58 218781100 Screw, pan head, 8-18 x 0.625
66B 240374301 Diffuser-air
66B* 240518802 Pin-push, push-in, plastic
72 240324401 Grille/Kickplate, white
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574601 Cover access
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240481601 Shim-lower hinge
* 5303305324 Paint, touch-up, white
Publication No: 5995423471 FRS23LH5DW5
12/04 8

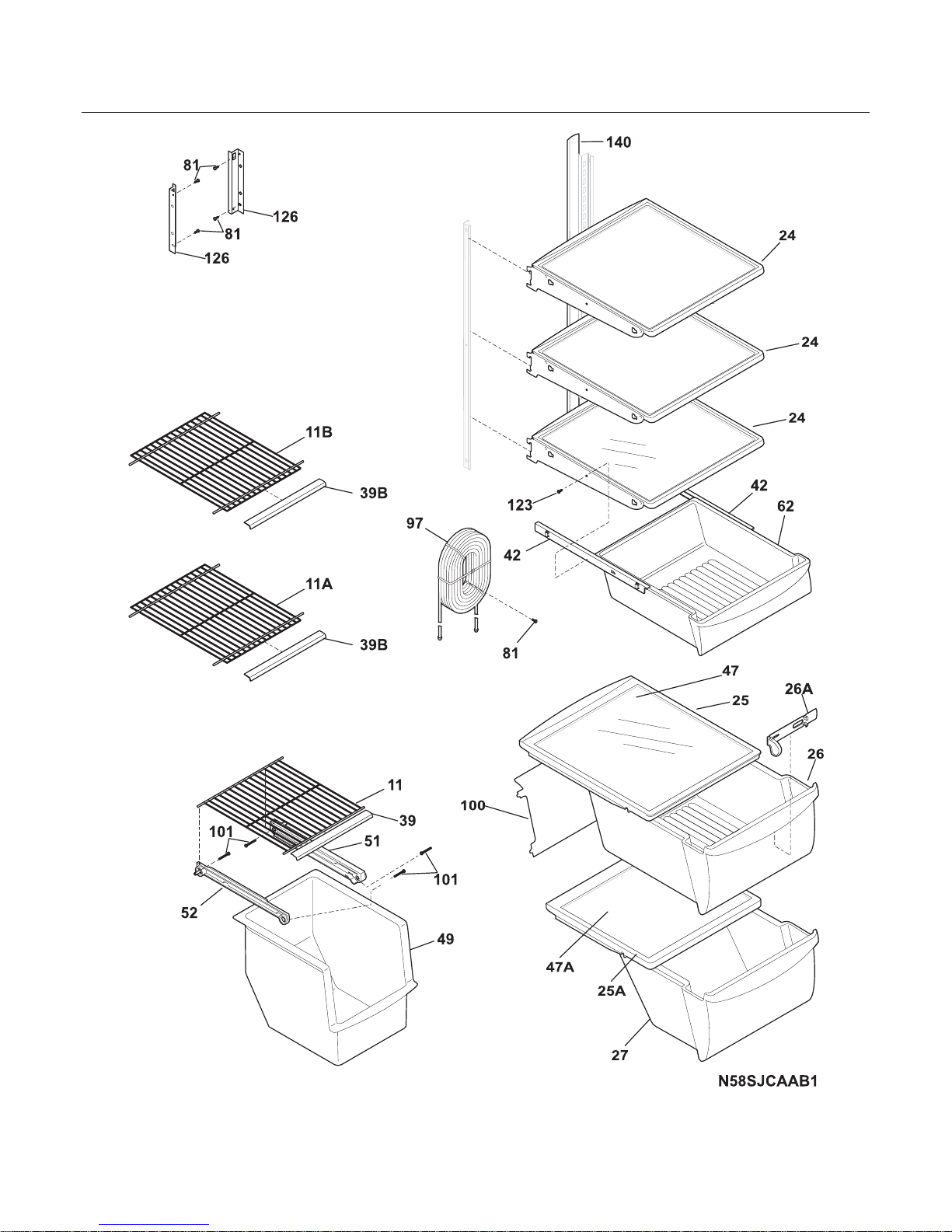

SHELVES
FRS23LH5DW5 Publication No: 5995423471
# Functional Parts 9 12/04
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
11 240338801 Shelf-freezer, flip-up
11A 240338701 Shelf-freezer, fixed wire
11B 240338703 Shelf-freezer, fixed wire
24 240355211 Shelf-"Spill-Safe", fixed
25 240354502 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240354602 Cover-crisper pan, lower
26 240354705 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240351101 Control-humidity
27 240354807 Pan-crisper, lower
39 240430705 Trim-shelf, front
39B 240430701 Trim-shelf, front
42 240356501 Track, meat pan hanger, RH
42 240365401 Track, meat pan hanger, LH
47 240350635 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
62 240355506 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 Water Tank Assy, coiled tubing, rear filter
100 240326301 Cover-water tank
101 218493100 Screw, hex washer head, 8-18AB x 1-3/4
123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438
126 218867405 Channel, auger mtg, LH
126 218867406 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover
Publication No: 5995423471 FRS23LH5DW5
12/04 10
CONTROLS
140
139
81
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA6
149
14
13
9
8
5
