Frigidaire FRT18IS6C Manual de usuario

Product No. FRT18IS6CW1

Series R134a

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400111

Market North America

Energy Guide 240572138

Service Data Sheet 240379014

Installation Instructions 240568300

N05L00003.eps N05DCDBCA1.eps N05BBAABA6.eps N05SACAFI13.eps

N05CABBAB6.eps 115-1.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995414918

04/08/12

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT18IS6C

Publication No: 5995414918 FRT18IS6CW1

08/04 2

DOOR

FRT18IS6CW1 Publication No: 5995414918

# Functional Parts 3 08/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240514605 Gasket, frzr door seal, white, magnetic

2 # 240514608 Gasket, seal, white, refr door, magnetic

7 240337703 Door-dairy, w/o graphics, clear

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240476201 Panel-frzr door, white, complete assy

12 240416301 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

14B 240383601 Plug-button, white, door handle

15 240476301 Panel-refr door, white, complete assy

18 240339201 Handle-door, white

18A 240339206 Handle-door, white

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

48 240338101 Bin-door, pseudo, bottom

48A 240337901 Bin-door, refr

48B 240338001 Bin-door, pseudo, gallon, refr

49 240495804 Bin-door, pseudo, frzr

Publication No: 5995414918 FRT18IS6CW1

08/04 4

CABINET

FRT18IS6CW1 Publication No: 5995414918

# Functional Parts 5 08/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462010 Cover-evap coil

10* 240568605 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

12* 218843800 Screw, hex wshr hd, 8-15A x 0.500

13 240369702 Motor-evap fan

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

18 240411901 Support-evap cover, (2)

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314002 Bracket-lower hinge, white

34 240311303 Washer, hinge, nylon, (2)

35 240313801 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 241550801 Grommet-shelf mtg, 1.40" long

41 5303001609 Grommet, shelf mtg, 0.69", RH

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4, white

72 240368205 Grille/Kickplate, white

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500301 Screw, hex washer head, 8-18AB x 0.500

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 5303305324 Paint, touch-up, white

Publication No: 5995414918 FRT18IS6CW1

08/04 6

SHELVES

FRT18IS6CW1 Publication No: 5995414918

# Functional Parts 7 08/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358002 Shelf-freezer, full width

11* 5303299664 Spacer, shelf

12 240545001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352701 Control Box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 5303916855 Tube, sensor sleeve, plastic, clear

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240358905 Shelf-"Spill-Safe", sliding

24A 240358906 Shelf-"Spill-Safe", sliding, w/pan hanger

25 240364714 Cover-crisper pan

25B 240361201 Control-humidity

25C 240361301 Damper, humidity cont.

26 240337103 Pan-crisper, clear, (2), no graphics

31 240530803 Pan-meat, w/o graphics, clear

34 240385201 Container, ice bin

47 240350643 Insert-pan cover, glass

58 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995414918 FRT18IS6CW1

08/04 8

SYSTEM

N05CABBAB6

FRT18IS6CW1 Publication No: 5995414918

# Functional Parts 9 08/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 240581701 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 240518402 Insulation, evap block, foam, LH/RH

21 # 5303918202 Thermostat-defrost, kit

22 240330001 Plate-compr mtg

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332601 Pan-defrost drain

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

34 240405201 Grommet, rubber, black, cond tube/wire

41 218897001 Screw, hex washer head, 8-32 x 1/4

44 215174700 Clamp-service cord, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

58 215004600 Screw, hx serr wshr hd, 8-36 x 7/16, cond fan motor, (2)

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 # 240525401 Motor-condenser fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 240493101 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918207 Heat Exchanger Kit, suction line

* # 5303918222 Hot Tube Repair Kit, Service

Publication No: 5995414918 FRT18IS6CW1

08/04 10

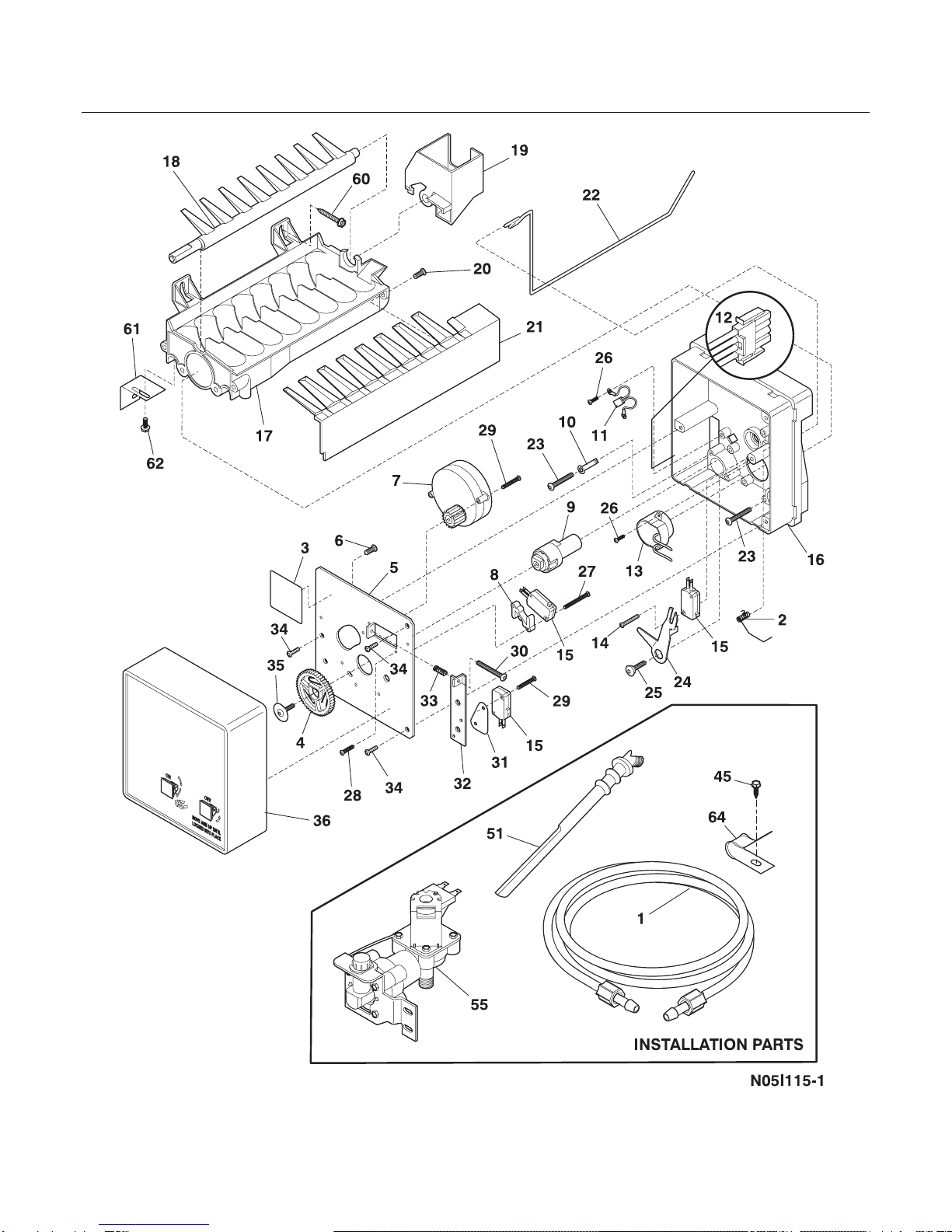

ICE MAKER
