Frigidaire PLCS389C Manual de usuario

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

PLCS389CCA PLCS389C 37957393H33S1 stainless North America

Publication No.

5995378923

020927

-EN/SERVICE /ECL

377

DUAL FUEL

RANGE

Model No.

PLCS389C

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318045071

OWNER’S GUIDE - # 318200861

TIMER INSTRUCTION SHEET - # 318200161

INSTALLATION INSTRUCTIONS - # 318201657

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

09/02 2

Publication No. PLCS389CCA

5995378923

BACKGUARD

# = Functional Parts 3 09/02

* = Non-Illustrated Parts

PLCS389CCA Publication No.

5995378923

BACKGUARD

POS. NO PART NO DESCRIPTION

13A# 316095500 Switch,infinite ,drawer/zone ,warmer

14 # 318076700 Light,indicator ,125v

18 5303300160 End Cap,black ,RH

18A 5303300161 End Cap,black ,LH

19 318220508 Panel,control mtg. ,stainless

20 # 318183622 Clock/Timer,electronic ,black

21 318027810 Trim,backguard ,black ,top

23 318015042 Bracket,clock mtg ,upper

23A 318015043 Bracket,clock mtg ,lower

31 318197601 Knob,warmer ,black

42 318106927 Trim,backguard ,black ,bottom

46 5303297274 Lens,indicator light

69 5303323134 Screw,switch mtg. ,8-32 x 0.188

* 218490900 Cleaner,stainless steel

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303311333 Screw,8-32 x 3/8 ,(6)

* 5303311528 Screw,oval hd sq dr ,6-20AB x 0.625 ,black

09/02 4

Publication No. PLCS389CCA

5995378923

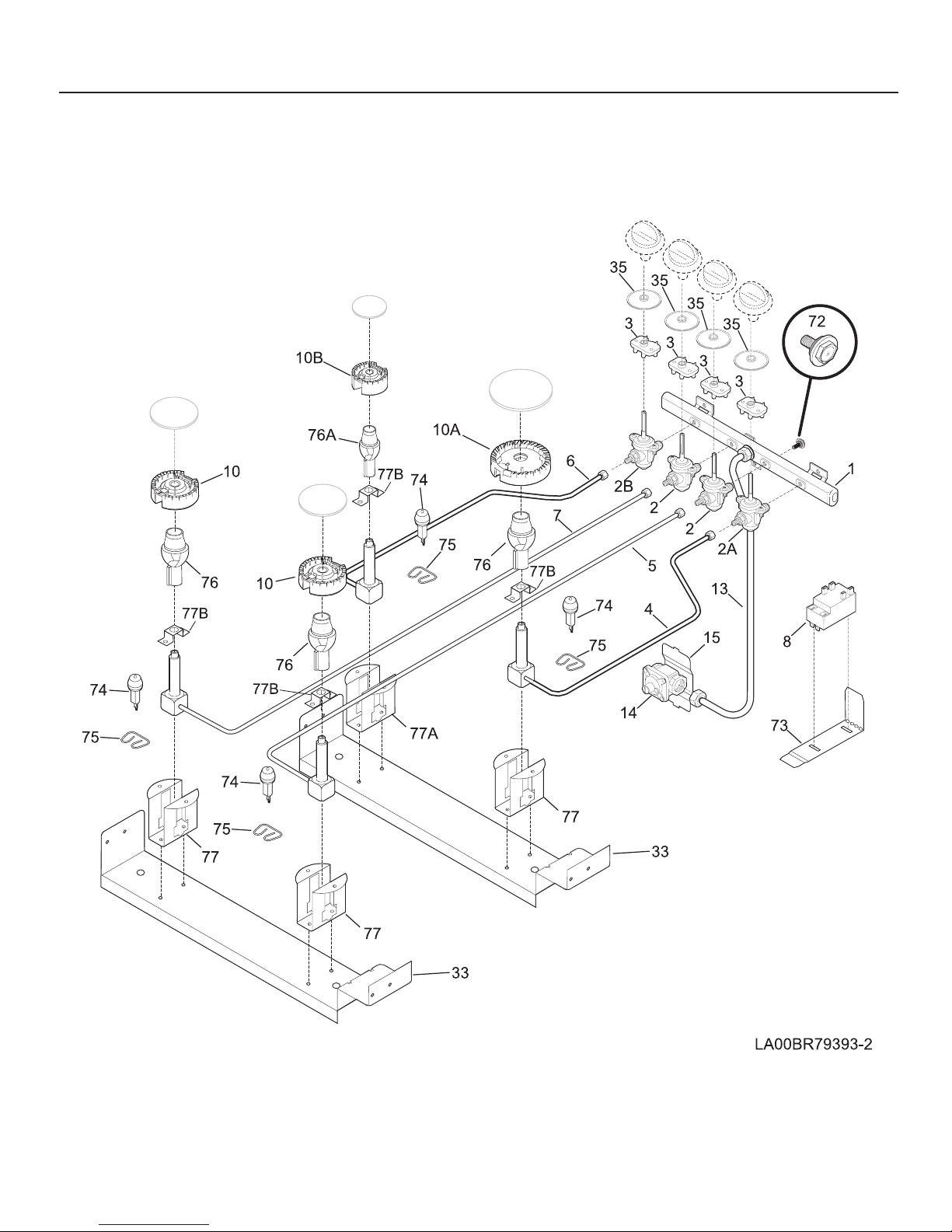

BURNER

# = Functional Parts 5 09/02

* = Non-Illustrated Parts

PLCS389CCA Publication No.

5995378923

BURNER

POS. NO PART NO DESCRIPTION

1 # 318177301 Manifold Pipe

2 # 5303935042 Valve,top burner ,2-position ,9100 BTU

2A # 318087001 Valve,top burner ,5000 BTU

2B # 318087040 Valve,top burner ,13000 BTU

3 # 316032002 Switch,ignitor

4 # 318167703 Tube,burner ,RF

5 # 318167700 Tube,burner ,LF

6 # 318167702 Tube,burner ,RR

7 # 318167701 Tube,burner ,LR

8 # 316135701 Module,spark

10 # 318148001 Burner,top ,9100 BTU ,medium LF & LR

10A# 318148002 Burner,top ,13000 BTU ,large RF

10B# 318148000 Burner,top ,5000 BTU ,small RR

13 318054503 Connector,manifold tube

14 # 318122700 Regulator,pressure

15 318122901 Bracket,regulator

33 318171500 Bracket,burner

35 318146300 Bushing

72 5303323141 Screw,valve mtg ,1/4-20 x 5/16

73 318080100 Plate,spark module

74 # 318148700 Ignitor,top burner

75 318148800 Clip,electrode

76# 318167801 Tube,mixing ,medium & large

76A 318167800 Tube,mixing ,small

77 318112010 Bracket,burner mtg ,medium & large

77A 318112000 Bracket,burner mtg ,small

77B 318180900 Bracket,burner tube

* 318052148 Harness,wiring

* # 318127701 LP Conversion Kit

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 316048200 Screw,hex washer head ,1/4-20 x 0.31 ,valve mounting,w/gasket

09/02 6

Publication No. PLCS389CCA

5995378923

BODY

# = Functional Parts 7 09/02

* = Non-Illustrated Parts

PLCS389CCA Publication No.

5995378923

BODY

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

1A 318070910 Panel,main back ,upper

2A 318108600 Shield,oven top

3 318159800 Panel,body side ,upper

3A 318160004 Panel,lower side ,RH

3B 318160005 Panel,lower side ,LH

4 318073900 Panel,subtop

5 318175503 Screw,leveling

6 318025304 Rack,oven

6A 318219500 Rack,broiler pan

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 # 318089914 Switch,light

14 5308011085 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

25 318179108 Shield,heat ,lower

37 # 318198510 Probe,oven temp

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

56 318002611 Trim,oven ,black ,front

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072519 Tube,oven vent ,upper

59A 318072520 Tube,oven vent ,lower

62 # 5303310518 Terminal Block

62* 5303323144 Nut,10-32

62* 5303310517 Plate,ground strap

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 318194400 Shield,insulation

70A 318199802 Deflector

71 5303310515 Panel,wiring cover ,rear

76 318124100 Front,oven

80 5303320846 Plate,oven mtg

81 318192400 Spring,oven

83 318089609 Liner,oven

86 5303310524 Receptacle,hinge

87 318111803 Plate,mounting

88 318118904 Rod,latch

89 # 318095937 Motor,latch assy ,w/brkt & switch

89* 318120711 Switch

102 5303311142 Support,oven front

107 318119600 Cover,fan

108# 318073012 Motor,blower

109 316136400 Blade,fan

111 316136600 Nut,fan retainer

114 318175100 Plate,filler

125# 316234601 Motor,fan

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

141# 318005201 Switch,thermal cutout

142 318123901 Deflector

161# 318050710 Element,convection ,2500 W

170 5304405244 Anti-tip & accessories

177 5303324040 Gasket,vent

191 5303304030 Bracket,angle ,corner

217 318112102 Plate,warning

219# 318003400 Thermostat,safety

219# 318003606 Thermostat,safety

223 318038400 Cover,tube

263 316136500 Washer,fan motor

264 318077602 Cover,wire

* 5303311207 Tube,protector

* 08016432 Screw,truss head ,8-18 x 0.375

* 5303211311 Screw,8 x 0.500

* 5303307980 Screw,8-32 x 0.437

09/02 8

Publication No. PLCS389CCA

5995378923

TOP/DRAWER

# = Functional Parts 9 09/02

* = Non-Illustrated Parts

PLCS389CCA Publication No.

5995378923

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 318142500 Drawer,warmer

1A 318143335 Deflector,warmer drawer ,RH

1B 318143334 Deflector,warmer drawer ,LH

1C 318143203 Deflector,warmer drawer ,rear

2 318108025 Liner,drawer

4 318107903 Panel,drawer ,stainless

13 316105602 Glide,warmer ,inner RH

13A 316105601 Glide,warmer ,inner LH

16 318079223 Main Top,glass ,black

19 318168114 Pan,burner ,black ,medium

19A 318168124 Pan,burner ,black ,large

19B 318168104 Pan,burner ,black ,small

20 318120402 Grate

22 318076410 Cap,burner ,black ,medium LF & LR

22A 318076420 Cap,burner ,black ,large RF

22B 318076400 Cap,burner ,black ,small RR

31A 318053901 Gasket,burner pan

39 316246100 Handle,door/drawer ,stainless

43 318196141 Knob,control ,black

45 318146210 Bushing

60 5303311174 Screw,10-24 x 3/8

72 318113402 Bracket,slide ,(2)

80 318054300 Gasket,warmer drawer

81 # 318112400 Element,warmer drawer

84 # 318005103 Thermostat,safety

85 316093600 Rack,warmer drawer

86 316095800 Clip,hold down ,warmer element

87 318121503 Base,warmer

95 318143702 Cover,wire

124 316105500 Glide,warmer drawer ,outer/RH & LH ,(2)

193 5303325173 Cap,plug

* 218490900 Cleaner,stainless steel

* 5304400795 Bushing,snap-in ,nylon

* 5303325171 Washer,plastic

* 5304403558 Screw,10-16 x 0.250

09/02 10

Publication No. PLCS389CCA

5995378923

DOOR
