Frigidaire Gallery FGEF3044KF Instrucciones de instalación
frigidaire.com
Signature Features
30" Electric
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
One-Touch Options
Our ovens feature easy-to-use one-touch
buttons so you can cook pizza or chicken
nuggets — or even add a minute to the
timer — with the touch of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the
half rack and you’ll have extra height for
tall dishes.
Fits-More™ Cooktop
The Fits-More™ cooktop features five
elements so you can cook more at once.
Eortless™ Oven Rack
Bottom rack extends when you open
the door for easy access.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Even Baking Technology
Our latest technology ensures even
baking every time.
Sabbath Mode (Star-K® Certified)
Available in:
Stainless
(F)
1Based on single rack cooking performance,
not set temperature, using Quick Preheat.
Quick Boil
Boils water faster.
Quick Preheat
Preheat in less than six minutes.
1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Express-Select® Controls
Easily go from warm to boil.
Freestanding Range
FGEF3044K F
Elements
Right Front
Right Rear
Left Front
Left Rear
Center
Size
9" / 12"
Expandable
6"
6" / 9"
Expandable
6"
Keep Warm
Zone
Watts
1,700 /2,700
1,200
1,200 /3,000
1,200
100
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
48-3/8"
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
30" Electric Freestanding Ranges
Frigidaire Baseline
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Bake
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shuto
Lower Drawe r Control
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Bridge Element (Watts)
Center Element (Watts)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Drawer Racks
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select® Controls
Black Ceramic Glass
Extra-Large
Real Stainless Steel
Stainless Steel
Black
True Convection
Self Clean
Storage
Yes / Variable
(400 - 500 °F)
Yes
Yes / No / Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes / Yes
6 Hours
SpaceWise® Expandable
9" / 12" – 1,700 / 2,700
6" – 1,200
SpaceWise® Expandable
6" / 9" – 1,200 / 3,000
6" – 1,200
Keep Warm Zone – 100
5.7
1
Yes
1 Heavy-Duty,
1 SpaceWise® Half Rack,
1 Eortless™
Even Baking Technology
Power Broil
3,500 / 3,900
Yes
22-1/4" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60 Hz
13.5 / 10.0
40
210 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGEF3044K 01/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Freestanding Range
FGEF3044K F 30" Electric
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

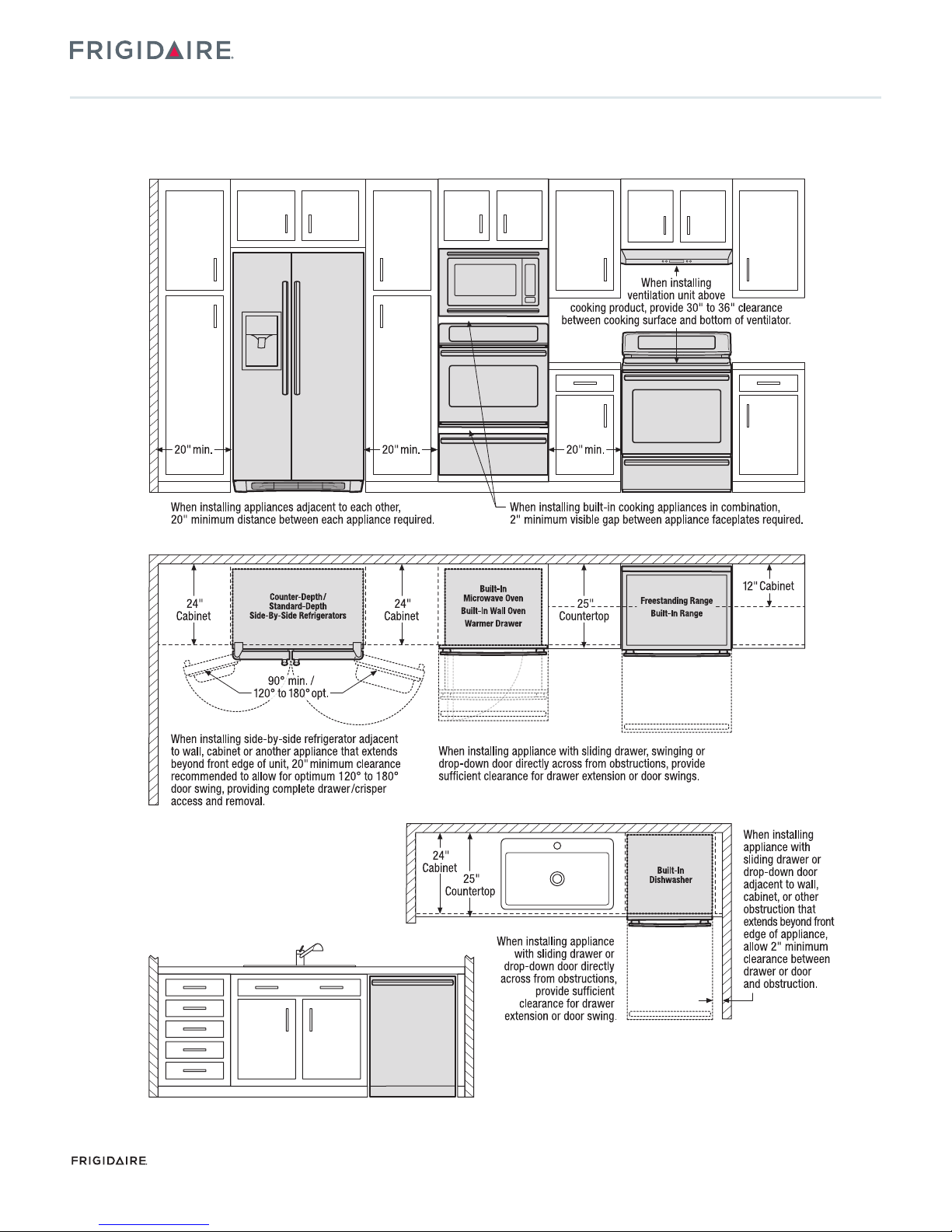

General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top

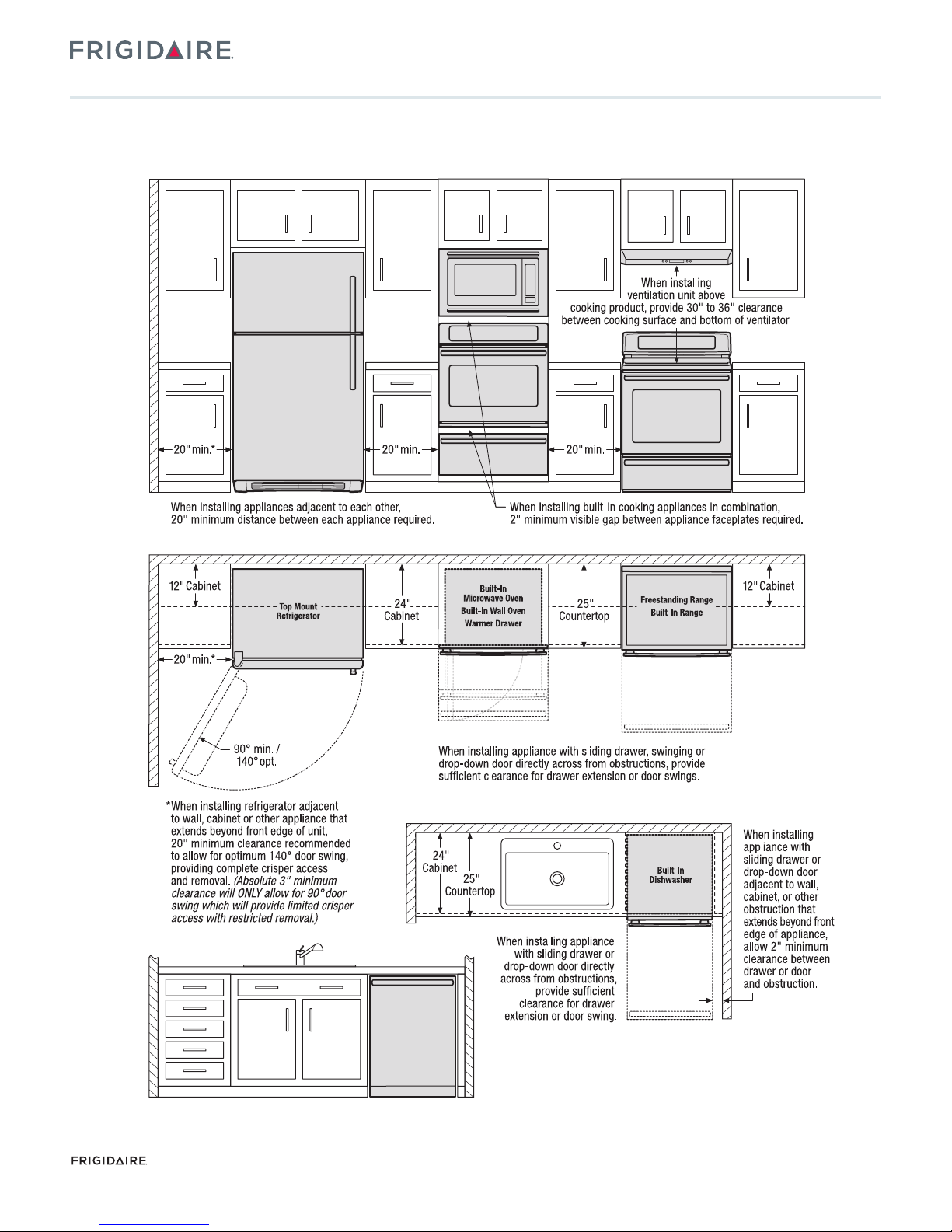

General Installation Guidelines
with Top Mount Refrigerator
