Frigidaire Gallery FGGF3042KF Manual de usuario

frigidaire.com

Signature Features

30" Gas

Quick Boil

Boil water faster with our

17,000-BTU burner.

Express-Select™ Controls

Easily go from warm to boil.

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it's easy to clean.

Eortless™ Oven Rack

Bottom rack extends when you

open the door for easy access.

Eortless Performance

Quick Bake Convection

Auto Shut-O

One-Touch Self Clean Option

Quick Clean Option

Broil Option

Performance-Driven Style

Low-Simmer Burner ( 5,000 - 500 BTU )

Continuous Cast Iron Grates

with Black Matte Finish

Even Baking Technology

Center Burner ( 9,500 BTU )

SpaceWise™ Design

Fits-More™ Cooktop

More Easy-To-Use Features

Delay Start

Extra-Large Window

Storage Drawer

Capacities

5.0 Cu. Ft. Oven Capacity

Overall Exterior Dimensions

Height 47"

Width 29-7/8"

Depth 28-1/4"

Available in:

Freestanding Range

FGGF3042K F

Stainless

(F)

Specifications

subject to change.

FRIGIDAIRE®

USA

•

250 Bobby Jones Expressway

•

Martinez, GA 30907

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

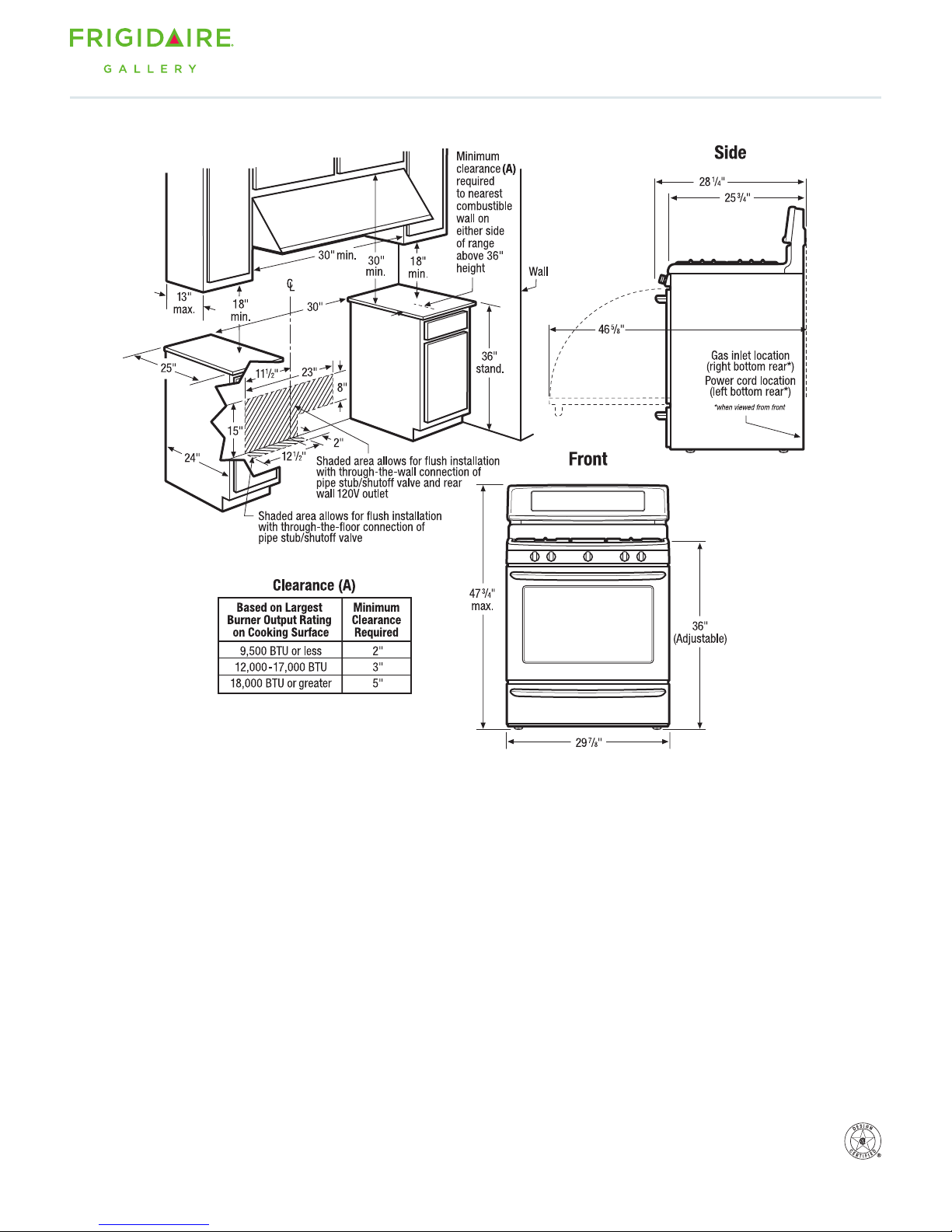

Freestanding Range Specifications

•Product Shipping Weight (approx.) – 215 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps

•Connected Load (kW Rating) @ 120 Volts = 1.8 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120 Volts = 15 Amps

•Always consult local and national electric and gas codes.

•Range ships with 3/4" factory regulator.

•Range is LP Gas convertible. (Optional LP Gas conversion

kit available.)

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed flush to wall with 0" minimum rear clearance.

•Minimum clearance required (from edge of rangetop to nearest

combustible wall on either side of range above 36" height) is based

on largest burner output rating on cooking surface.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Optional Accessories

•LP Gas Conversion Kit – (PN # GRLP3)

30" Gas Freestanding Ranges

Gallery

Freestanding Range

FGGF3042K F 30" Gas
