FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF376CEBP FGF376CE BLACK/BLACK USA

FGF376CESP FGF376CE WHITE/WHITE USA

FGF376CETP FGF376CE ALMOND/ALMOND USA

Publication No.

5995323960

990527

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002165

OWNER’S GUIDE # - 316000298

INSTALLATION GUIDE # - 316105822 GAS - RANGE

FGF376CEBP

FGF376CESP

FGF376CETP

06/98 2

Publication number

5995323960 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF376CE 5995323960

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF376CE (FGF376CEBP)

B = FGF376CE (FGF376CESP)

C = FGF376CE (FGF376CETP)

POS. NO PART NO DESCRIPTION

* 316000298 A B C Owner’s Guide

* 316105822 A B C Installation Instr

* 316112500 A B C Template, Anti-tip bracket

* # 316001420 A B C Harness-wiring,backguard

1 316028701 A B C Shield-backguard, rear wall

2 316051600 A B C Shield-backguard inner

2A 316053800 A B C Shield-backguard,inner top

3 3131275 A B C Lamp-fluorescent,backguard

4 3051222 A B C Receptacle-lamp,RH

4A 3051223 A B C Receptacle-lamp,LH

5 # 316053200 A B C Receptacle-starter

6 # 3206218 A B C Starter-lamp

10 # 316099800 A B C Ballast-lamp

13A 316095500 A B C Switch-warmer, infinite , drawer/zone

14 316022500 A B C Light/Lamp, warmer, indicator

15 316049104 A B C Support-backguard,RH

15A 316049105 A B C Support-backguard,LH

18 316026900 A - - End Cap,black ,RH

18 316026904 - B - End Cap,white ,RH

18 316026906 - - C End Cap,almond ,RH

18A 316026901 A - - End Cap,black ,LH

18A 316026905 - B - End Cap,white ,LH

18A 316026907 - - C End Cap,almond ,LH

19 316024534 - B - Panel-control,metal

19 316024535 - - C Panel-control,metal

19 316024536 A - - Panel-control,metal

20 # 316080011 A B C Clock/Timer,slew

20* 316089306 - B - Overlay-clock

20* 316089307 A - - Overlay-clock

20* 316089308 - - C Overlay-clock

21 316024900 A - - Trim-canopy/shield,black

21 316024902 - B - Trim-canopy/shield,white

21 316024903 - - C Trim-canopy/shield,almond

22 316059903 A B C Support-receptacle

23 316060002 A B C Bracket-clock mtg

24# 316118101 - B - Switch-rocker,oven light ,white

24# 316118102 - - C Switch-rocker,oven light ,almond

24# 316118103 A - - Switch-rocker,oven light ,grey-dark

31A 316095600 A - - Knob-warmer,black

31A 316095601 - B - Knob-warmer,white

31A 316095602 - - C Knob-warmer,almond

36 316109502 A - - Knob-top valve,black

36 316109503 - B - Knob-top valve,white

36 316109504 - - C Knob-top valve, almond

40 316086821 A - - Panel-manifold

40 316086822 - B - Panel-manifold

40 316086823 - - C Panel-manifold

42 316055300 - B - Trim-vent

42 316055301 A - C Trim-vent

46 316040201 A B C Lens-light/lamp,indicator ,red

56 316074907 A B C Deflector-flue, black

58 316043400 A B C Insulator-ballast

64 316062400 A B C Retainer plate

69 63600430028 A B C Screw-infinite switch

06/98 4

Publication number

5995323960 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

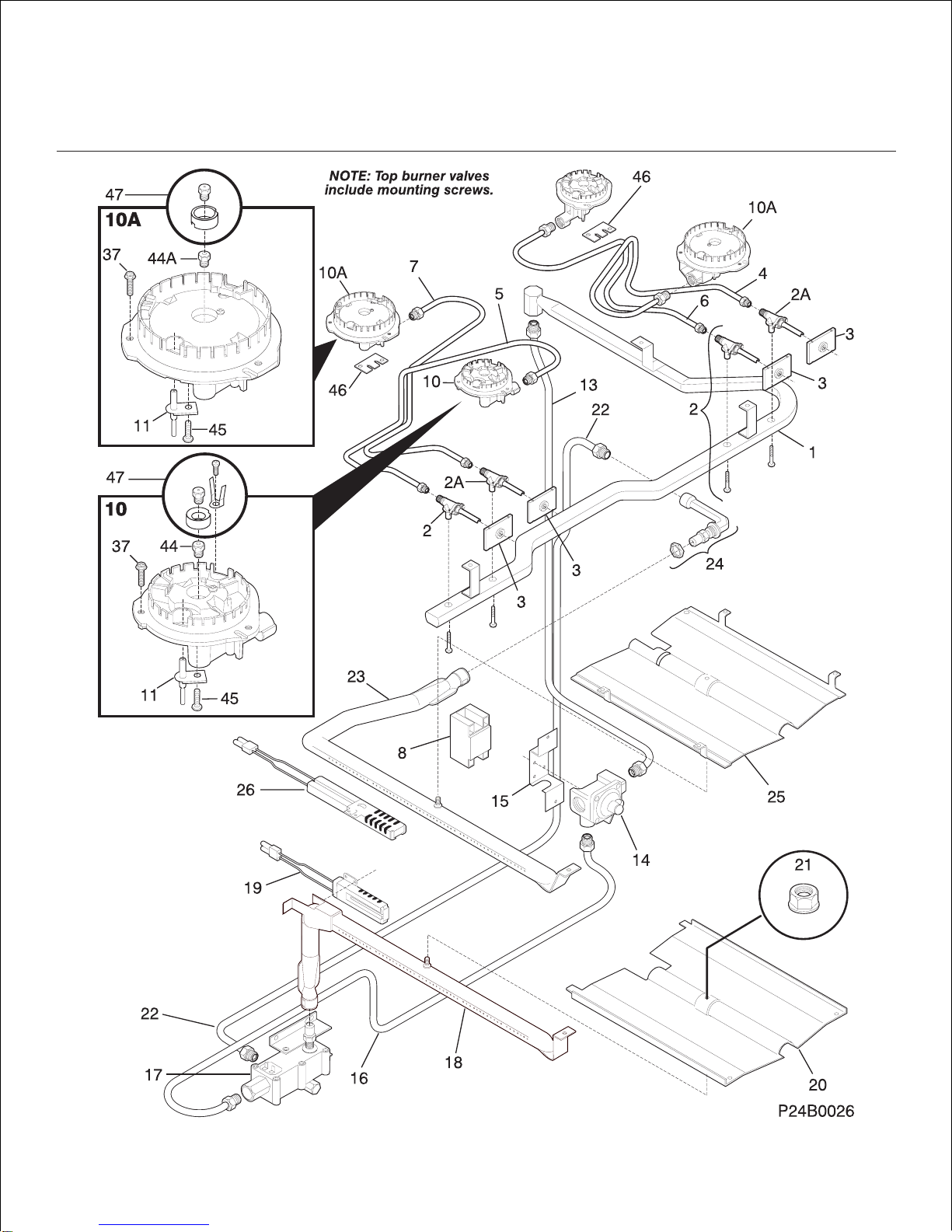

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 06/98

Publication number

FGF376CE 5995323960

CAUTION: Use the part number on all orders, not the position number.

A = FGF376CE (FGF376CEBP)

B = FGF376CE (FGF376CESP)

C = FGF376CE (FGF376CETP)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C Screw, wafer hd sq dr , 8-18AB x 1/2

1 316113801 A B C Manifold-pipe

2 # 316127500 A B C Valve-top burner

2* 316048200 A B C Screw-,hex washer head ,1/4-20 x 0.31 ,

w/gasket

2A # 316127502 A B C Valve-top burner,large ,(2)

3 # 316103600 A B C Switch-ignitor,(4)

4 # 316059612 A B C Tube-burner,red ,RF

5 # 316059613 A B C Tube-burner,green ,LF

6 # 316059614 A B C Tube-burner,nat. ,RR

7 # 316059615 A B C Tube-burner,black ,LR

8 # 5303280394 A B C Spark Module

8* 5303289034 A B C Harness-wiring, module/igniter

10 # 5303935025 A B C Burner Assy-top,sealed ,small ,9000 BTU

10A 5303935075 A B C Burner Assy-top,sealed ,large ,

11,100 BTU,(2), includes ,11,37,44,45

11 316011200 A B C Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C Regulator-pressure

14* 316021104 A B C Screw-regulator/brkt, hex , 8-18 x 3/8 ,

nick, 3

15 316091600 A B C Bracket-regulator

16 # 316065003 A B C Tube-valve to regulator,3/8

17 # 5303208499 A B C Valve-safety,dual

18 # 3131290 A B C Burner-oven

19 # 5303935066 A B C Ignitor-oven

20 3131284 A B C Baffle-oven burner

21 5303013272 A B C Nut, hex head sems

22 # 316065002 A B C Tube-valve to mixer

23 # 316087900 A B C Burner-broiler

24 # 316070400 A B C Mixer Elbow

25 5303210379 A B C Baffle-broiler

26 # 5308067970 A B C Ignitor-broiler

37 316069301 A B C Screw-burner mtg

44 5303210090 A B C Orifice-top burner,small

44A 31600801 A B C Orifice-top burner, large

45 316011100 A B C Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C Plate-burner tube

47 5303307190 A B C LP Conversion Kit

47 # 5303286386 A B C LP Conversion Kit

BURNER

06/98 6

Publication number

5995323960 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 06/98

Publication number

FGF376CE 5995323960

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF376CE (FGF376CEBP)

B = FGF376CE (FGF376CESP)

C = FGF376CE (FGF376CETP)

POS. NO PART NO DESCRIPTION

* 316105825 A B C Instal instr

1 316029412 A B C Back-main

2 3131314 A B C Shield-oven top

3 316081034 - B - Panel-bodyside, white ,RH

3 316081035 - B - Panel-bodyside, white , LH

3 316081036 - - C Panel-bodyside,almond ,RH

3 316081037 - - C Panel-bodyside,almond ,LH

3 316081038 A - - Penel-bodyside, black, RH, textured

3 316081039 A - - Panel-bodyside, black, LH, textured

4 316011914 A B C Burner Box

5 316107300 A B C Screw-leveling

6 316067902 A B C Rack-oven

7 316007002 A B C Hinge-oven door,(2)

8 5303212540 A B C Panel-oven bottom

8* 316064600 A B C Support-oven bottom

9 316073800 A B C Pan-broiler

10 3205234 A B C Insert-broiler pan

12 # 316027701 A B C Switch-oven light

13 316026800 A B C Rod-light switch /door

14 316116400 A B C Socket-light

15 5303013071 A B C Light Bulb/Lamp

16 08011086 A B C Lens-light/lamp, glass , oven

17 316087500 A B C Retainer-lens

18 # 316036300 A B C Latch-door

21 3014099 A B C Spacer-bodyside, (8)

25A 316092300 A B C Shield-warmer, upper

28 3011813 A B C Clip-wire, bodyside

30 316059200 A B C Bracket-main top,RH

30A 316059201 A B C Bracket-main top,LH

33 316014401 A B C Shield,rear wall

35 316116600 A B C Gasket-flue

36 5303272844 A B C Flue

37 # 316111202 A B C Probe-oven temp

38 316051700 A B C Shield-heat

38A 316097100 A B C Insulator,shield

39 # 3131425 A B C Cord-electric power

40 3200836 A B C Shield-heat baffle

41 3131570 A B C Cover-hinge cutout

42 5303288578 A B C Shield-bake burner

43 3131732 A B C Screw-oven bottom, 8-18 x 1.438

44 3131903 A B C Bumper-door/drawer, rubber

49 3051124 A B C Clip-spring mtg

53 5303288579 A B C Shield-main front

53A 08067992 A B C Shield-insulation

55 316107800 A B C Shield-flue

58A 316047705 A B C Insulation,oven wrapper

58B 316054200 A B C Insulation, 2" ,oven back

58G 08067973 A B C Insulation,main front

72 5303285692 A B C Cover-light/switch rod

77 316105500 A B C Glide-warmer, outer/RH & LH , (2)

88 316026400 A B C Rod-latch,auto

89 # 316028107 A B C Motor-latch/lock

155 316095201 A B C Shield-drawer, front warmer

170 316107200 A B C Anti-tip bracket

170* 316116000 A B C Screw-Anti tip, 1.75" concrete

06/98 8

Publication number

5995323960 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 06/98

Type your model numbers here

CAUTION: Use the Kenmore part number on all orders, not the position number.

TOP/DRAWER

A = FGF376CE (FGF376CEBP)

B = FGF376CE (FGF376CESP)

C = FGF376CE (FGF376CETP)

POS. NO PART NO DESCRIPTION

* 316001917 A B C Harness-warmer drawer

* 316021108 A B C Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C Screw-8-18x1/2 Tr Sqd black

* 316021112 - B - Screw-8-18x1/2 Tr Sqd White

* 316021113 - - C Screw-8-18x1/2 Tr Sqd Almond

* 5303280311 A B C Screw, waf hd sdr , 10-32 x 5/16 , (2)

1 316115901 A B C Drawer-warmer

2 316092901 A B C Liner, drawer

4 316056201 - B - Panel-drawer,white

4 316056202 - - C Panel-drawer,almond

4 316056203 A - - Panel-drawer,black

13 316105602 A B C Glide-warmer,inner RH

13A 316105601 A B C Glide-drawer, inner, LH

14 3206216 A B C Plug-button, glide

16 5303307708 A - - Main Top,black

16 5303307709 - B - Main Top,white

16 5303307710 - - C Main Top,almond

19 # 316011413 - B - Pan-burner,gray ,small ,(2)

19 # 316011414 - - C Pan-burner,almond ,small ,(2)

19 # 316011415 A - - Pan-burner,black ,small ,(2)

19A# 316011417 - B - Pan-burner,gray ,large ,(2)

19A# 316011418 - - C Pan-burner,almond ,large ,(2)

19A# 316011419 A - - Pan-burner,black ,large ,(2)

20 # 316085304 - B C Grate,(4)

20 # 316085305 A - - Grate,(4)

22A 316098505 A - - Cap-burner,black ,large

22A 316098509 - B C Cap-burner,large ,gloss gray

22 316122100 A - - Cap-burner, powder metal ,gloss black ,

small,(4)

22 316122101 - B C Cap-burner glossy,glossy ,gray ,(4)

39 316026105 A - - Handle-drawer,black

39 316026106 - B - Handle-drawer,white

39 316026107 - - C Handle-drawer,almond

44 3131903 A B C Bumper-door/drawer, rubber

48 316077401 A B C Shield-maintop,(2)

80 316109700 A B C Seal-door, warmer drawer

81 # 316093100 A B C Element, warmer drawer

82 316093200 A B C Bracket-mounting, warmer element

83 316093300 A B C Shield-terminal, warmer drawer

84 316093500 A B C Thermo disc, warmer drawer

85 316093600 A B C Rack, warmer drawer

86 316095800 A B C Clip-hold down, warmer element

87 316091900 A B C Base-warmer

06/98 10

Publication number

5995323960 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

DOOR

Otros manuales para FGF376CETP

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rango de Frigidaire

Frigidaire

Frigidaire FGGS3045KBB Service Manual de usuario

Frigidaire

Frigidaire FEF366EM - 30" Electric Smoothtop Range Manual de usuario

Frigidaire

Frigidaire CPLEF398DCJ Manual de usuario

Frigidaire

Frigidaire FGF363MXC Manual de usuario

Frigidaire

Frigidaire 316902209 Manual del propietario

Frigidaire

Frigidaire 318200869 Manual de usuario

Frigidaire

Frigidaire CGEF3032MF Manual del propietario

Frigidaire

Frigidaire CPLEFMZ9GC Manual de usuario

Frigidaire

Frigidaire CGLEF379DSE Manual de usuario

Frigidaire

Frigidaire CPLEFMZ9GCA Manual de usuario

Frigidaire

Frigidaire Gas Range Guía del usuario

Frigidaire

Frigidaire FGF335CGTF Manual de usuario

Frigidaire

Frigidaire FFEF3010TB Manual de usuario

Frigidaire

Frigidaire FGFB68C Manual de usuario

Frigidaire

Frigidaire FPEF4085KF Manual de usuario

Frigidaire

Frigidaire FED367ASF Manual de usuario

Frigidaire

Frigidaire FGEF3032K Service Guía del usuario

Frigidaire

Frigidaire FPES3085KF - 30" Slide-In Smoothtop Electric... Manual de usuario

Frigidaire

Frigidaire 318203877 Manual de usuario

Frigidaire

Frigidaire Electric Range Manual de usuario

Frigidaire

Frigidaire GLEF389HBB Manual de usuario

Frigidaire

Frigidaire FPGF3685LS Manual del propietario

Frigidaire

Frigidaire FGEF304DKFC Manual de usuario

Frigidaire

Frigidaire FCS367F Manual de usuario

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Whirlpool

Whirlpool 8575985-W Manual de lista de piezas

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Whirlpool

Whirlpool Roper FGP305KW3 Manual de usuario

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
